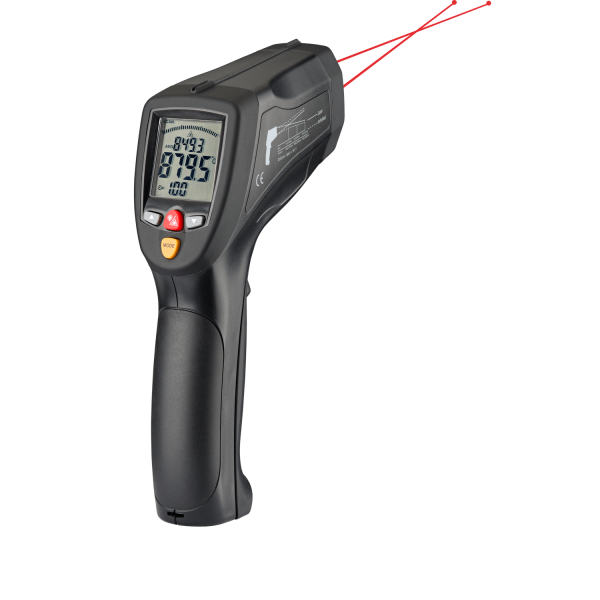

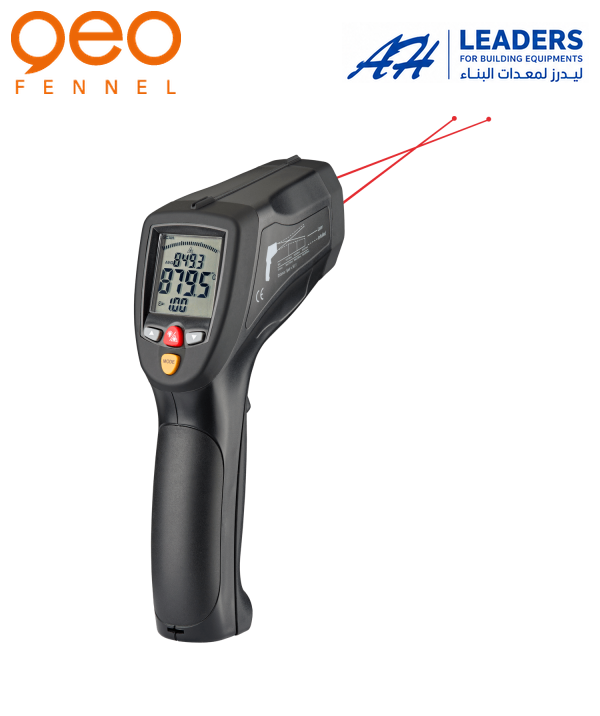

FIRT 1600 Data

Short Description

Infrared Thermometer

Buy NowOrder Via WhatsApp

Key Benefits

  • ✓ For non-contact temperature measurement with laser dot
  • ✓ 150 ms fast sampling with 1 % accuracy
  • ✓ High temperature range
  • ✓ Built-in dual laser pointers for accurate targeting
  • ✓ Permanent measuring
  • ✓ Compatible with all standard connector Type-K thermocouples
  • ✓ USB interface
  • ✓ Memory for 99 measurements
  • ✓ Easy transmission of data to PC via USB interface

For very high temperature measurements.

With integrated memory for monitoring and analysis.

Trades and tasks: Foundry, monitoring of: brake drums, discs, electric motors, exhaust systems.

Included in the scope of delivery:
  • Battery
  • USB cable
  • Mini tripod
  • Type-K temperature probe
  • Case

Technical Specifications

Temperature range:
-50°C - +1600°C
D(istance):S(pot):
50:1
Ø measuring spot at 100 cm:
20 mm
Accuracy:
± 1.0 % ± 1 °C ((IR) +20 °C to +400 °C), ± 0.5 % ± 1.5 °C ((TK) -50 °C to +1370 °C)
Emissivity:
adjustable 0.10 – 1.0
Laser pointer:
yes, dual
Laser class:
2
Resolving Power:
0,1°C until 1000°C, 1°C at 1000°C
Response time:
< 150 ms
Power supply:
9 V battery
Extended size:
204 x 155 x 52 mm
High and low alarm:
yes
Illuminated display:
yes
Max, Min, DIF, AVG record:
yes
Auto data HOLD:
yes
Weight:
0,3 kg

Temperature range:, -50°C - +1600°C, D(istance):S(pot):, 50:1, Ø measuring spot at 100 cm:, 20 mm, Accuracy:, ± 1.0 % ± 1 °C ((IR) +20 °C to +400 °C), ± 0.5 % ± 1.5 °C ((TK) -50 °C to +1370 °C), Emissivity:, adjustable 0.10 – 1.0, Laser pointer:, yes, dual, Laser class:, 2, Resolving Power:, 0,1°C until 1000°C, 1°C at 1000°C, Response time:, < 150 ms, Power supply:, 9 V battery, Extended size:, 204 x 155 x 52 mm, High and low alarm:, yes, Illuminated display:, yes, Max, Min, DIF, AVG record:, yes, Auto data HOLD:, yes, Weight:, 0,3 kg
