Expert 600s
Short Description
Diamond blade diameter: Ø600 mm

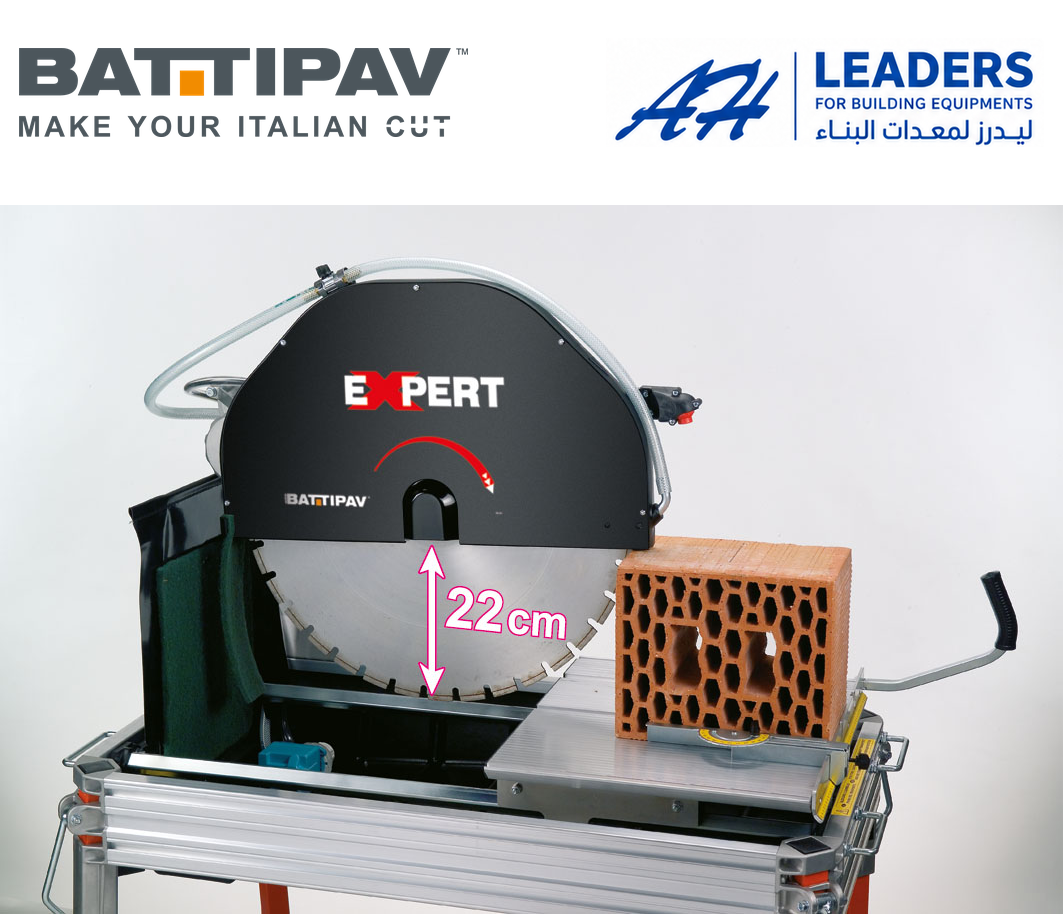

Max cutting thickness: 220 mm
Max cutting depth with 2 runs: Max cutting depth with 2 RUNS
Power engine: 5,5Hp/4Kw, 8A
Engine type: TRIFASE – 400V~50/60Hz
Max cutting length
Key Benefits
- ✓ Three phase engine 400V 50Hz 5.5Hp / 4Kw with thermal and amperometrical protection
- ✓ Switch with release coil
- ✓ Overheat protection with manual reset
- ✓ Sliding working table and tilting cutting head

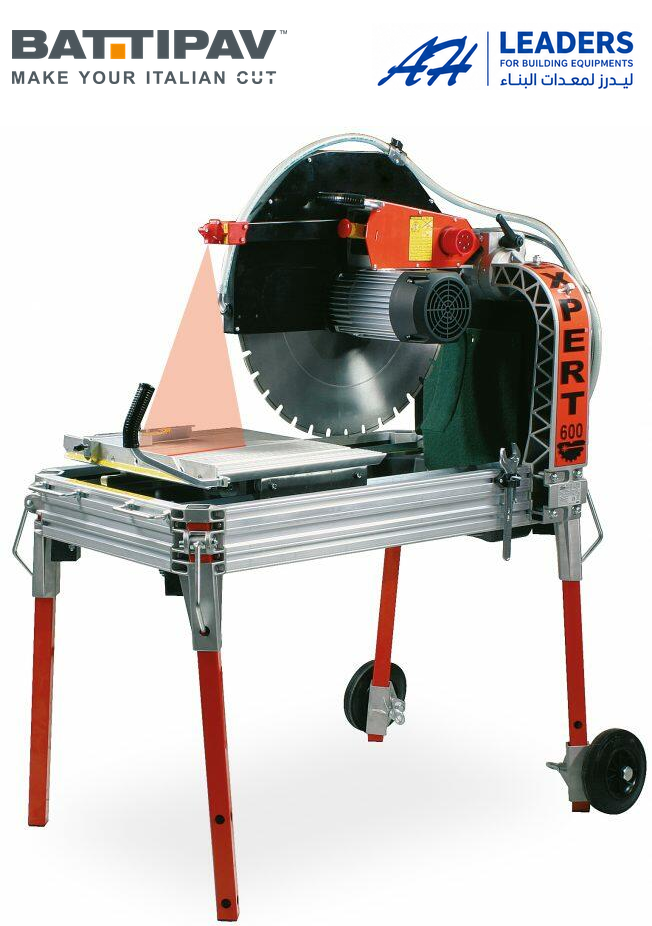

- ✓ Laser instrument
- ✓ Kit wheels
- ✓ Adjustable legs
- ✓ Adjustable goniometer fence
- ✓ Water recycling pump type S3
- ✓ Water cooled

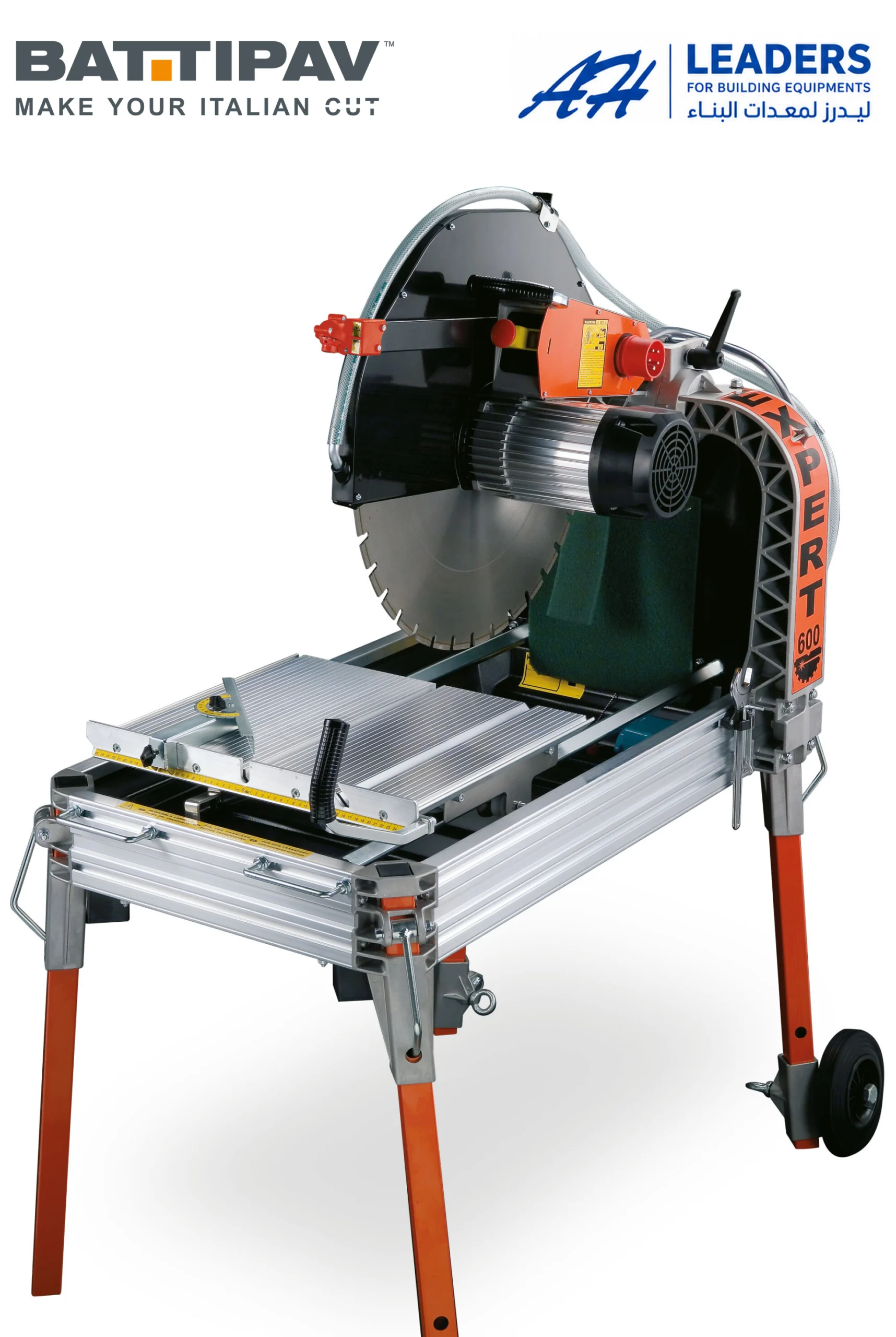

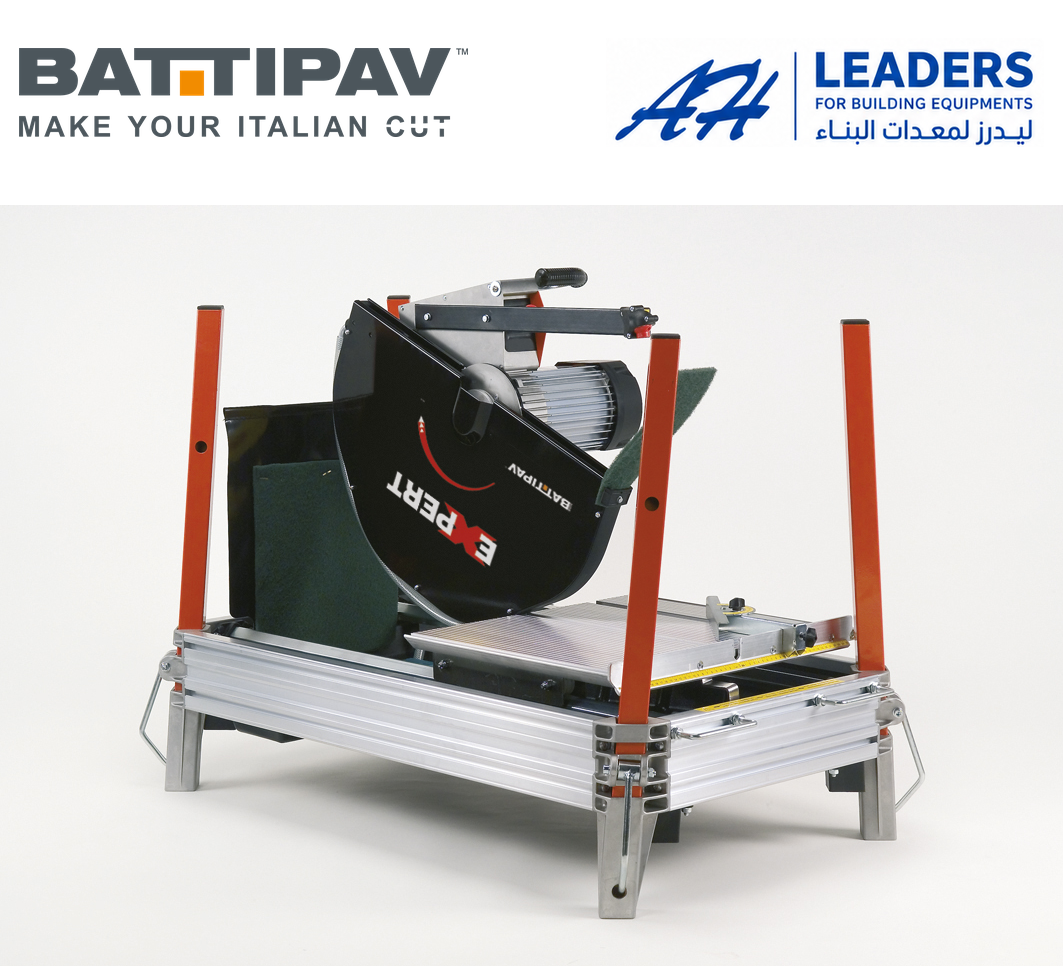

EXPERT is a masonry saw ideal for the building sector.
Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.
It makes cuts pushing the sliding working table and it is built to work with diamond disks Ø 600 mm or Ø 500 mm according the version
Structure
Aluminium extrusion to get the maximum of rigidity and lightness at the same time.

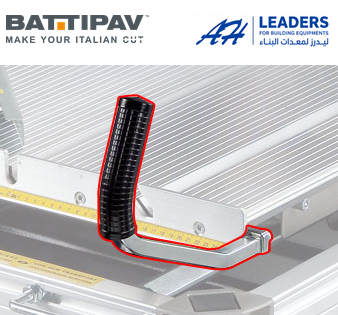

Handle on the working table
To get the maximum safety for the operator.

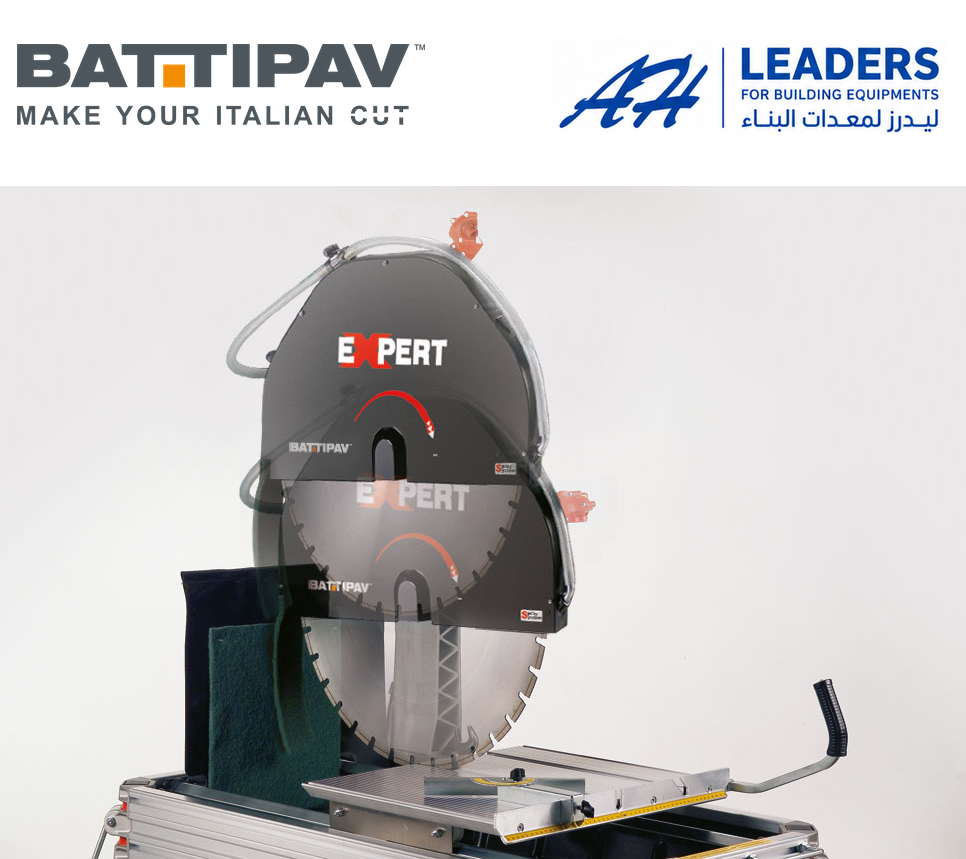

Tilting cutting head
Tilting cutting head for greater rapidity and precision in the execution of particular cuts.
It can be locked at the desired height.

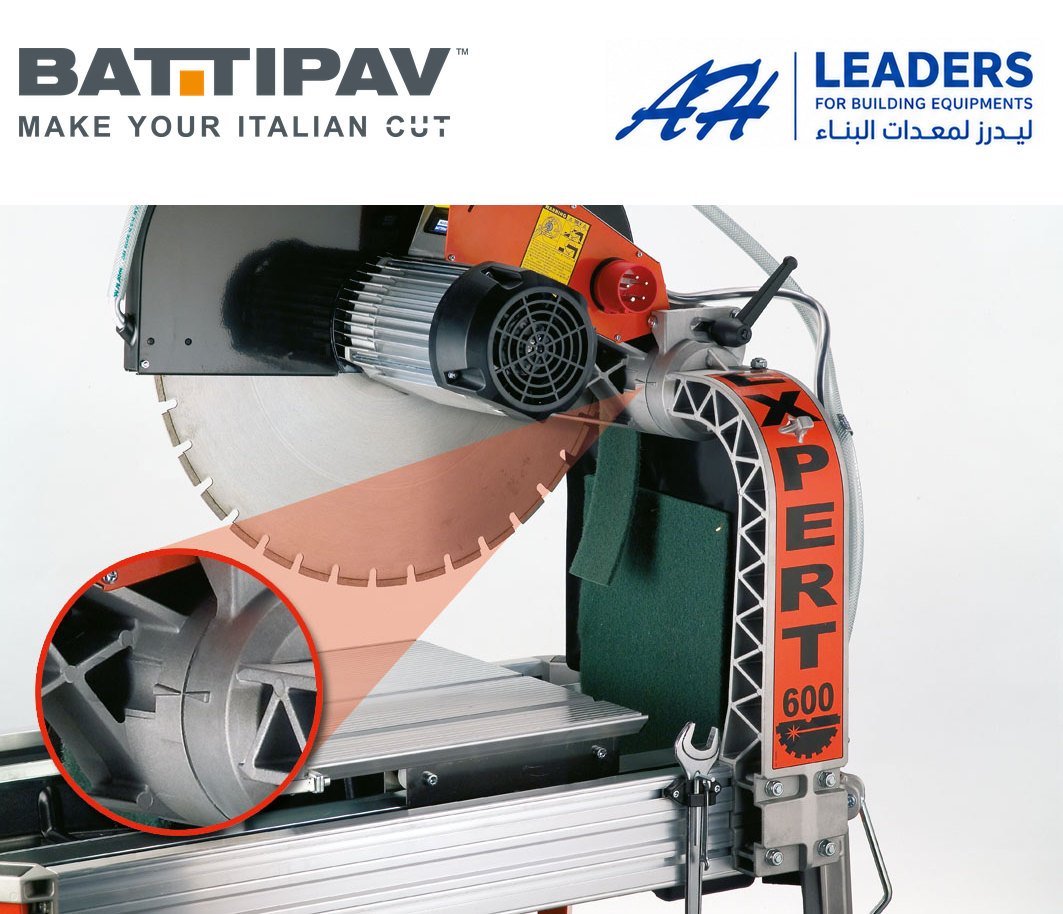

Aluminium cutting head
The cutting head and the arm are in die-casting aluminium to achieve maximum rigidity and lightness.
Quick reading indicator of the position for the cut in 2 runs.
Straight cuts
Cutting position with sliding carriage.
Transport
Built to reduce to the minimum the overall dimensions during transport and, above all, for storage.
Technical Specifications
Diamond blade diameter, Ø600 mm, Max cutting thickness, 220 mm, Max cutting depth with 2 runs, Max cutting depth with 2 RUNS, Power engine, 5,5Hp/4Kw, 8A, Engine type, TRIFASE – 400V~50/60Hz, Max cutting length, 750 mm, Machine's dimension in stock, 80x120x103 cm, Tool hole, Ø25,4 mm, Size tile for diagonal cutting, 412x412mm, Amperometric protection, 10-16A, Side bench dimesion, 442x520mm, Machine's dimension, 1240x900xH1530mm, Weight, 85 kg, Thermic protection, 160°c, Water pump, S3, Water tank capacity, Min. 19 / Max. 25 liters, Wheels, Standard, SRS phase inverter, Optional, Fence, Standard
