Core Drilling BDB 817

Short Description

Model: BDB817
Power: 1,800
Torque: 27 | 57 Nm
Drilling Ø: 30 | 160

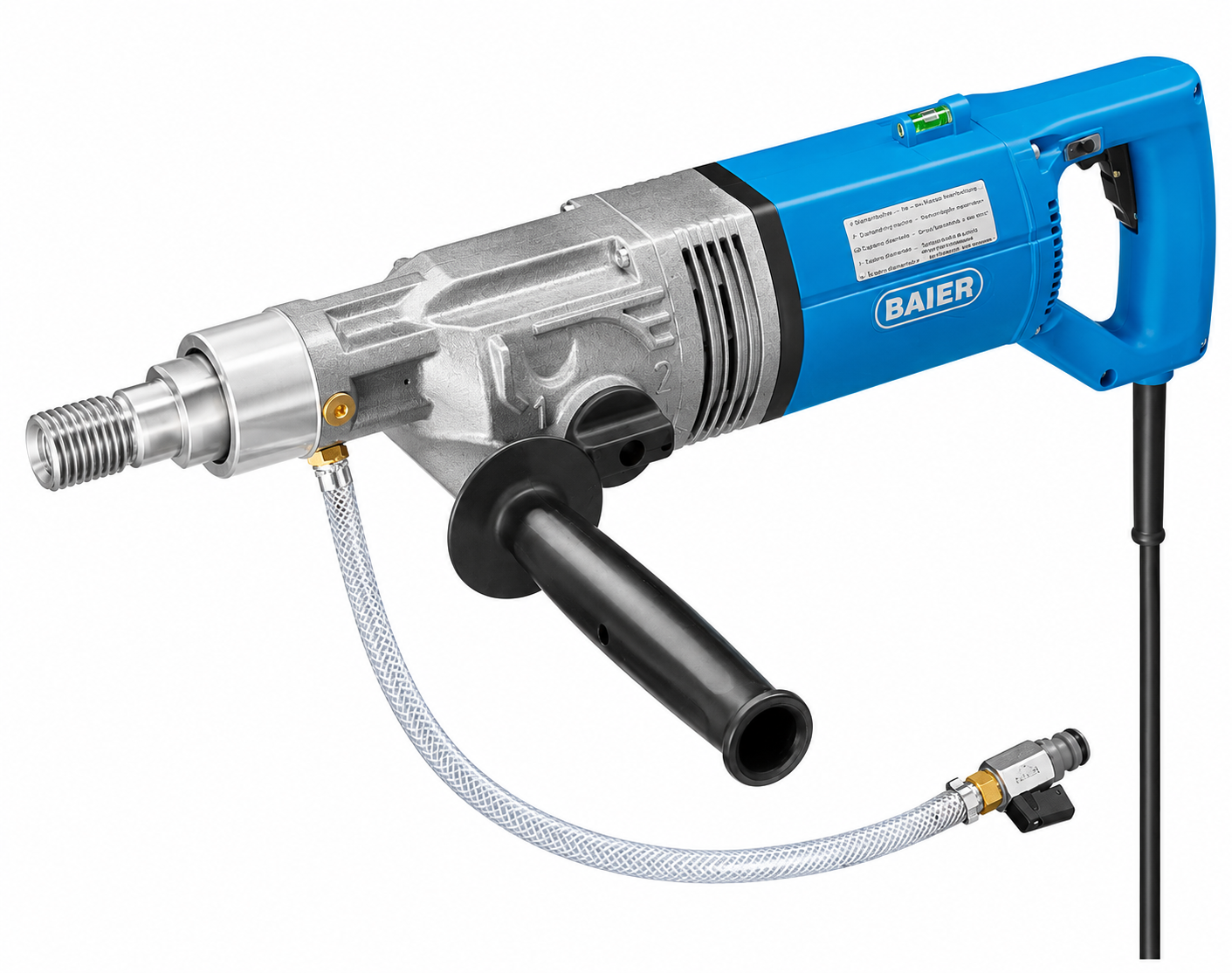

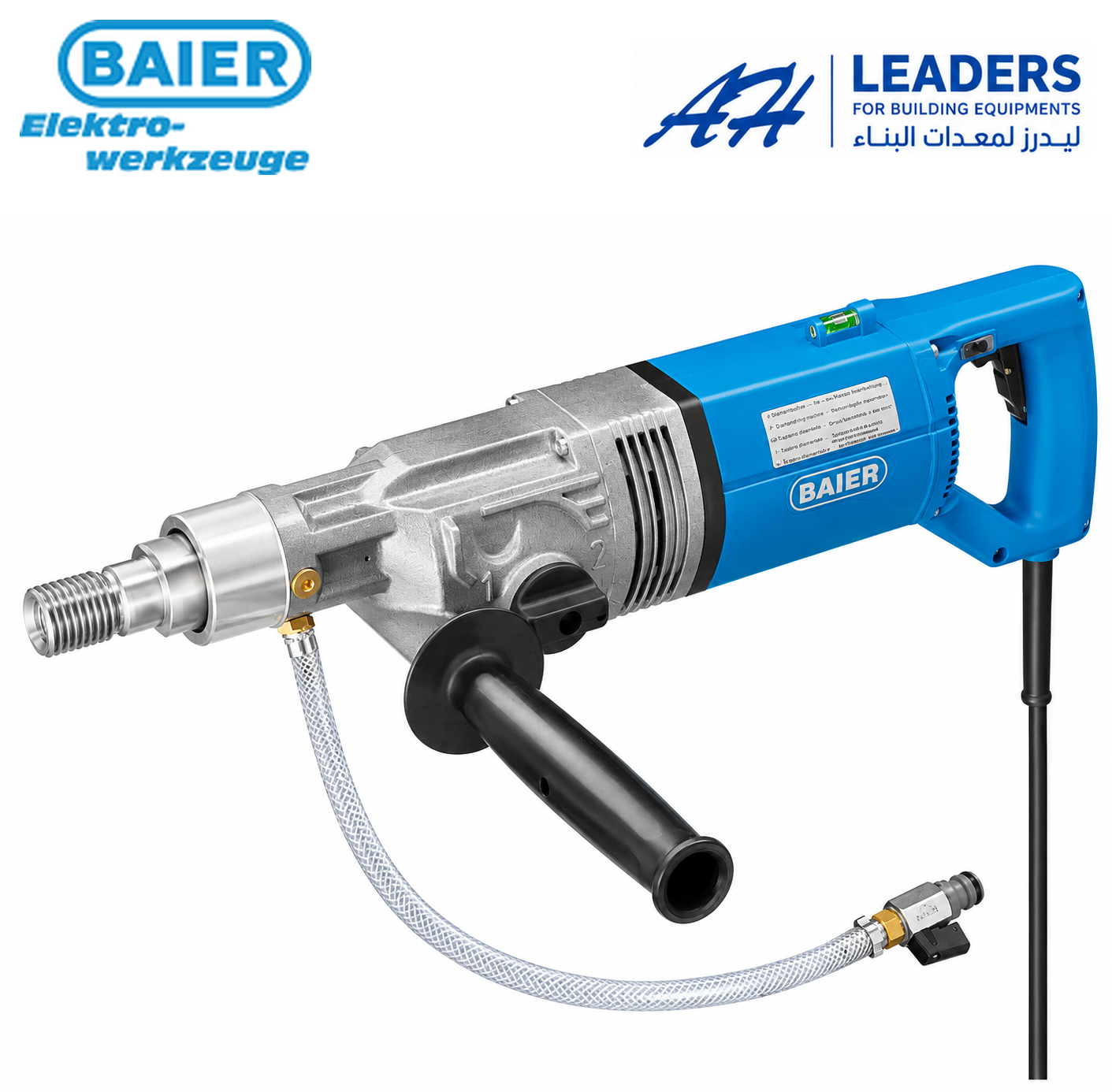

Wet core drilling machine for hand and drill stand guided core drilling in hard stone from Ø 30 mm up to 160 mm

  • 2 gear box with special continuous greasing
  • Integrated water leveling
  • Thread 60 mm
  • Scope of supply: diamond wet core drilling machine BDB 817 in metall case, flat wrench and copper paste
  • Safe through worldwide unique Safety Tronic and integrated PRCD-switch
  • No overload through electronics and thus no waiting time, immediate re-start of motor
  • Low working cost through electronical and mechanical clutch since mechanical clutch due to electronics almost wear-free
  • Electronics for soft-start and LED-display for best coring results
  • Low working cost thanks to maintenance friendly water swivel

Technical Specifications

Power
1,800
Torque
27 | 57 Nm
Gear Quantity
2
Speed
1,100 | 2,200
Drilling Ø
30 | 60 | 160
Thread
1/2“ and 1 1/4“
Weight
6,7 Kg

Power, 1,800, Torque, 27 | 57 Nm, Gear Quantity, 2, Speed, 1,100 | 2,200, Drilling Ø, 30 | 60 | 160, Thread, 1/2“ and 1 1/4“, Weight, 6,7 Kg
