EasyWheel M20 Measuring Wheel
Short Description
Compact folding measuring wheel with a 0–9,999.9 m range, ±0.1% accuracy and handle-mounted brake and zero reset. Supplied with carrying bag.
Key Benefits

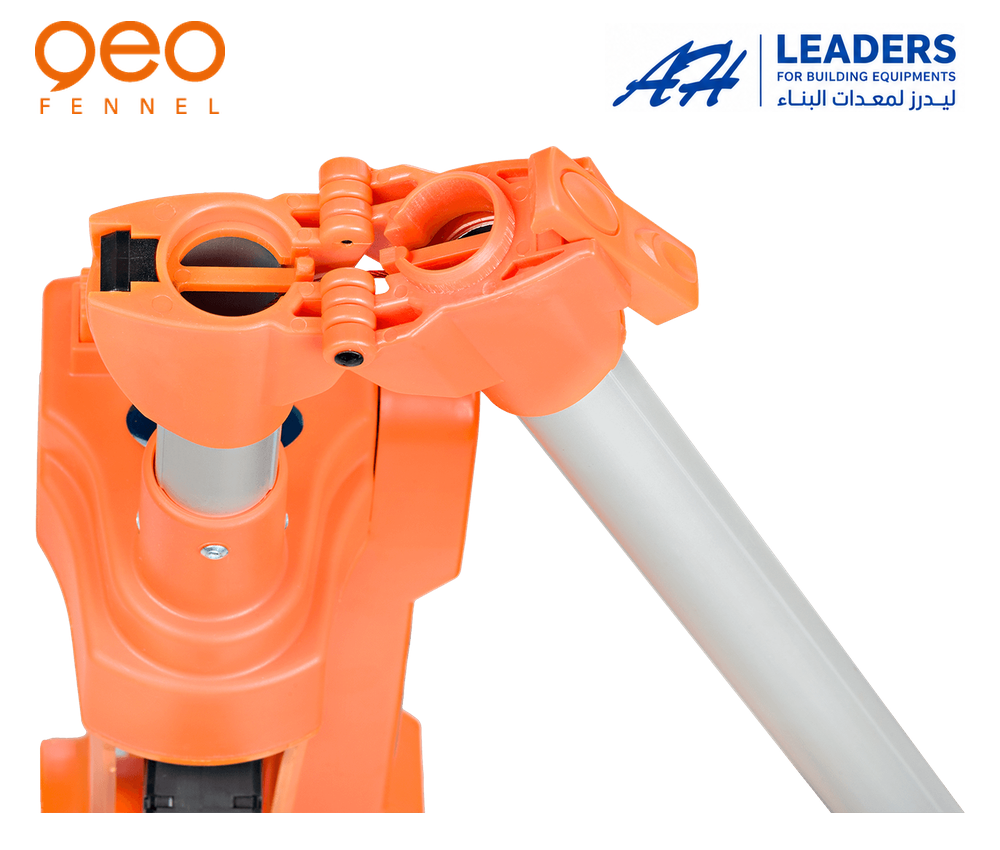

- ✓ Foldable frame for convenient transport and storage.

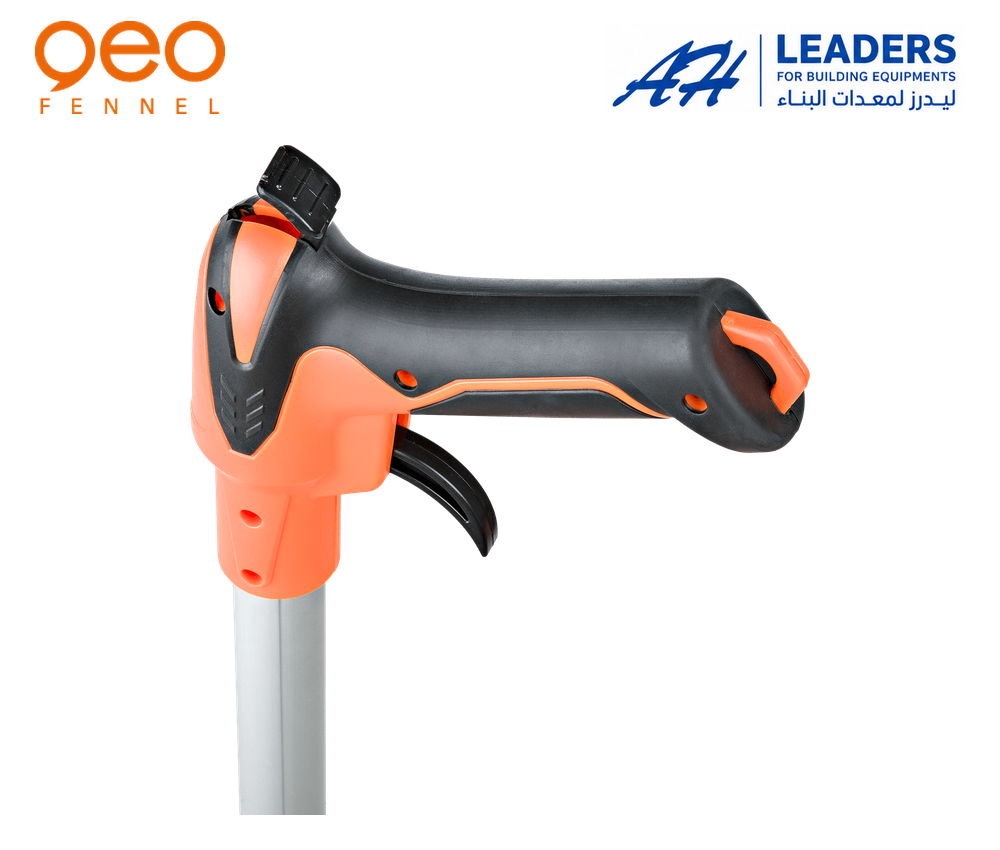

- ✓ Brake and zero-reset controls integrated into the handle.
- ✓ Counter adds distance forwards and subtracts in reverse.
- ✓ Non-slip pistol grip for comfortable handling.
- ✓ Movable pointer helps define measurement start and end positions.

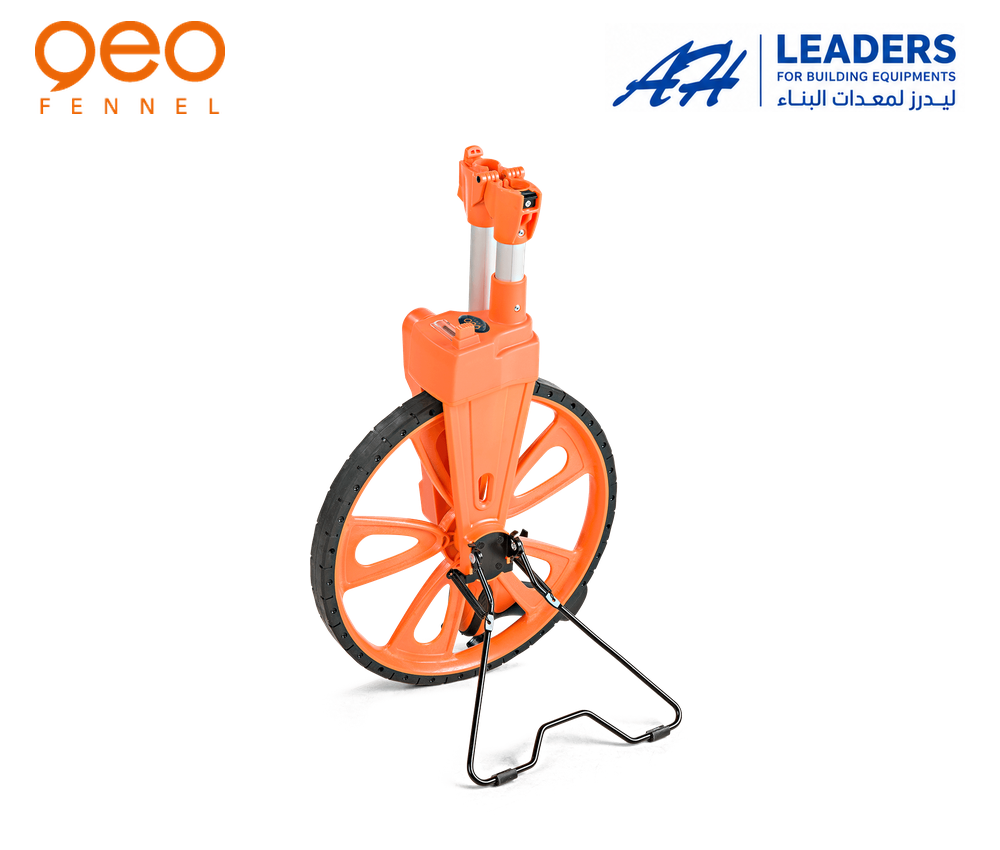

- ✓ Wide folding stand and coated wheel for stability and traction.

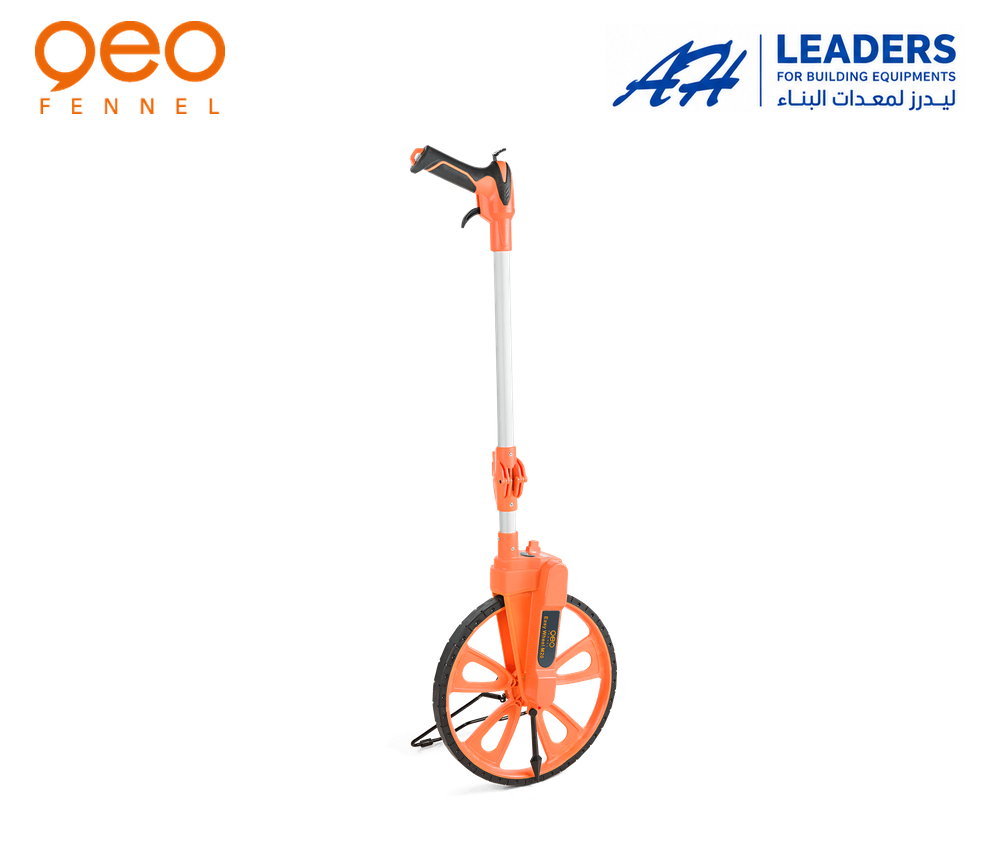

The geo-FENNEL EasyWheel M20 is a compact distance measuring wheel for surveying, construction and site measurement. Its folding frame and handle-mounted controls make transport and repeated measurements convenient.
Supplied with
- EasyWheel M20 measuring wheel.
- Carrying bag with shoulder strap.
Practical operation

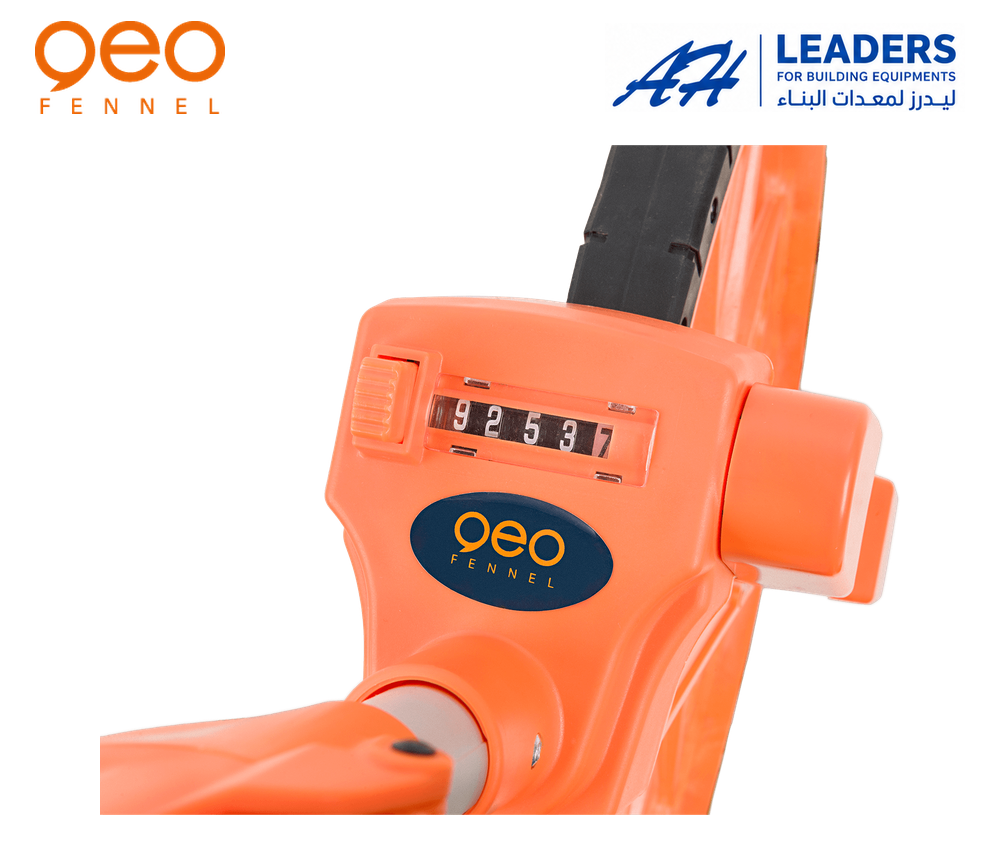

The counter adds when moving forward and subtracts when moving backward. The smallest displayed increment is 10 cm. Use the movable pointer to position the start and finish of each measurement.
Technical Specifications
Model, EasyWheel M20, Article number, 120, Measuring range, 0–9,999.9 m, Accuracy, ±0.1%, Smallest measuring unit, 10 cm, Wheel circumference, 1 m, Extended dimensions, 1000 × 140 mm, Folded dimensions, 510 × 140 mm, Weight, 1.8 kg
