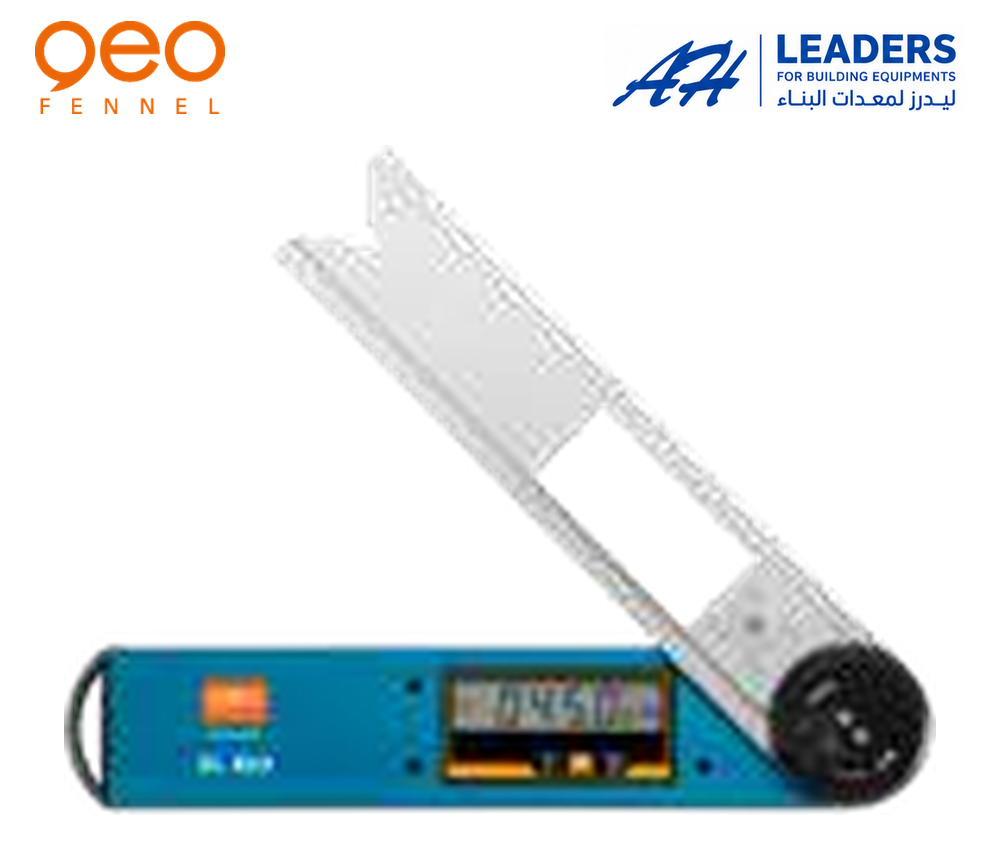

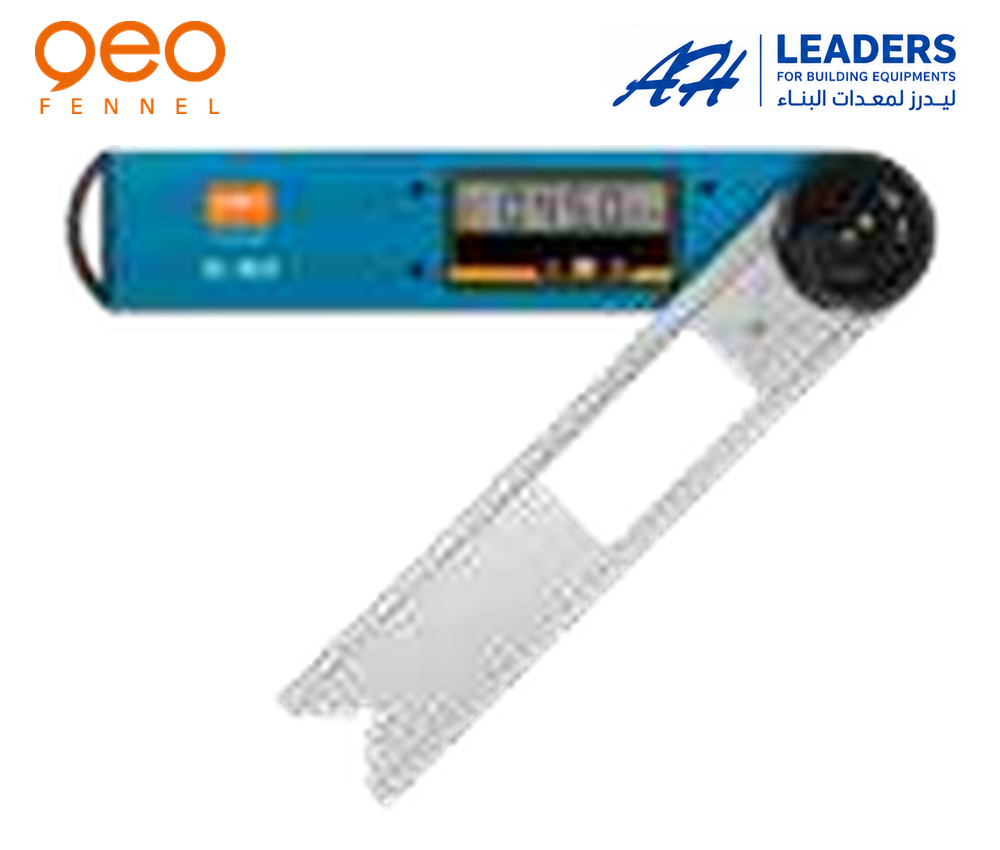

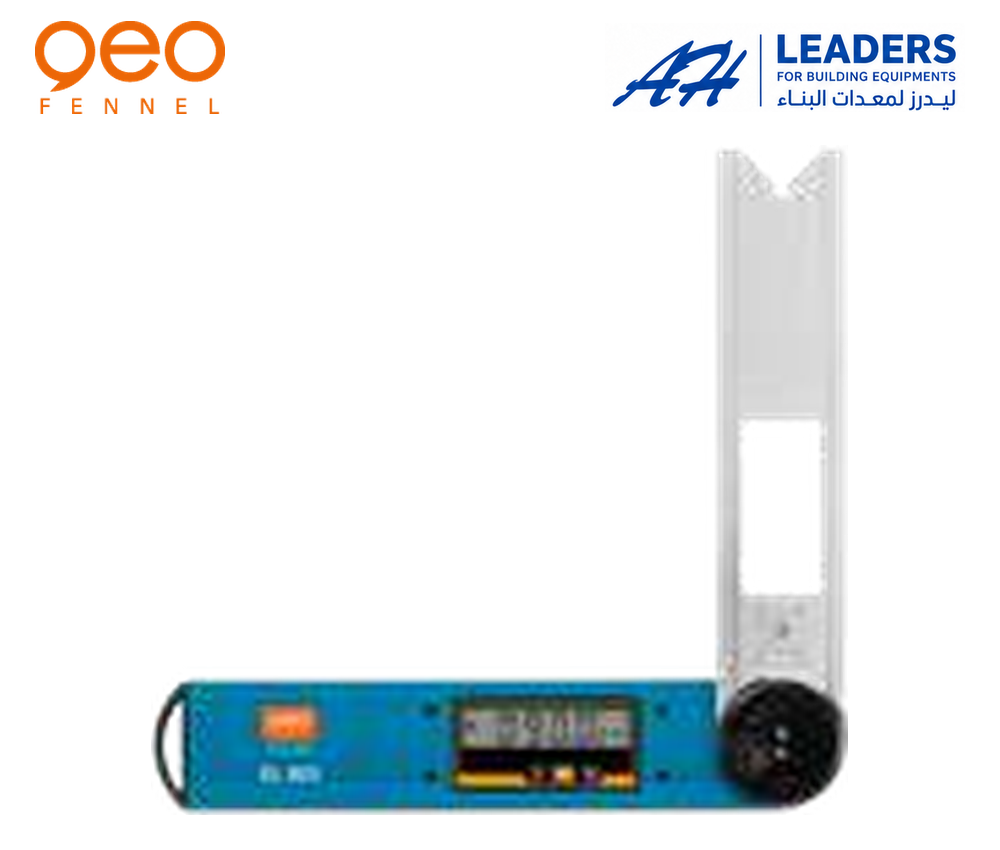

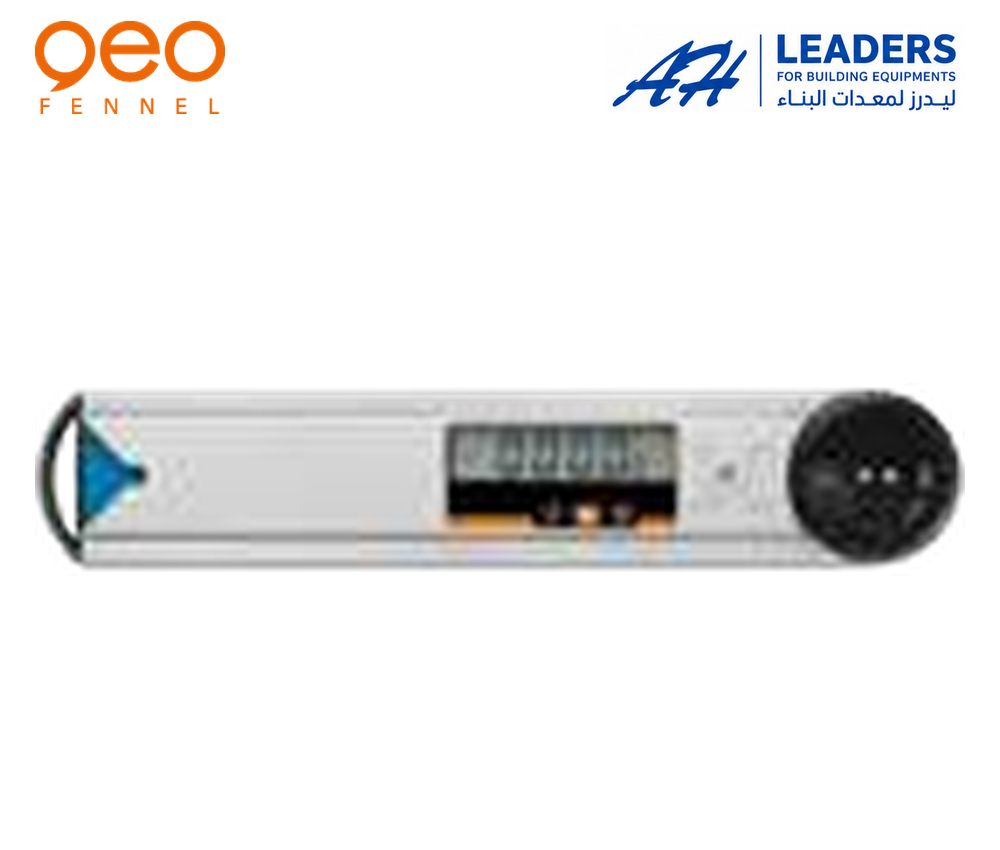

EL 823 Digital Angle Finder
Short Description
Compact digital angle finder with an adjustable aluminium arm for relative and absolute angle measurements.
Request a QuoteAsk on WhatsApp
Key Benefits
- ✓ Adjustable aluminium arm can be fixed in position.
- ✓ Relative and absolute angle measurements.
- ✓ Zero setting at any position.
- ✓ HOLD function to retain the displayed reading.
- ✓ Large LCD for easy reading.
Compact digital angle finder with an adjustable aluminium arm for relative and absolute angle measurements.
Supplied with
Instrument, carrying case and battery.
Technical Specifications
Model
EL 823
Article number
D2100
Measuring range
0–360°
Accuracy
±0.1°
Resolution
0.05°
Dimensions
250 × 25 × 50 mm
Weight including battery
0.34 kg
Power supply
1 × 3 V lithium battery
Operating time
2000 h
Operating temperature
+5°C to +45°C
Model, EL 823, Article number, D2100, Measuring range, 0–360°, Accuracy, ±0.1°, Resolution, 0.05°, Dimensions, 250 × 25 × 50 mm, Weight including battery, 0.34 kg, Power supply, 1 × 3 V lithium battery, Operating time, 2000 h, Operating temperature, +5°C to +45°C
