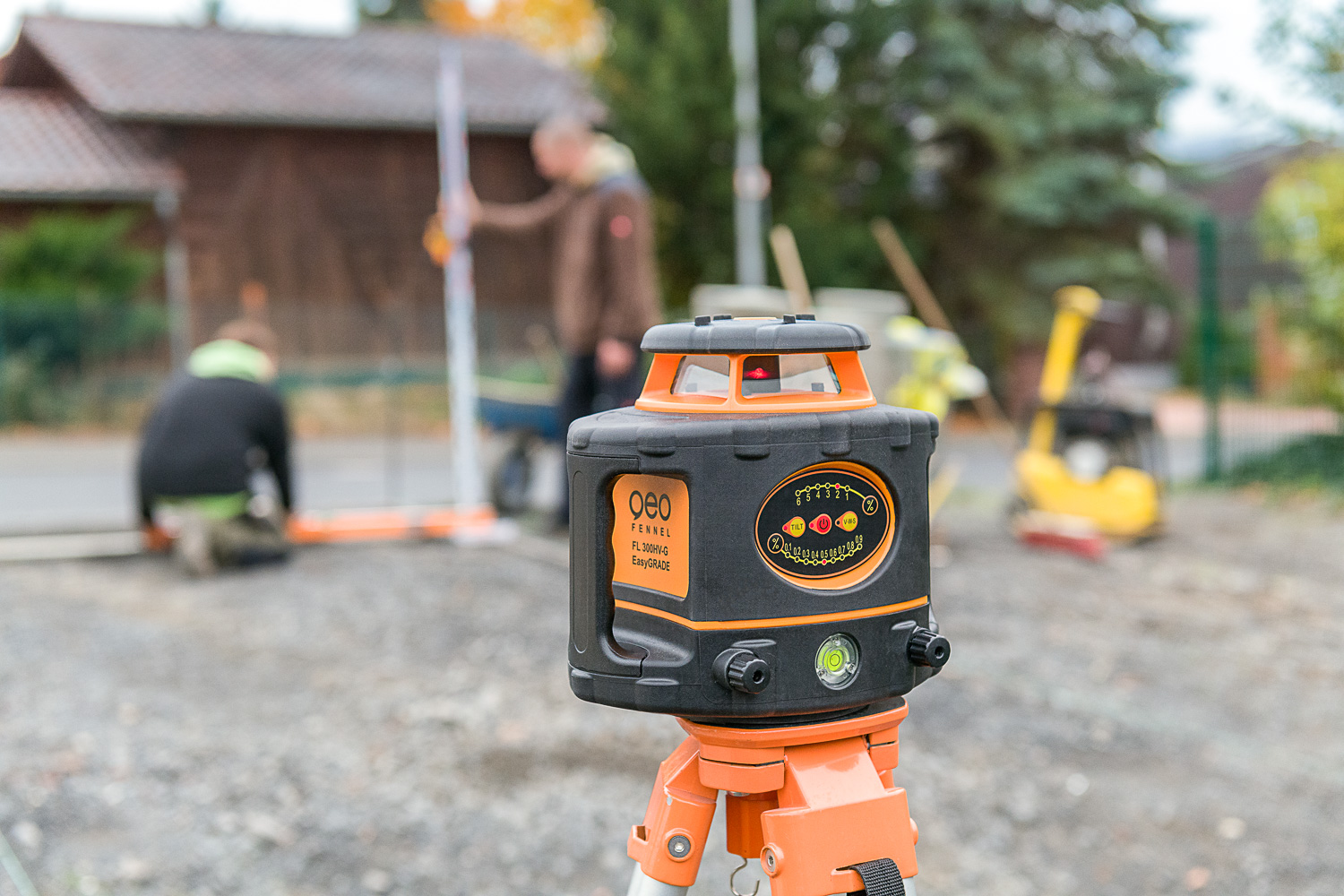

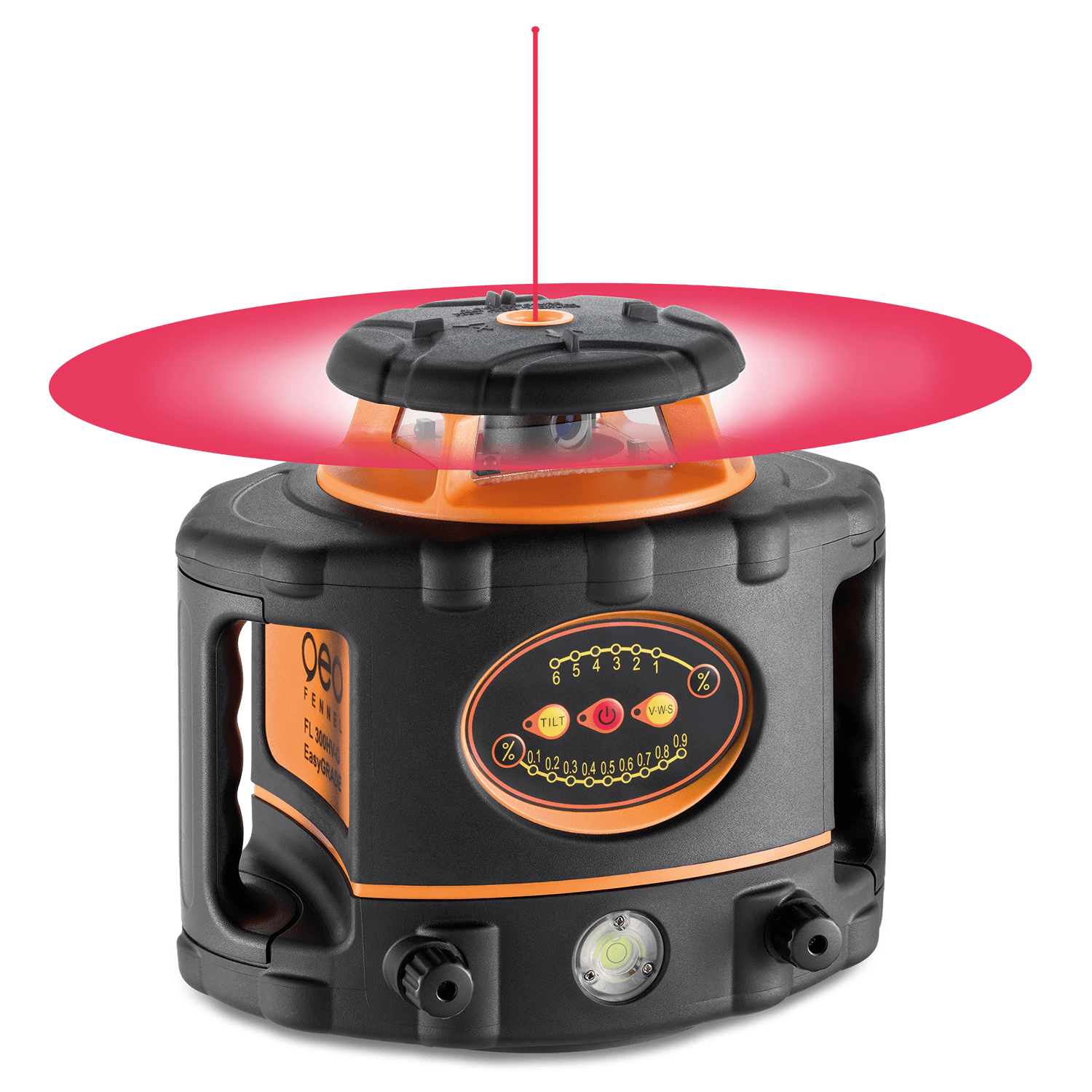

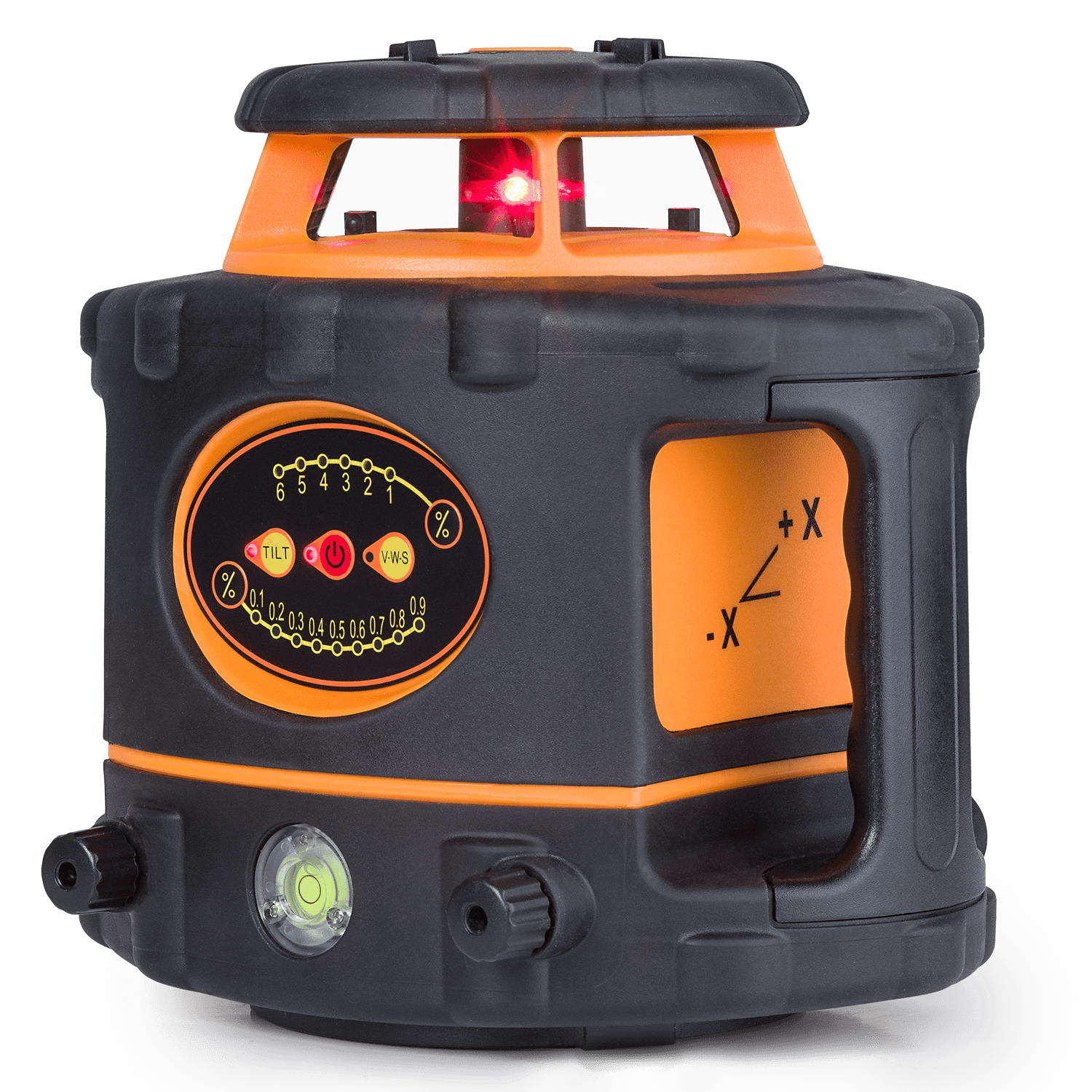

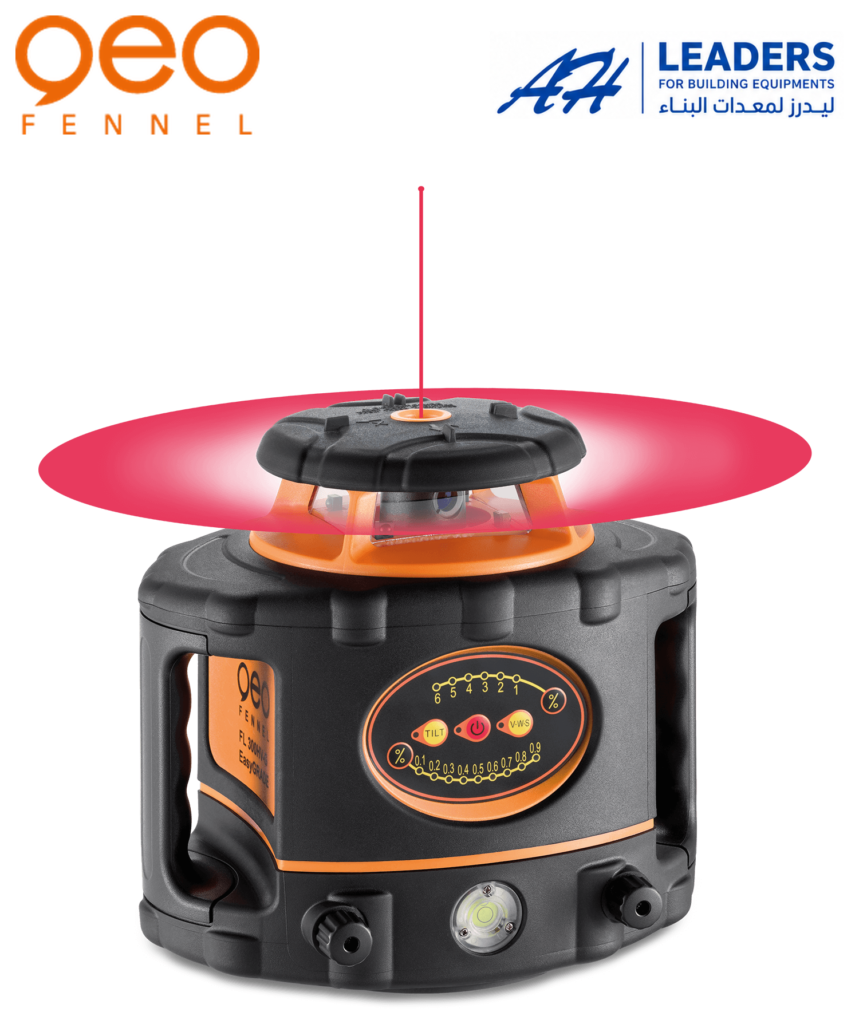

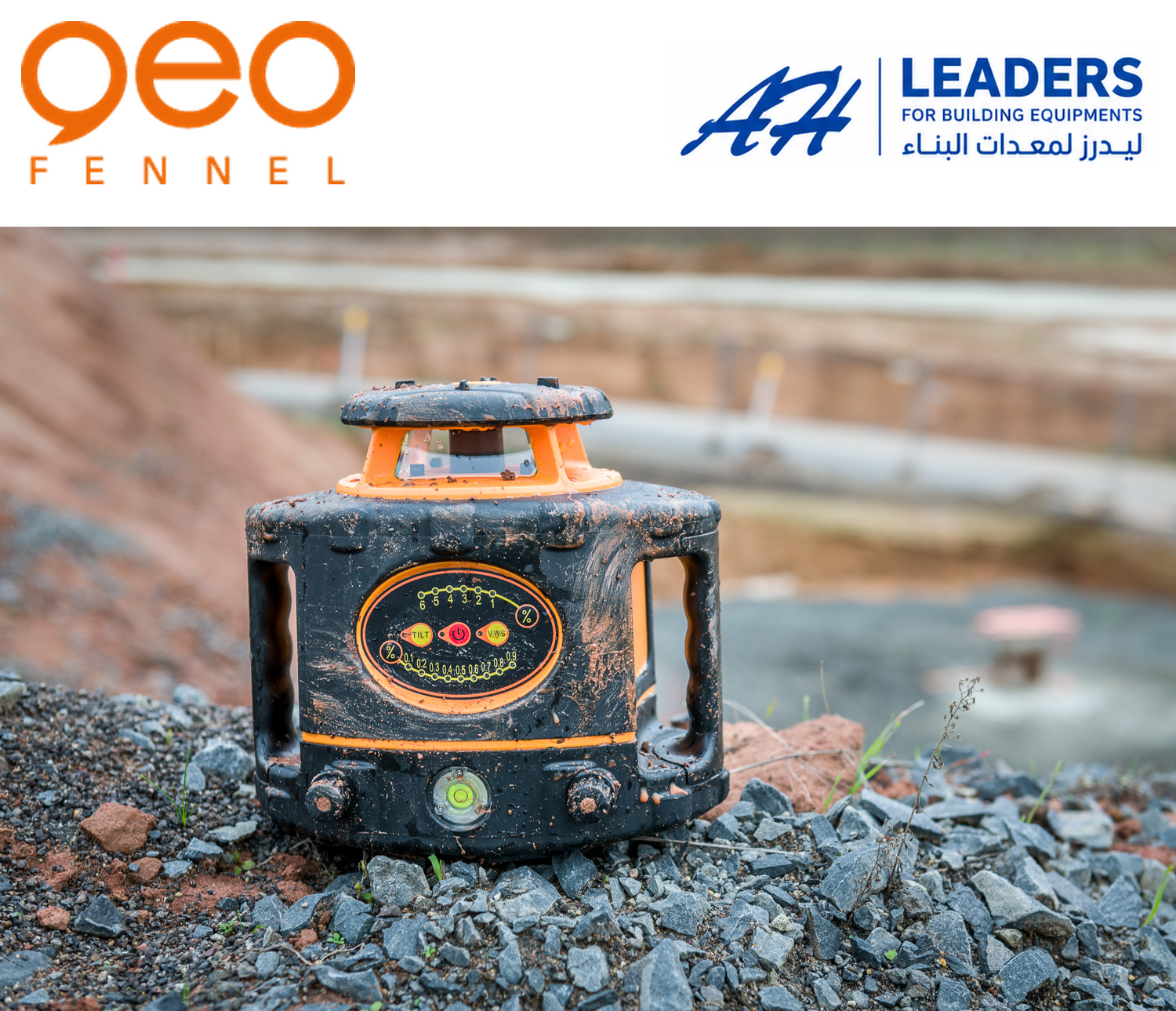

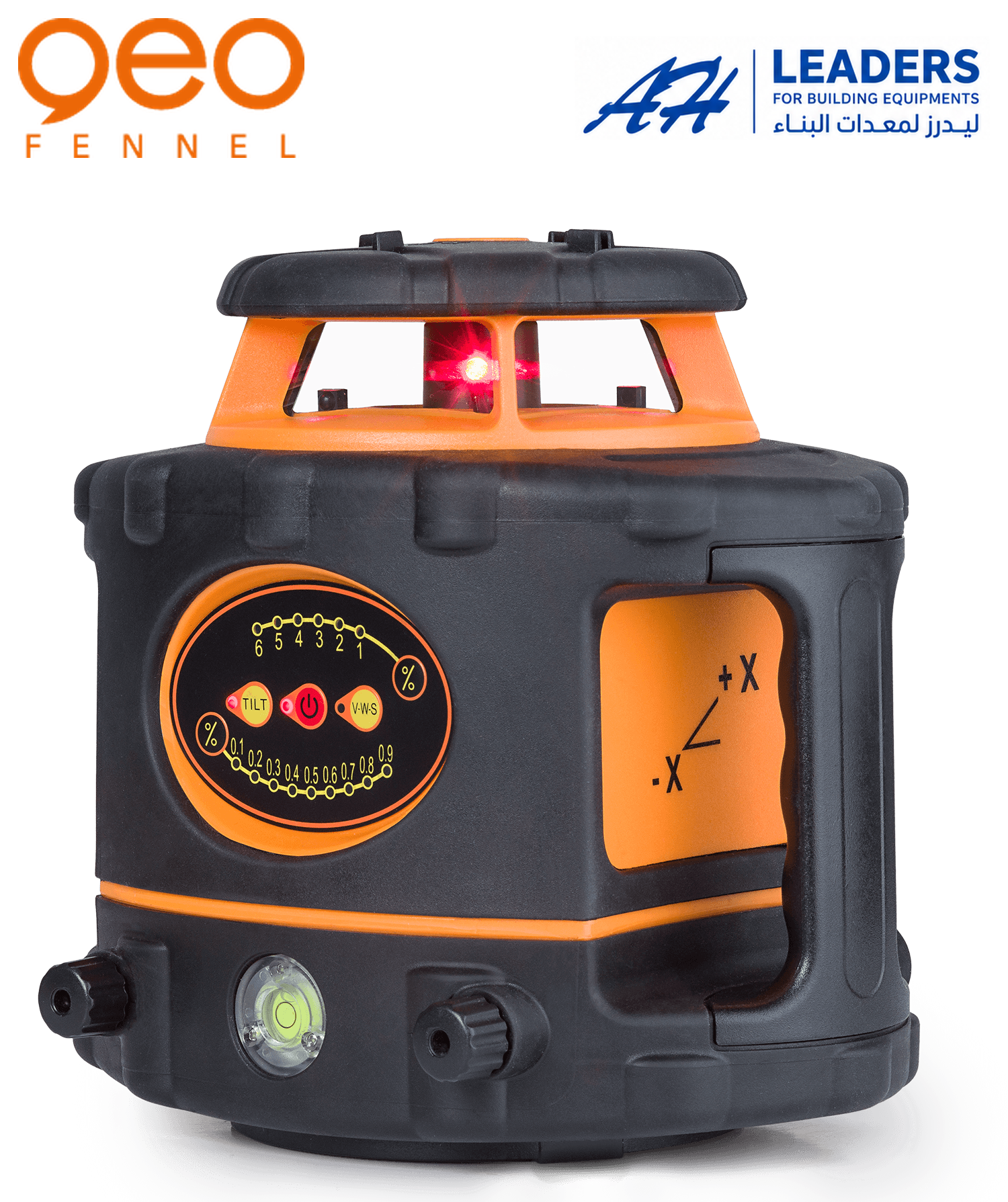

FL 300HV-G EasyGRADE
Short Description
- Easy single grade setting, long working range, TILT-/VWS-Measuring security functions
- PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser

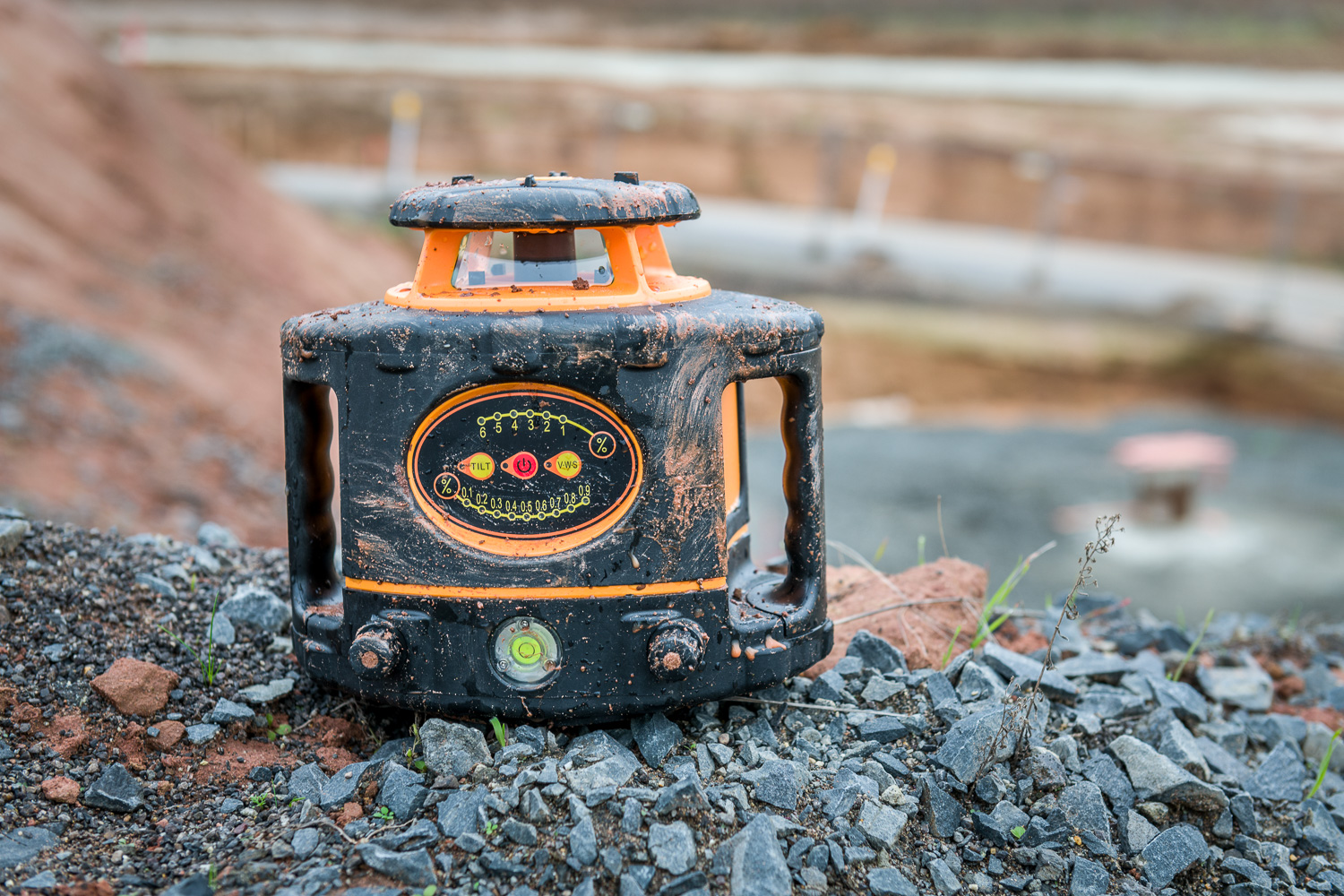

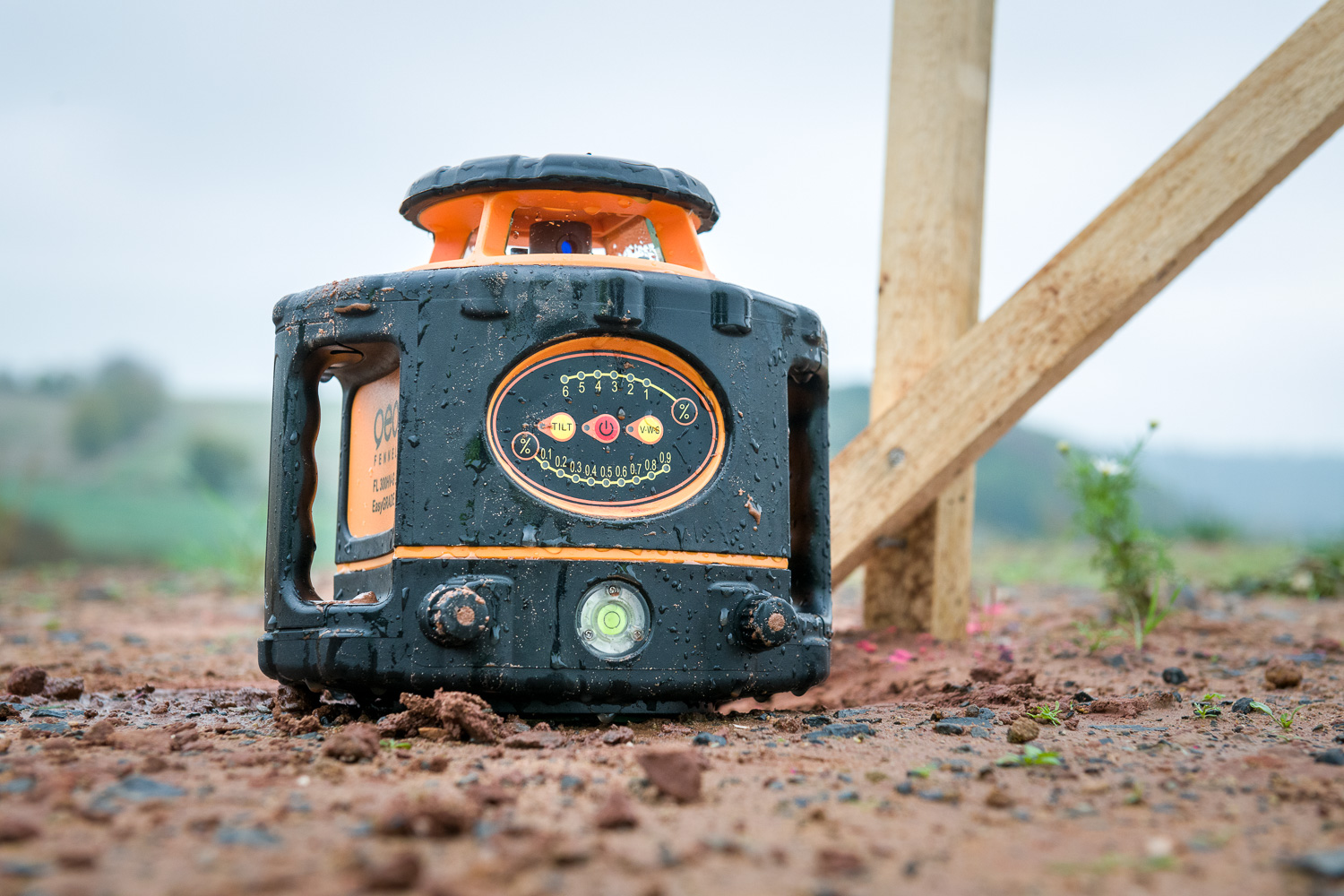

- IP 66, high accuracy, robustness, Li-Ion battery
Request a QuoteAsk on WhatsApp
Key Benefits
- ✓ Horizontal\ Self-levelling\ Numerical grade setting in X-Axis\ Manual grade setting in Y-Axis with remote controle

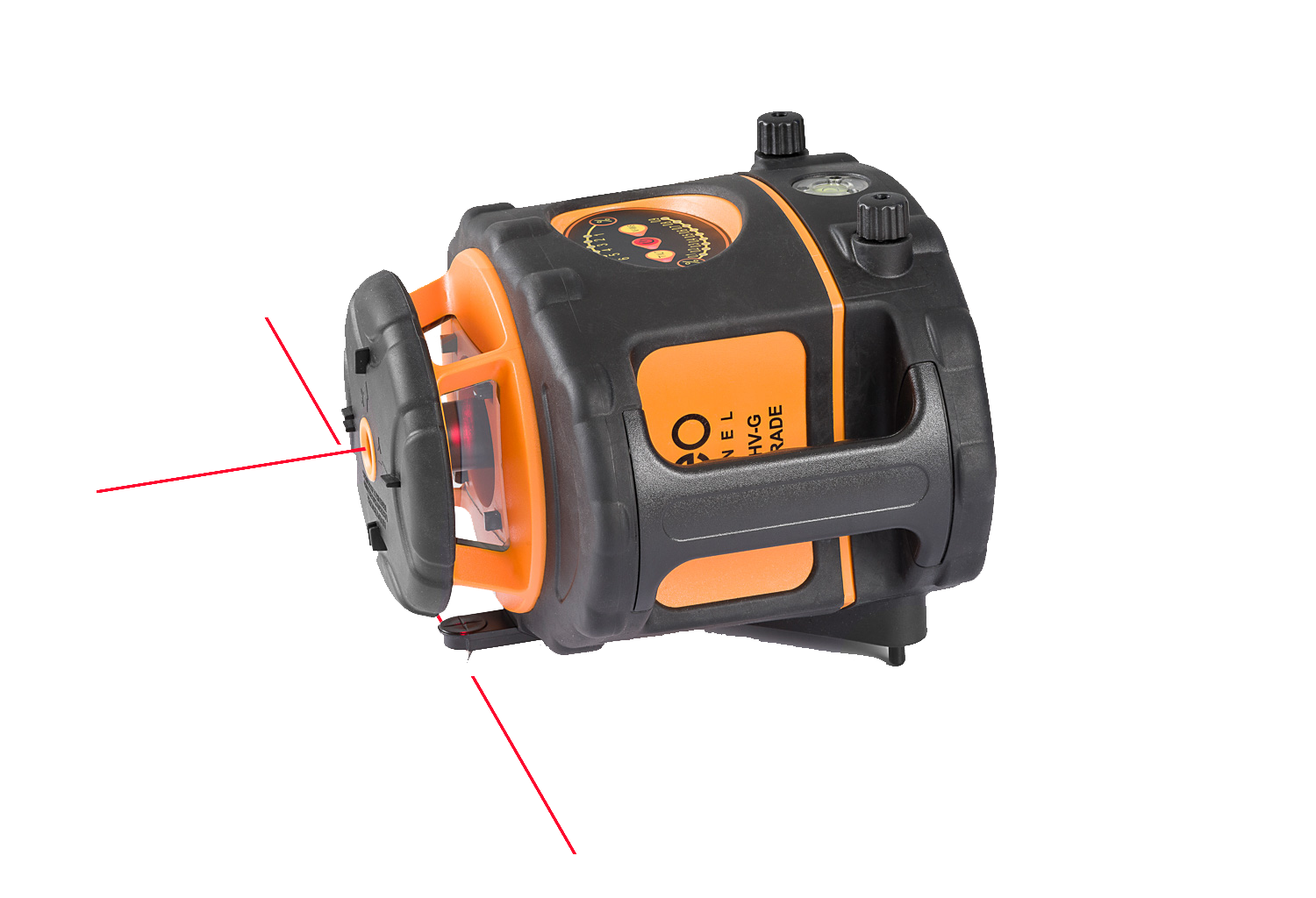

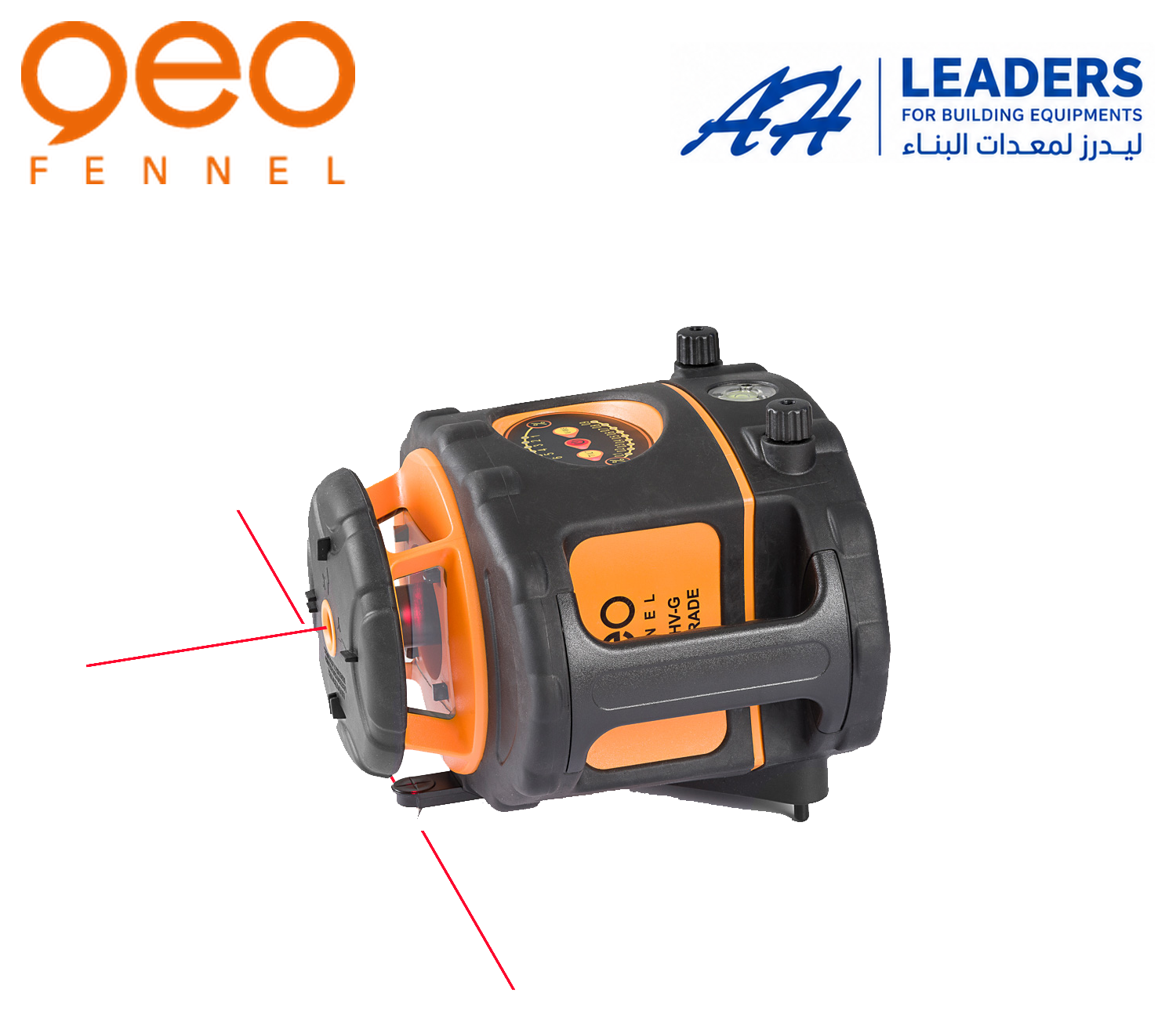

- ✓ Vertical\ Self-levelling\ Axis direction in Y-Axis with remote control
- ✓ TILT function
- ✓ VWS function (Vibration-Wind-Security)

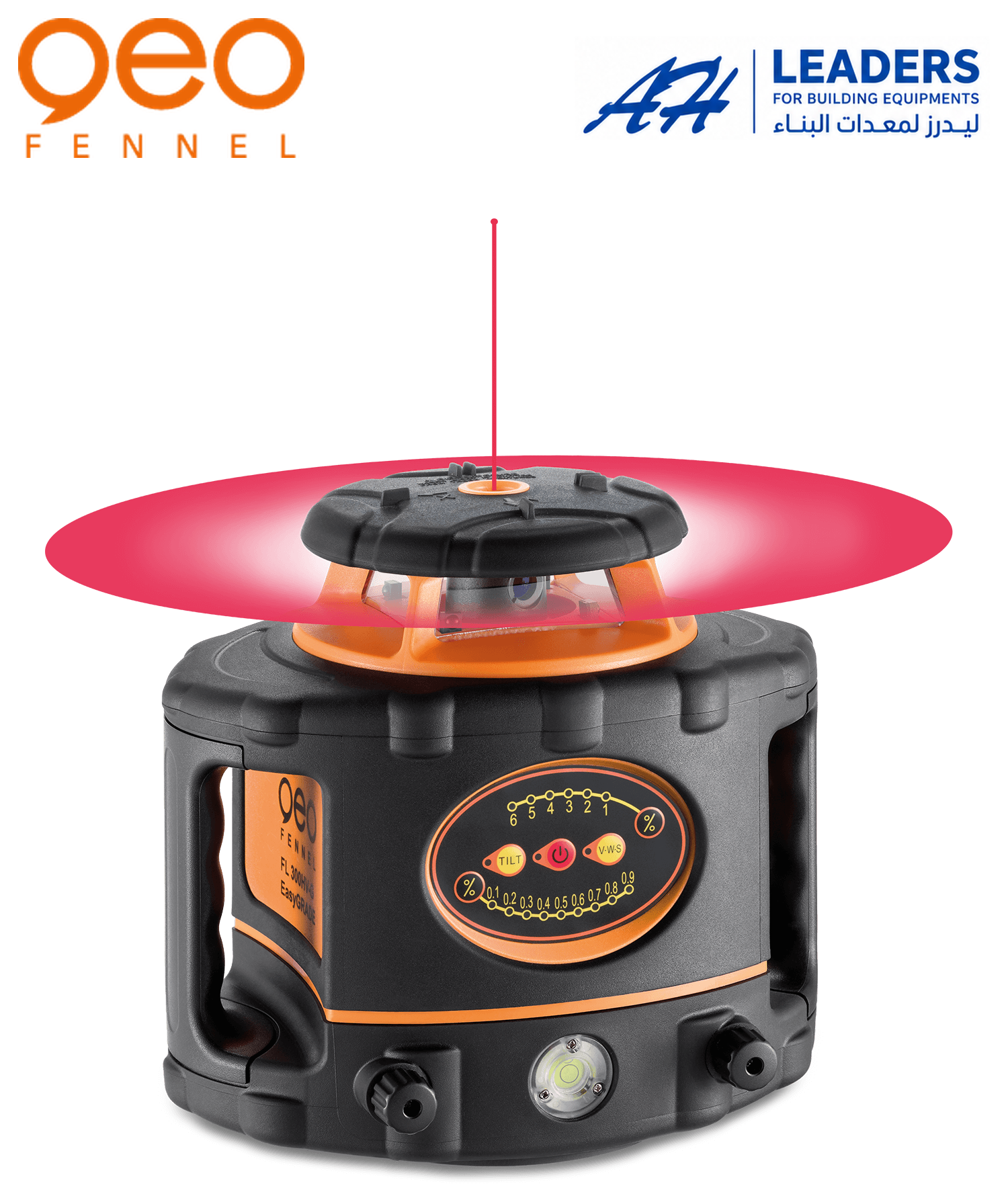

- ✓ 90° beam to zenith

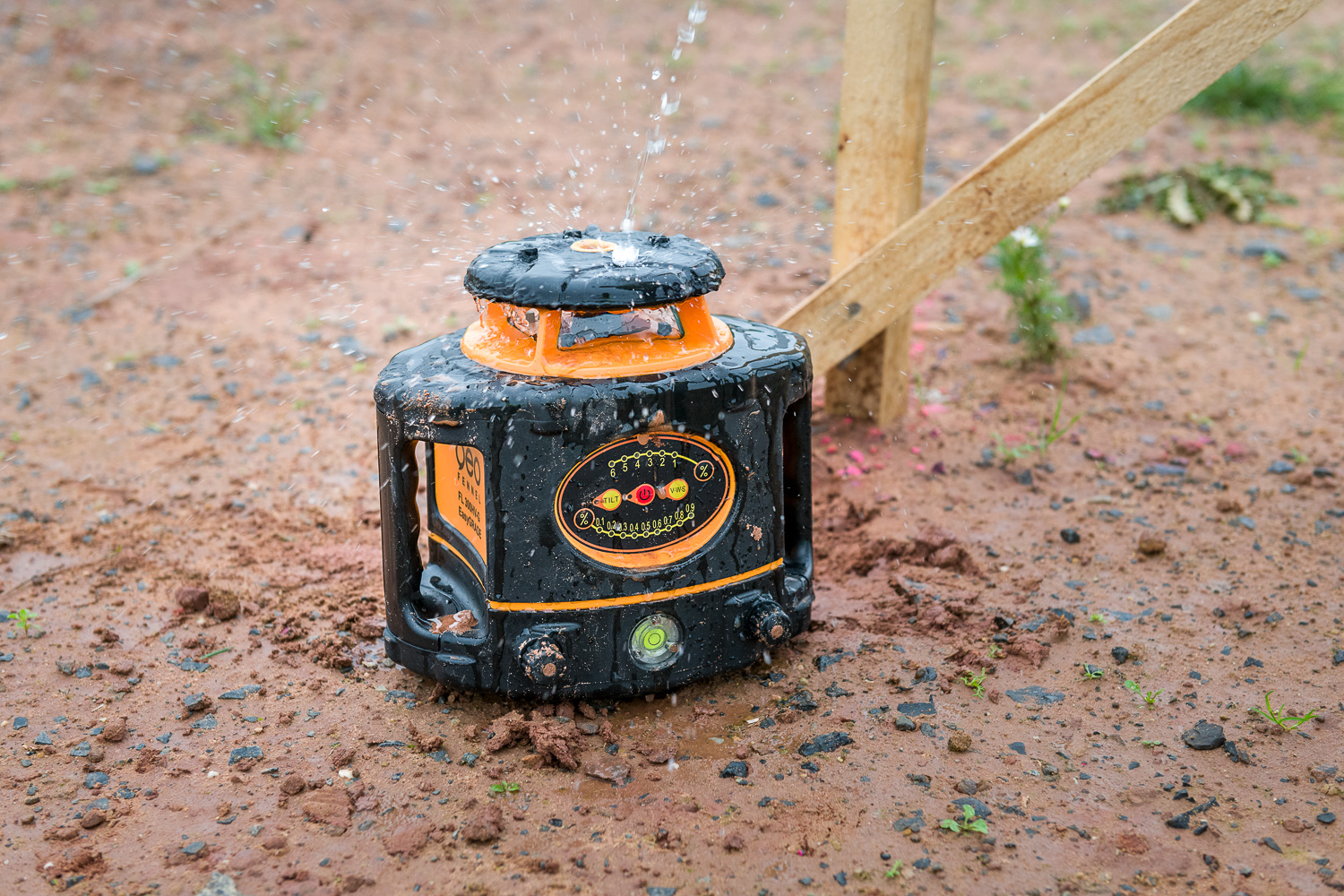

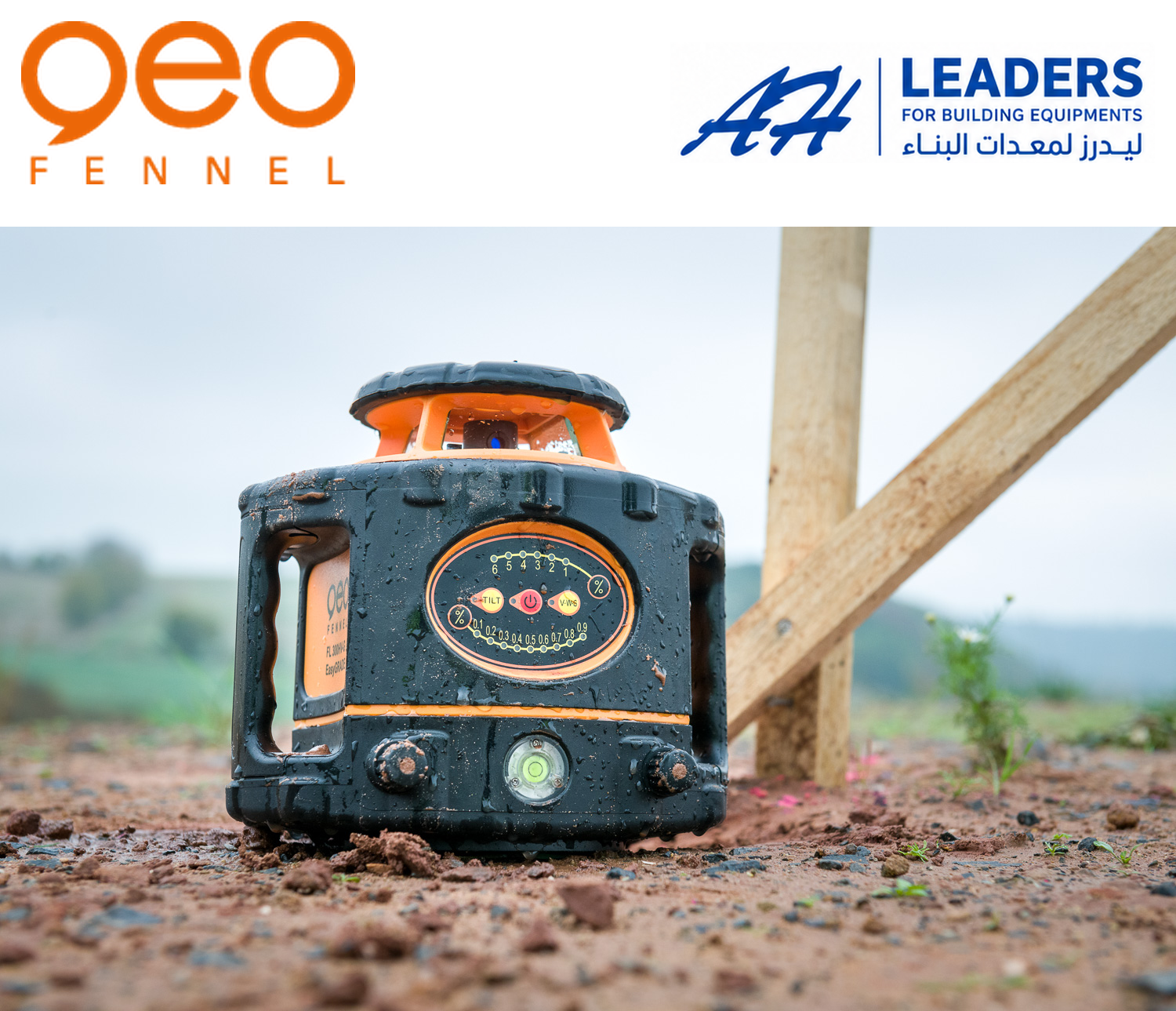

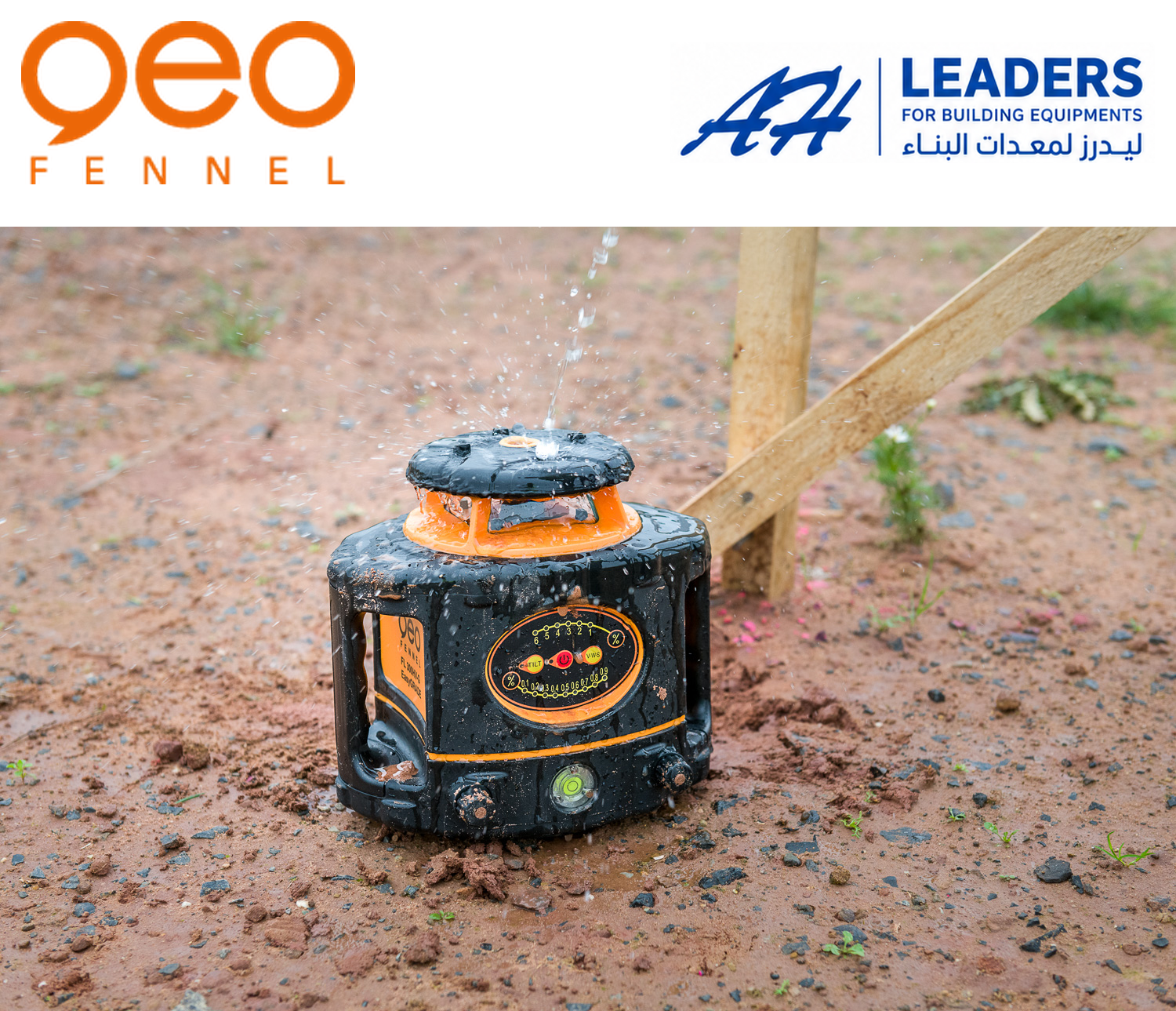

- ✓ Dust / water protection IP 66
Scope of delivery:
- Receiver FR 50 with clamp

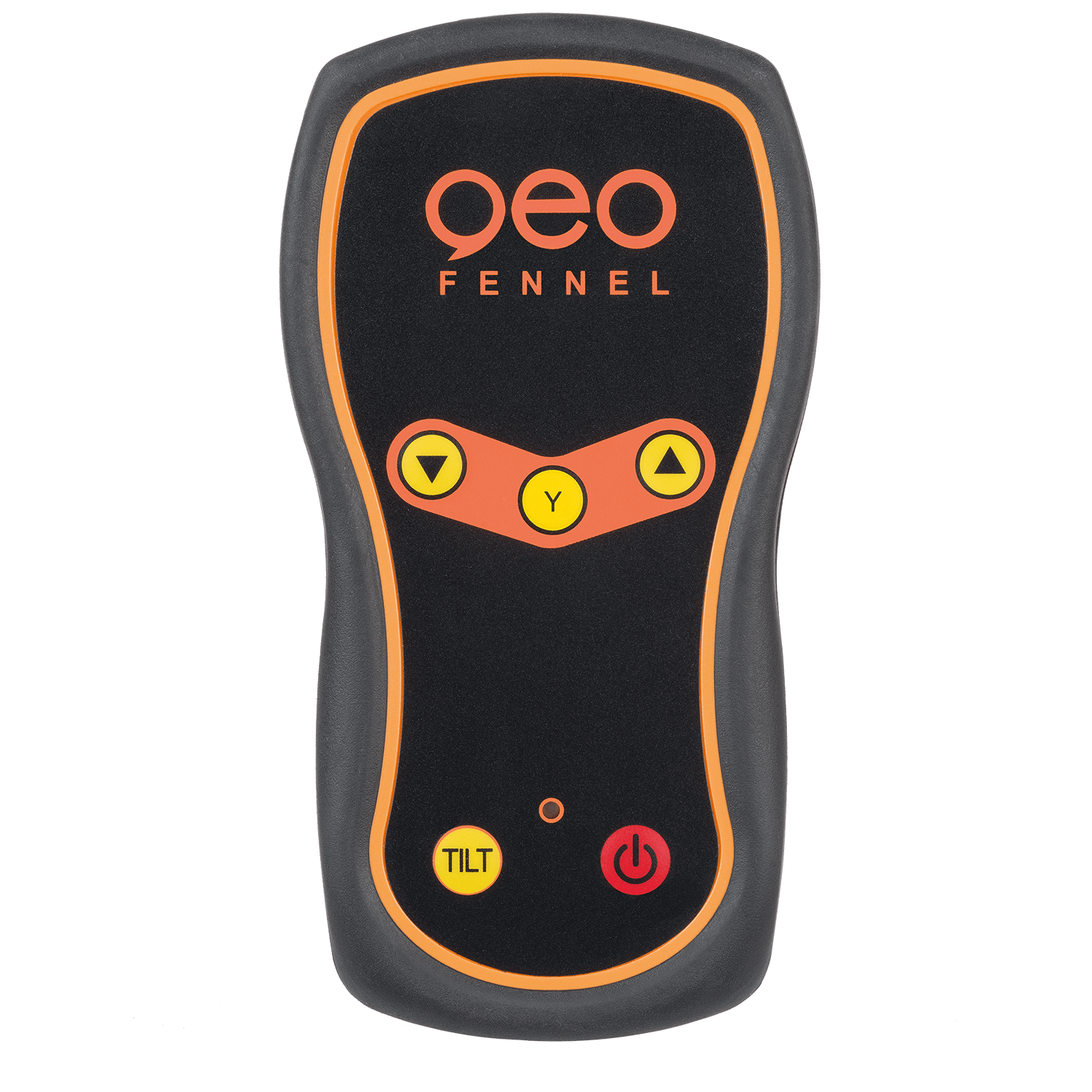

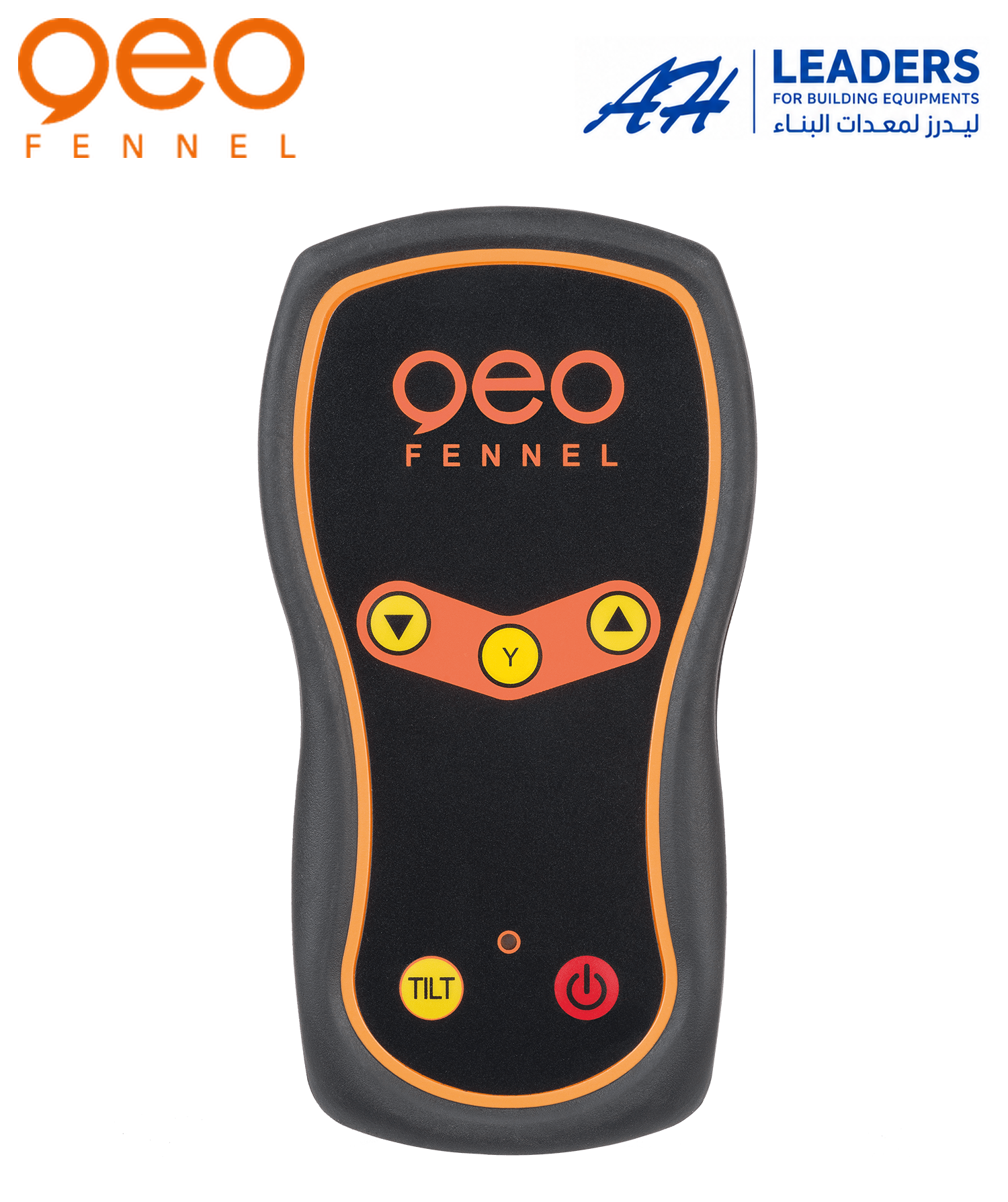

- Remote control
- Rechargeable battery (Li-Ion)
- Intelligent battery charger
- Battery case for alkaline batteries
- Floor / wall mount (integrated)
- Carrying case
Technical Specifications
Working range without receiver:
Ø 40 m
Working area with FR 45:
Ø 1200 m
Working area with FR 77-MM:
Ø 600 m
Working area with FR-DIST 30:
Ø 600 m
Working range remote control:
IR 100 m
Accuracy horizontal:
± 0,75 mm / 10 m
Accuracy vertical:
± 1,0 mm / 10 m
Self-levelling range:
± 5°
Grade:
numerical
Dust / water protection:
IP 66
Laser diode:
red
Visible laser beam:
red
Slope setting manual X-Axis:
± 5° (± 9%), + 0.1 to 6.9% (at 0.1% step)
Vertical axis direction:
± 5°
Laser class:
2
Rotating speed rpm:
800
Operating time:
40 h
90° plumb beam up:
yes
Automatic TILT function:
yes
Temperature range:
-10°C to +50°C
VWS function:
yes
Working range without receiver:, Ø 40 m, Working area with FR 45:, Ø 1200 m, Working area with FR 77-MM:, Ø 600 m, Working area with FR-DIST 30:, Ø 600 m, Working range remote control:, IR 100 m, Accuracy horizontal:, ± 0,75 mm / 10 m, Accuracy vertical:, ± 1,0 mm / 10 m, Self-levelling range:, ± 5°, Grade:, numerical, Dust / water protection:, IP 66, Laser diode:, red, Visible laser beam:, red, Slope setting manual X-Axis:, ± 5° (± 9%), + 0.1 to 6.9% (at 0.1% step), Vertical axis direction:, ± 5°, Laser class:, 2, Rotating speed rpm:, 800, Operating time:, 40 h, 90° plumb beam up:, yes, Automatic TILT function:, yes, Temperature range:, -10°C to +50°C, VWS function:, yes
