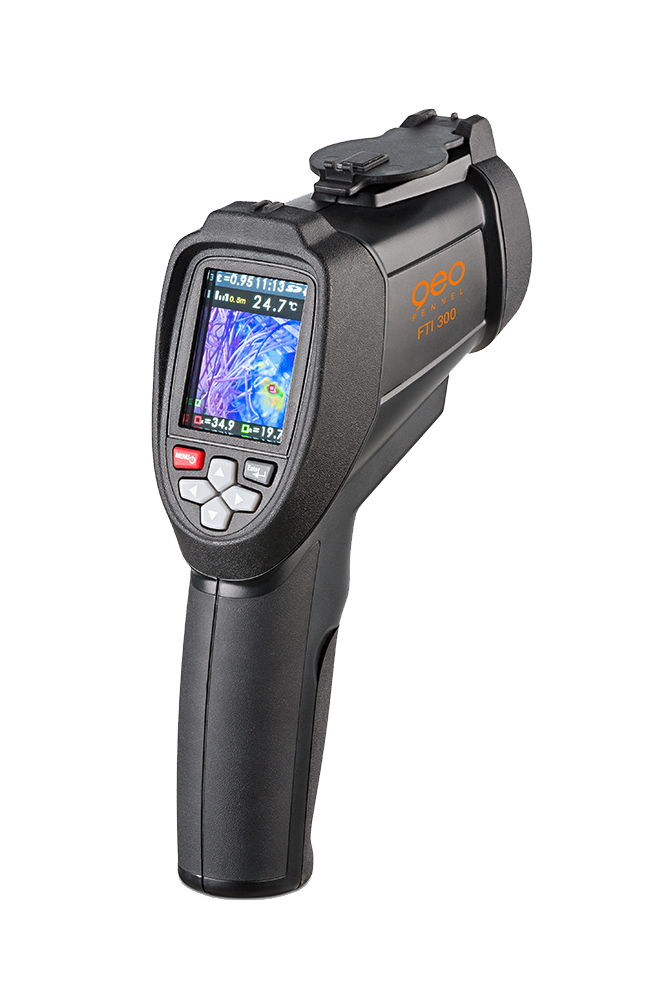

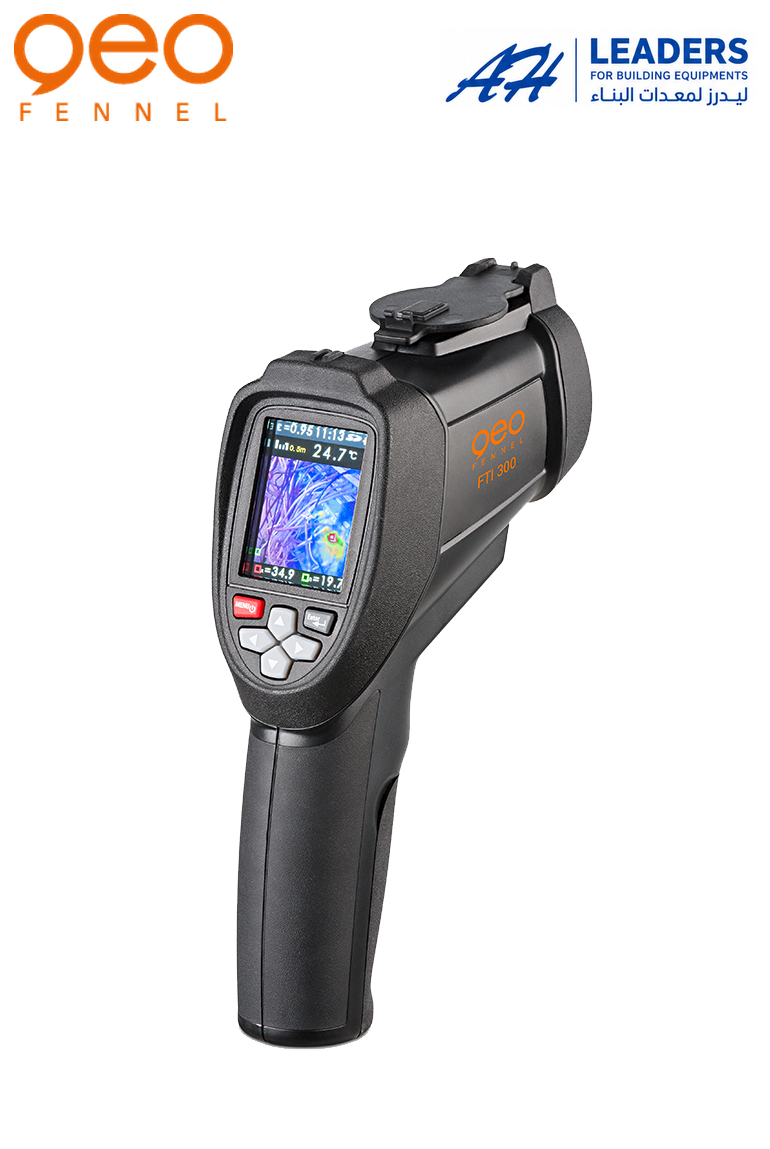

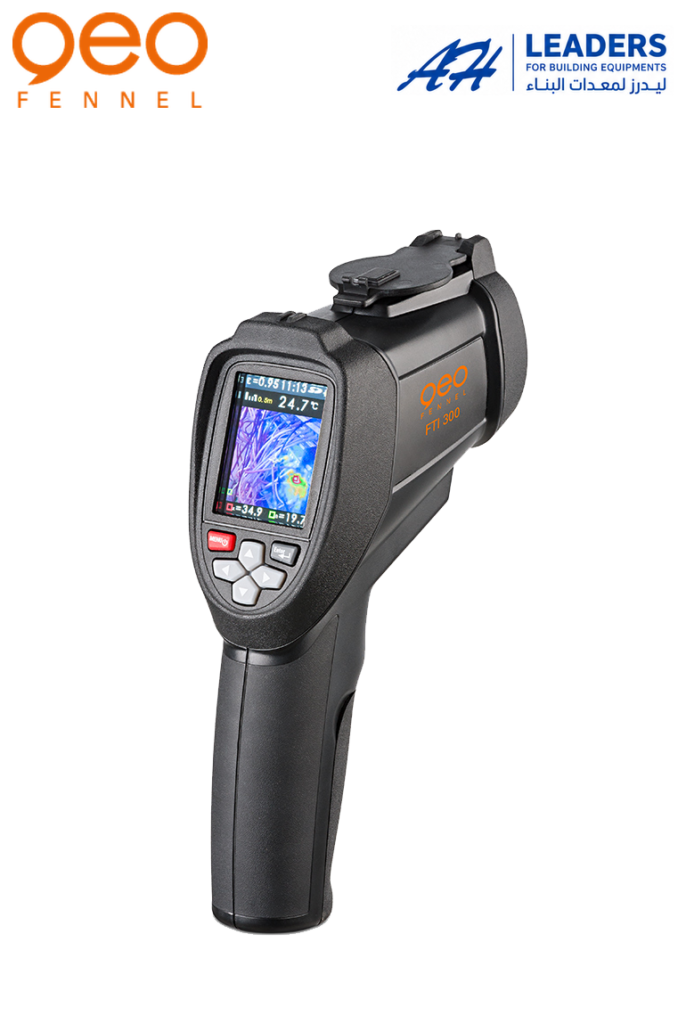

FTI 300

Short Description

Thermal Imaging camera

Buy NowOrder Via WhatsApp

Key Benefits

  • ✓ Automatic indication of hot / cold spot with configurable alarm function
  • ✓ PIP-function for blending of visible and infrared image (0-100%) for optimized orientation in the picture
  • ✓ 6 colour palettes
  • ✓ Memory for 6000 images / data transfer to PC for subsequent analysis

Thermal imaging camera for non contact measurement of surface temperature.

Trades and tasks: Heating and ventilating installations, building insulation (heat loss), plumbing, electric, electronic, electro-mechanical and mechanical engineering, routine maintenance Easy to locate hot and cold spots on electrical and mechanical installations.

Included in the scope of delivery:
  • Li-ion battery & charger
  • USB-cable for data transfer and charging
  • Hard case

Technical Specifications

Temperature range:
-20°C to +300°C
Thermal sensitivity:
< 0,15°C (150 mK)
IR sensor resolution:
32 x 31 Pixel
Field of view (FOV):
40° x 40°
Display:
2.2" TFT colour LCD, 320 x 240 pixel
Colour palettes:
greyscale (white hot), greyscale (black hot), ironbow, rainbow, rainbow (high contrast), hot metal
Additional memory:
MicroSD card 8 GB
Operation languages:
DE, EN, FR, ES, IT
Focusing:
fixed
Accuracy:
± 2% of the reading or ± 2°C (at 25°C)
Memory size:
6000 pictures
Measurement cursors:
3 (centre, max, min)
File format:
.bmp
PC interface:
USB 2.0
PIP (Blending fusion):
IR image with visible image in 6 steps (0 – 100%)
Extended size:
205 x 155 x 62 mm
Power supply:
3.7 V Li-Ion battery
Weight:
410 g

Temperature range:, -20°C to +300°C, Thermal sensitivity:, < 0,15°C (150 mK), IR sensor resolution:, 32 x 31 Pixel, Field of view (FOV):, 40° x 40°, Display:, 2.2" TFT colour LCD, 320 x 240 pixel, Colour palettes:, greyscale (white hot), greyscale (black hot), ironbow, rainbow, rainbow (high contrast), hot metal, Additional memory:, MicroSD card 8 GB, Operation languages:, DE, EN, FR, ES, IT, Focusing:, fixed, Accuracy:, ± 2% of the reading or ± 2°C (at 25°C), Memory size:, 6000 pictures, Measurement cursors:, 3 (centre, max, min), File format:, .bmp, PC interface:, USB 2.0, PIP (Blending fusion):, IR image with visible image in 6 steps (0 – 100%), Extended size:, 205 x 155 x 62 mm, Power supply:, 3.7 V Li-Ion battery, Weight:, 410 g
