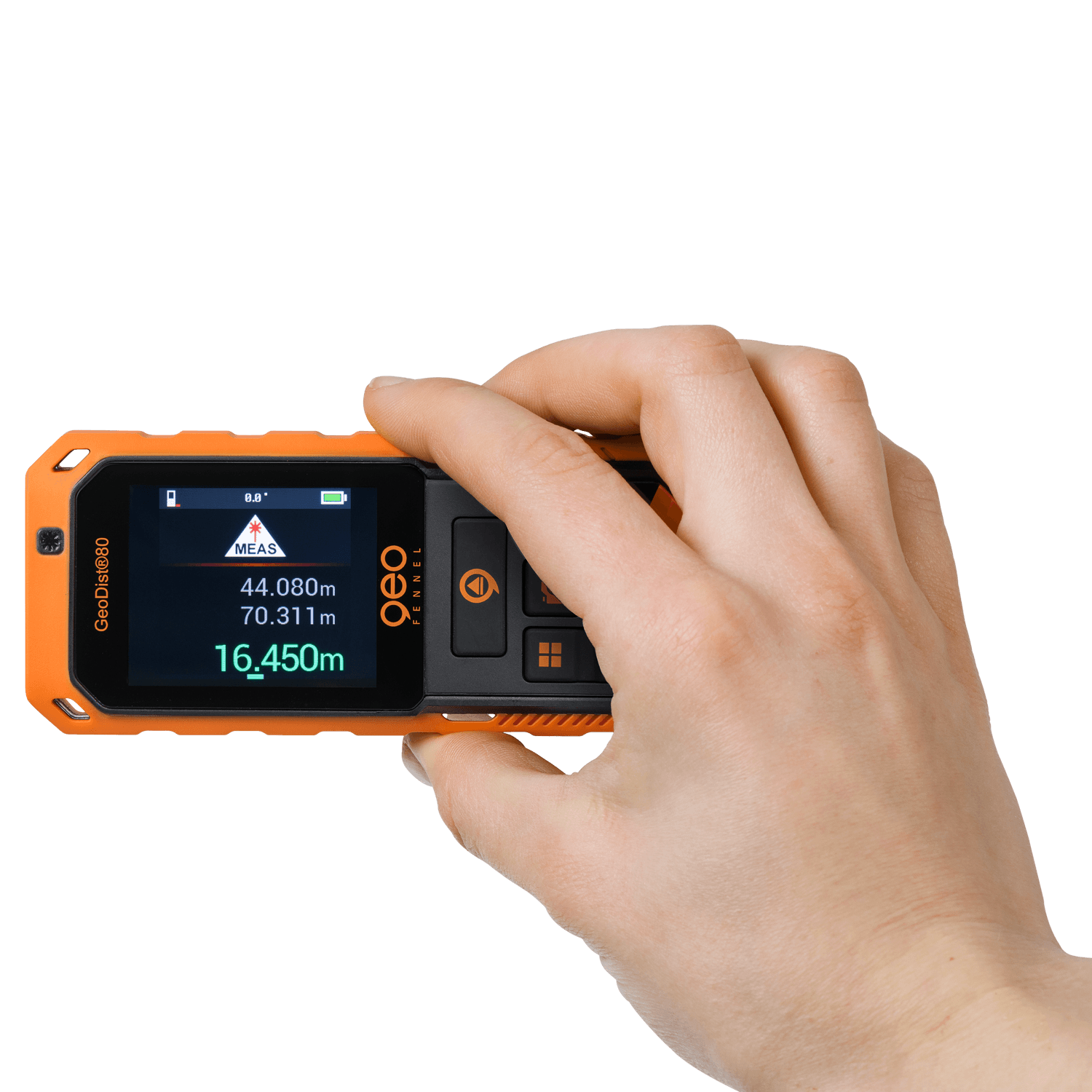

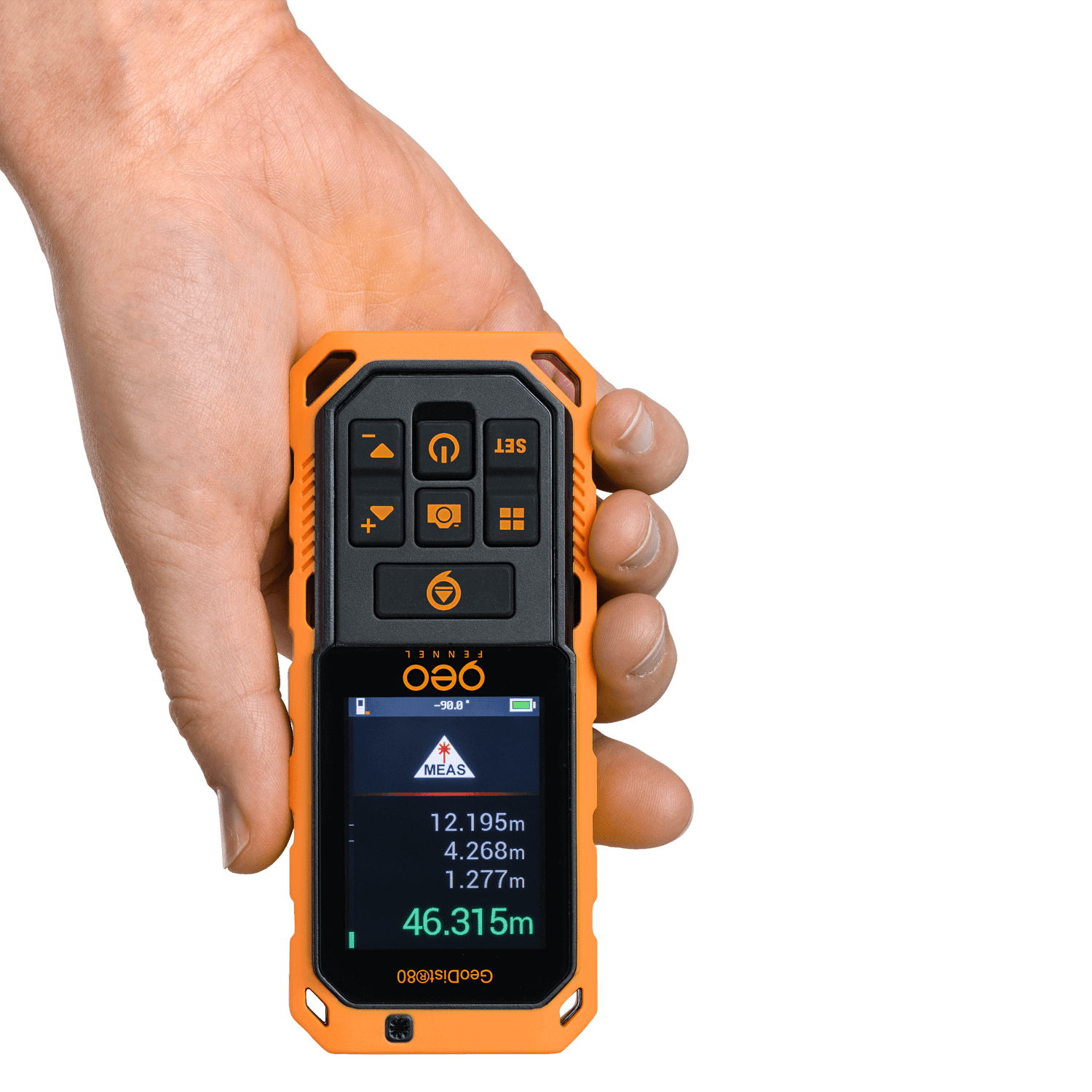

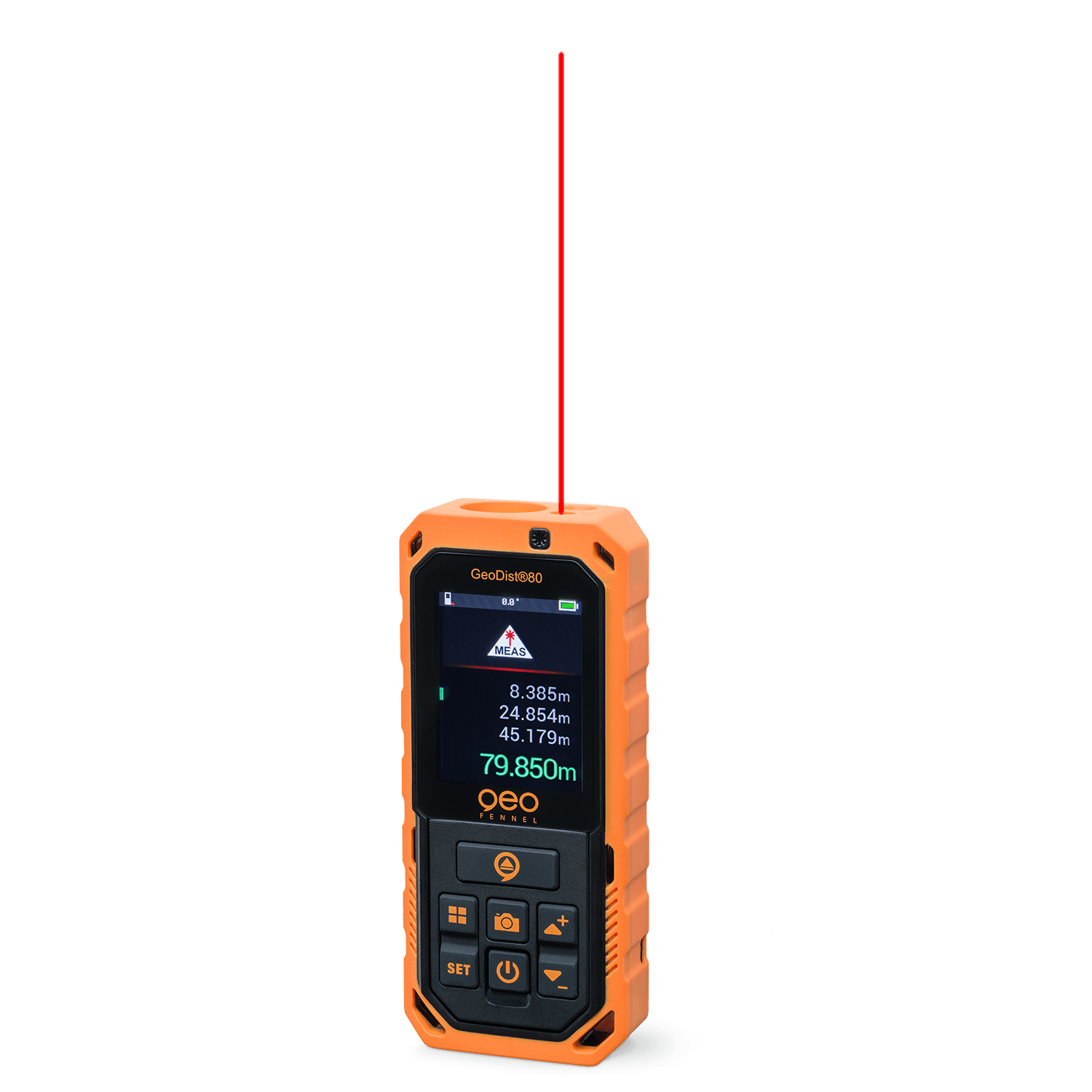

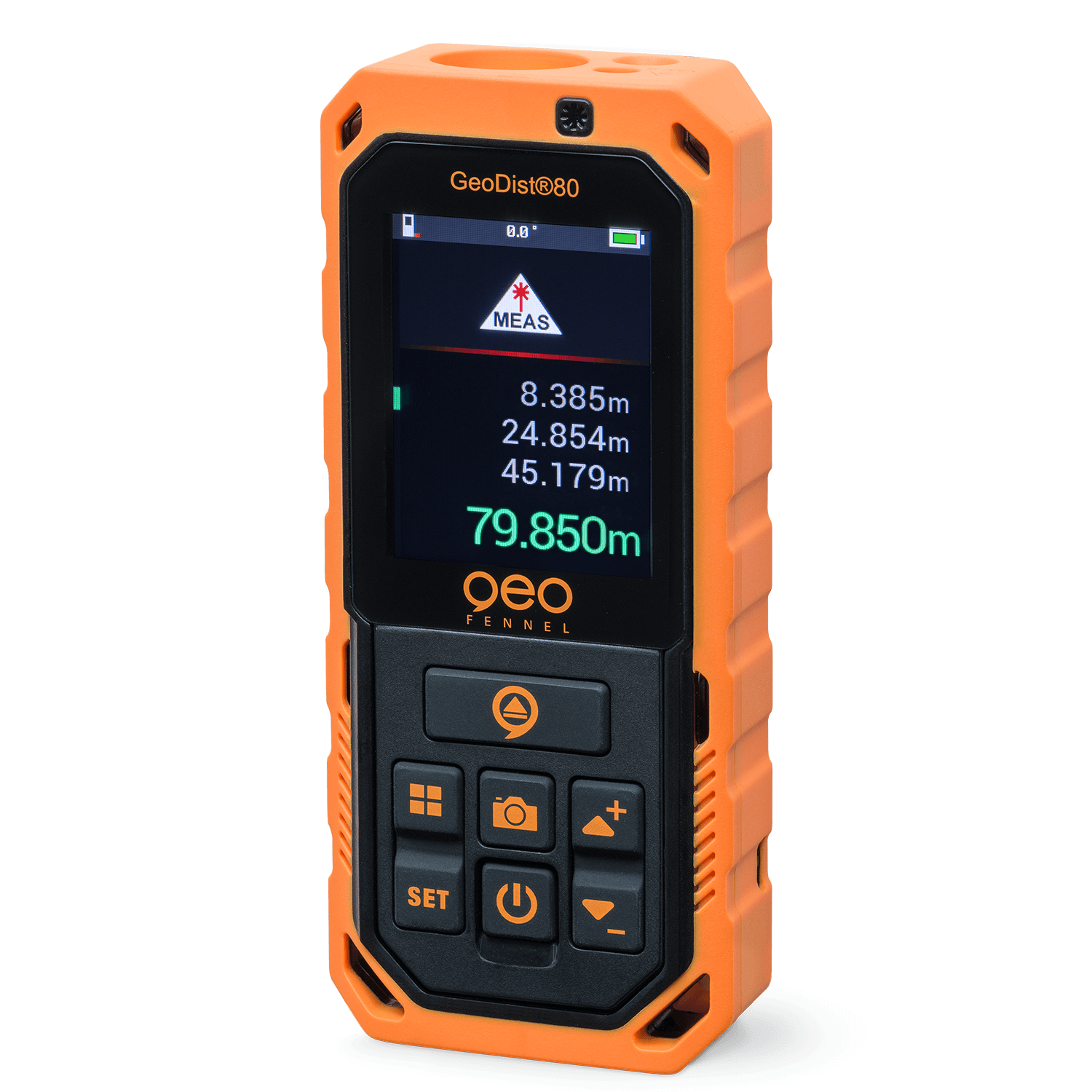

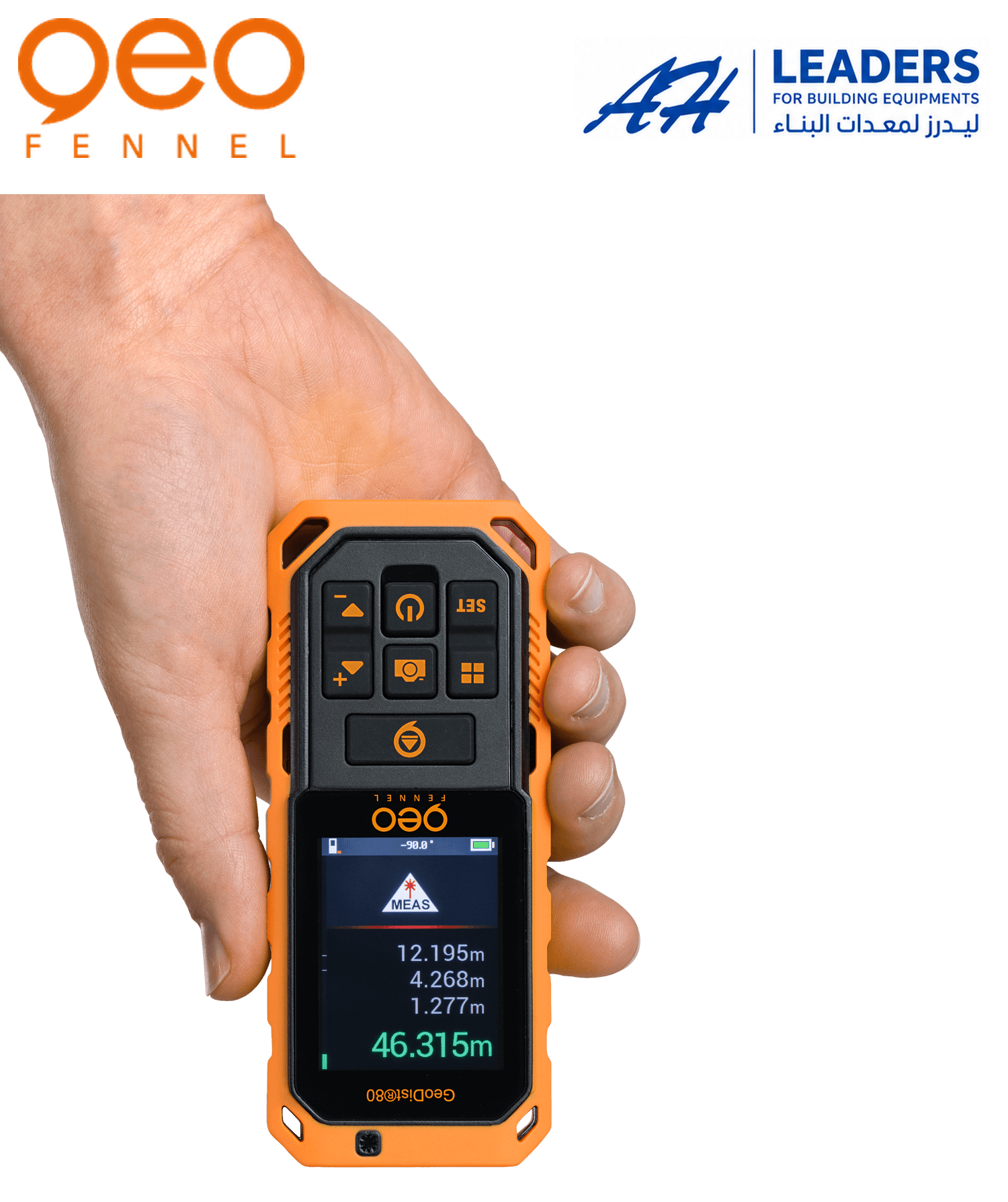

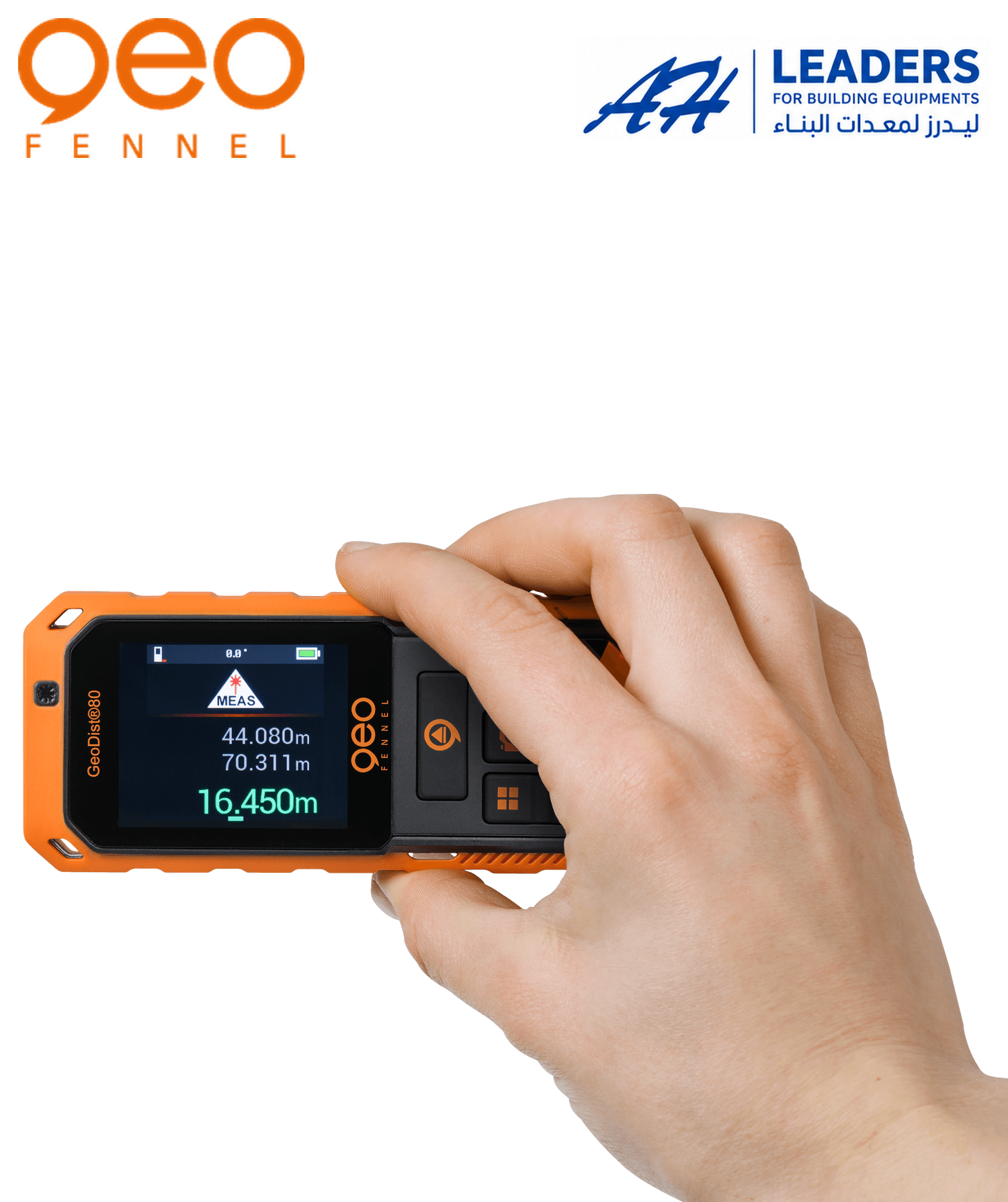

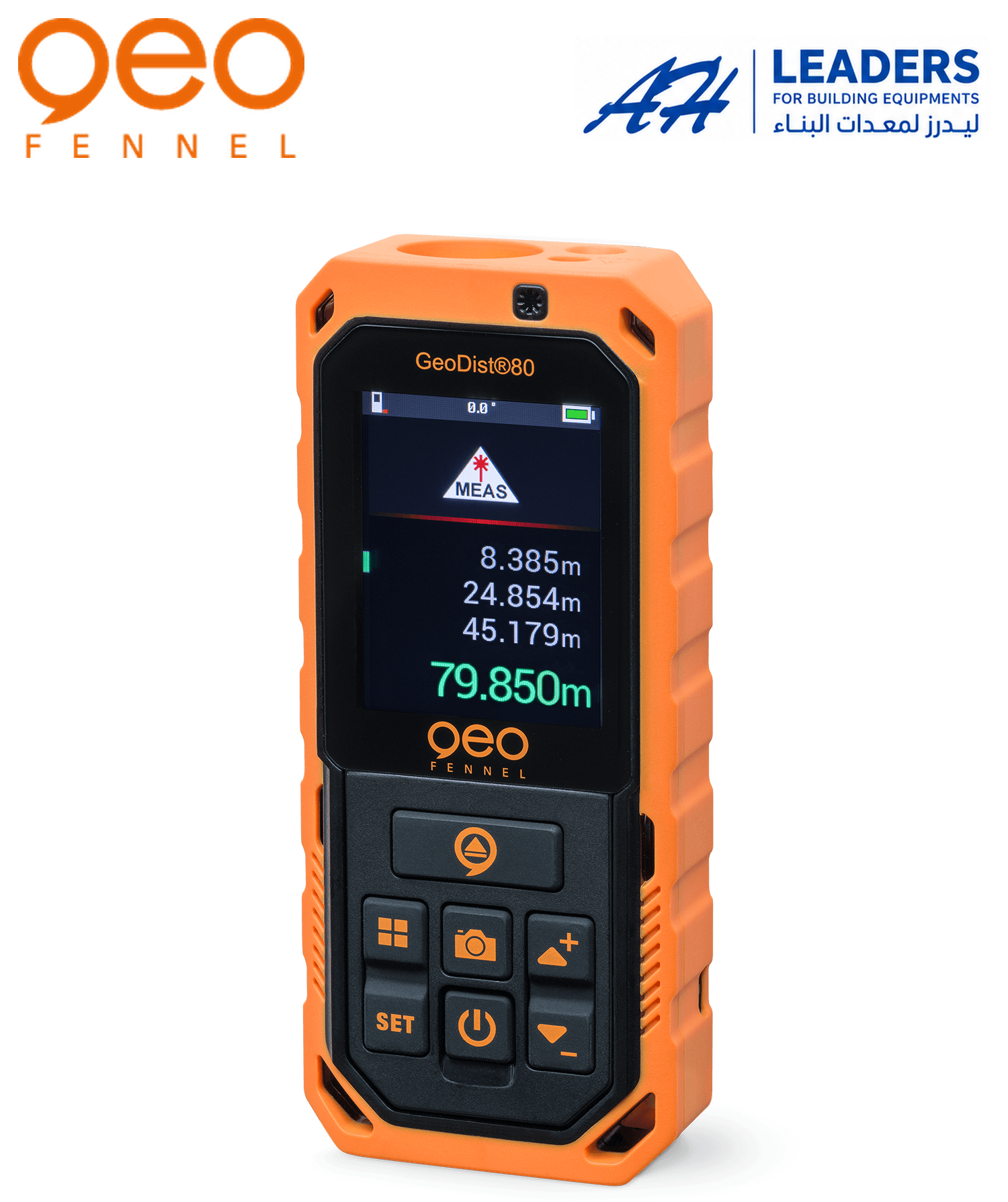

GeoDist® 80

Short Description

The GeoDist® 80 opens up even extensive outdoor areas easily with a homing camera.
The 4x zoom captures accurate measurements from long distances up to 80 metres.

Buy NowOrder Via WhatsApp

Key Benefits

  • ✓ Distance/Area/Volume
  • ✓ Continuous measurement/minimum/maximum
  • ✓ Addition/Subtraction
  • ✓ Offset +/- & stakeout
  • ✓ Colour display / rotatable
  • ✓ Pointfinder camera with 4 x zoom
  • ✓ 1/4" tripod connection
  • ✓ Inclination measurement 4 x 90
  • ✓ Measuring plane: front, rear, tripod connection
  • ✓ Point-to-point measurement (3D)
  • ✓ Pythagoras functions
  • ✓ Automatic distance measurement (via tilt measurement)
  • ✓ Automatic height measurement (via tilt measurement)x
  • ✓ Trapezoidal measurements
  • ✓ Area measurement triangle/circle
  • ✓ Volume measurement cylinder
  • ✓ Memory (1000 last measurements)

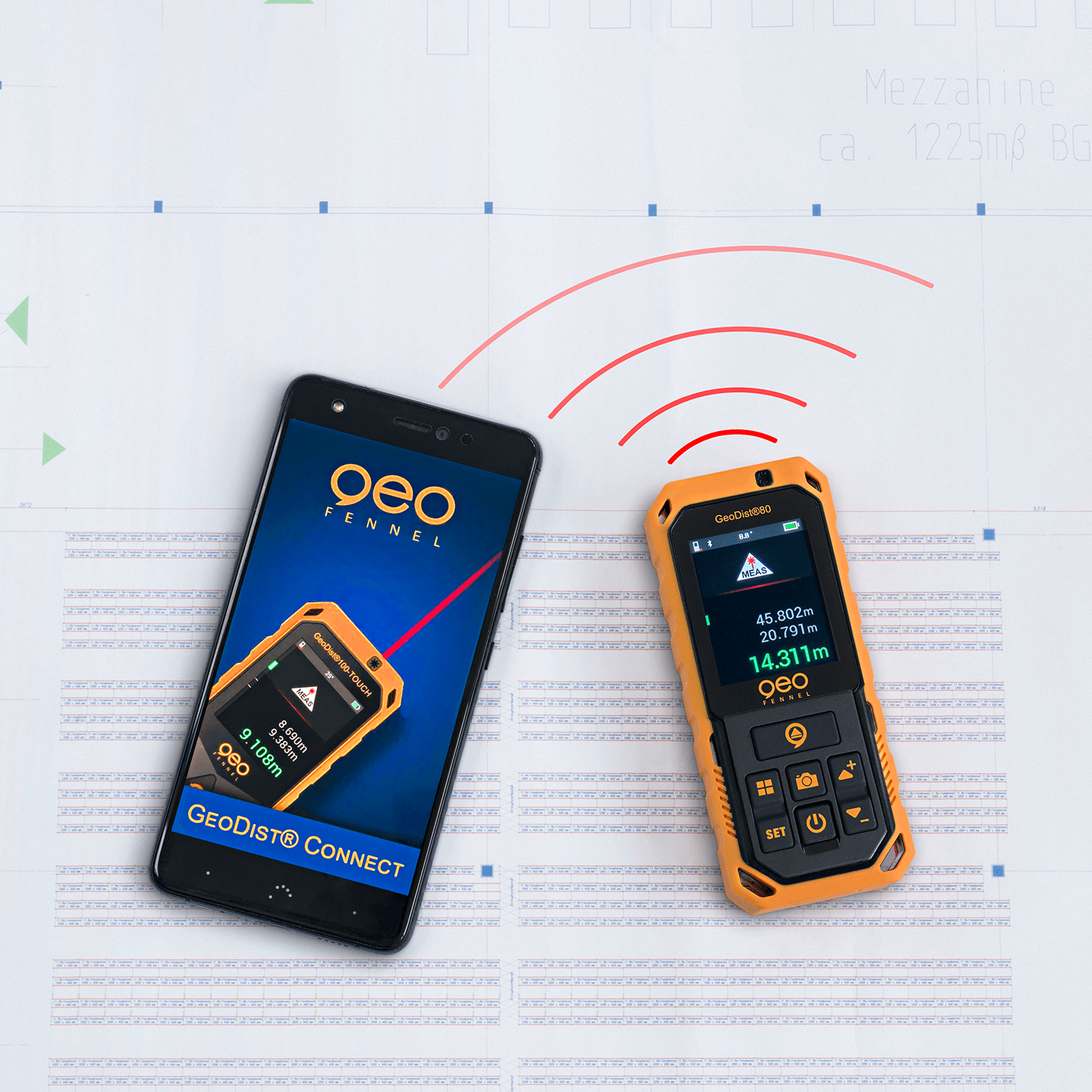

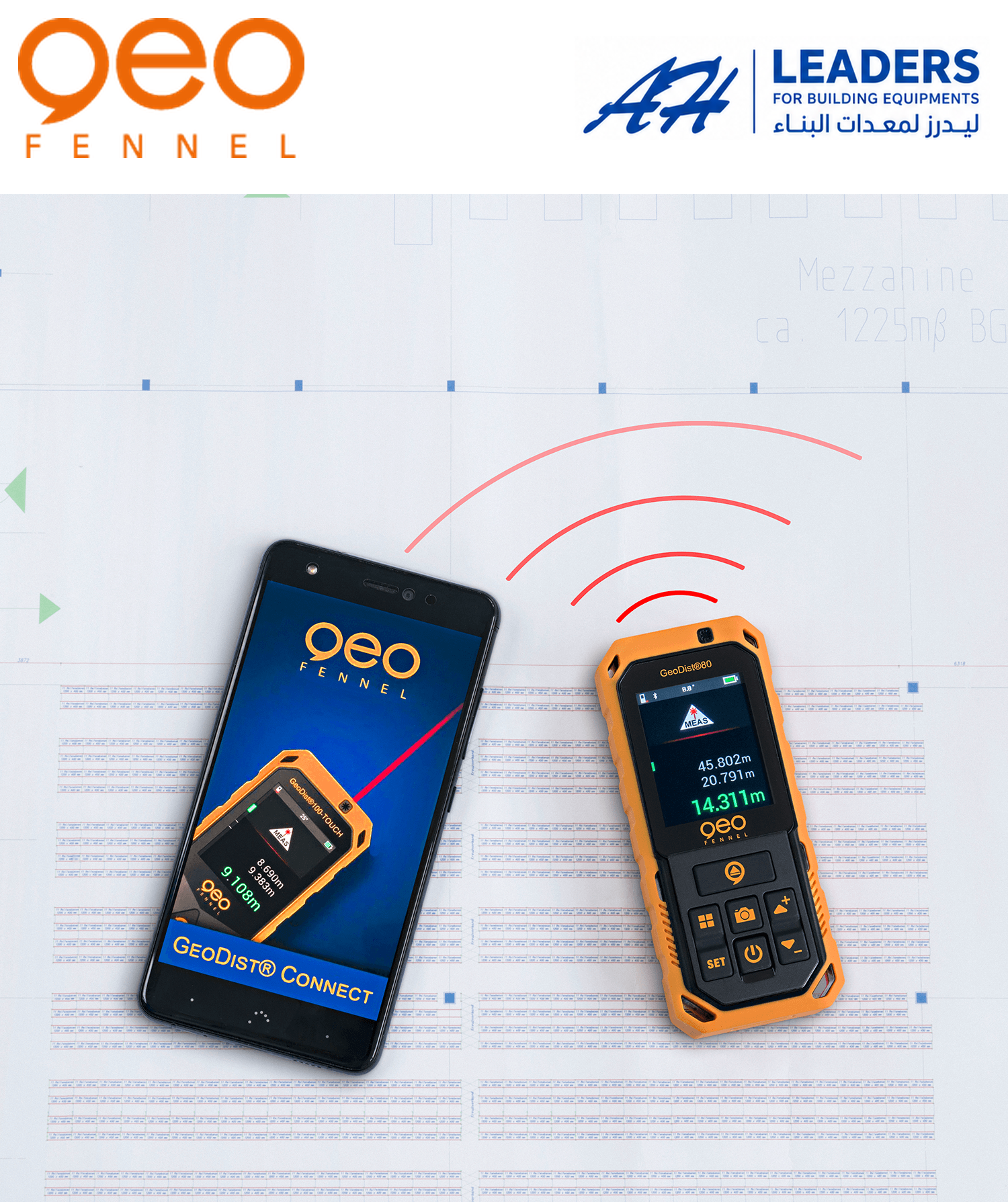

  • ✓ Data export via Bluetooth & USB
  • ✓ GeoDist®Connect App (Android & Apple)

Scope of delivery:

Supplied with:

  • NiMH batteries
  • USB charging cable
  • Holster
  • Hand strap

Technical Specifications

Measuring units:
m, ft, in, ft+in
Measuring range:
0,2 - 80 m
Accuracy:
± 0,3°, ± 2 mm
Dust / water protection:
IP 65
Power supply:
NiMH
Laser diode:
red
Laser class:
Temperature range:
-10°C to +40°C
Weight (instrument with battery):
148 g

Measuring units:, m, ft, in, ft+in, Measuring range:, 0,2 - 80 m, Accuracy:, ± 0,3°, ± 2 mm, Dust / water protection:, IP 65, Power supply:, NiMH, Laser diode:, red, Laser class:, , Temperature range:, -10°C to +40°C, Weight (instrument with battery):, 148 g
