Short Description

Buy NowOrder Via WhatsApp

Key Benefits

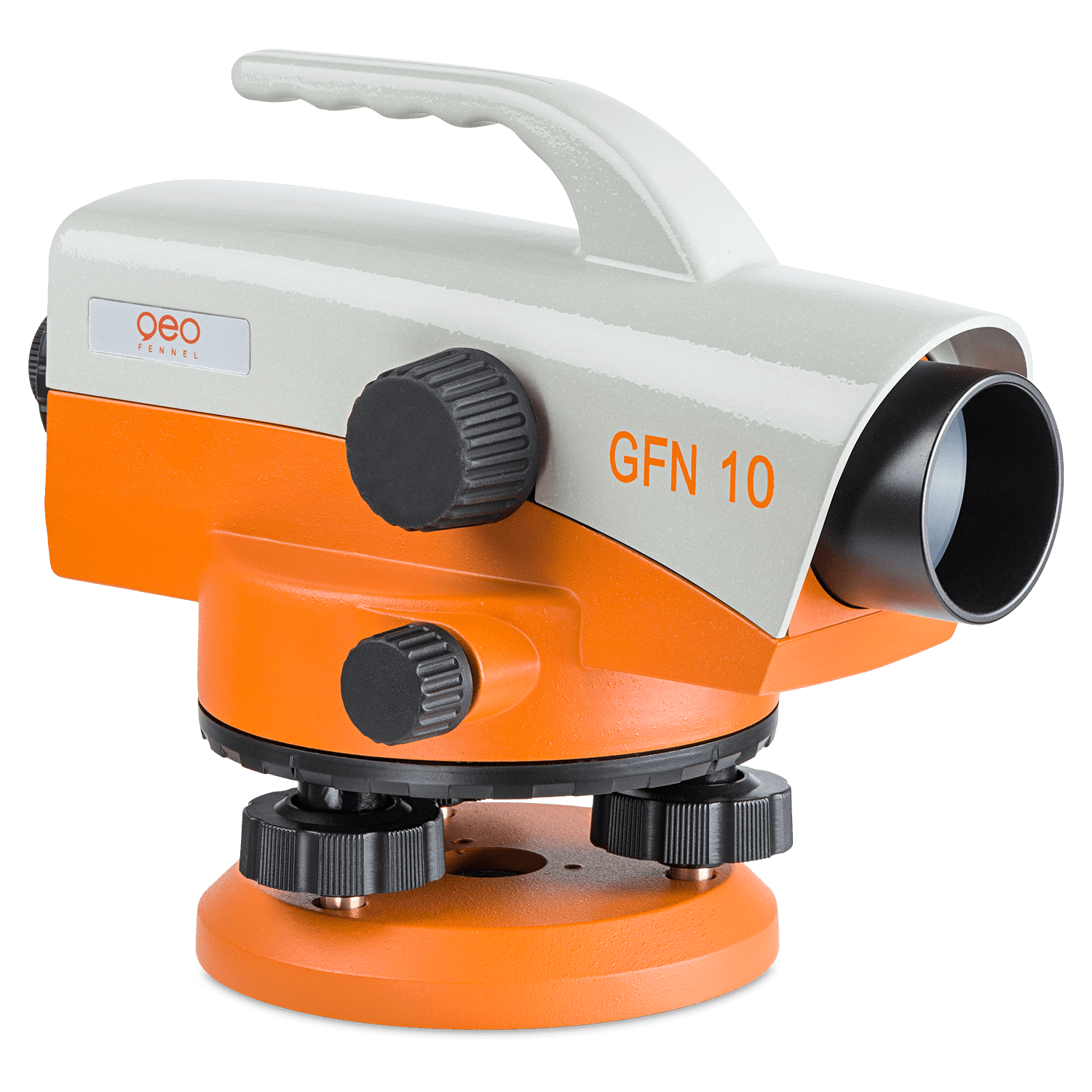

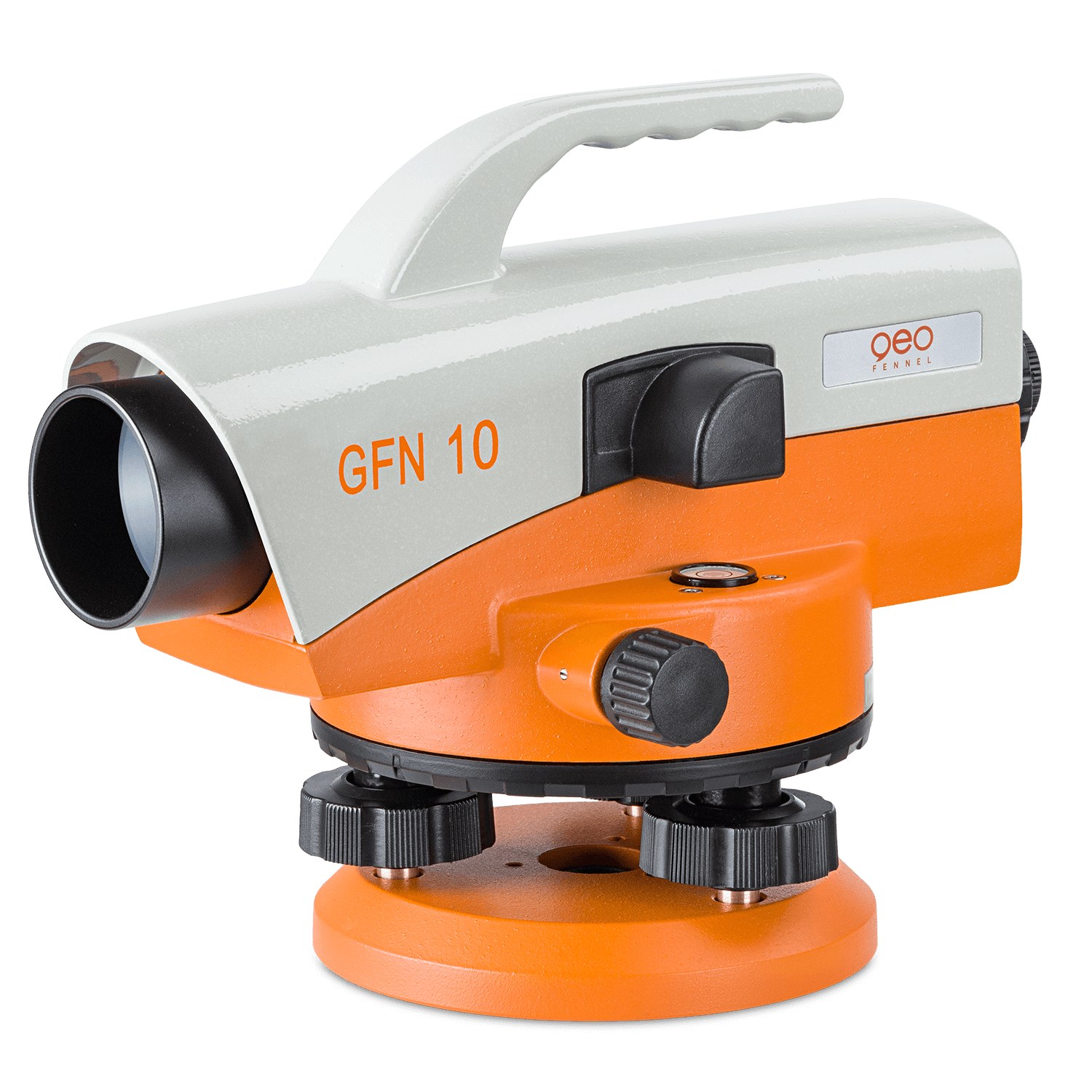

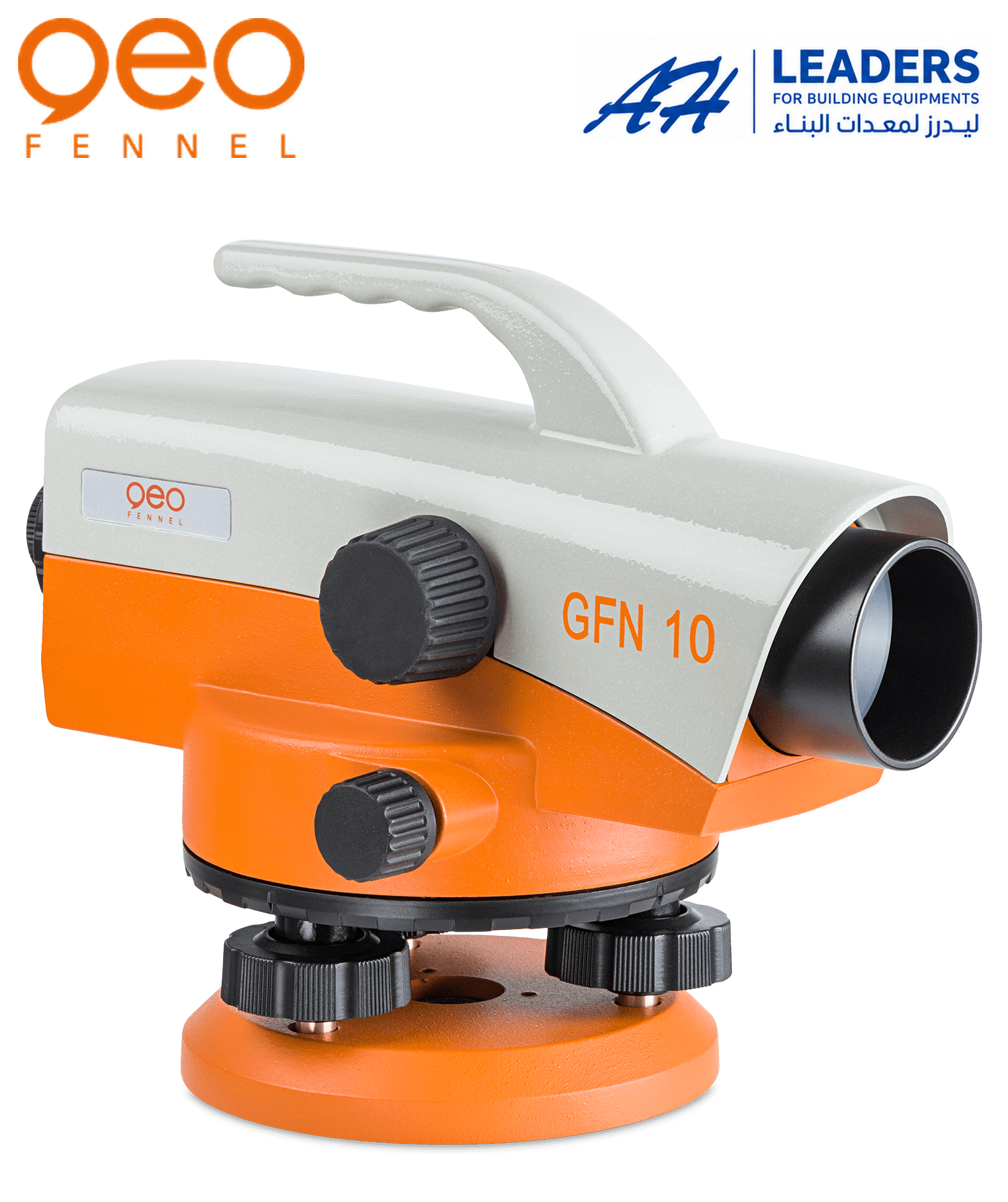

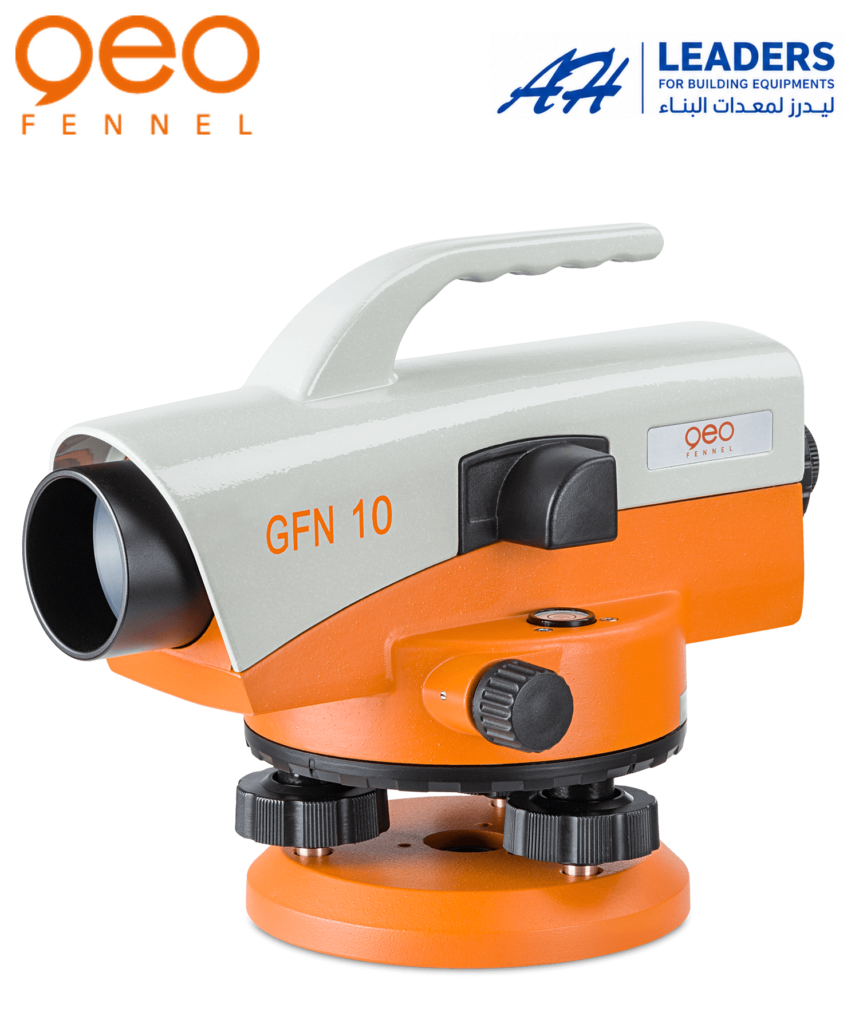

  • ✓ Robust metal housing with handle for comfortable handling
  • ✓ Reticle in wedge-shape for most accurate reading

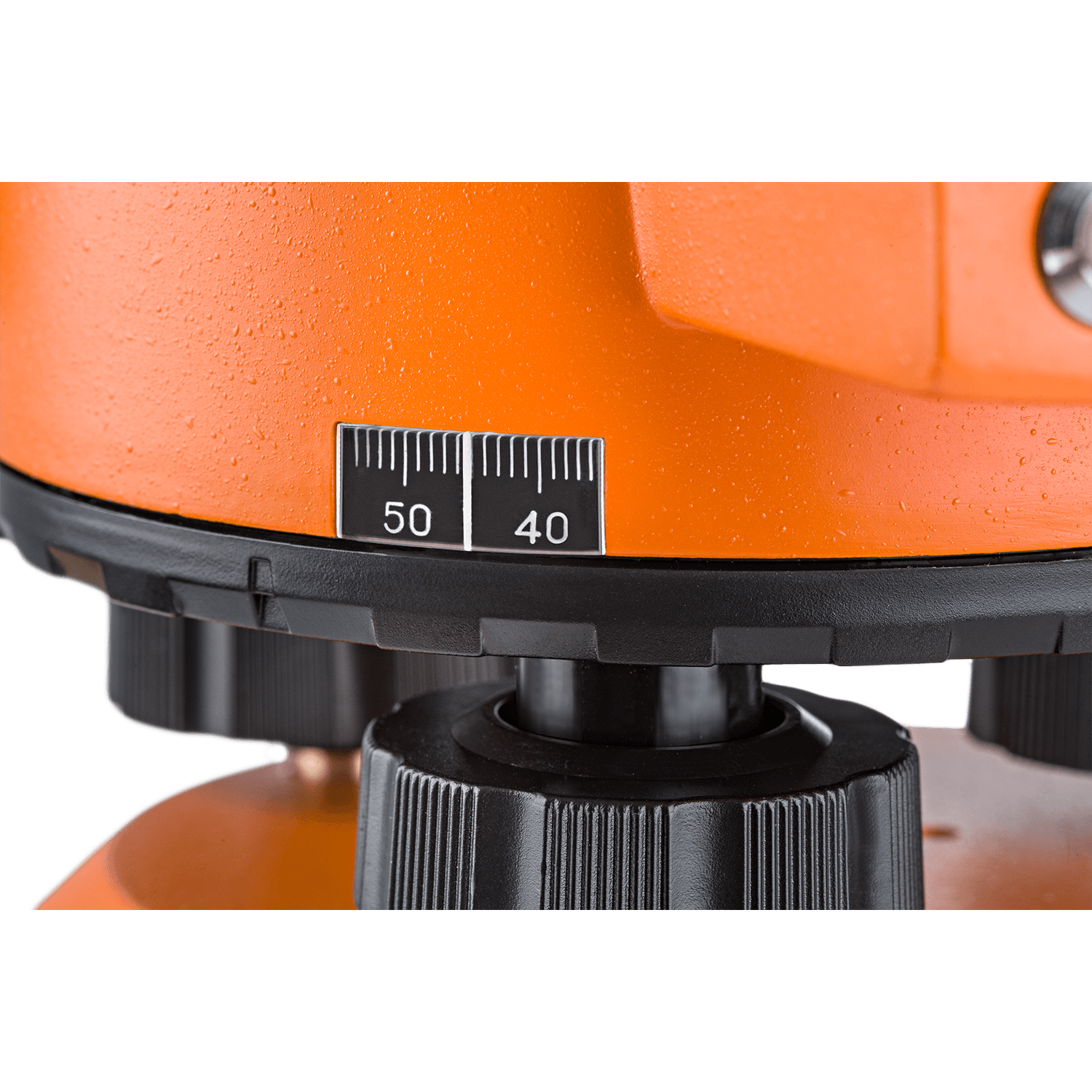

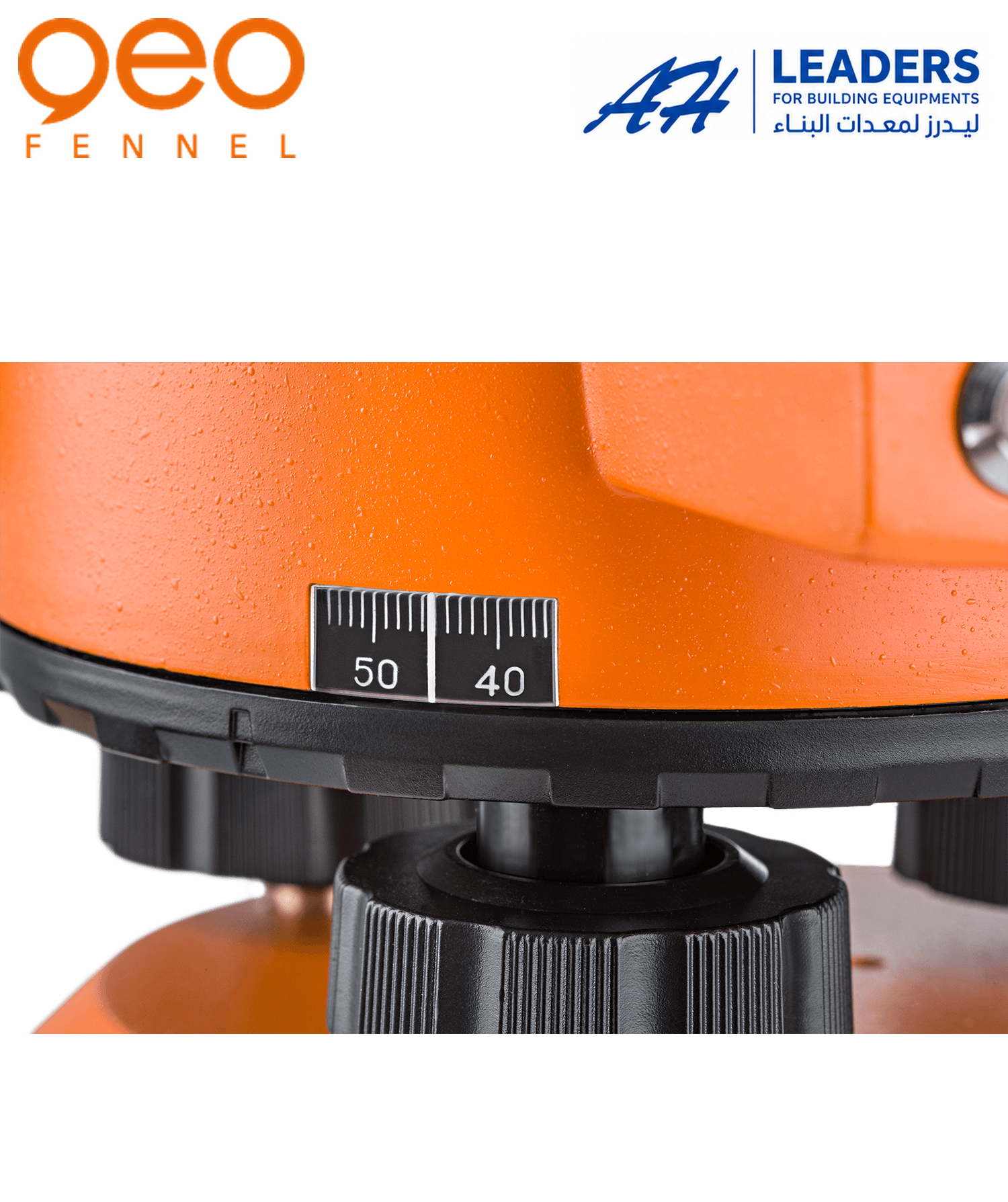

  • ✓ Well protected internal circle

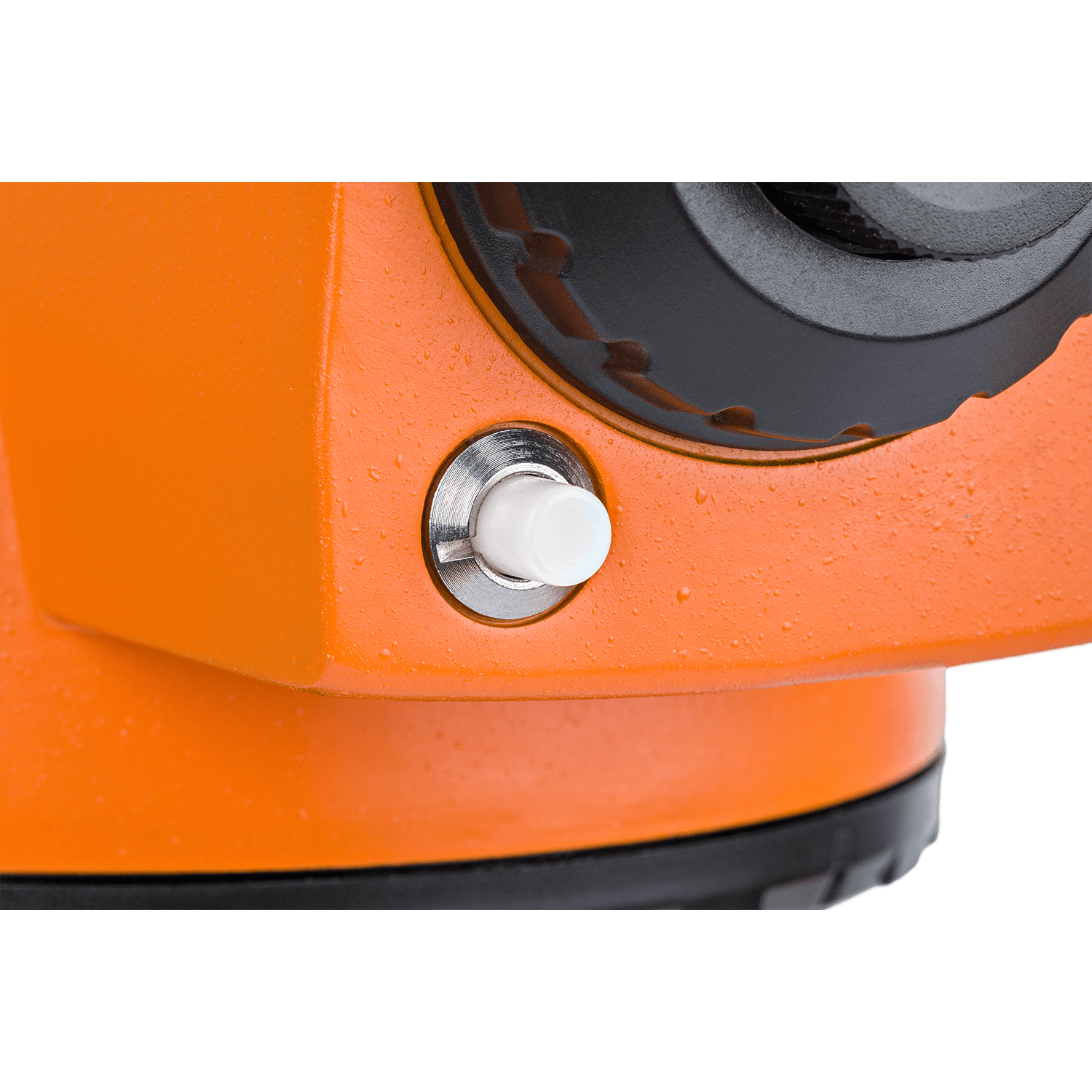

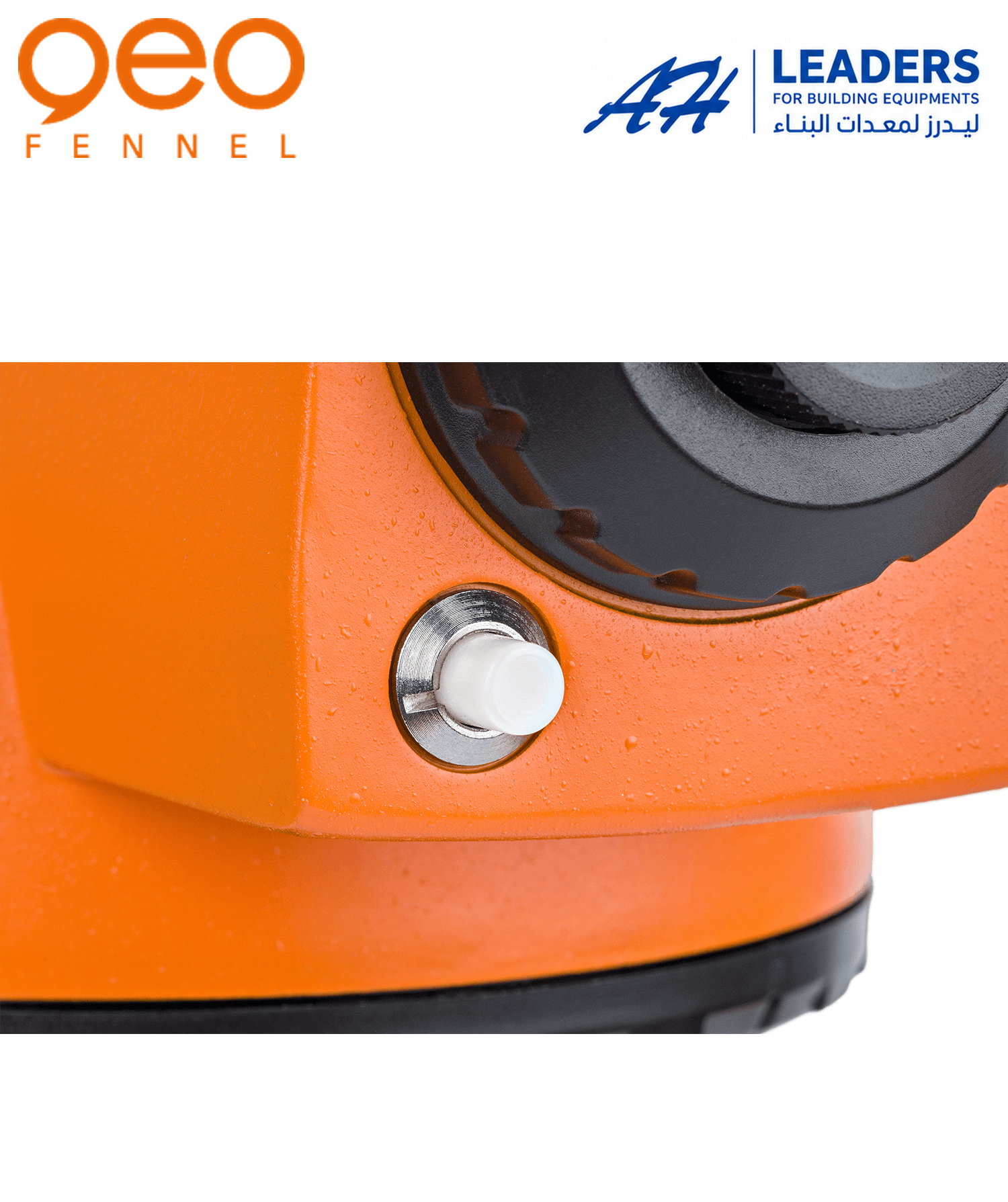

  • ✓ Compensator test button
  • ✓ Bubble reading mirror
  • 32 x magnification and bright optics
  • Robust all-metal housing
  • Wedge-shaped reticle
  • Internal circle and compensator test button
  • Handle for comfortable handling
Included in scope delivery:
  • Adjustment pin
  • Plumb bob
  • Carrying case

Technical Specifications

Telescope magnification:
32 x
Horizontal circle:
360°
Objective diameter:
40 mm
Levelling accuracy:
± 0,3"
Shortest focussing distance:
0,6 m
Working range of compensator:
± 15'
Mean error 1 km double levelling:
± 1,0 mm
Dust / water protection:
IP 65
Circular bubble:
8' / 2 mm
Weight (instrument only):
1,6 kg

Telescope magnification:, 32 x, Horizontal circle:, 360°, Objective diameter:, 40 mm, Levelling accuracy:, ± 0,3", Shortest focussing distance:, 0,6 m, Working range of compensator:, ± 15', Mean error 1 km double levelling:, ± 1,0 mm, Dust / water protection:, IP 65, Circular bubble:, 8' / 2 mm, Weight (instrument only):, 1,6 kg
