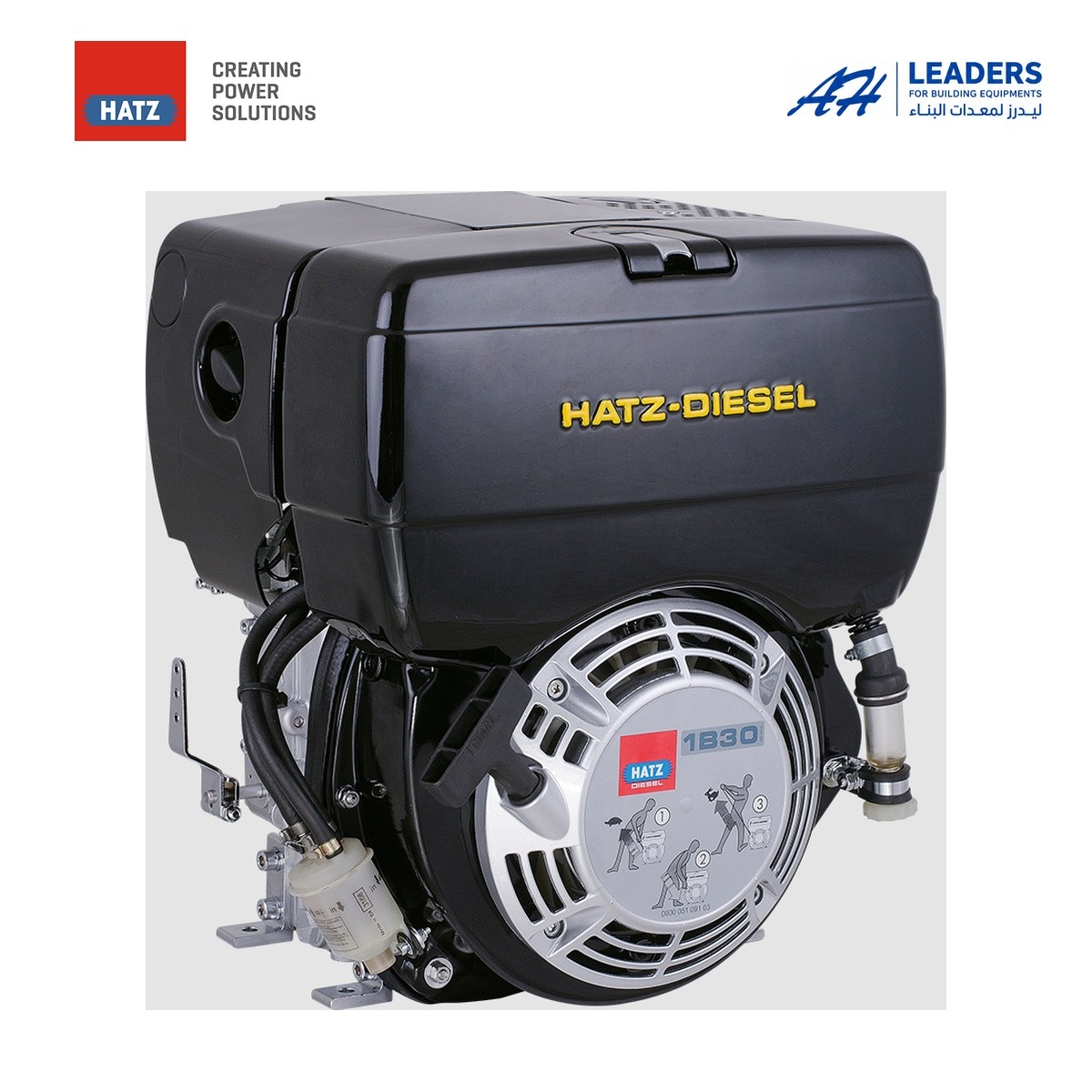

HATZ 1B30 Diesel Engine
Short Description
347 cc single-cylinder air-cooled diesel engine with mechanical direct injection and horizontal shaft.
The HATZ 1B30 is a compact diesel engine for compatible mobile and stationary machinery. Mechanical direct injection and a horizontal crankshaft make it suitable for a wide range of industrial applications.
Technical specifications
| Model | 1B30 |
|---|---|
| Engine type | Air-cooled, 4-stroke, single-cylinder diesel |
| Injection | Mechanical direct injection |
| Crankshaft | Horizontal |
| Displacement | 347 cm3 |
| Bore x stroke | 80 x 69 mm |
| Compression ratio | 21.5:1 |
| Maximum output (ISO 3046-1 IFN) | 5.0 kW (6.7 hp) at 3600 rpm |
| Maximum torque | 16.2 Nm |
| Maximum oil fill | 1.1 L |
| Reference dimensions (L x W x H) | 322 x 404 x 431 mm |
| Weight with recoil start | 35.0 kg |
| Weight with electric start | 39.8 kg |
Selection and compatibility

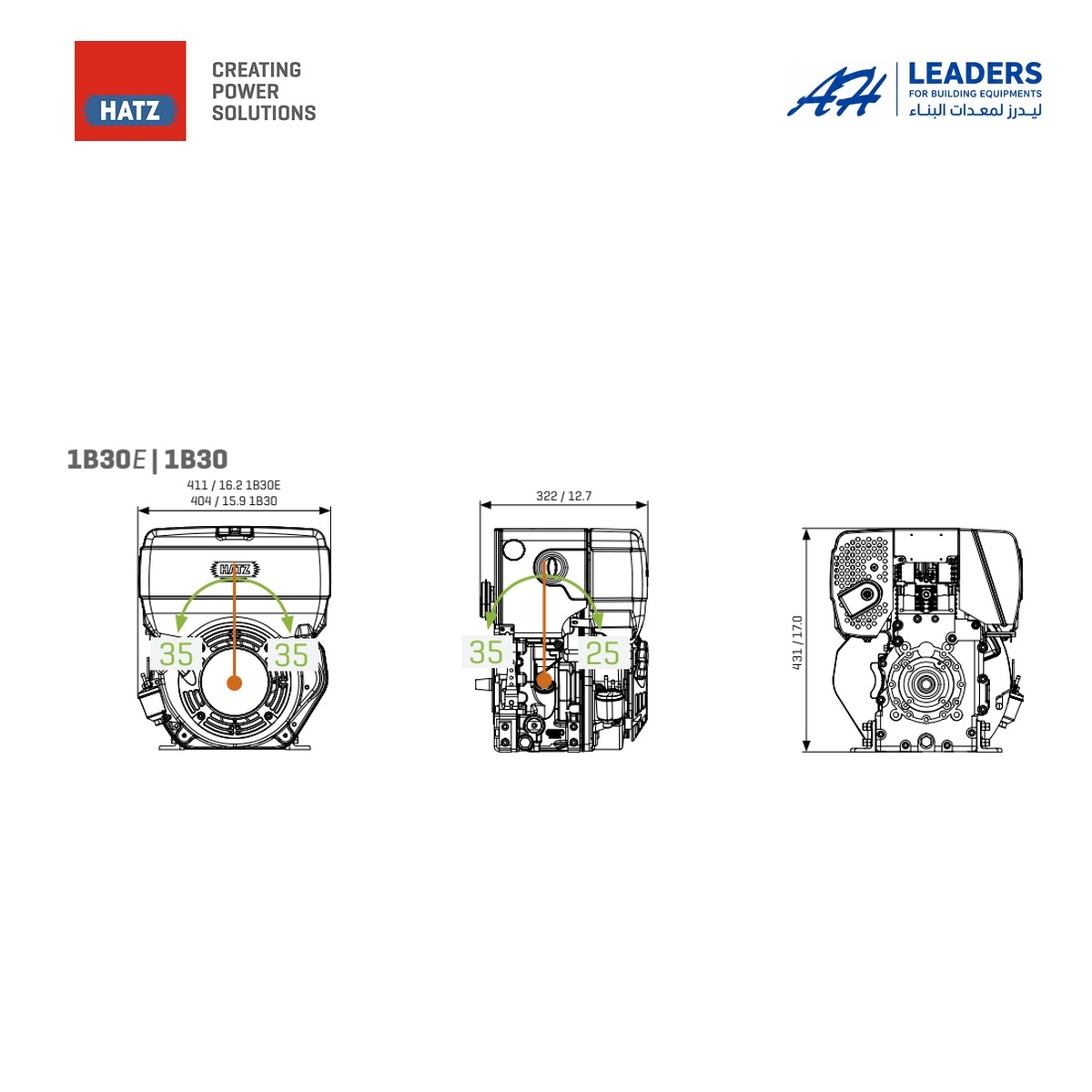

The 1B30 is the mechanical-injection model. The 1B30E and 1B30VE are different engines. Starting equipment, air cleaner, shaft and accessories depend on the supplied configuration. The dimensional drawing includes the related 1B30E; use the dimensions specifically marked 1B30.
Supplied as a standalone engine. Contact LEADERS with your machine model, shaft dimensions and mounting requirements to confirm a suitable configuration.
