Square Liner II Floor and Wall Laser
Short Description
Compact red laser angle template with two 90° lines for floor and wall tiling, angle setting and horizontal or vertical alignment.
Key Benefits
- ✓ Two clear laser lines at 90° for tile layouts.
- ✓ Graduated scale for 90°, 45° and other required angles.
- ✓ Suitable for floor, wall and ceiling angle layouts.
- ✓ Circular and tubular vials for manual alignment.
- ✓ Supplied with batteries, magnetic target and case.

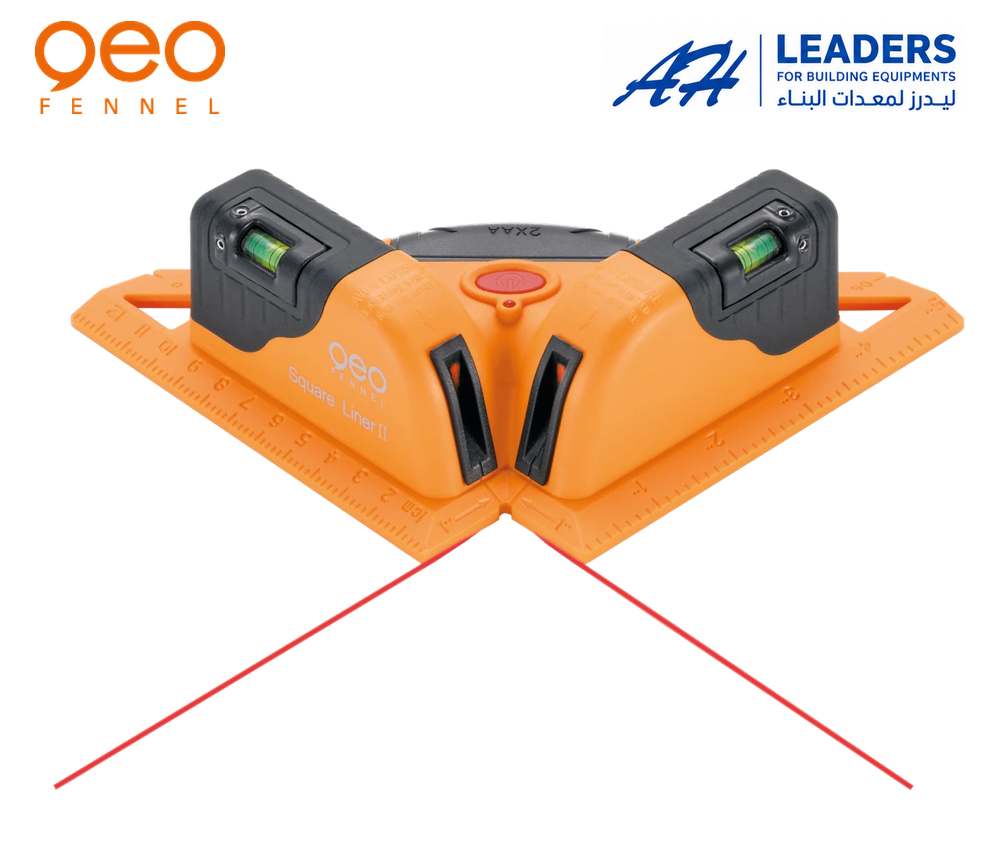

The geo-FENNEL Square Liner II generates two clear red laser lines at 90° for setting out tiles and right angles on floors and walls. Its 0°–90° graduation helps set out 90°, 45° or other required angles on floors, walls and ceilings.

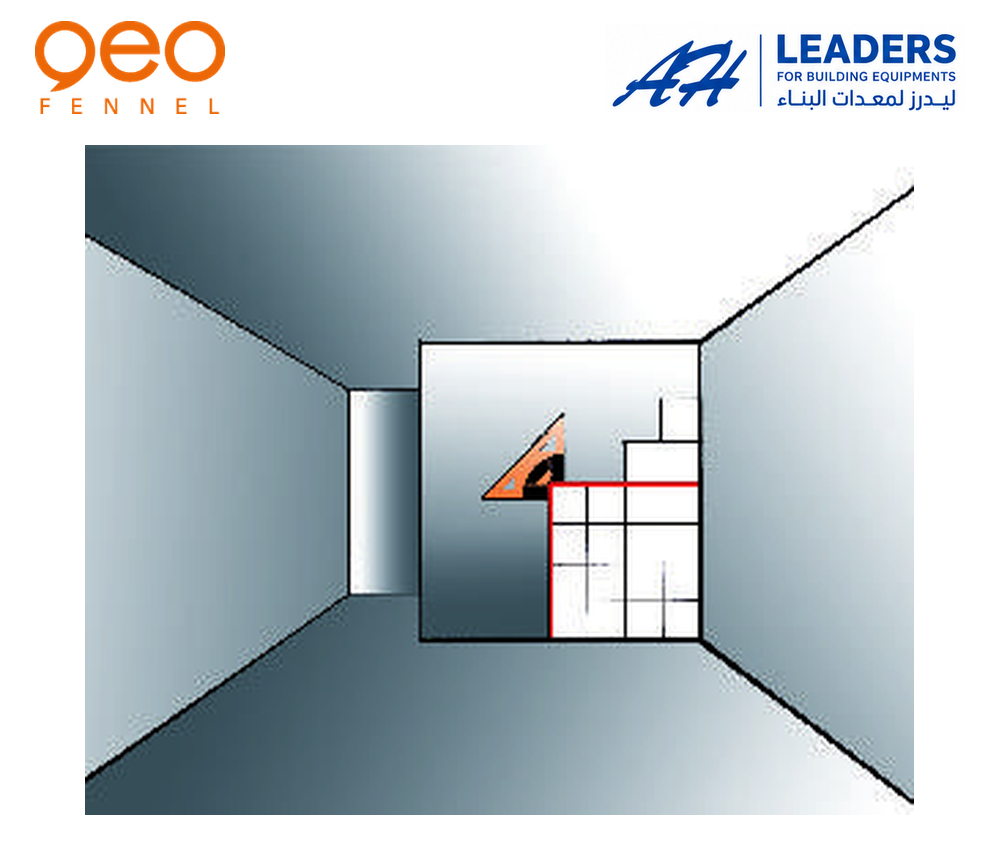

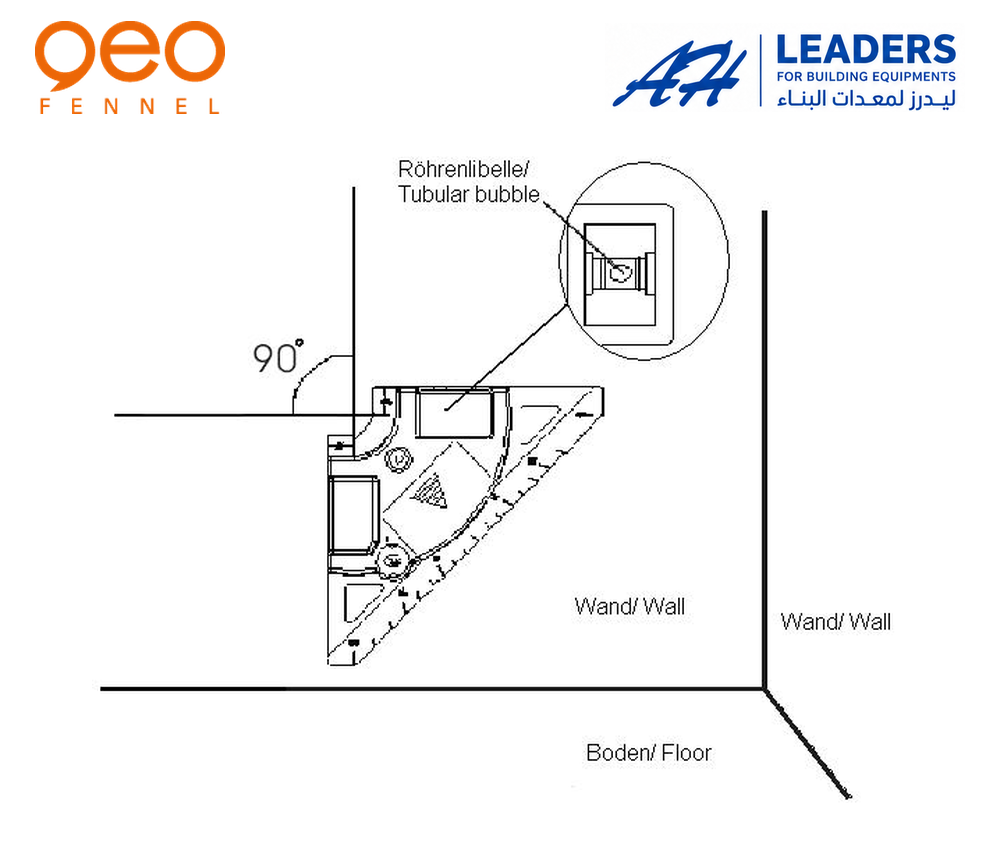

Built-in circular and tubular vials support manual horizontal and vertical alignment. The additional illustrations show wall alignment and a tiling application from the official user manual.
Supplied with
- Square Liner II
- Batteries
- Magnetic target
- Case
Working range: up to 30 m, depending on room illumination, as specified in the supplied geo-FENNEL catalogue.
Technical Specifications
Model, Square Liner II, Article number, 551000, Laser lines, 2 red laser lines at 90°, Working range, Maximum 30 m, depending on room illumination, Accuracy, ±3 mm / 10 m, Laser diodes, 2 × 635 nm, Laser class, 2, Angle graduation, 0°–90°, Alignment, Manual, with circular and tubular vials, Power supply, 2 × 1.5 V AA alkaline batteries, Operating time, 48 h, Operating temperature, 0°C to +40°C
