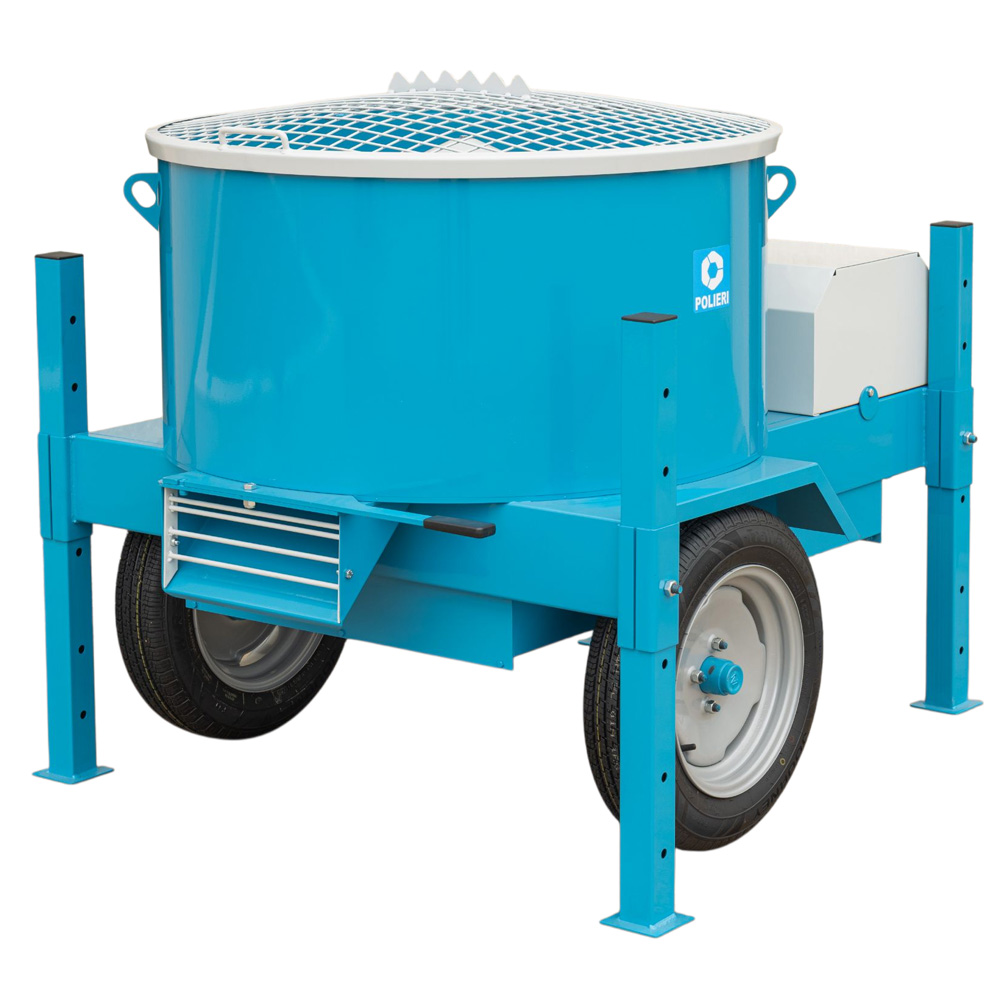

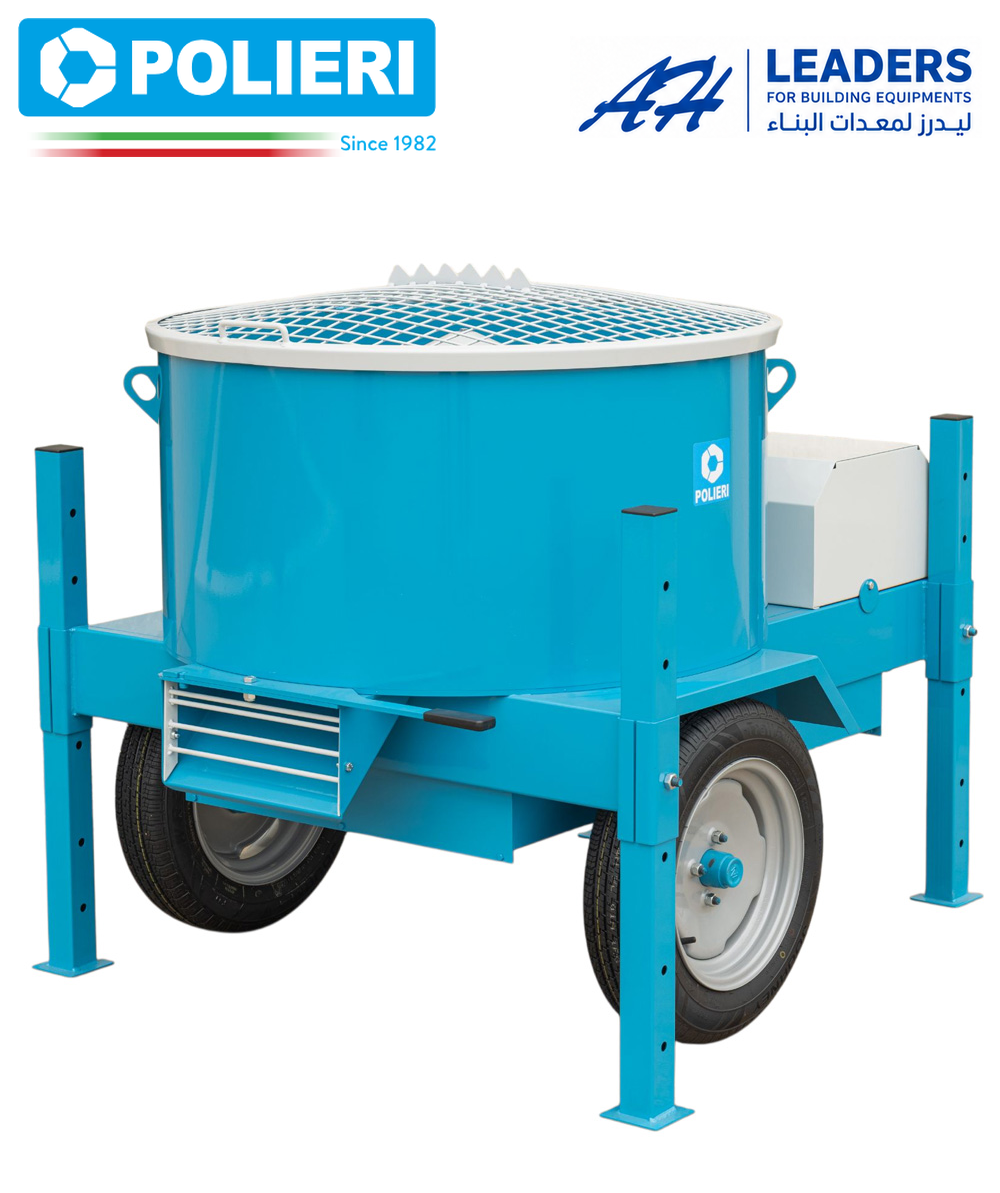

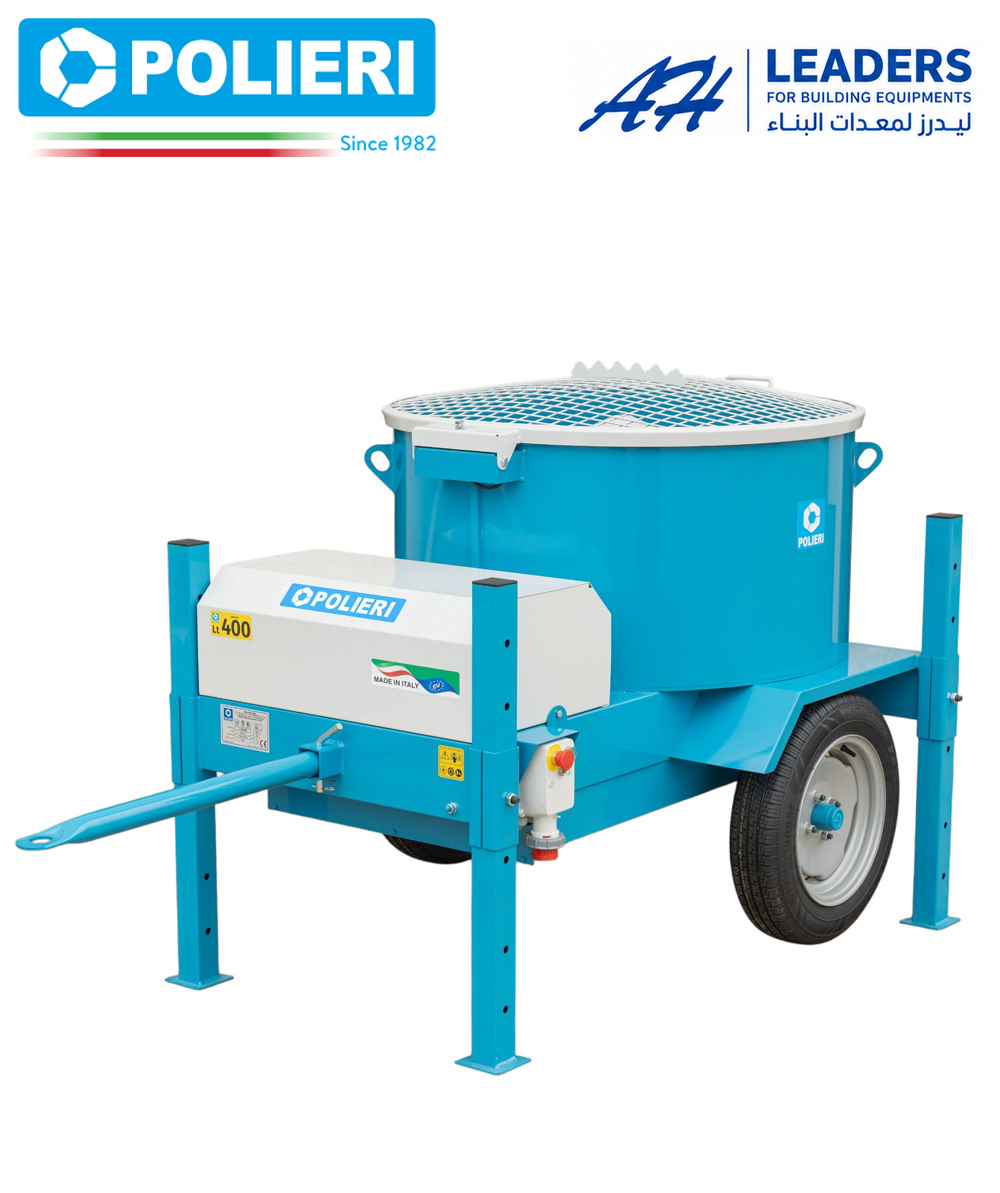

TECNOMIX 400 PLANETARY MIXER
Short Description
Suitable for mixing
Pre-mixed or traditional cement screeds, including those with fibers and/or additives
Lightweight screeds, pre-dosed or traditional, with expanded clay (aggregate > 20 mm)
Colored rubber granules for anti-shock flooring
Self-leveling subfloors (anhydrite/cement-based)
Thermal insulation subfloors with cork or polystyrene base
Cement/lime/gypsum-based plasters
Fiber-reinforced structural plasters, with or without additives
Renovation plasters
Traditional plasters
Injection mortars and binders
Insulating plasters with polystyrene or cork base
Fiber-reinforced structural mortars
Bedding mortars (pre-mixed or traditional)
Filling concrete (aggregate size ≤ 6 mm)
Continuous draining concrete for flooring
Heat-resistant mortars
Fireproof materials
Key Benefits

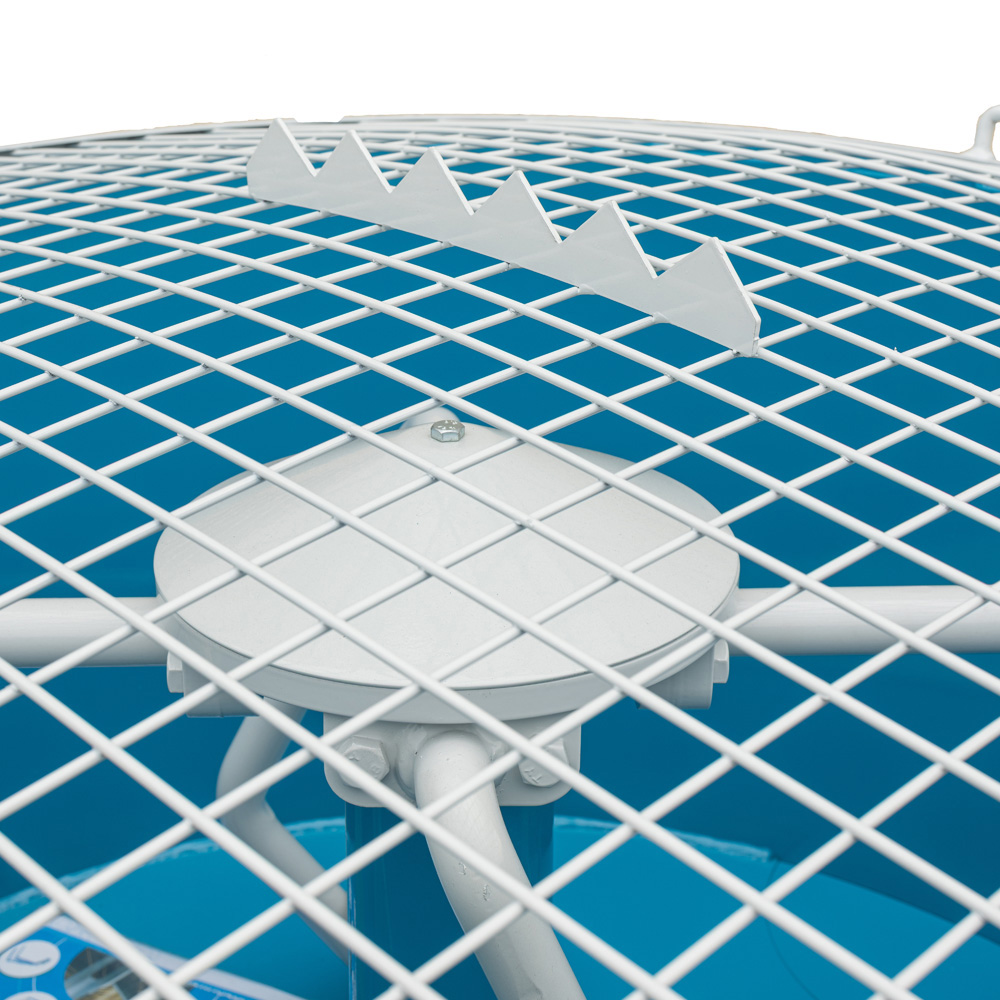

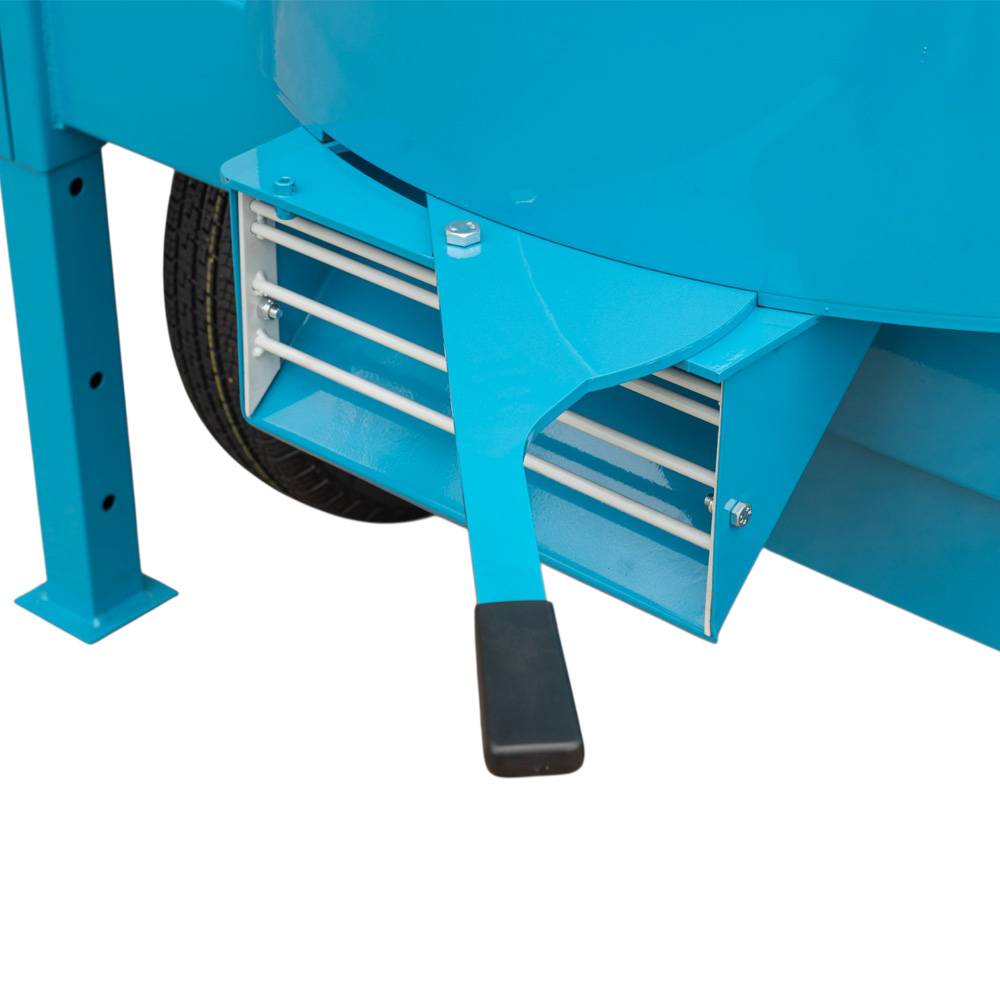

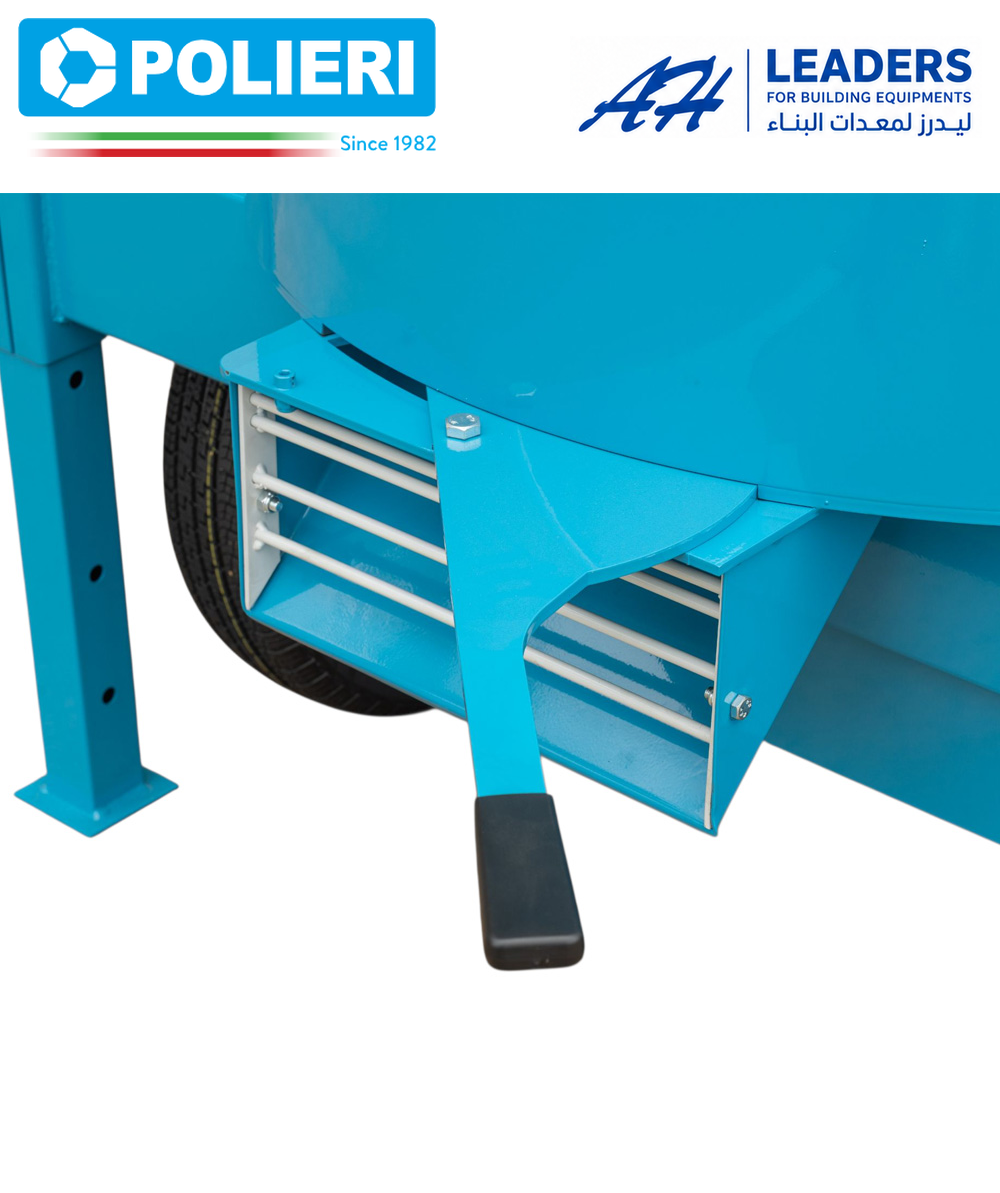

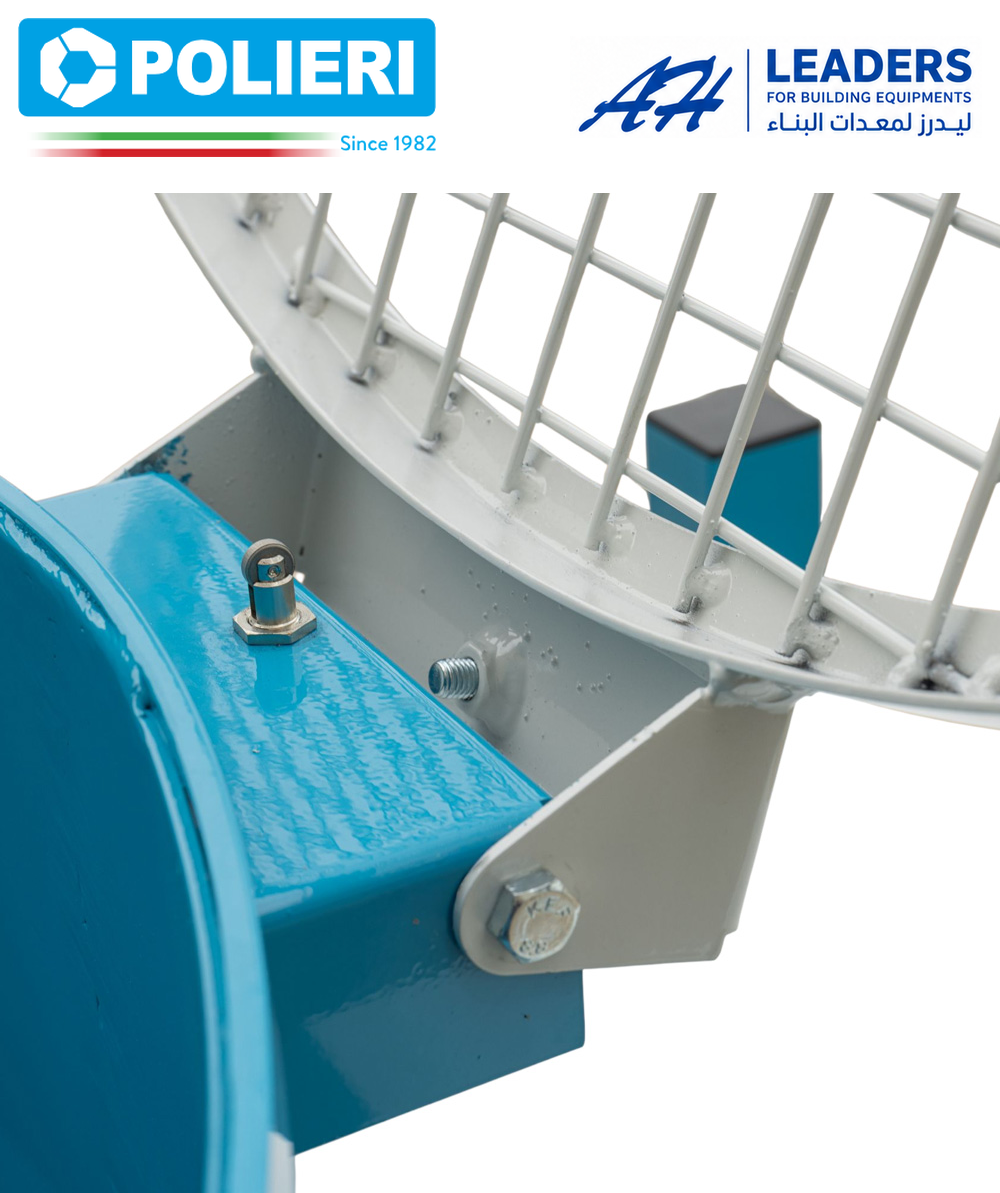

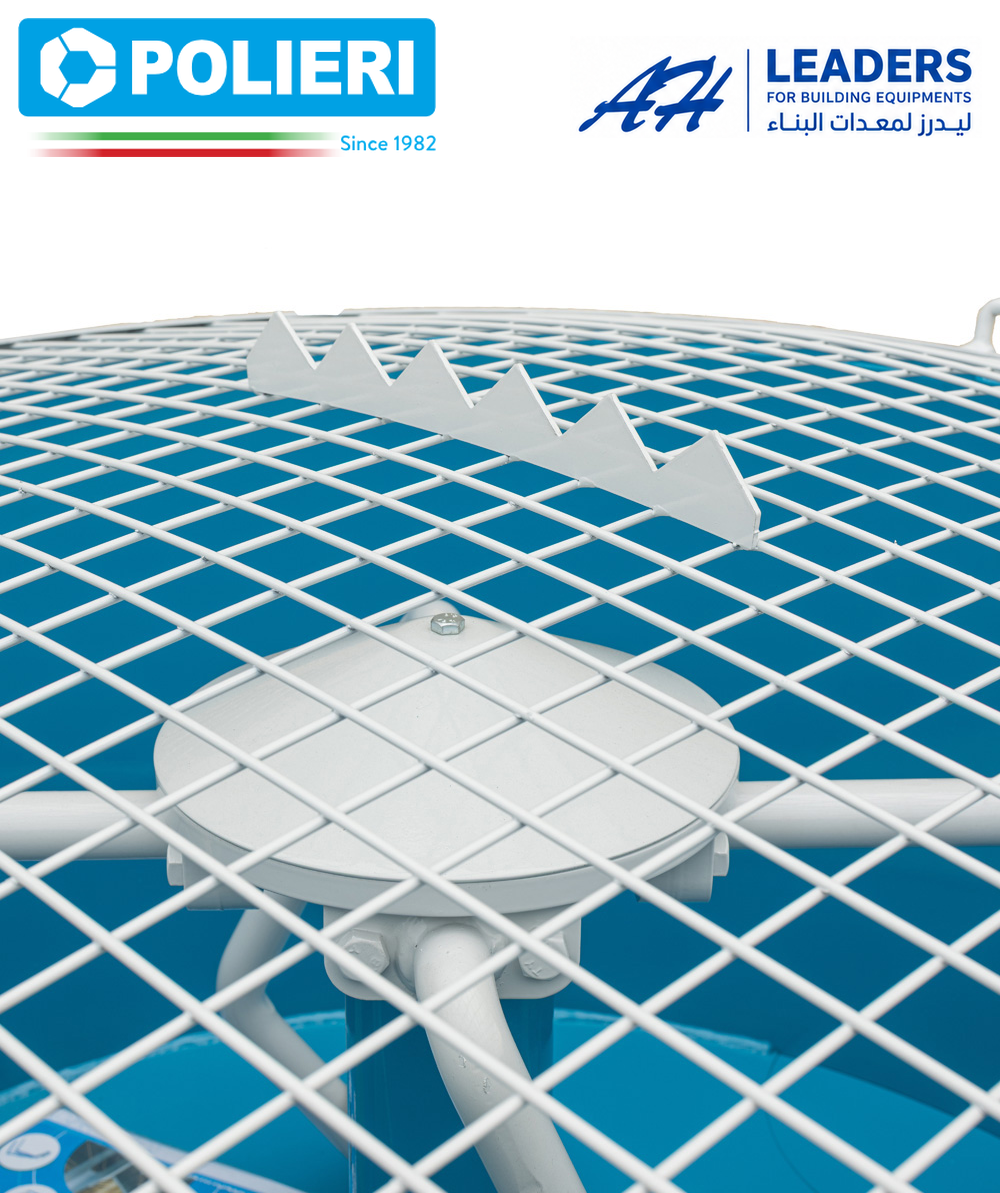

- ✓ Discharge spout Optimized discharge spout for quick and easy emptying of the mixed material. The anti-intrusion grid prevents accidental contact with the mixing blades.

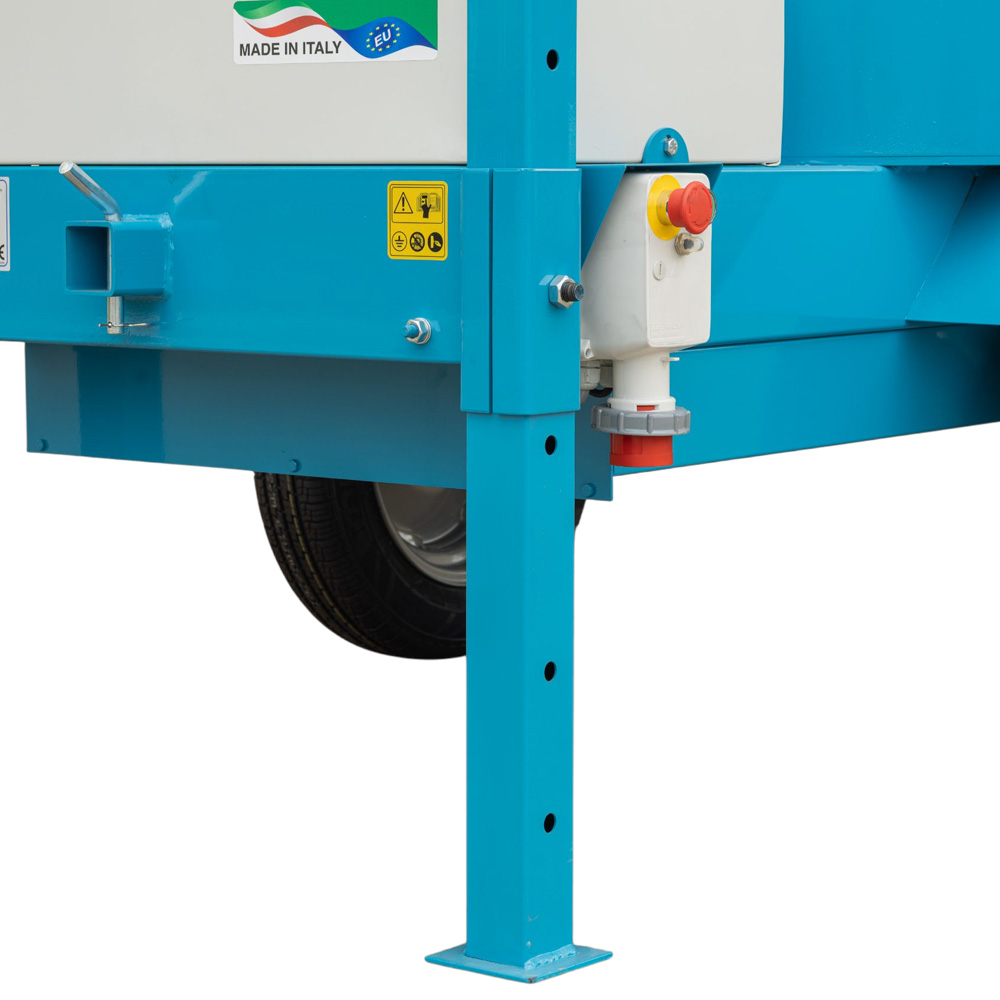

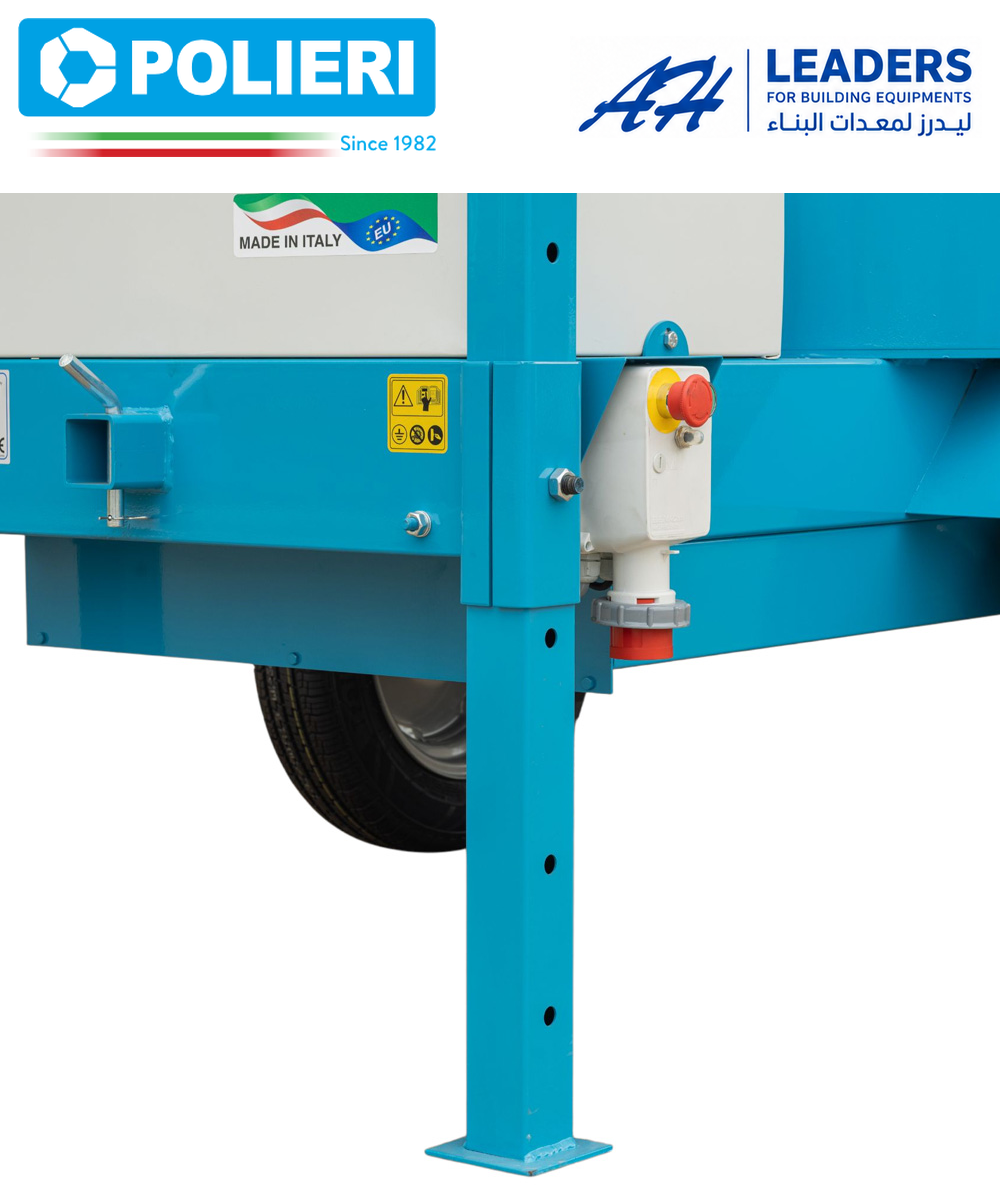

- ✓ Adjustable legs Extendable legs allow the operator to set the desired discharge height, making it easy to unload the mixture into a wheelbarrow or plastering machine.
- ✓ Gear motor with oil-bath gears A robust gear motor with oil-bath gears minimizes noise levels and ensures high operating comfort for the user.
- ✓ Paint finish All our machines and equipment are powder-coated with epoxy-polyester thermosetting paints, providing greater gloss, durability, and resistance to atmospheric agents — in full respect of the environment.

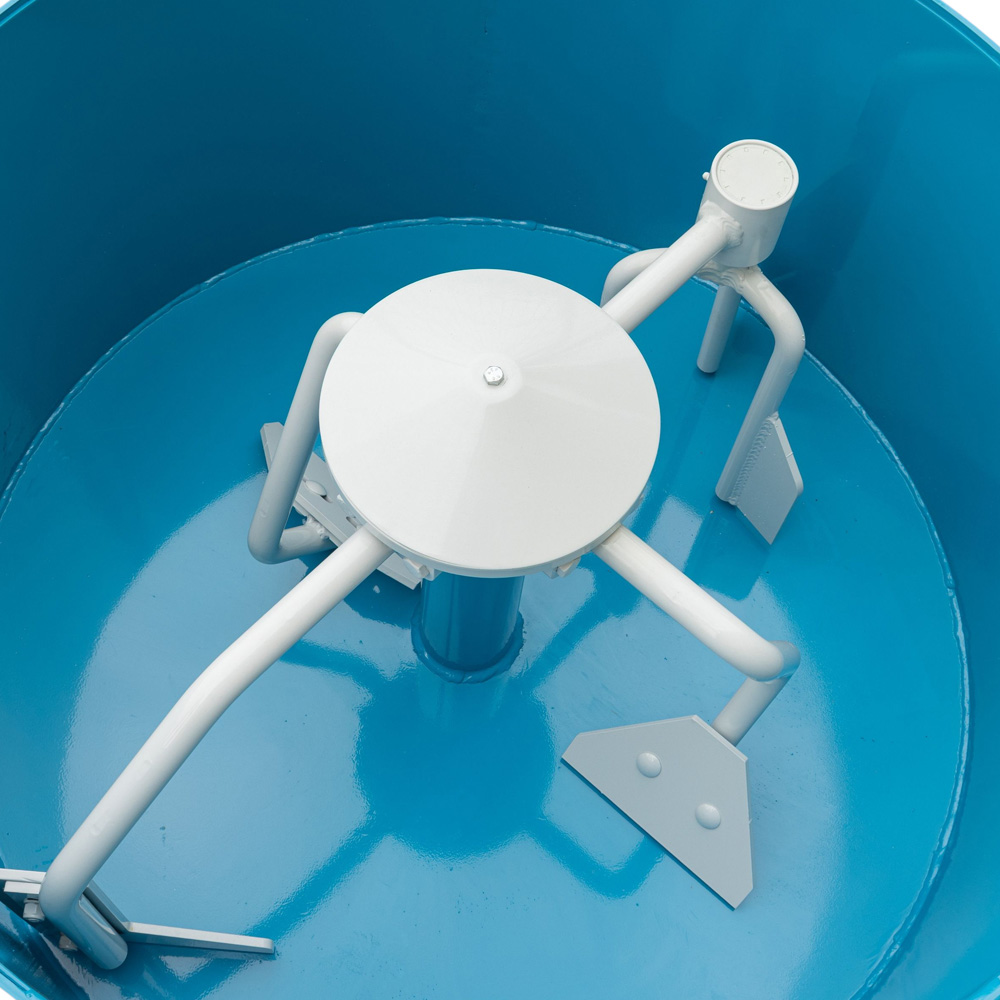

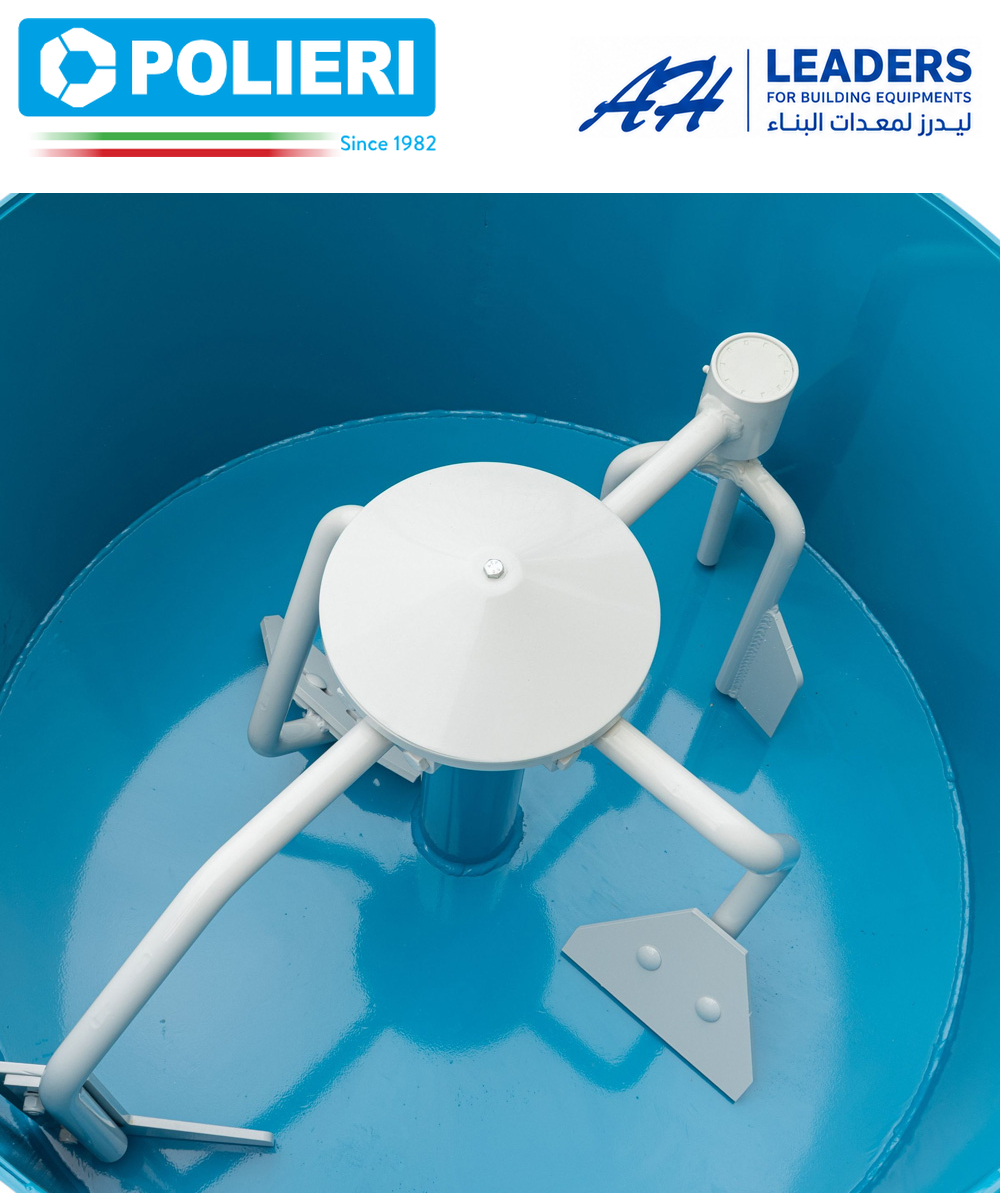

High-capacity planetary mixer offering excellent maneuverability thanks to its compact dimensions and reduced weight. Ideal for mixing pre-mixed or pre-dosed bagged materials efficiently and with minimal effort. The homogeneity of the mixture is exceptional, ensuring no cement lumps in screeds or fiber clumps in fiber-reinforced products. When needed, the Tecnomix 400 can also be used for traditional materials, always guaranteeing maximum performance and mixing uniformity.
Technical Specifications
Drum volume (L), 400, Output capacity (L), 280, Drum diameter (mm), 1000, Blade rotation speed (rpm), 32, Machine weight (kg), 350, Wheel size / model (mm), 135 / R13, Motor power (hp), 5.5, Length (mm), 1550, Width (mm), 1300, Height (mm), 1550 (1230)
