TOKU TPB-90 Pneumatic Breaker
Short Description
Heavy-duty 40 kg class pneumatic breaker with a 42 kg net weight for tough concrete demolition and foundation work.
Key Benefits
- ✓ Heavy-duty breaking for tough concrete.
- ✓ Forged components and durable front head.
- ✓ Latch retainer for straightforward chisel changes.
- ✓ Replaceable bushing and front-head shock absorbers.
Heavy-duty 40 kg class pneumatic breaker with a 42 kg net weight for tough concrete demolition and foundation work.
Air-powered equipment from TOKU, Japan, supplied by LEADERS. Contact our team to confirm the chisel configuration, accessories and compressor requirements for your application.

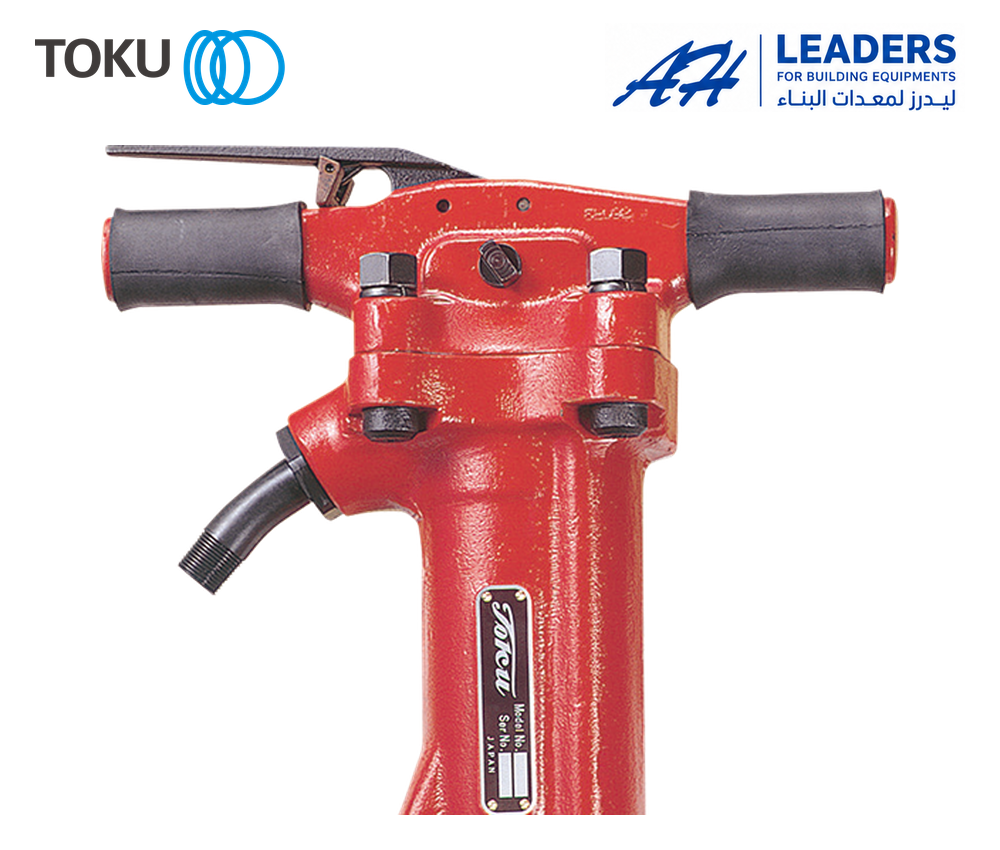

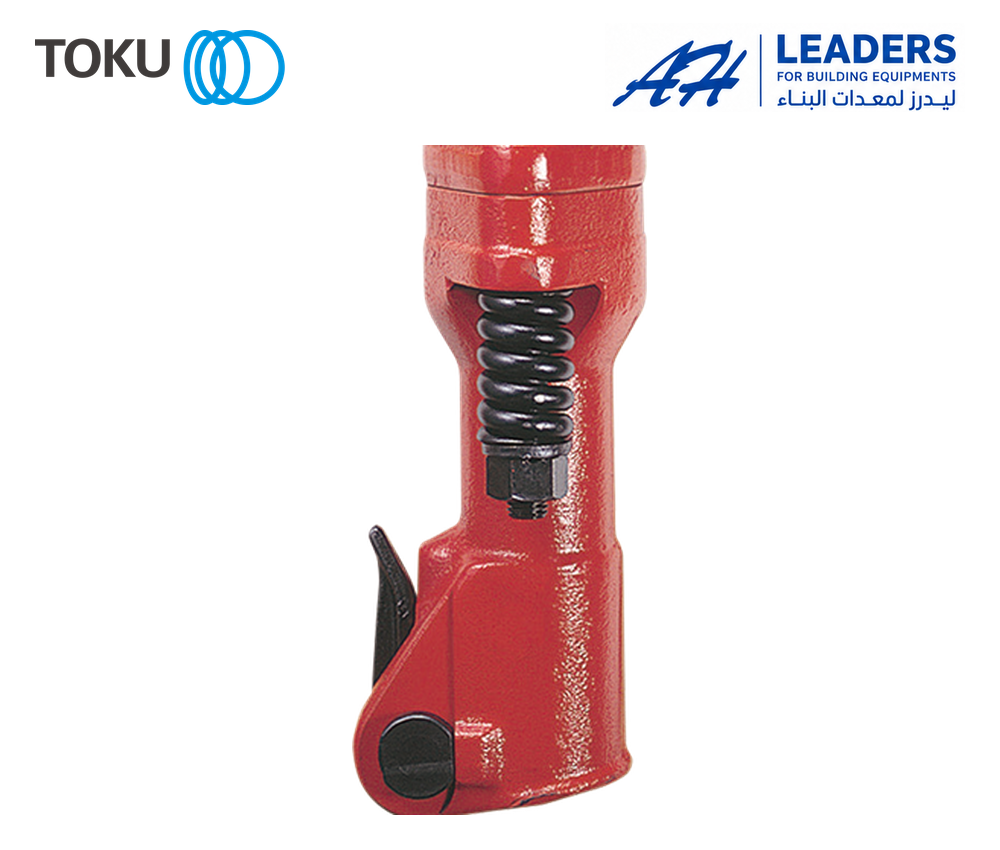

Gallery detail views show the handle and chisel-retainer area of this model.
An optional muffler is available from the manufacturer; confirm availability and shank size when requesting a quotation.
Technical Specifications
Model, TPB-90, Brand, TOKU - Japan, Net weight, 42 kg, Piston diameter, 66.6 mm, Piston stroke, 152 mm, Blow rate, 1,250 bpm, Overall length, 725 mm, Air consumption, 2.2 m³/min, Shank size, 1-1/8 × 6 or 1-1/4 × 6 inch, Air inlet, 3/4 inch PT, Hose size, 19 mm, Working pressure, 0.6 MPa (6 bar)
