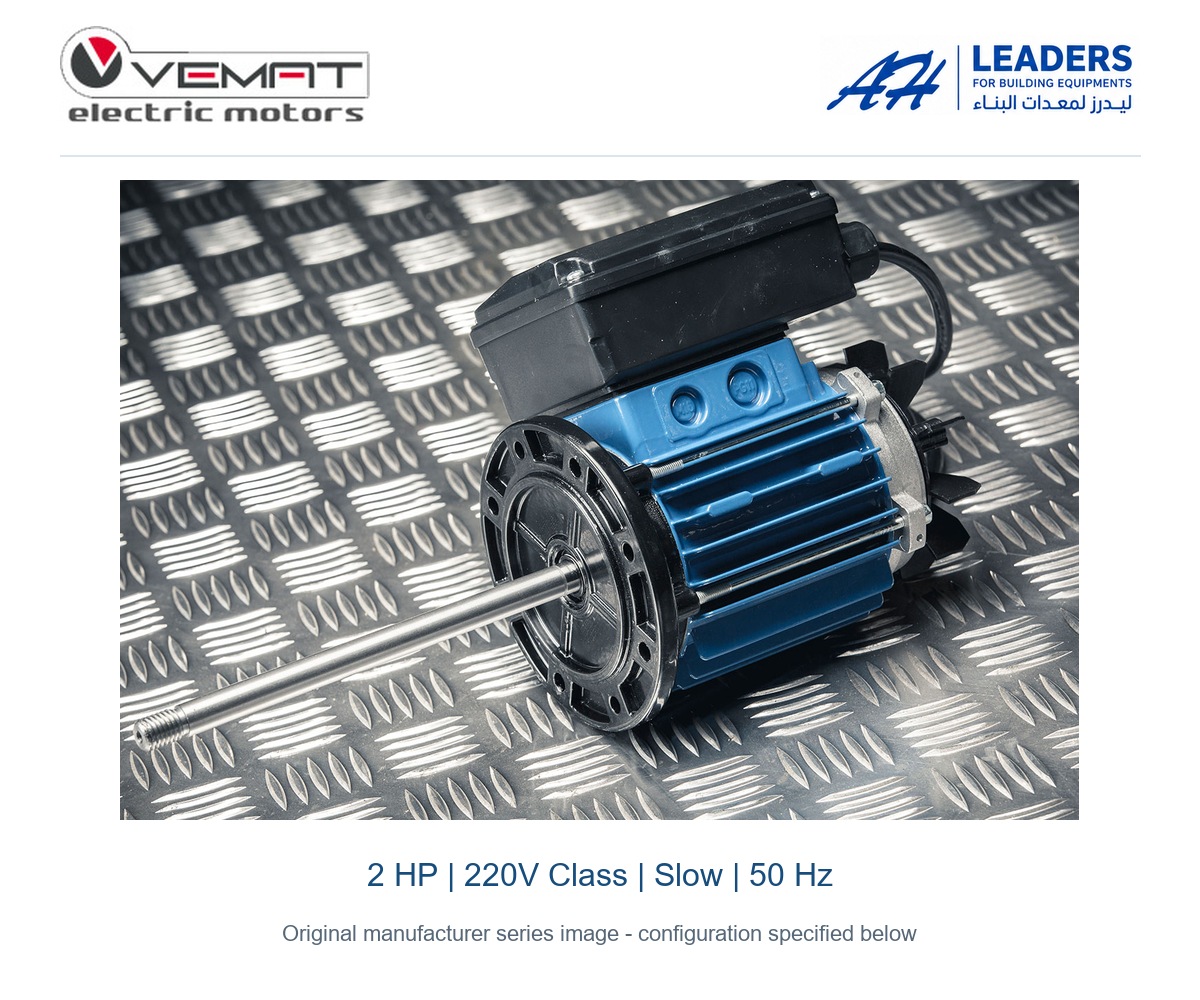

VEMAT 2 HP 220V Electric Motor – Slow – 50 Hz
Short Description
VEMAT 2 HP (1.5 kW) single-phase electric motor, 220/230V supply class, slow speed, 50 Hz. Motor only for equipment drives and replacement applications.
VEMAT 2 HP (1.5 kW) single-phase electric motor, 220/230V supply class, slow speed, 50 Hz. Motor only for equipment drives and replacement applications.
Technical specifications
| Brand | VEMAT |
|---|---|
| Power | 2 HP / 1.5 kW |
| Supply voltage class | 220V / 230V |
| Phase | Single-phase |
| Frequency | 50 Hz |
| Speed class | Slow (1400-1500 rpm class) |
| Rated speed – catalogue reference | 1380 rpm at 50 Hz |
| Catalogue reference | VMB90L-4 |
| Reference rated voltage | 230V |
| Reference rated current | 10 A at 230V / 50 Hz |
| Poles | 4 |
| Protection | IP55 |
| Insulation class | F |
| Duty | S1 – continuous duty |
| Mounting and shaft | Confirm the required mounting, shaft diameter and shaft length when ordering. |
Selection and installation
The title uses the commonly requested voltage and speed class. Exact rated speed and current above refer to the stated manufacturer catalogue configuration at 50 Hz. Match the supplied motor nameplate, shaft, mounting and electrical connection to your equipment before installation.
Images illustrate the manufacturer motor series. Casing, terminal box and mounting may vary with the selected configuration. Contact LEADERS with the existing motor nameplate or machine details for the correct replacement.
