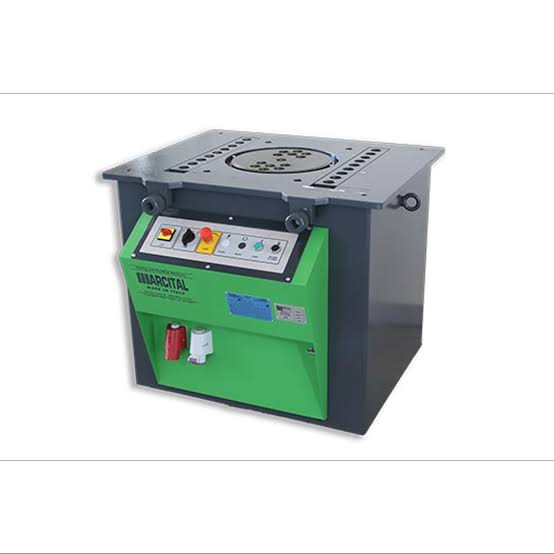

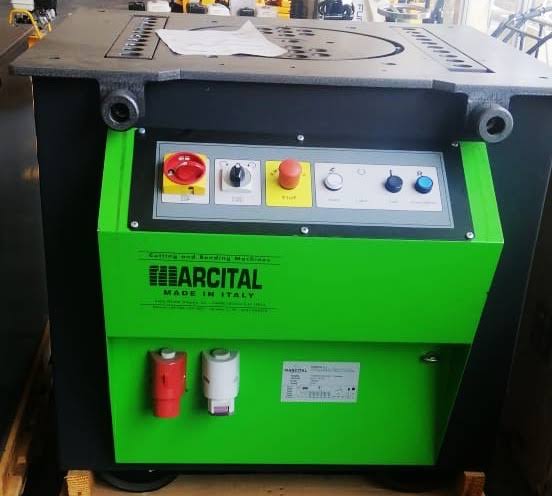

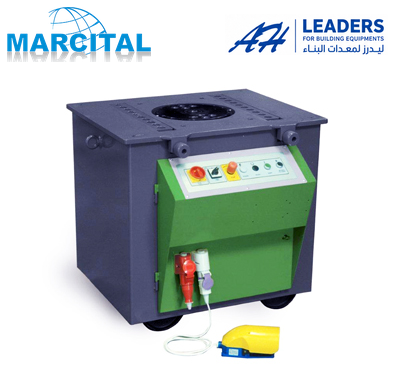

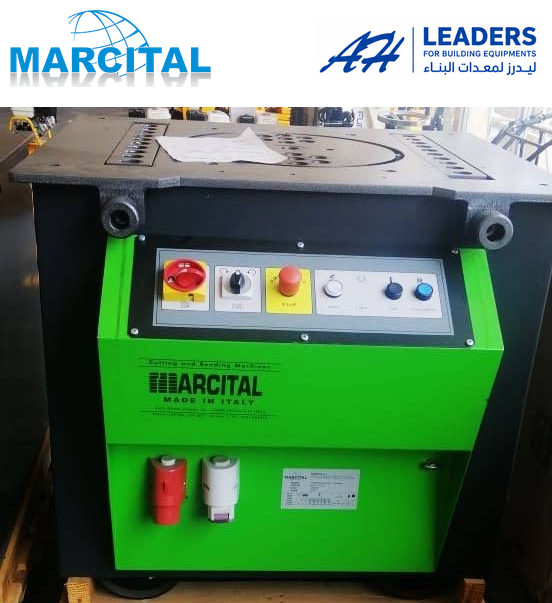

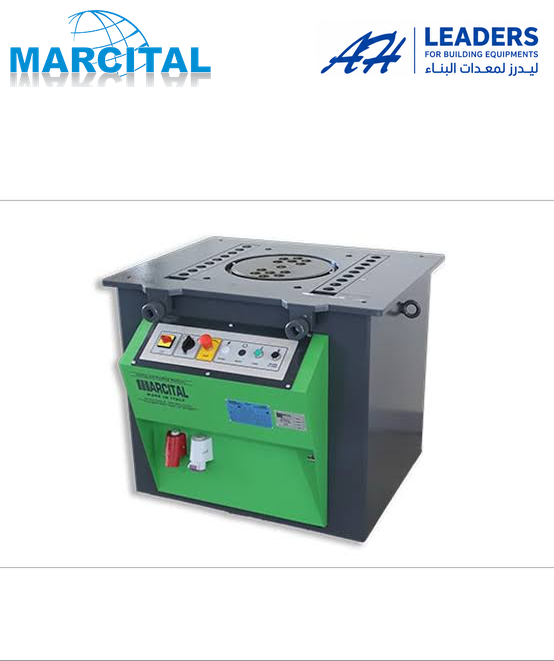

Bending Machine P54 Evolution 3-Phase

Short Description

Model: Bending Machine P54 Evolution 3-Phase
Motor: 5,5 HP/4kW
Capacity of bend R= 65 kg/mm2: 1 Ø 40 | 2 Ø 30 | 3 Ø 22

Capacity of bend R= 85 kg/mm2: 1 Ø 40 | 2 Ø 34 | 3 Ø 26


Turning Plate Ø550mm (novelty): permits to using bushes up to Ø220mm without further equipment.



N6 Bushes: Ø 60 – 70 – 80 – 95 – 120 – 150 – 175, 1 hardened square pin; 1 hardened stirrup bending pin; 3 hardened bush holding pins; 1 checking block; 1 pedal for remote control;




Long Saddles: are essential to realize the double bending

Technical Specifications

dimensions
105 x 95 x h. 89
weight
kg. 585
self-breaking motor
5,5 HP/4kW
rotations/minute
6
capacity of bend R= 65 kg/mm2
1 Ø 40 | 2 Ø 30 | 3 Ø 22
capacity of bend R= 85 kg/mm2
1 Ø 40 | 2 Ø 34 | 3 Ø 26

dimensions, 105 x 95 x h. 89, weight, kg. 585, self-breaking motor, 5,5 HP/4kW, rotations/minute, 6, capacity of bend R= 65 kg/mm2, 1 Ø 40 | 2 Ø 30 | 3 Ø 22, capacity of bend R= 85 kg/mm2, 1 Ø 40 | 2 Ø 34 | 3 Ø 26
