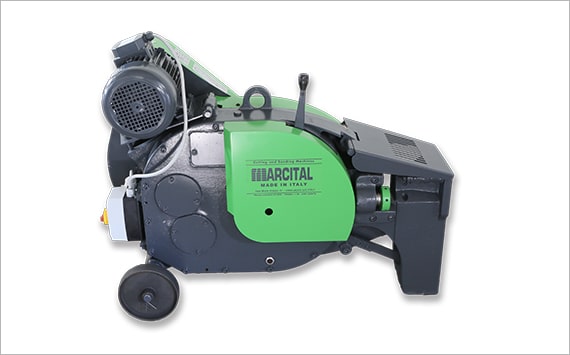

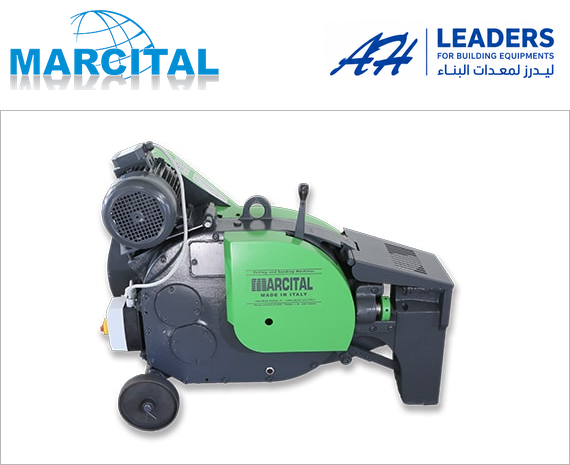

Cutting Machine C54 Evo 3-Phase
Short Description
Model: Cutting Machine C54 Evo 3-Phase
Motor: 5,5 HP-4kW
Capacity of cut R= 65 kg / mm2: 1 Ø 46 | 2 Ø 32 | 3 Ø 24
Capacity of cut R= 85 kg / mm2: 1 Ø 40 | 2 Ø 30 | 3 Ø 22
blade: two interchangeable blades in hardened steel, with four cutting edges fixed on the machine.
Screw locator: adjustable according to the diameter and and quantity of bars to be cut, permits perfect alignment of one or more rods towards the blade and the achievement of perfectly perpendicular cuts.
centralized lubrication: thanks to the new construction system, the parts that require it are easily reached by a single point of grazing.
-machine body in mono block of spheroidal cast iron, completely redesigned;
-geers in cemented steels
-reinforced mechanical parts, for better machine resistance and performance
Technical Specifications
dimensions, cm 117 x 65 x h. 87, weight, kg. 630, oil, 3 Lt., electric motor, 5,5 HP-4kW, cuts/minute, 37, capacity of cut R= 65 kg / mm2, 1 Ø 46 | 2 Ø 32 | 3 Ø 24, capacity of cut R= 85 kg / mm2, 1 Ø 40 | 2 Ø 30 | 3 Ø 22
