Elevator TD1000/E

Short Description

Model: TD1000/E
Engine Power: 2.5 kW
Voltage: 220/380 V or 240/415 V
Maximum Lifting Capacity: 950 kg
Lifting Speed: 14 m/min
Working Length Cable: 25/50 m

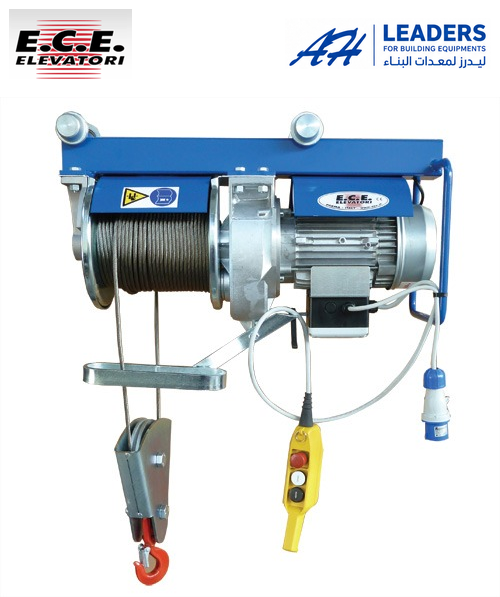

TD1000/E Electric Hoist

The TD1000/E Electric Hoist is a compact and high-performance lifting solution designed for efficient material handling in construction, industrial, and commercial applications. Built for reliability and durability, it provides smooth and safe lifting performance while maintaining excellent operational efficiency in demanding working environments.

Featuring a robust construction, powerful motor, and high lifting speed, the TD1000/E ensures precise and dependable load handling. Its durable steel cable system and integrated safety features enhance operational security and long-term performance. Designed to withstand intensive daily use, the TD1000/E offers a practical and reliable solution for lifting heavy materials with confidence and efficiency.

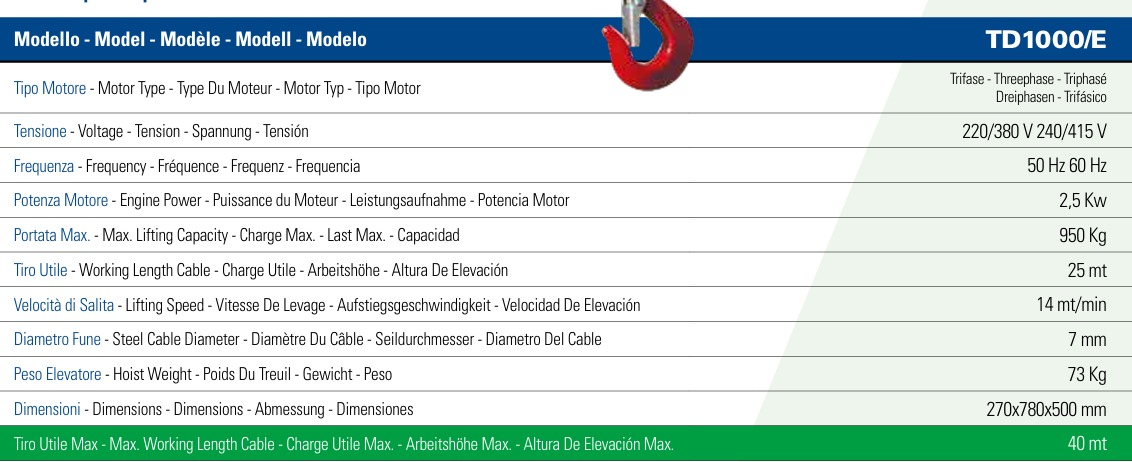

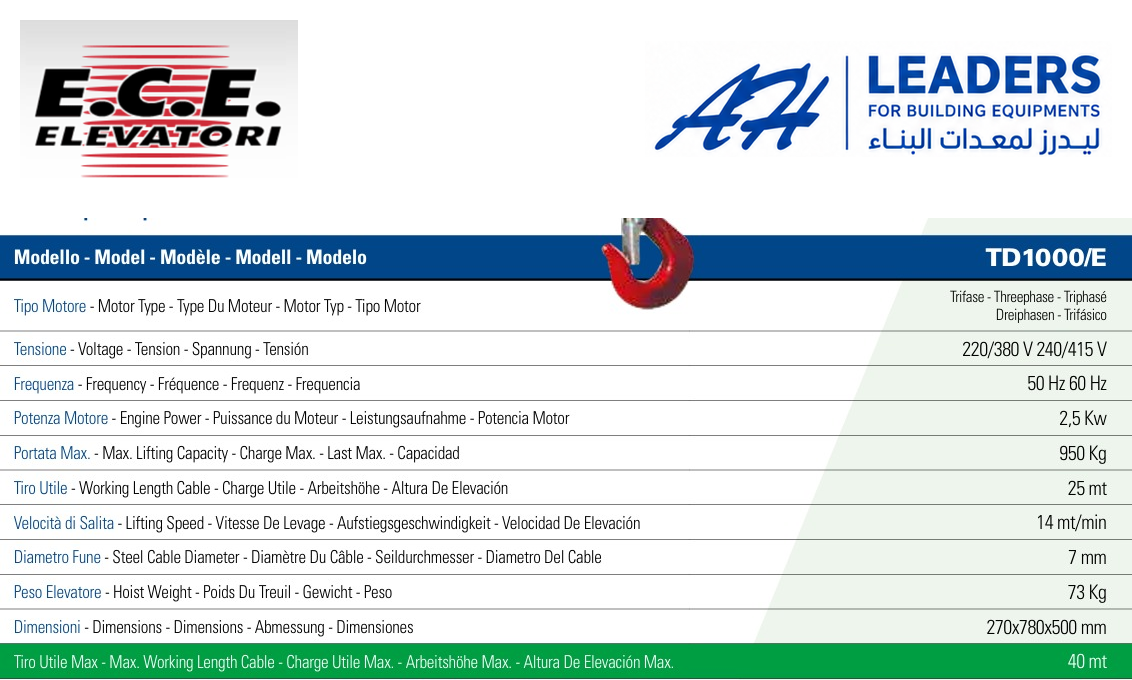

Technical Specifications

Model
TD1000/E
Motor Type
Three-Phase
Voltage
220/380 V or 240/415 V
Frequency
50 Hz / 60 Hz
Motor Power
2.5 kW
Maximum Lifting capacity
950 kg
Standard Lifting Height
25/50 m
Lifting Speed
14 m/min
Steel Cable Diameter
7 mm
Hoist Weight
73 kg
Dimensions (L × W × H)
270 × 780 × 500 mm
Lifting System
Double Fall (Double-Line)

Model, TD1000/E, Motor Type, Three-Phase, Voltage, 220/380 V or 240/415 V, Frequency, 50 Hz / 60 Hz, Motor Power, 2.5 kW, Maximum Lifting capacity, 950 kg, Standard Lifting Height, 25/50 m, Lifting Speed, 14 m/min, Steel Cable Diameter, 7 mm, Hoist Weight, 73 kg, Dimensions (L × W × H), 270 × 780 × 500 mm, Lifting System, Double Fall (Double-Line)
