Short Description

Model: TD1800/E
Engine Power: 3 kW
Voltage: 220/380 V
Maximum Lifting Capacity: 1,800 kg
Lifting Speed: 9 m/min
Working Length Cable: 25 m

TD1800/E Electric Hoist

The TD1800/E Electric Hoist is a robust and high-performance lifting solution designed for demanding construction, industrial, and material-handling applications. Engineered to provide safe, efficient, and reliable lifting operations, it is ideal for transporting heavy loads with precision and consistency.

Featuring a durable structure, powerful motor, and advanced lifting mechanism, the TD1800/E ensures smooth operation and dependable performance under intensive working conditions. Its heavy-duty steel cable system and integrated safety features contribute to enhanced operational security and long service life.

Designed for professional environments, the TD1800/E combines strength, reliability, and efficiency, making it an excellent solution for construction sites, warehouses, workshops, and industrial facilities where powerful and dependable lifting equipment is essential.

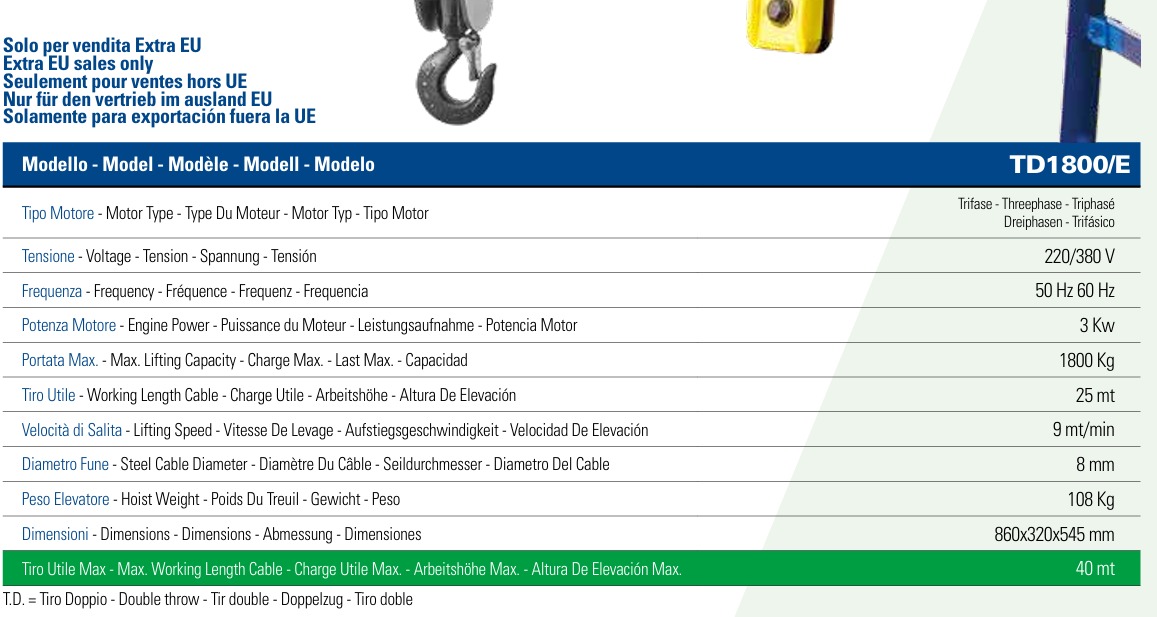

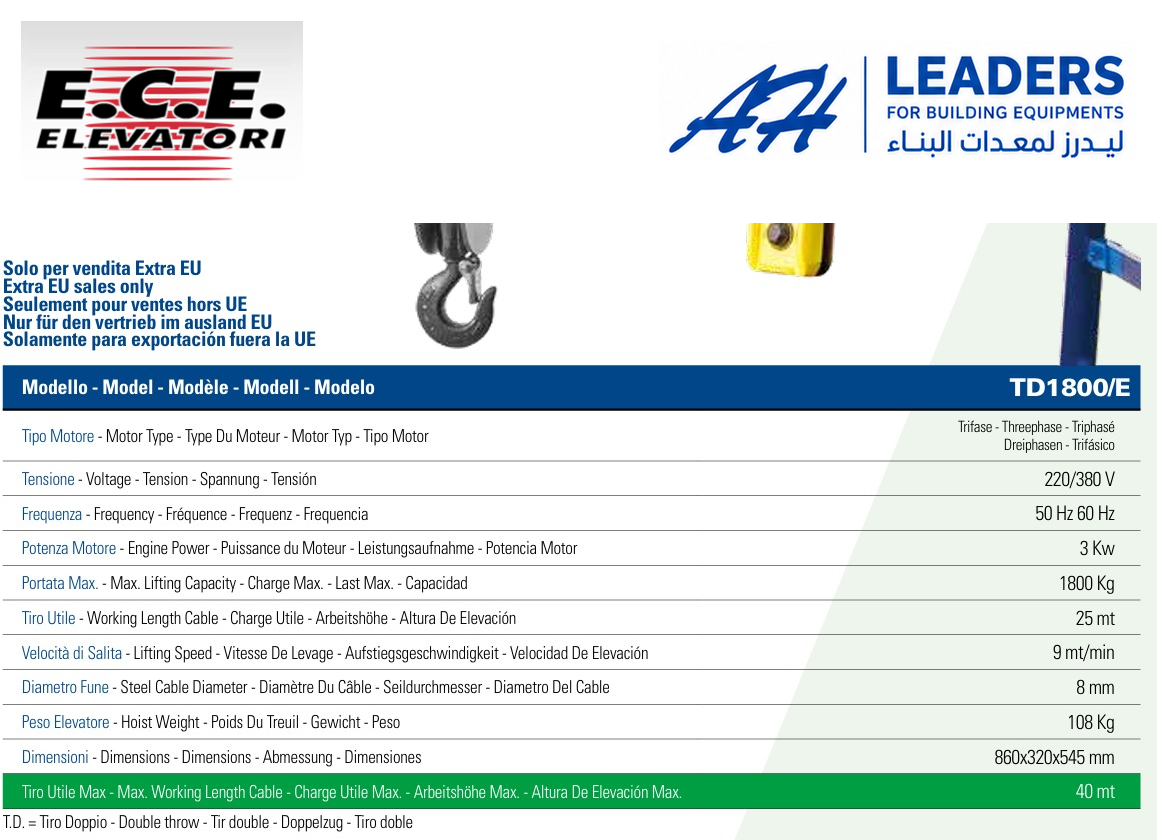

Technical Specifications

Model
TD1800/E
Motor Type
Three phase
Voltage
220/380 V
Frequency
50 Hz / 60 Hz
Motor Power
3 kW
Maximum Lifting Capacity
1,800 kg
Standard Lifting Height (Working Cable Length)
25 m
Maximum Lifting Height (Maximum Working Cable Length)
40 m
Lifting Speed
9 m/min
Steel Cable Diameter
8 mm
Hoist Weight
108 kg
DImensions
860 × 320 × 545 mm
Lifting System (Double Fall / Double-Line)
Double Fall (Double-Line)

Model, TD1800/E, Motor Type, Three phase, Voltage, 220/380 V, Frequency, 50 Hz / 60 Hz, Motor Power, 3 kW, Maximum Lifting Capacity, 1,800 kg, Standard Lifting Height (Working Cable Length), 25 m, Maximum Lifting Height (Maximum Working Cable Length), 40 m, Lifting Speed, 9 m/min, Steel Cable Diameter, 8 mm, Hoist Weight, 108 kg, DImensions, 860 × 320 × 545 mm, Lifting System (Double Fall / Double-Line), Double Fall (Double-Line)
