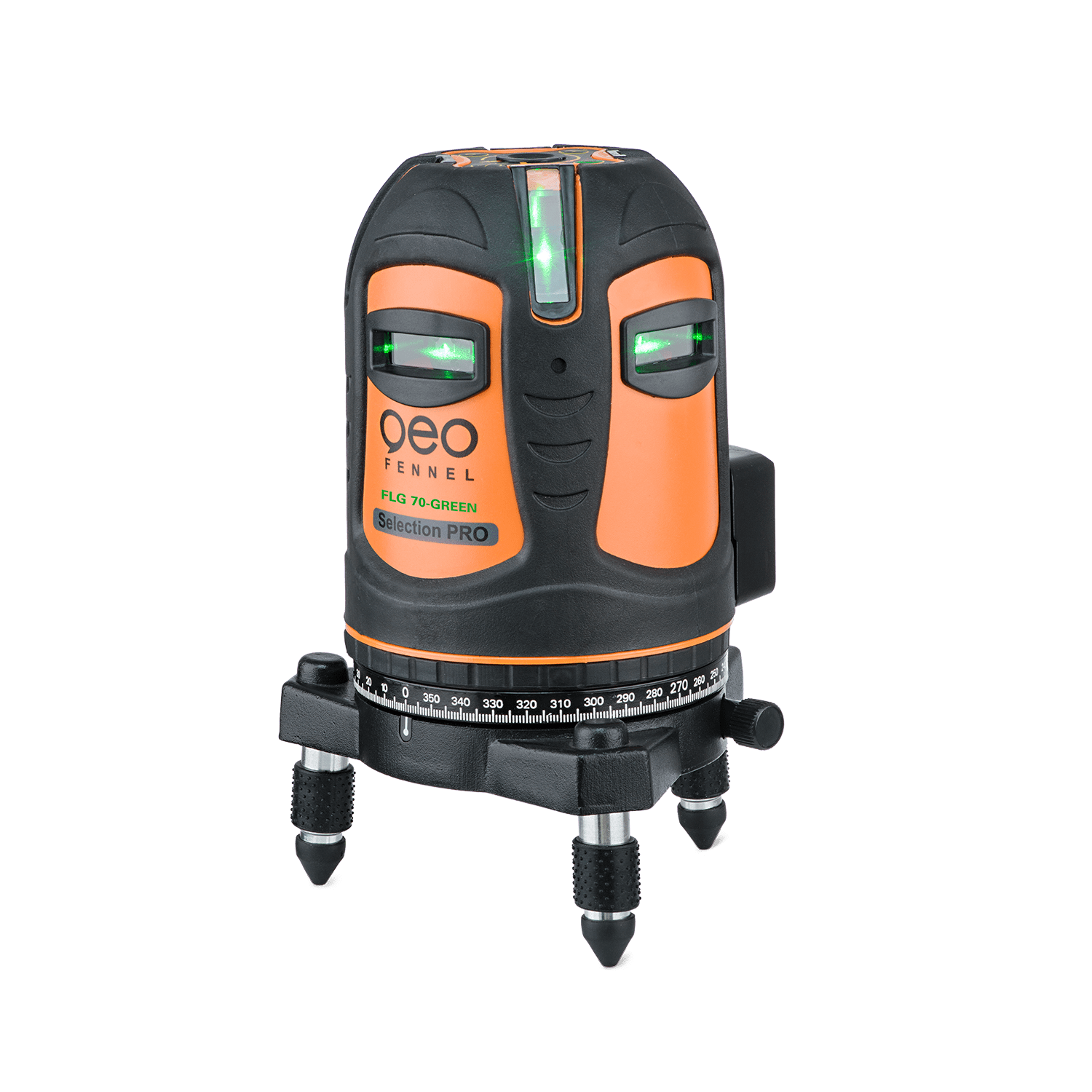

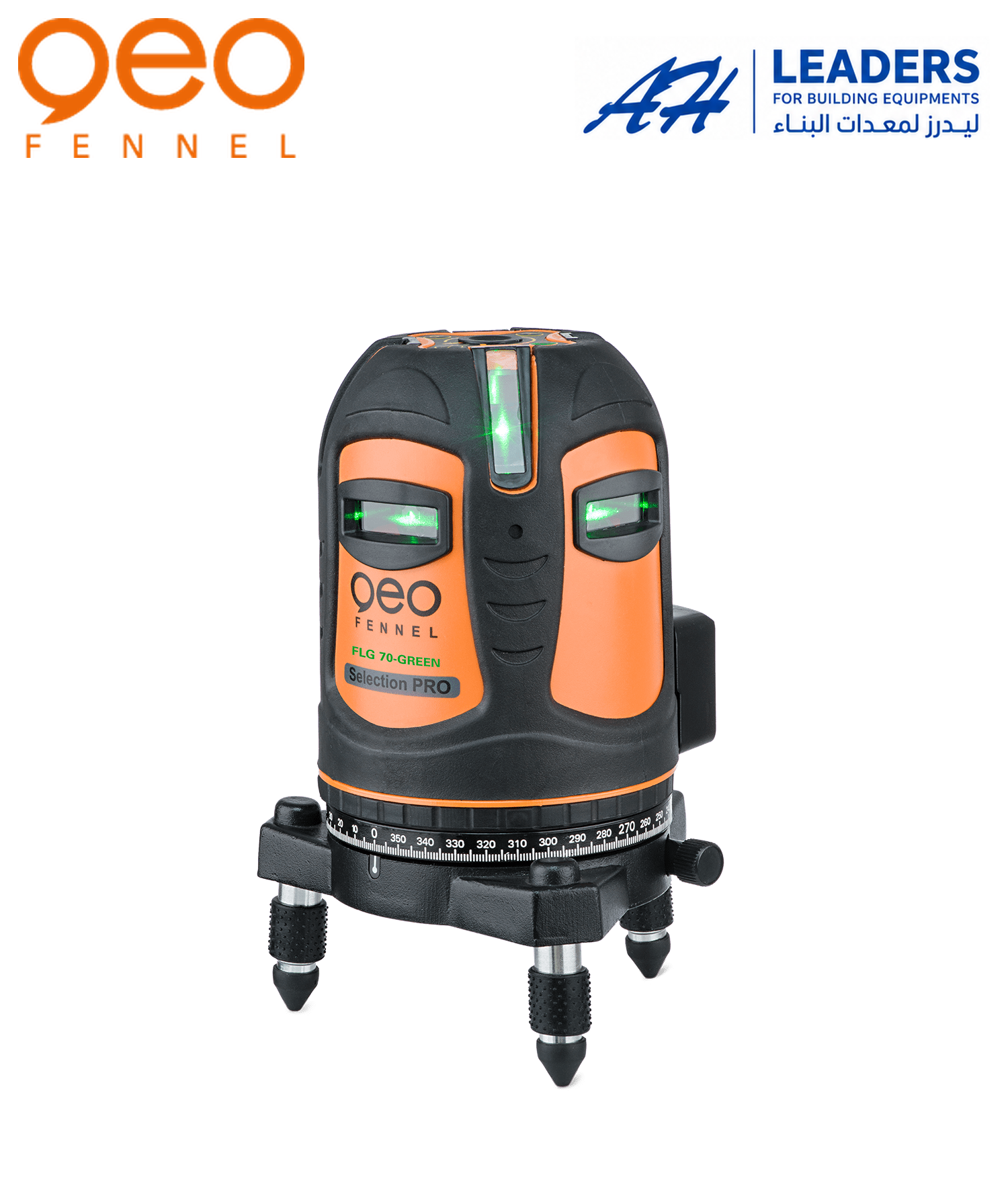

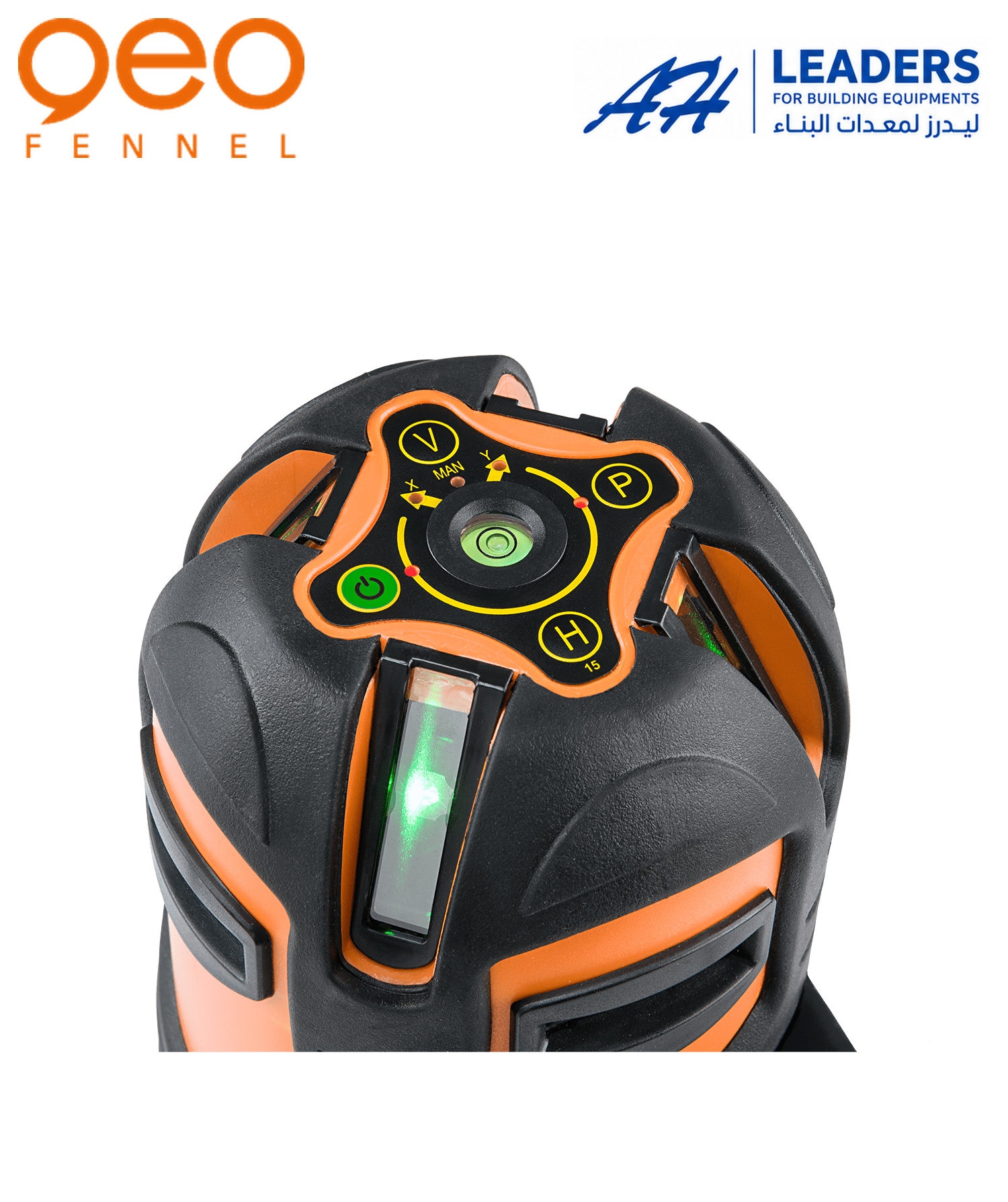

FLG 70-GREEN SP

Short Description

Multi-line laser for highest accuracy and measurement requirements.

Buy NowOrder Via WhatsApp

Key Benefits

  • ✓ 4 vertical lines at 90° to each other
  • ✓ 360° horizontal line
  • ✓ Laser cross to the ceiling
  • ✓ Plumb down beam
  • ✓ Remote control for setting slopes in coarse and fine steps/ COARSE: press the arrow button at any 1 x = one 3-mm-step in a distance of 15 m/ FINE: press the arrow button at any 1 x = one 1-mm-step in a distance of 15 m
  • ✓ Switchable remote control function at the laser
  • ✓ Use with receiver to extend working range
  • ✓ Self-levelling function can be switched off
  • ✓ Integrated floor tripod
  • ✓ Adjustable 360° circle
  • ✓ Slow motion screw
  • ✓ Audible and visible alarm when out of level
  • ✓ 5/8“ thread for use with standard tripod
  • High accuracy of ± 1 mm / 10 m, motorized self-levelling
  • Latest green laser technology with fine and clear line visibility
  • Quick self-levelling and extremly stable performance.
  • Slope function: laserplane can be tilted in coarse and fine steps by use of remote control
  • Deactivation of remote control function at the laser, thus no disturbance of leveled/inclined plane from outside

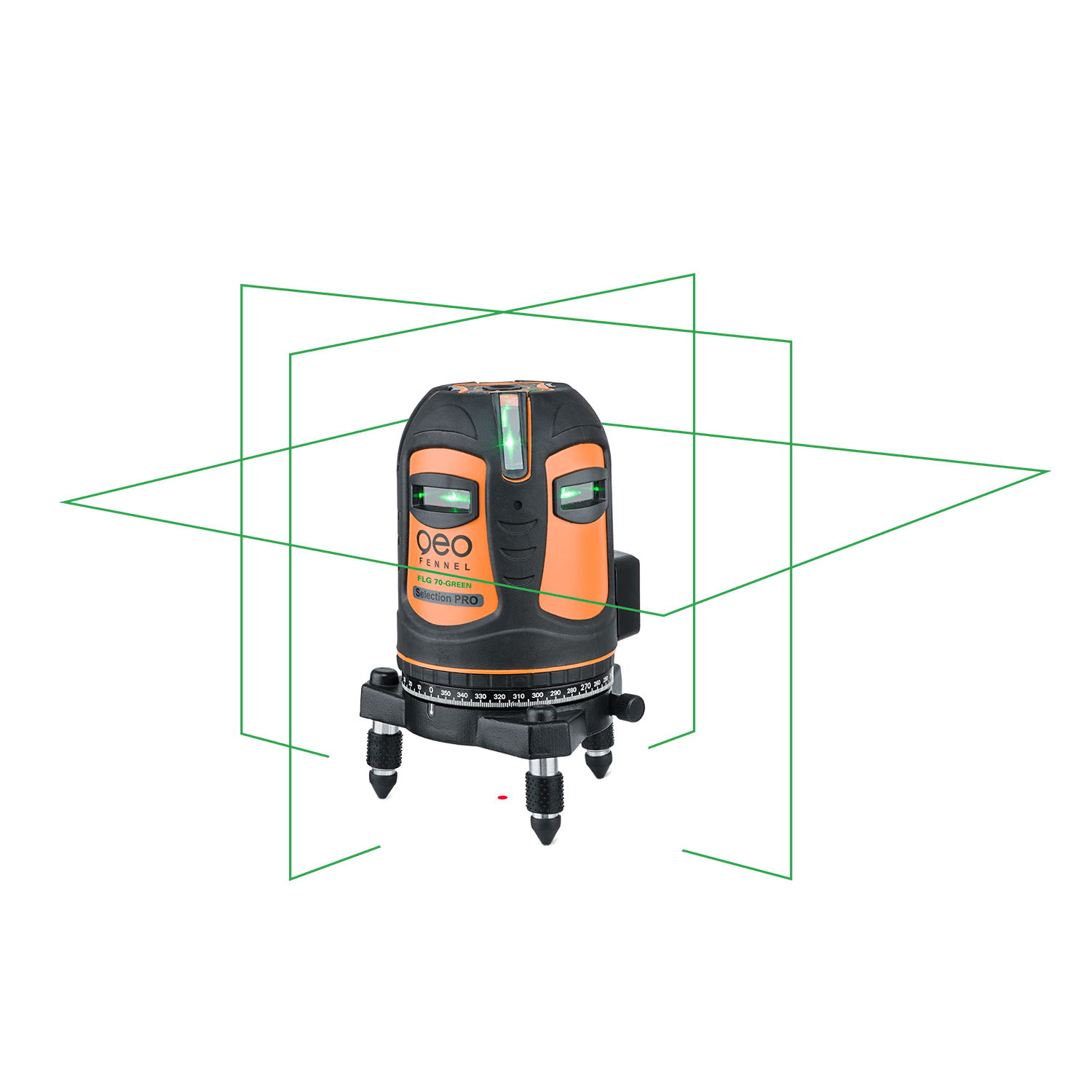

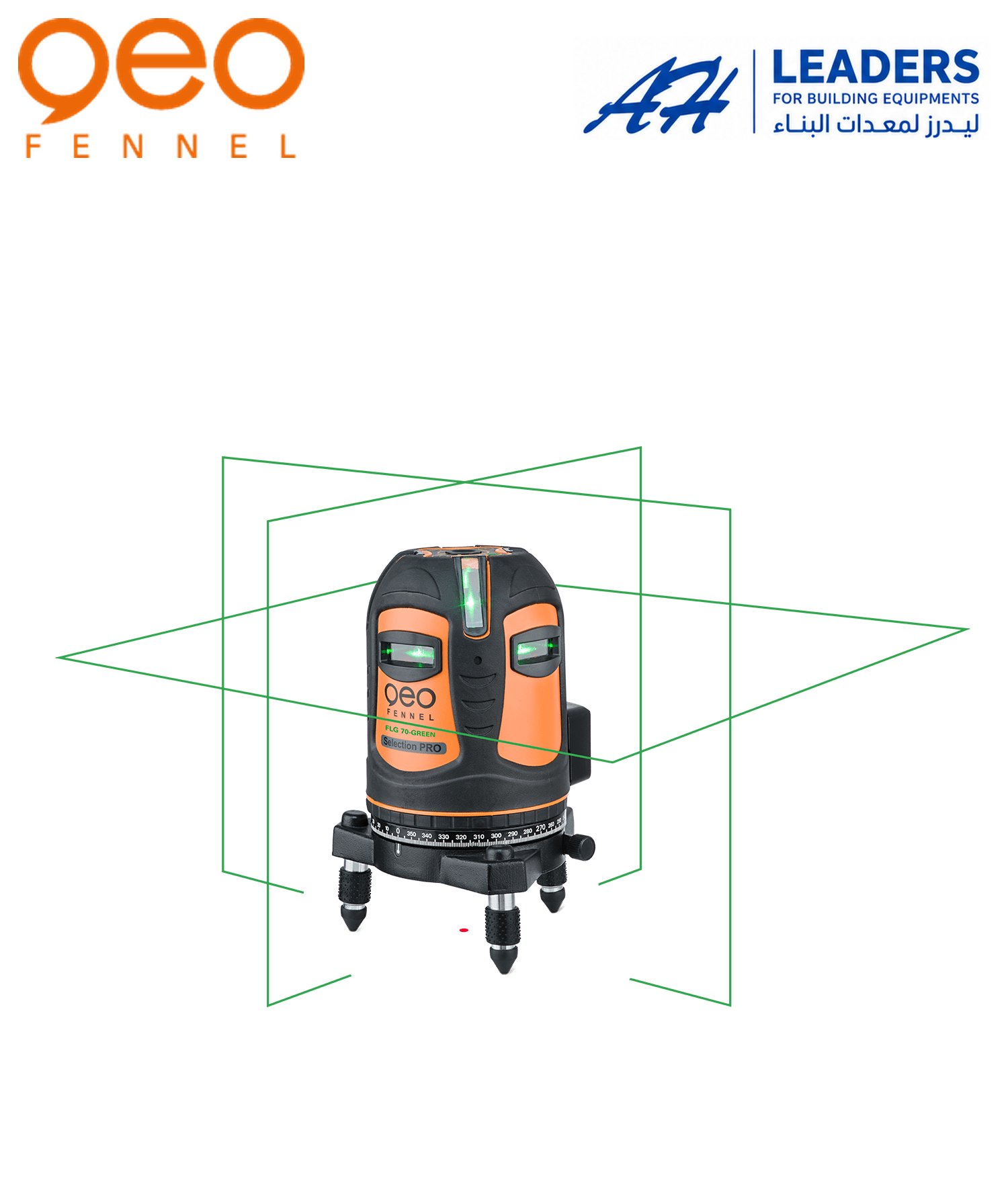

  • 4 vertical lines at 90° to each other, 360° horizontal line, plumb up cross, plumb down beam – can be switched on/off in group

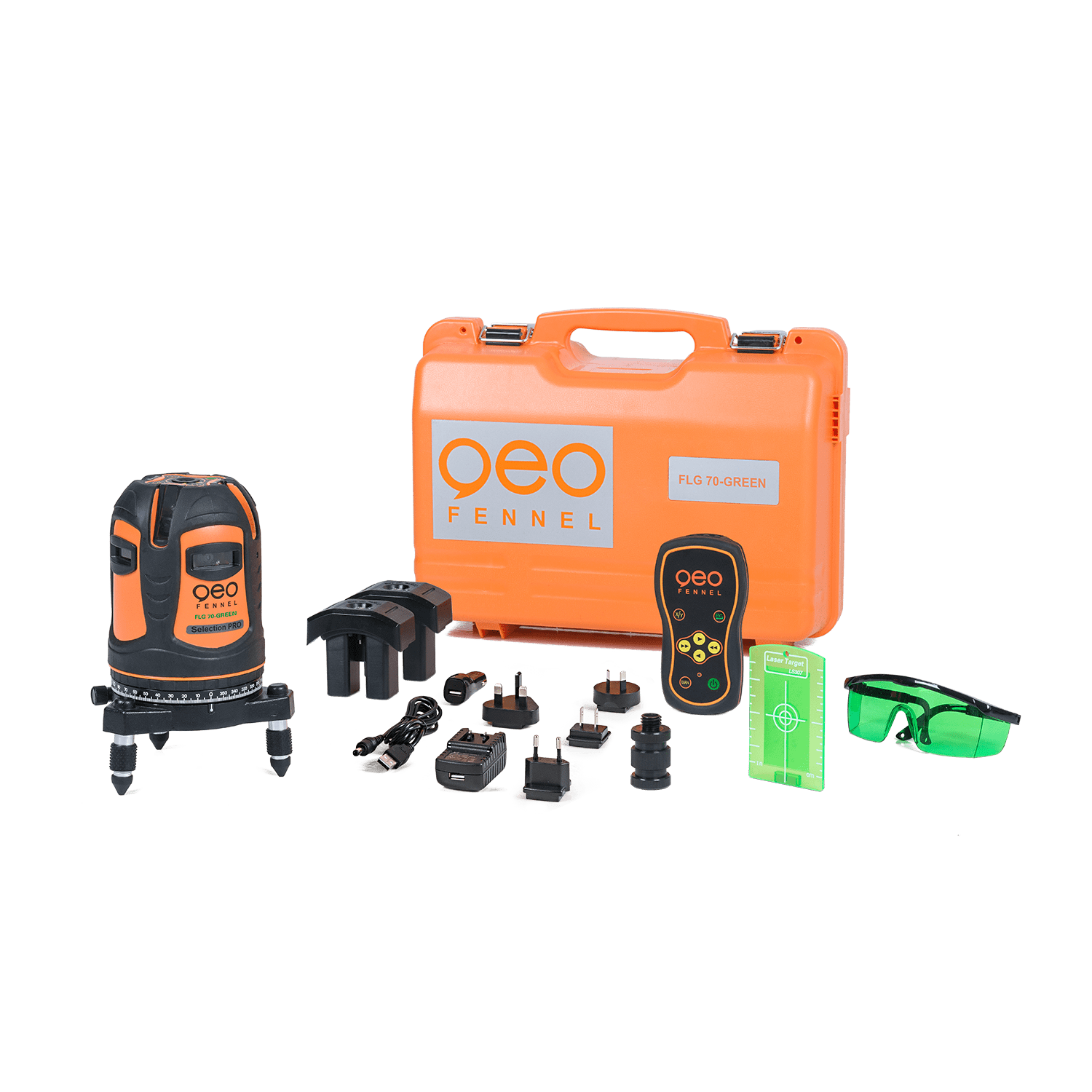

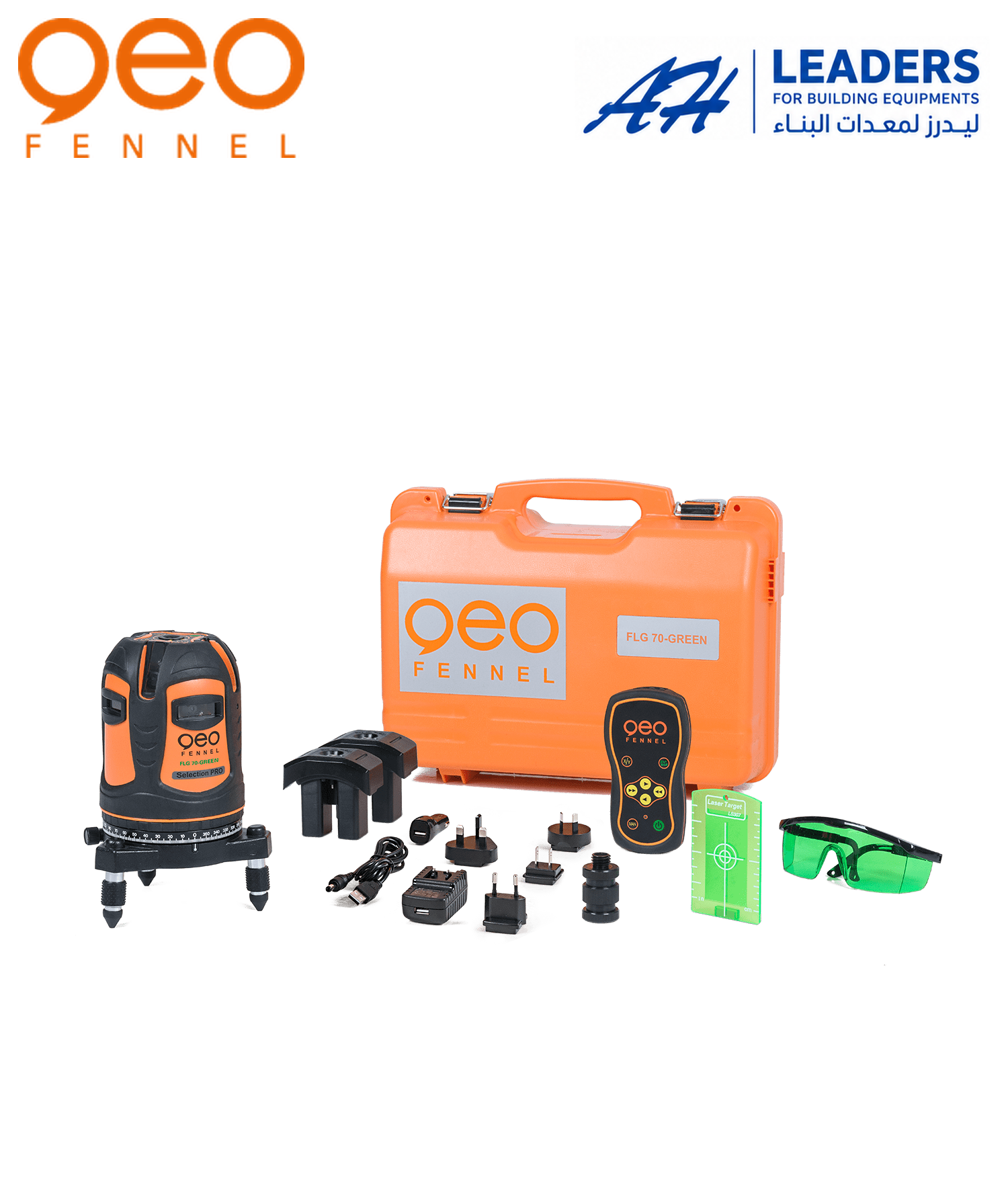

Scope of delivery:

  • Li-Ion batteries
  • International charger
  • Adapter for in-car charging
  • Adapter for in-car charging

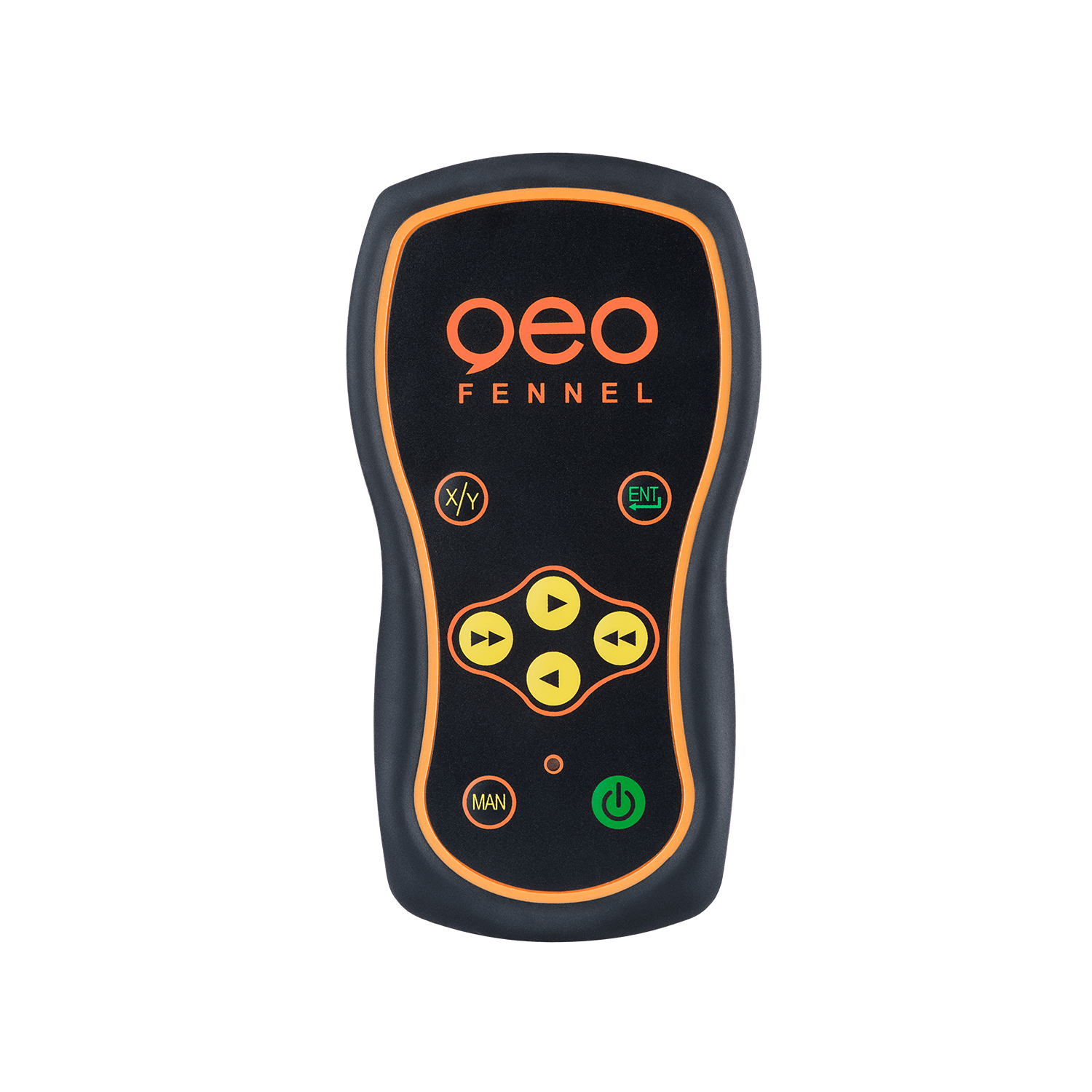

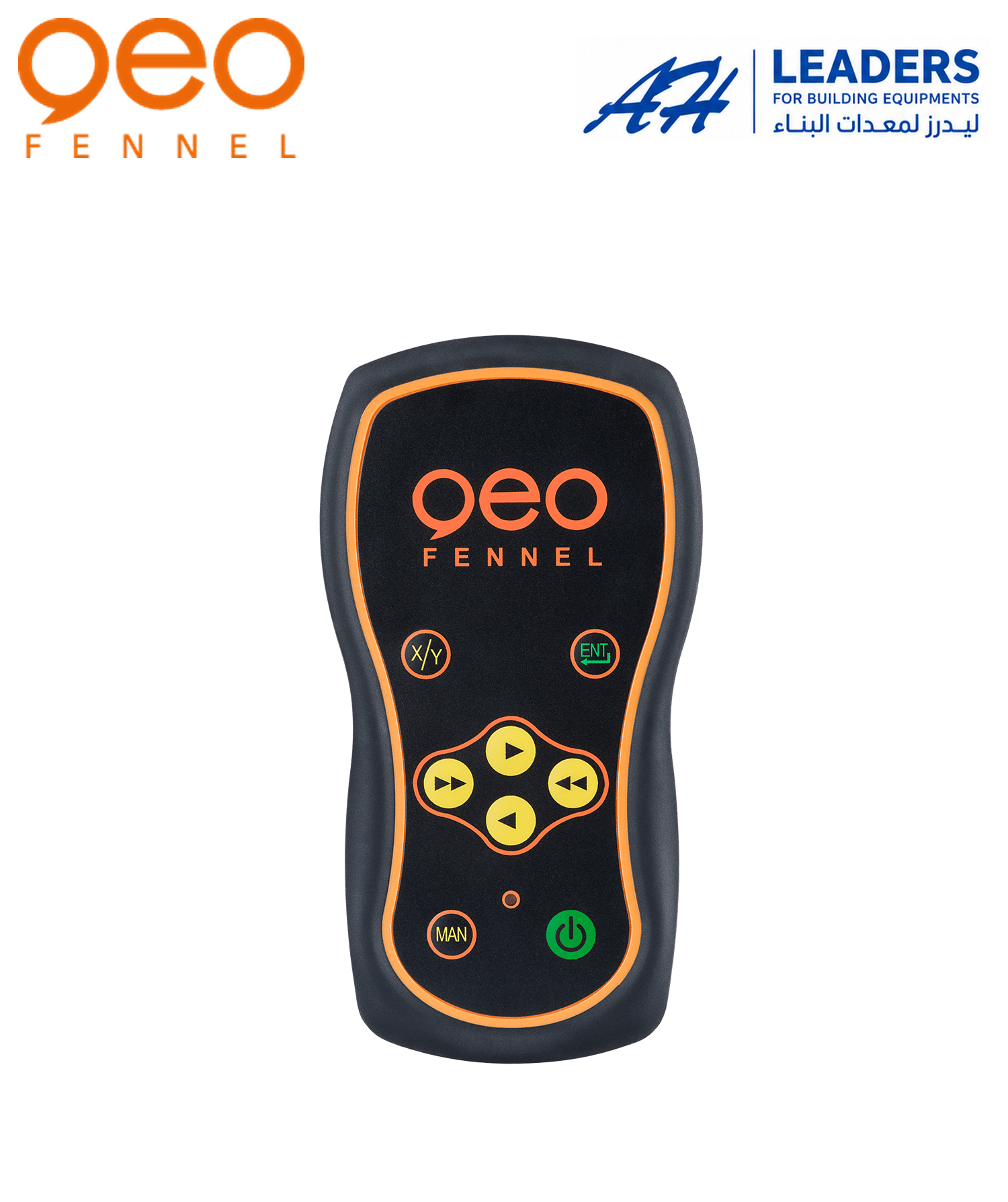

  • Remote control
  • Adapter for tripod connection
  • Magnetic target
  • Laser glasses
  • Container

Technical Specifications

Working range without receiver:
Ǿ 60 Meters ( Radius 30 M )
Working range with receiver:
Ǿ 160 Meters ( Radius 80 M )
Accuracy:
± 1 mm / 10 m
Self-levelling range:
± 3°
Dust / water protection:
IP 54
Power supply:
Li-Ion
Laser diode:
green
Laser class:
2
Operating time:
4 - 8 h
Temperature range:
-10°C to +45°C
Weight (instrument with battery):
1,6 kg

Working range without receiver:, Ǿ 60 Meters ( Radius 30 M ), Working range with receiver:, Ǿ 160 Meters ( Radius 80 M ), Accuracy:, ± 1 mm / 10 m, Self-levelling range:, ± 3°, Dust / water protection:, IP 54, Power supply:, Li-Ion, Laser diode:, green, Laser class:, 2, Operating time:, 4 - 8 h, Temperature range:, -10°C to +45°C, Weight (instrument with battery):, 1,6 kg
