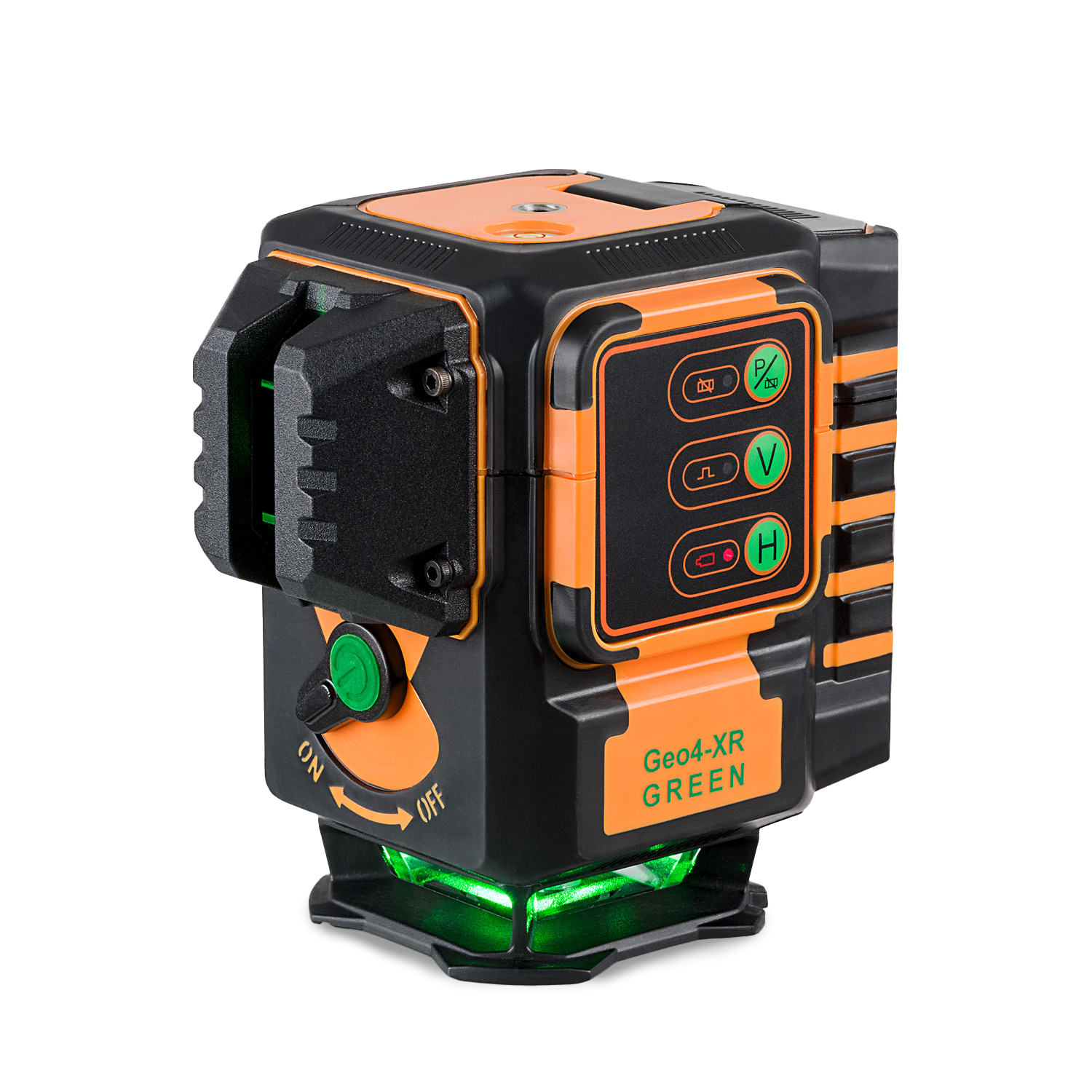

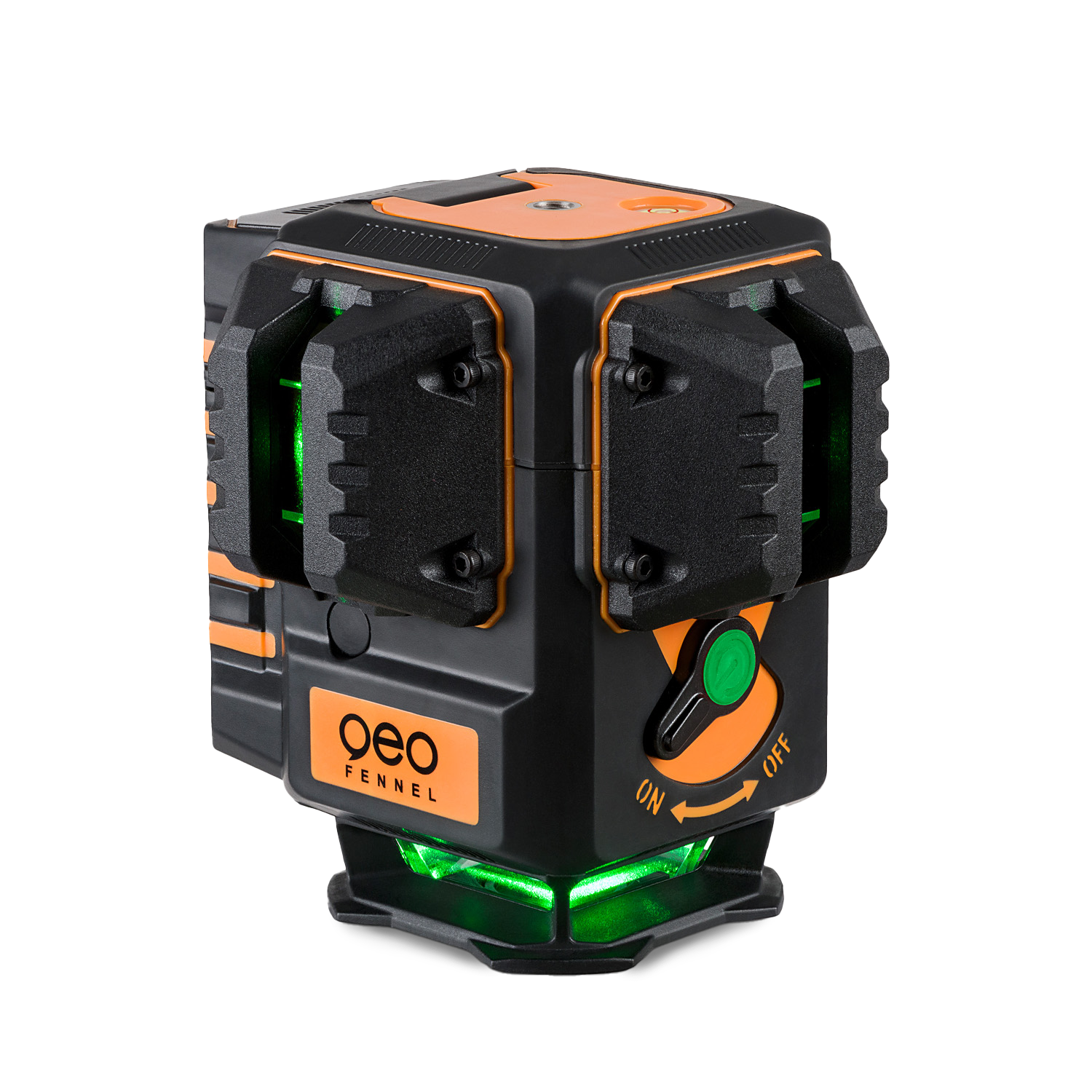

Geo4-XR GREEN

Short Description

A proven laser product – now rethought and improved- 360° horizontal and 2 vertical lines for versatile levelling and right angle creation. Green laser lines for best visibility. Innovative – standing and hanging application for best possible use. Compact with a wide range of useful accessories.

Buy NowOrder Via WhatsApp

Key Benefits

  • ✓ 360° horizontal line
  • ✓ 2 verticale Lines 130° form 4 laser crosses
  • ✓ Laser lines switchable separately
  • ✓ Plumbing function (laser cross at floor & ceiling)
  • ✓ 8 mm minimum distance of Hz laser line to the floor

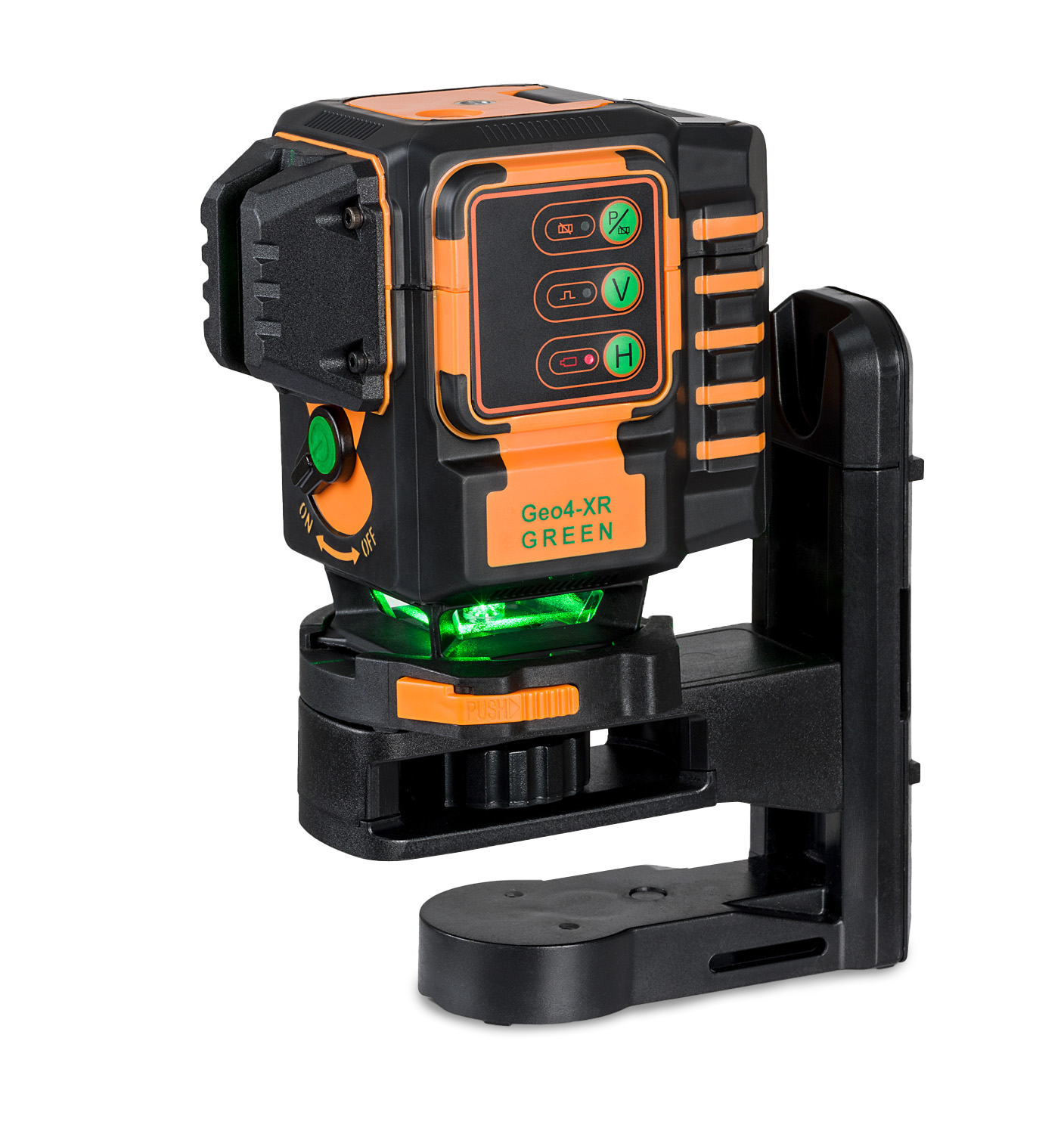

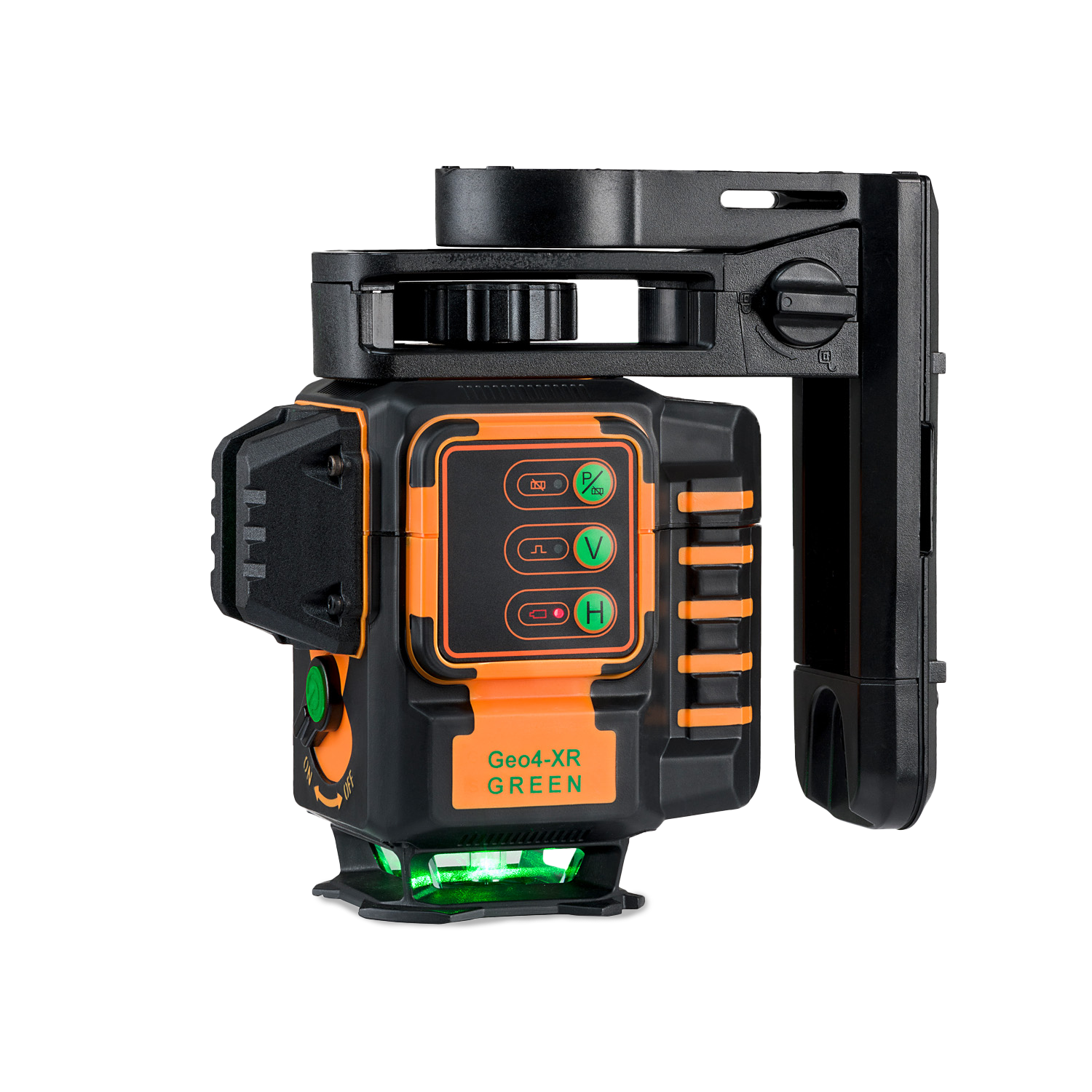

  • ✓ Multi-functional mount \height adjustable\ for wall-hanging with screw\ strap attachment\ strong magnet on back side
  • ✓ Visual and audible alarm when out of level
  • ✓ Self-levelling function can be locked for manual use
  • ✓ Tripod connection top and bottom 1/4" (bottom side with adapter)
  • ✓ Use with receiver FR 75-MM / FR 55 (optional)

Scope of delivery:

  • Li-Ion battery
  • Intelligent Charger & USB 3.0 Cable
  • Battery case for alkaline batteries
  • Multi-functional mount
  • 20 mm Fixed height adaptor with 1/4″

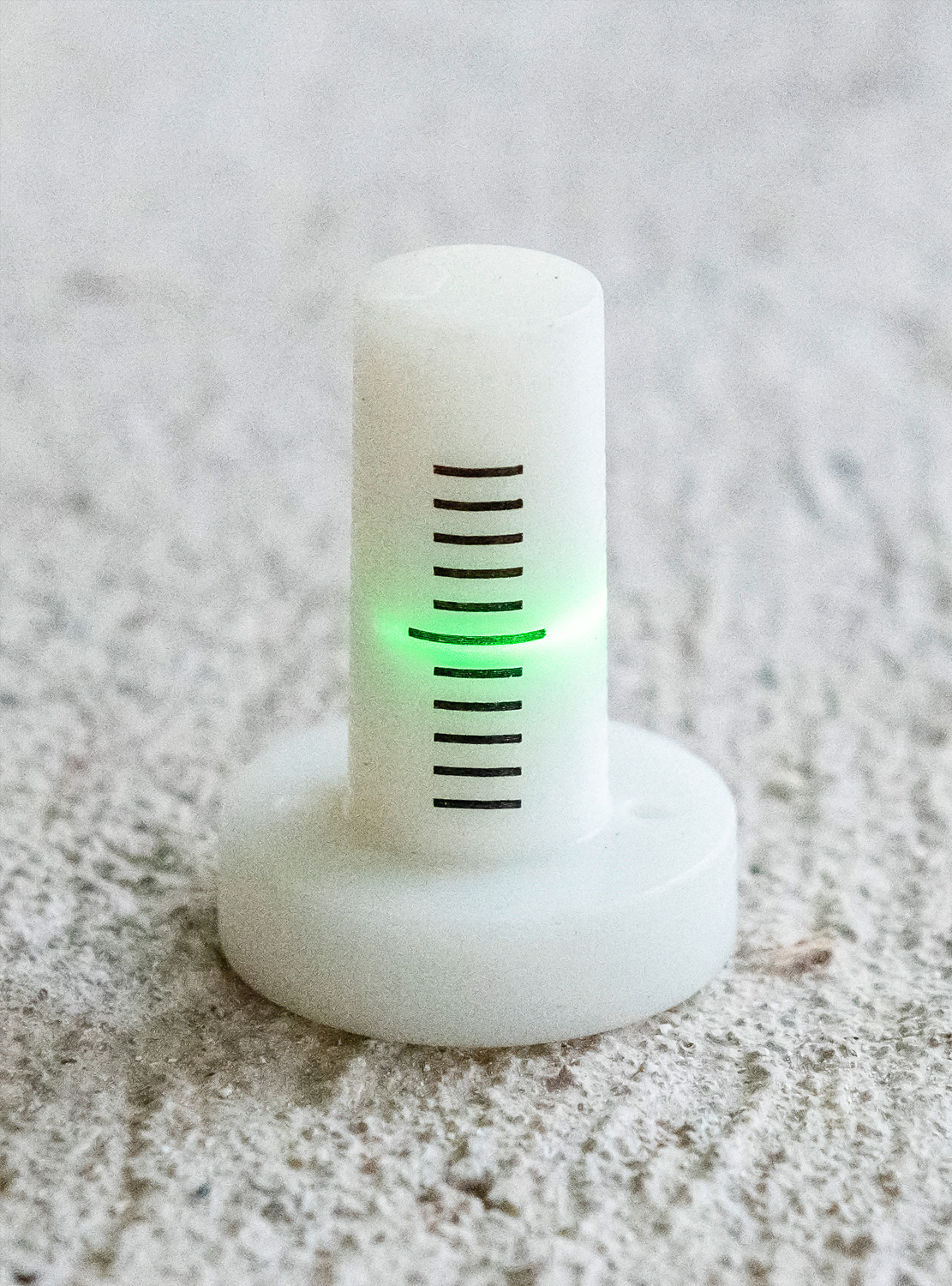

  • 2x Height measurement pins
  • Padded bag

Technical Specifications

Working range without receiver:
Ǿ 60 Meters ( Radius 30 M )
Working range with receiver:
Ǿ 120 Meters ( Radius 60 M )
Accuracy
± 2 mm / 10 m
Self-levelling range:
± 3°
Dust / water protection:
IP 54
Power supply:
Li-Ion
Laser diode:
green
Laser class:
2
Operating time:
9 h
Temperature range:
-10°C to +45°C
Weight (instrument with battery):
0,8 kg

Working range without receiver:, Ǿ 60 Meters ( Radius 30 M ), Working range with receiver:, Ǿ 120 Meters ( Radius 60 M ), Accuracy, ± 2 mm / 10 m, Self-levelling range:, ± 3°, Dust / water protection:, IP 54, Power supply:, Li-Ion, Laser diode:, green, Laser class:, 2, Operating time:, 9 h, Temperature range:, -10°C to +45°C, Weight (instrument with battery):, 0,8 kg
