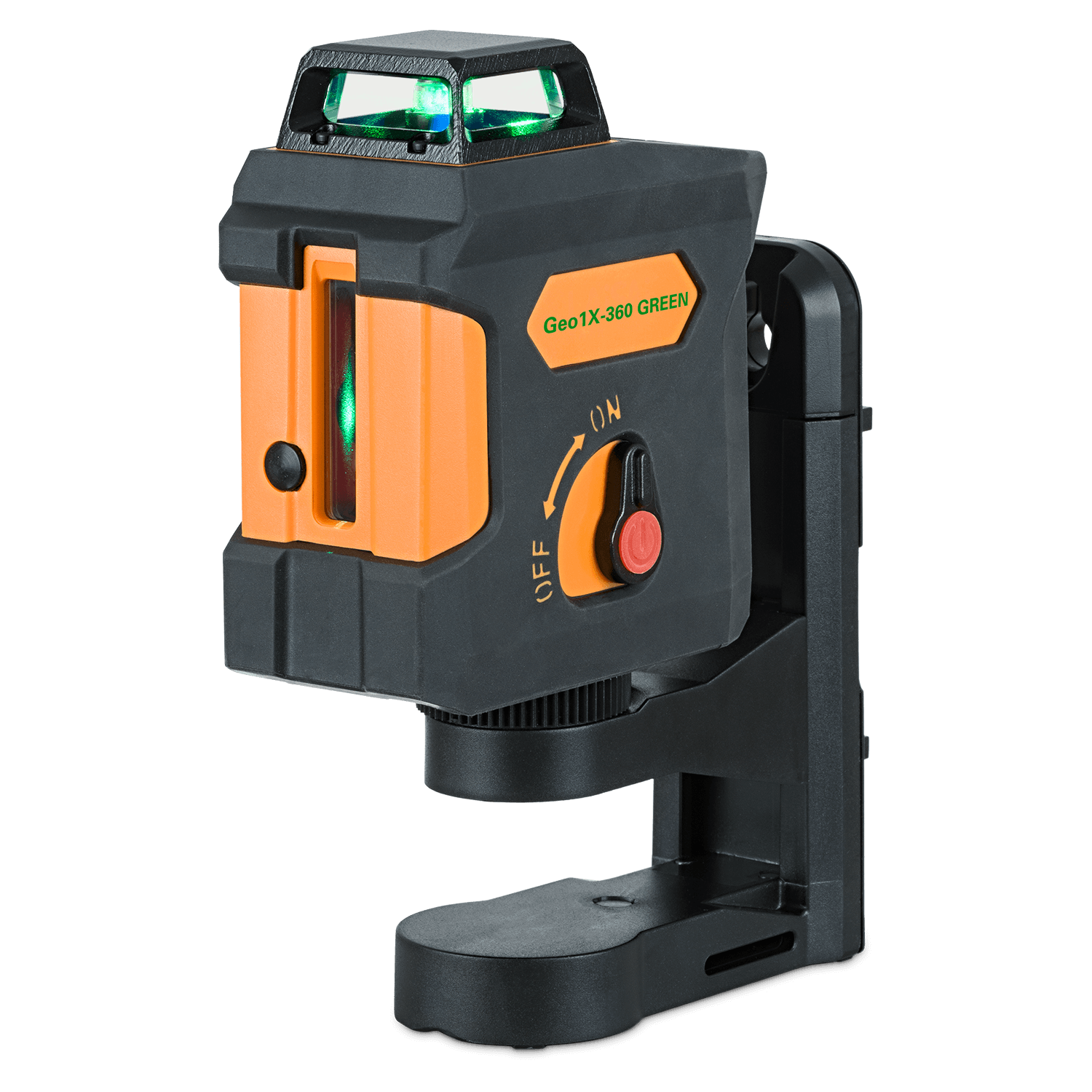

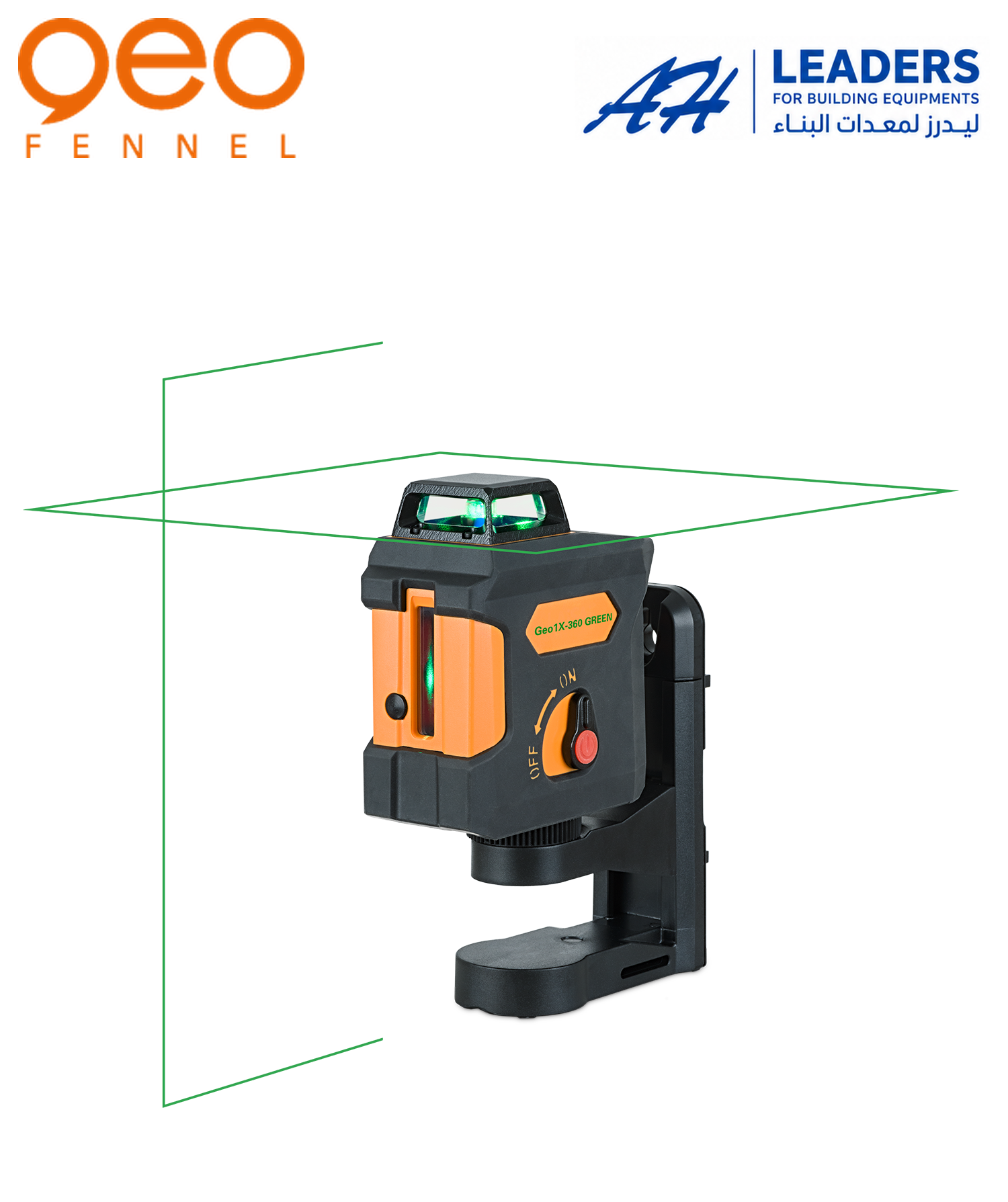

Geo1X-360 GREEN

Short Description

2 LINE LASER – 360 Degrees – 60/80 M

Buy NowOrder Via WhatsApp

Key Benefits

  • ✓ 1 Laser cross
  • ✓ 1 x 360° horizontal laser line
  • ✓ 1 x 360° horizontal laser line

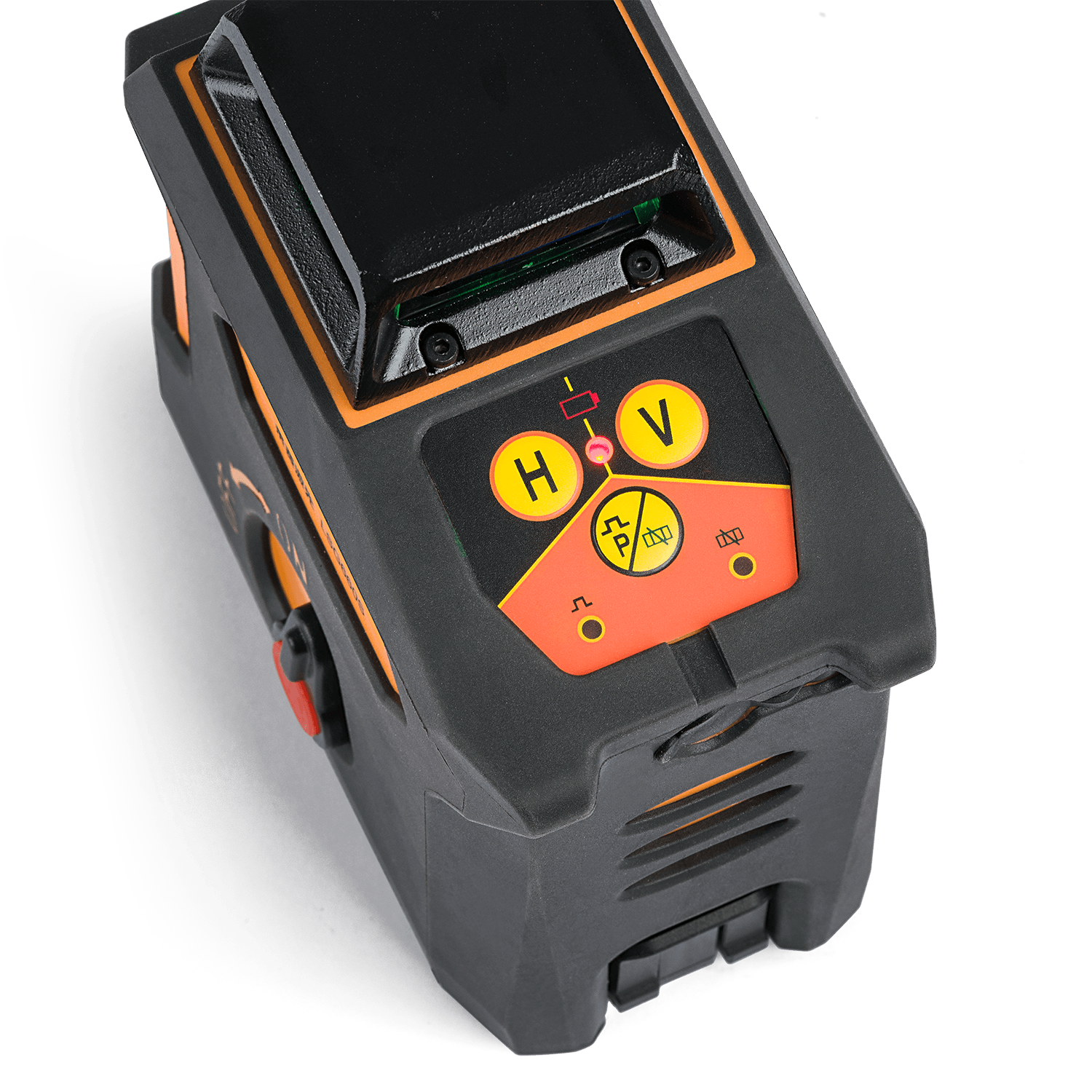

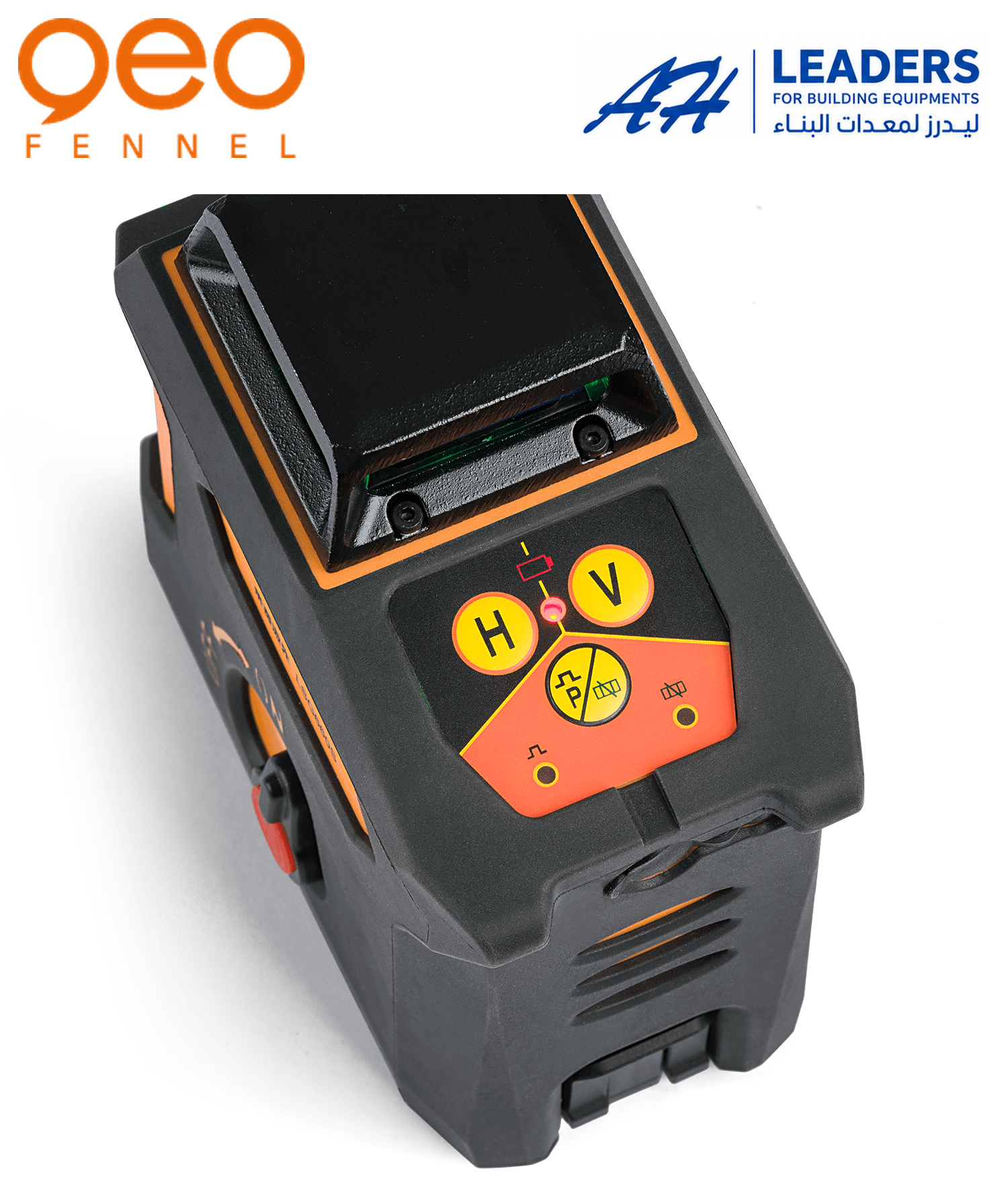

  • ✓ TILT function for manual use
  • ✓ Visual alarm when out of level
  • ✓ Use with receiver FR 75-MM / FR 55 / 55-M (optional)

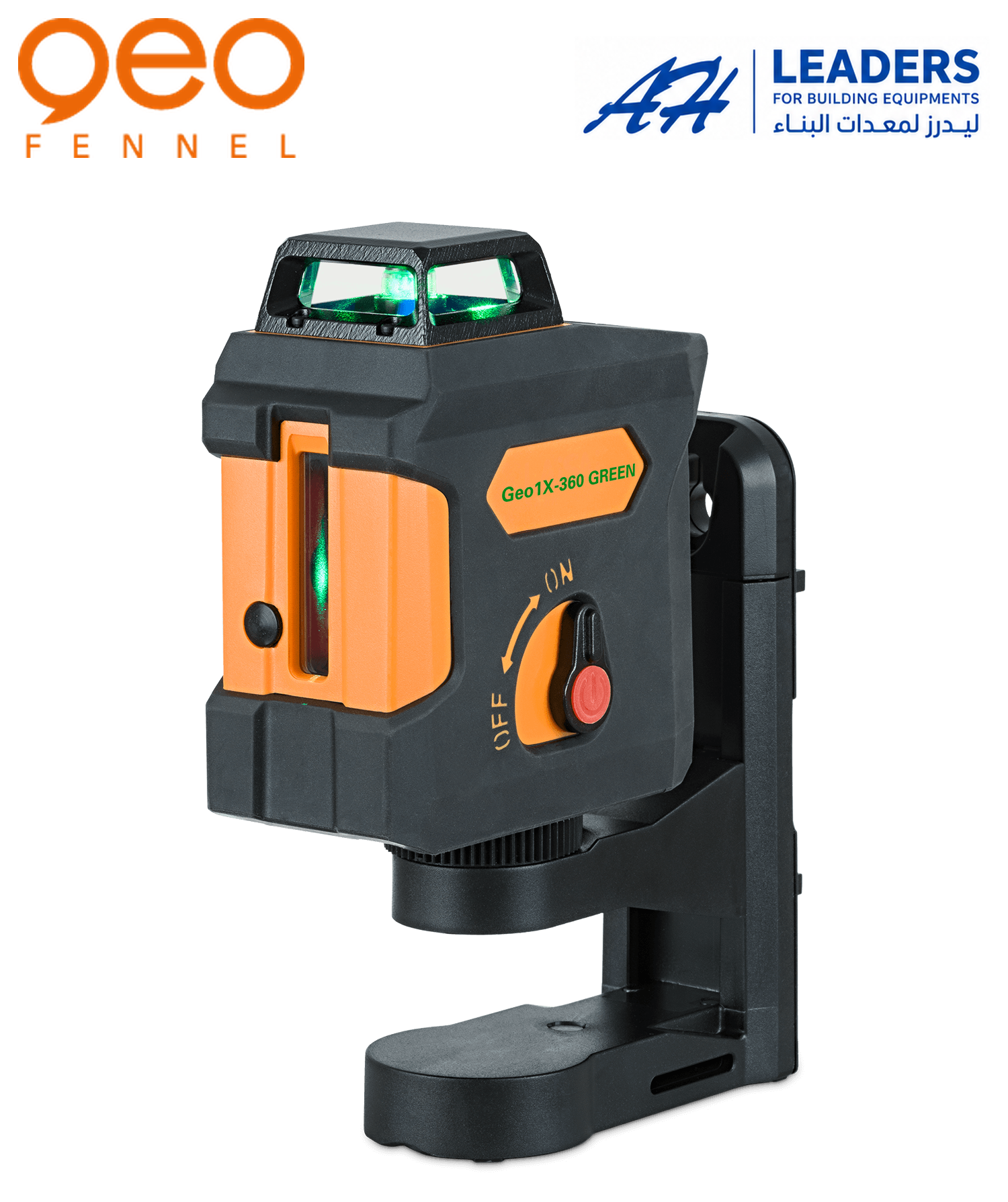

  • ✓ Multi-functional mount
  • ✓ height adjustable : for wall-hanging with screw - strap attachment - strong magnet on back side
  • ✓ 1/4“ and 5/8“ thread for use with tripods etc.

Self-levelling function can be switched off for manual use

Pulse-function to extend working range with receiver (optional)

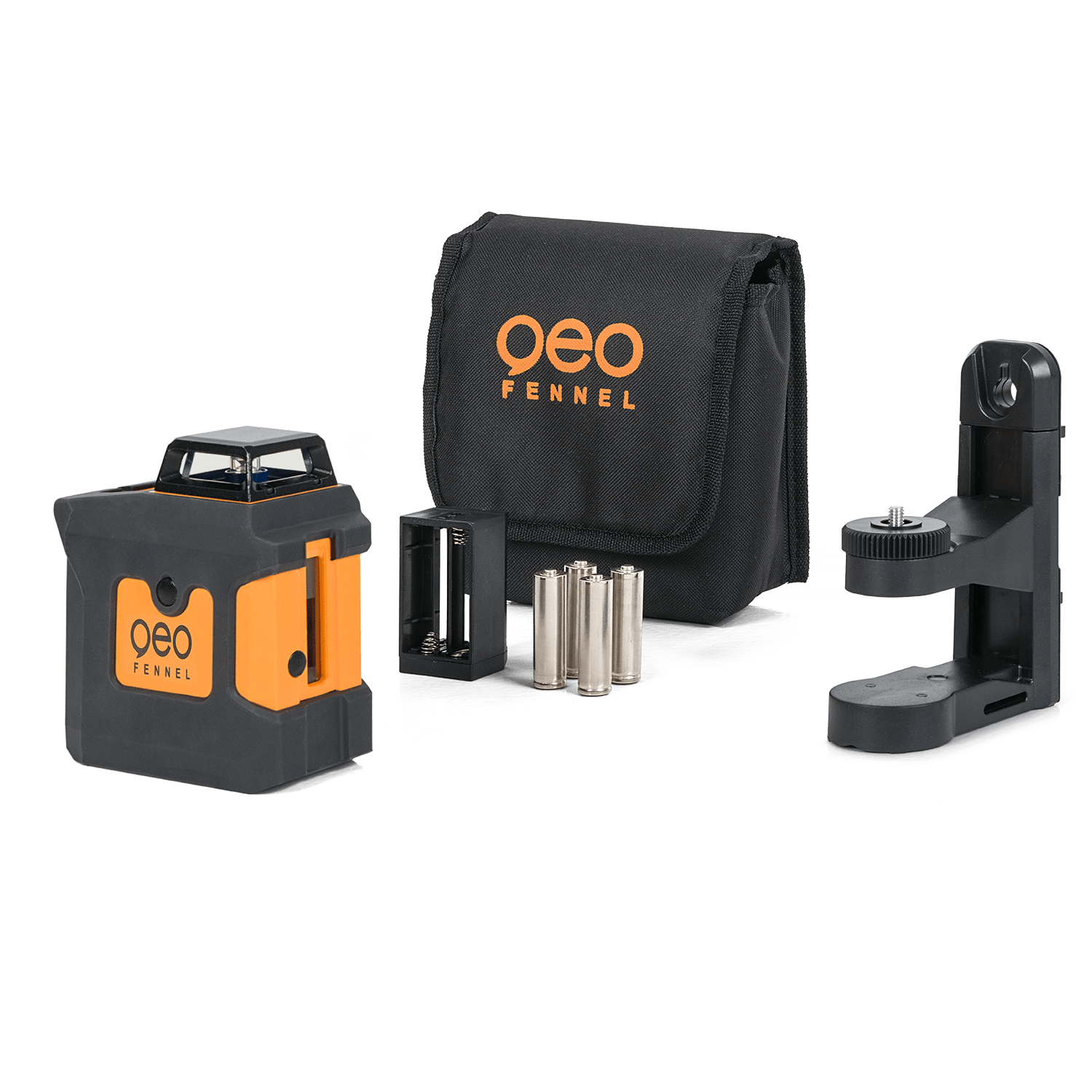

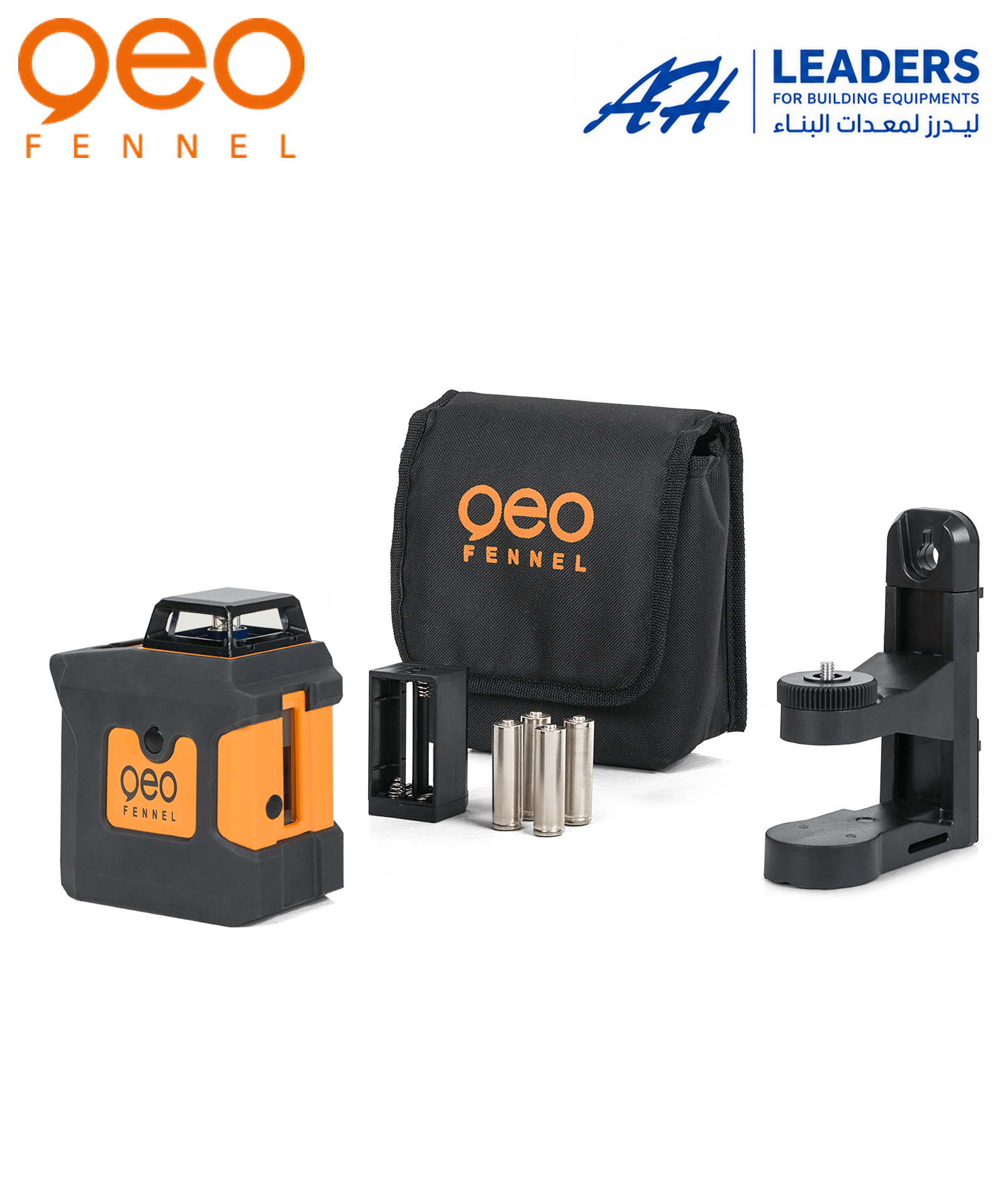

Scope of delivery:

  • Multi-functional mount
  • 4x AA Alkaline battery
  • Padded bag

Technical Specifications

Working range without receiver
Ǿ 60 Meters ( Radius 30 M )
Working range with receiver
Ǿ 100 Meters ( Radius 50M )
Accuracy
± 3 mm / 10 m
Self-levelling range:
± 3°
Dust / water protection:
IP 54
Power supply:
4 x AA Alkaline
Laser diode:
green
Laser class:
2
Operating time:
5 h (Full capacity utilisation)
Temperature range:
-10°C to +45°C
Extended size:
115 x 96 x 118 mm
Selection PRO:
yes

Working range without receiver, Ǿ 60 Meters ( Radius 30 M ), Working range with receiver, Ǿ 100 Meters ( Radius 50M ), Accuracy, ± 3 mm / 10 m, Self-levelling range:, ± 3°, Dust / water protection:, IP 54, Power supply:, 4 x AA Alkaline, Laser diode:, green, Laser class:, 2, Operating time:, 5 h (Full capacity utilisation), Temperature range:, -10°C to +45°C, Extended size:, 115 x 96 x 118 mm, Selection PRO:, yes
