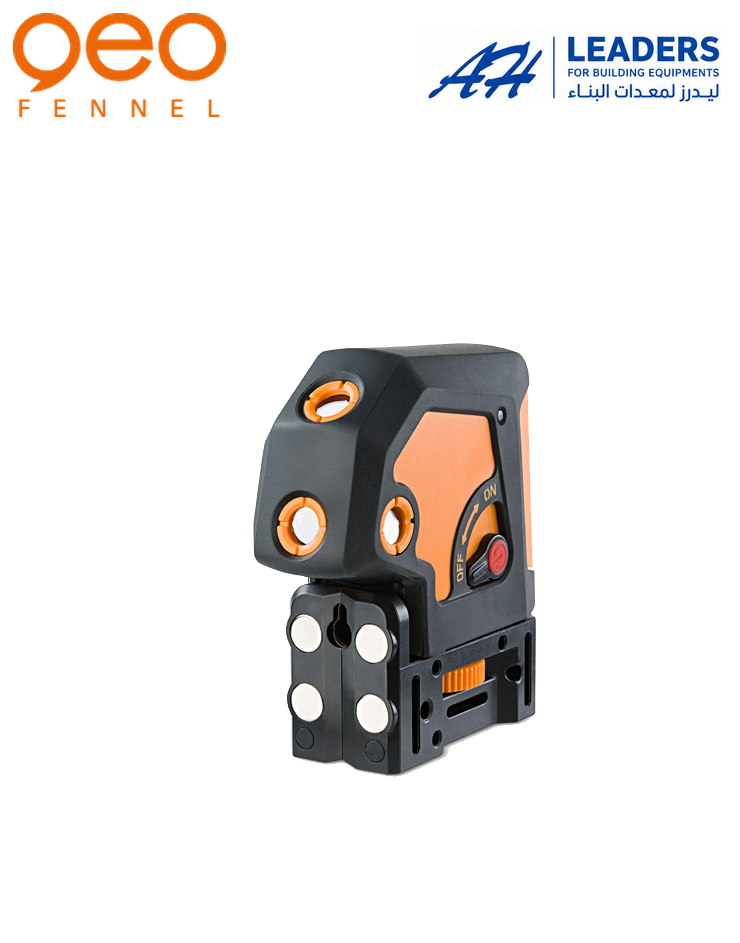

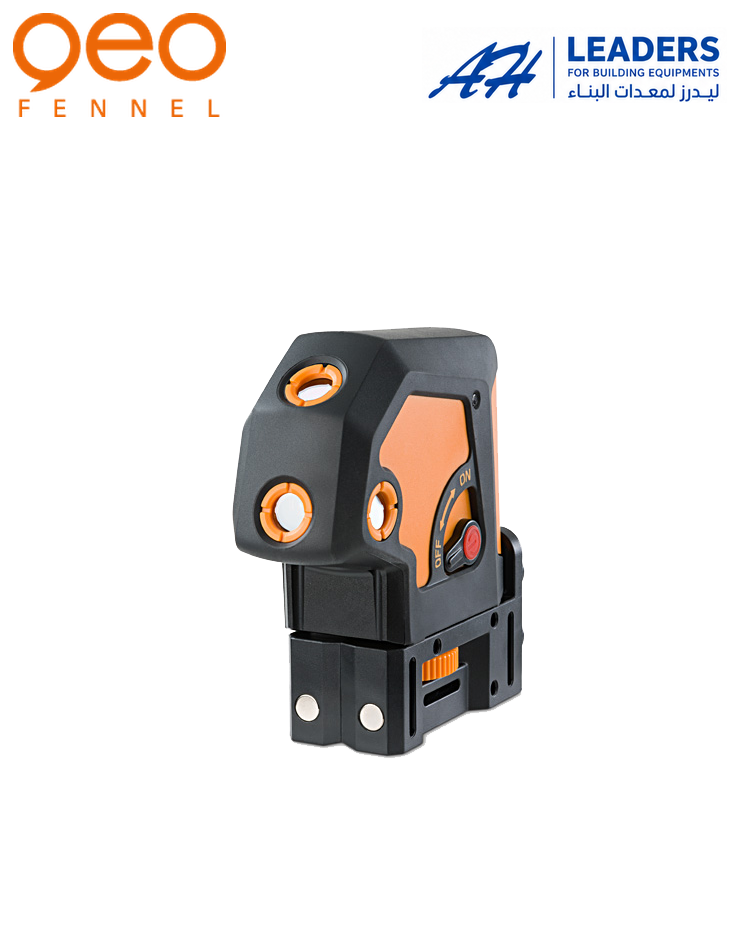

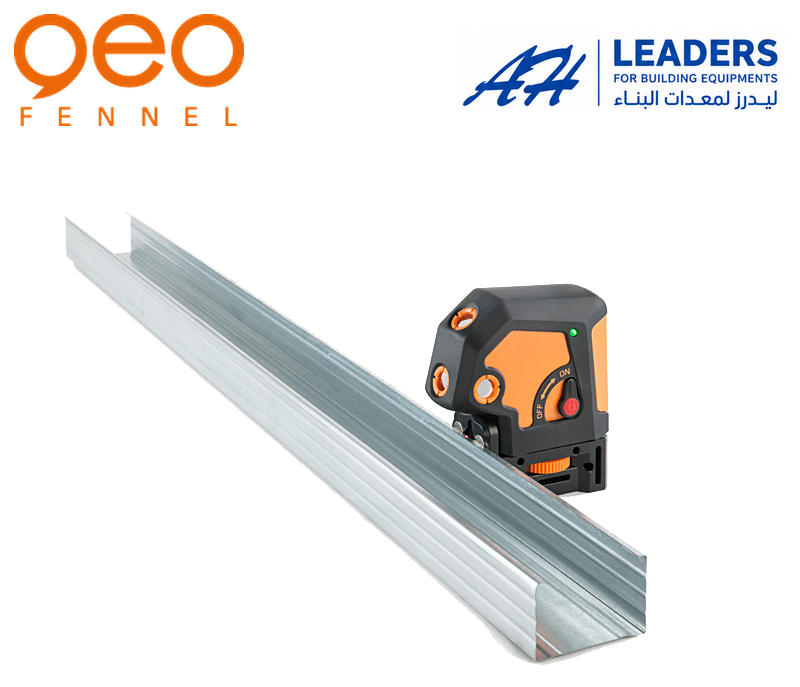

Geo5P 5-Point Laser

Short Description

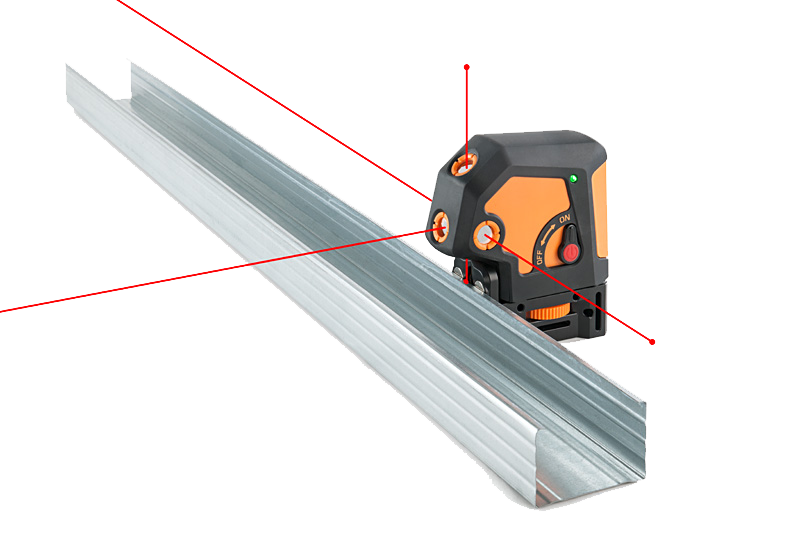

5 self-levelling laser dots at right angles to each other: up, down, forward, left, right. For plumbing, alignments, levelling, transfer of points and many more applications.

Compact and handy size. Shock-resistant design suitable for robust use on construction sites.

Buy NowOrder Via WhatsApp

Key Benefits

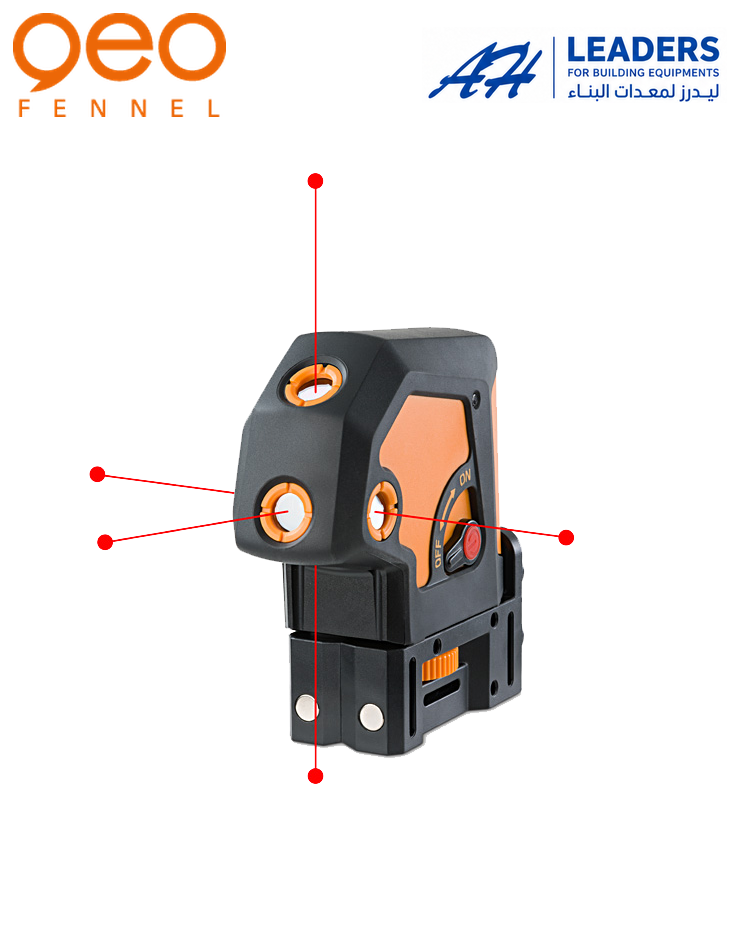

  • ✓ 5 laser dots (up, down, forward, left, right)

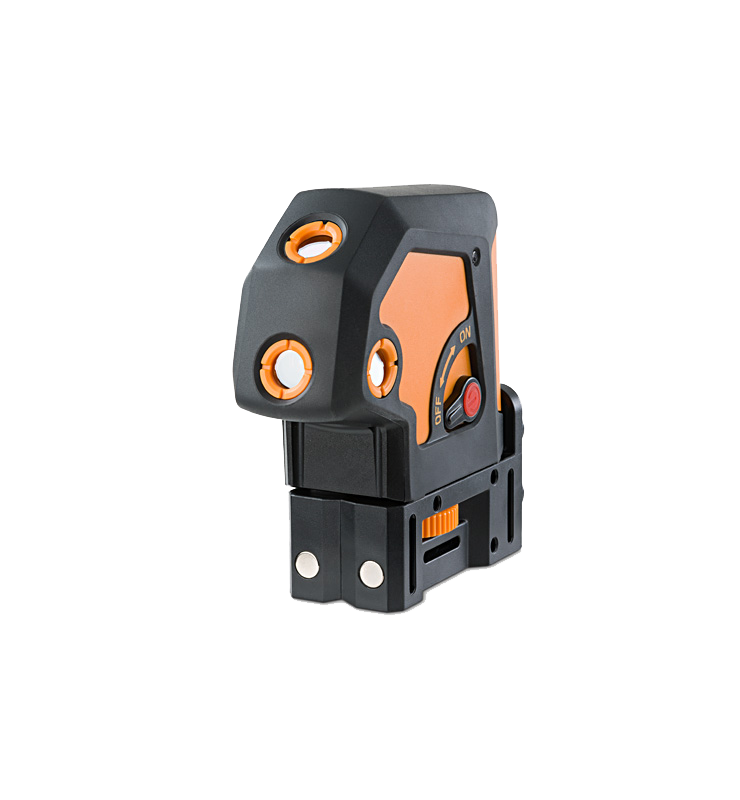

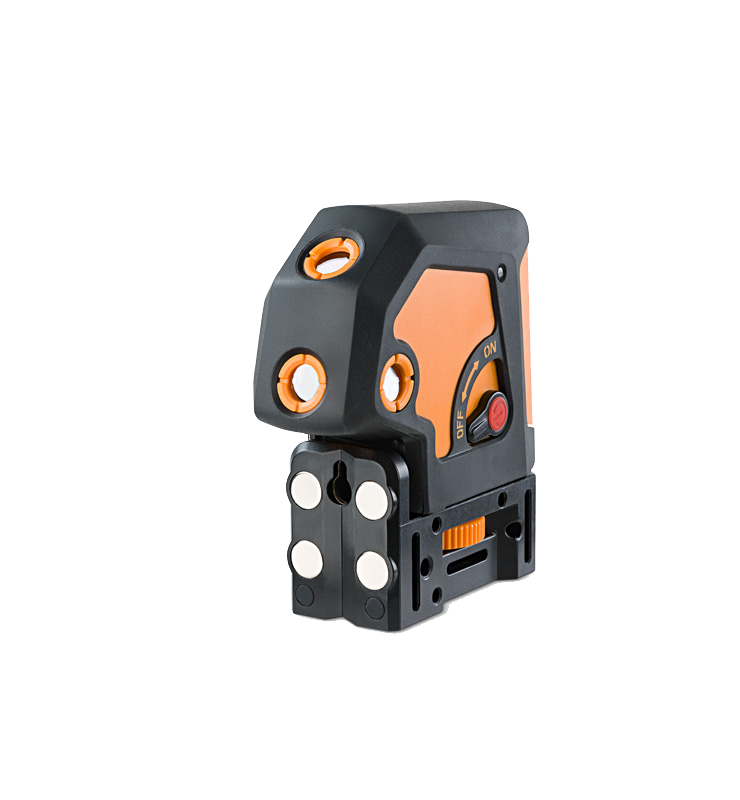

  • ✓ Out-of-level alarm · Multi-functional mount with

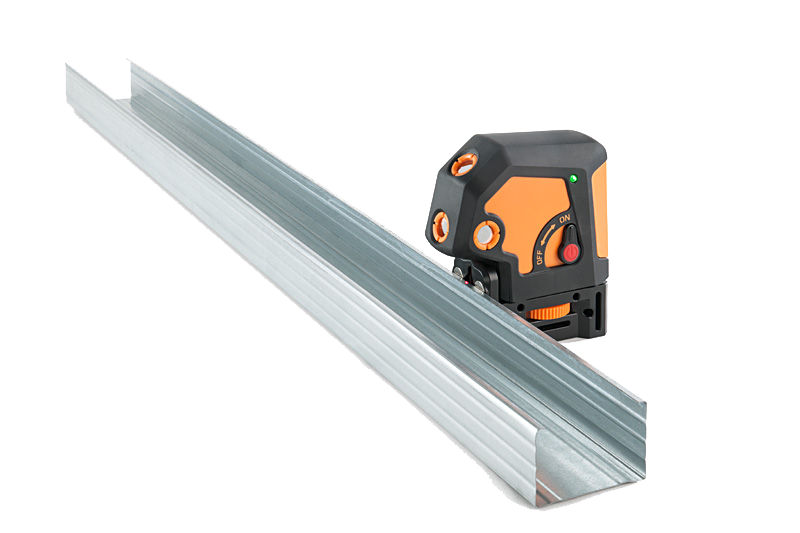

  • ✓ strong magnets for optimal use at drywall construction rails can be fixed to a wall (magnetic or screw hanging)
  • ✓ strap attachment
  • ✓ Transport lock
  • ✓ 1/4“ and 5/8“ tripod thread

Scope of delivery:

  • Multi-functional mount
  • Magnetic target
  • 3 x AA Alkaline battery
  • Padded carrying bag

Technical Specifications

Working range without receiver:
Ǿ 60 Meters ( Radius 30 M )
Working range with receiver:
Ǿ 80Meters ( Radius 40 M )
Accuracy:
± 2 mm / 10 m
Self-levelling range:
± 3,5°
Dust / water protection:
IP 54
Power supply:
3 x AA Alkaline
Laser diode:
red
Laser class:
2
Operating time:
20 h
Temperature range:
-10°C to +50°C
