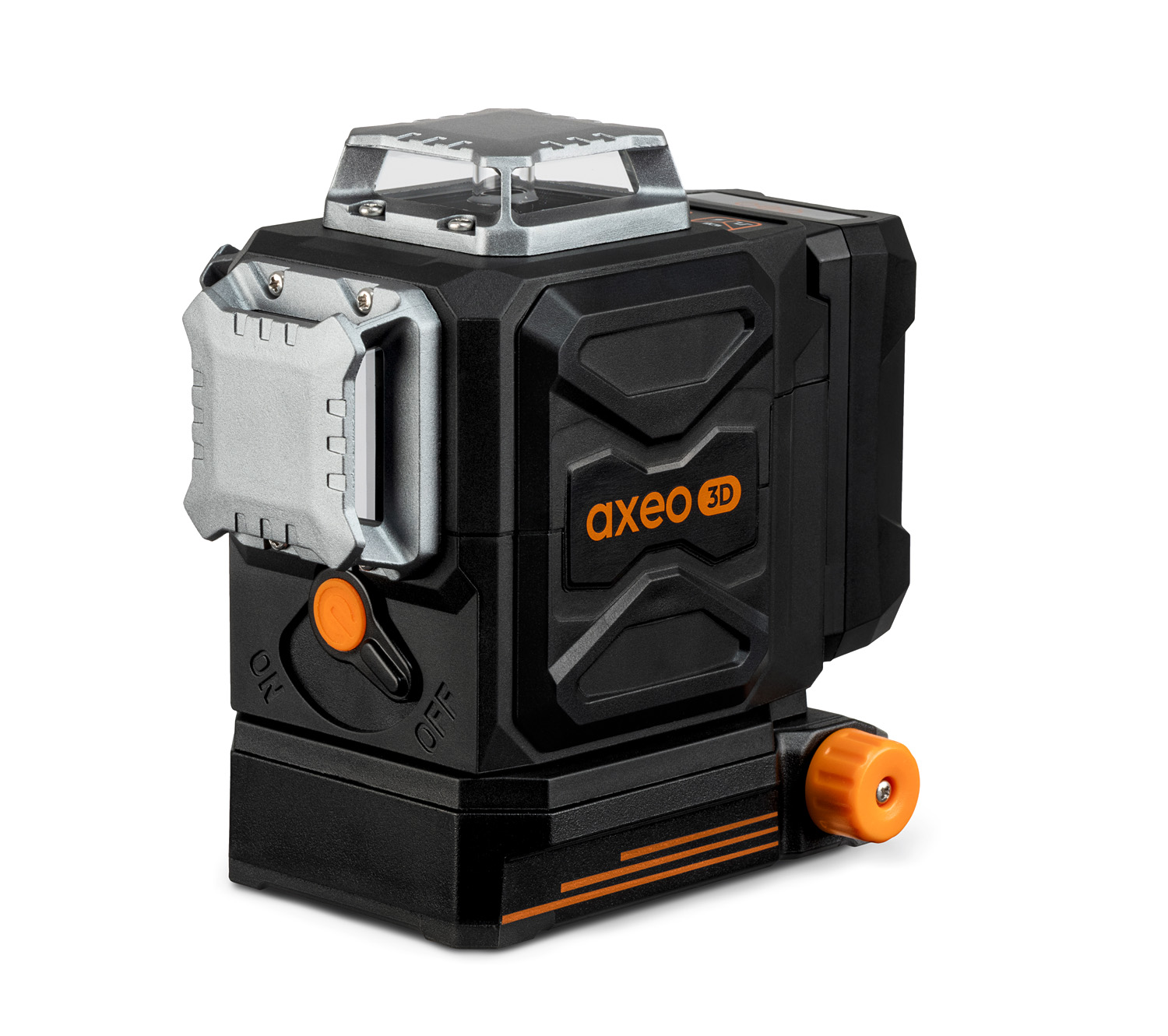

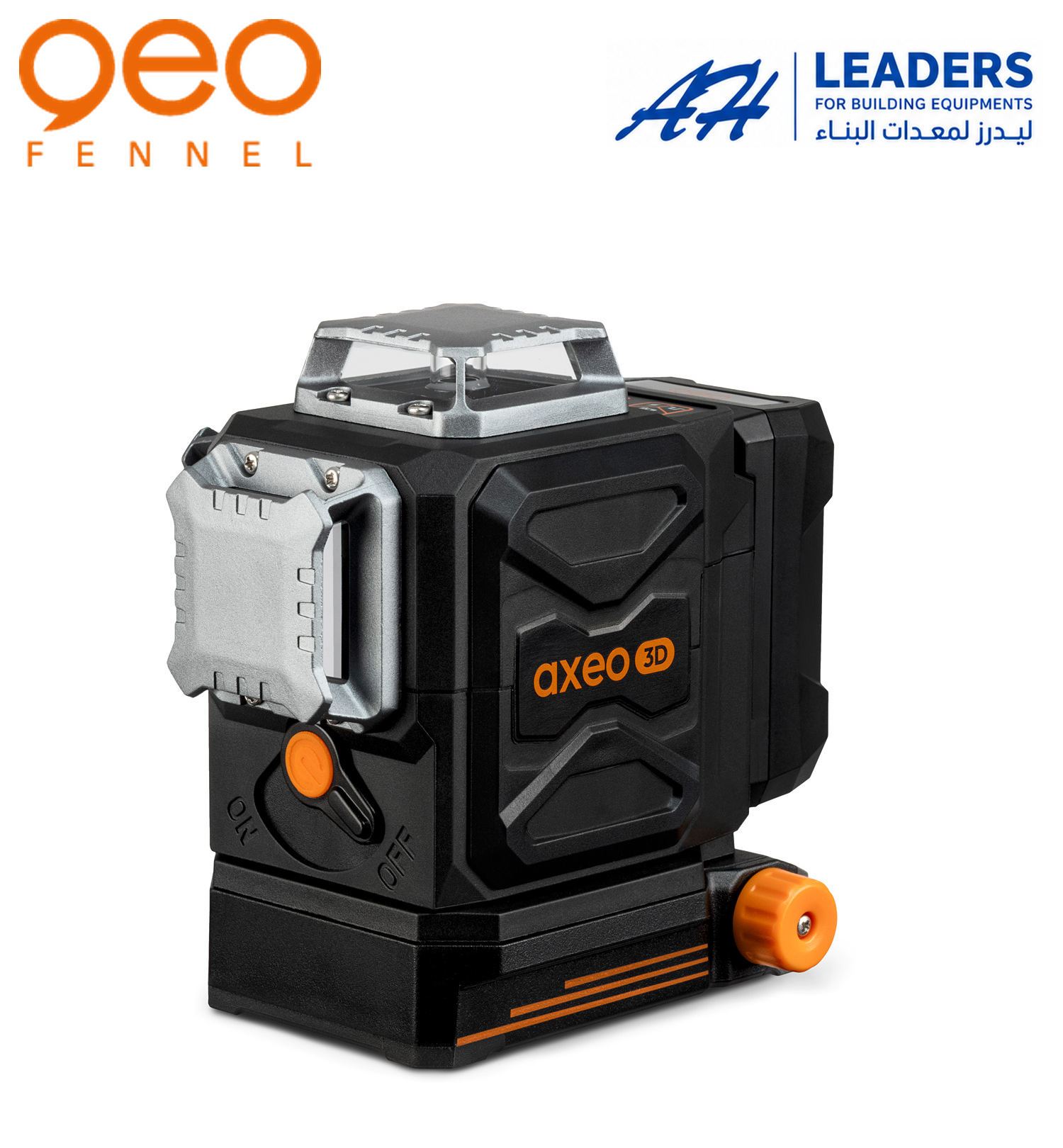

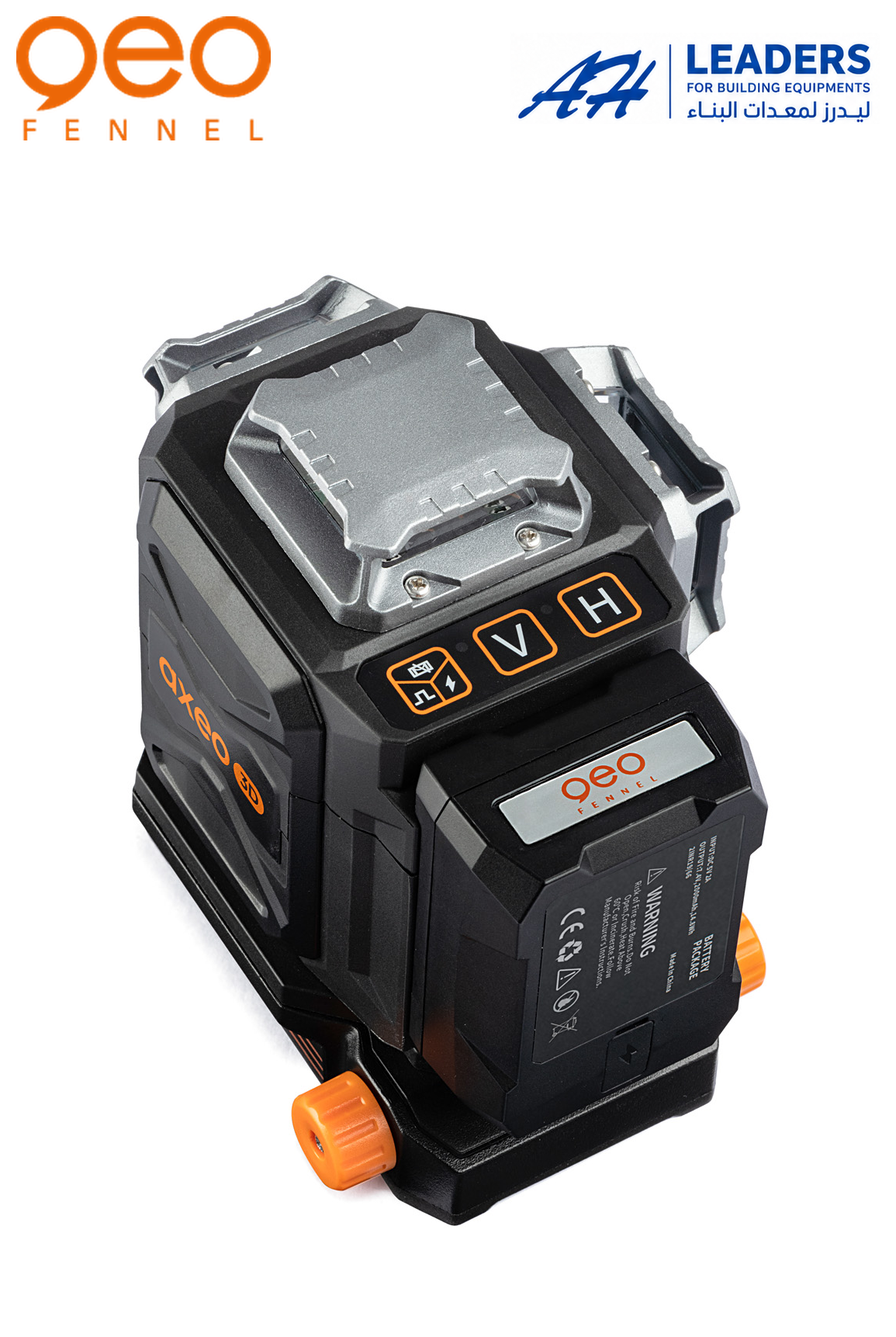

Axeo 3D
Short Description
Key Benefits

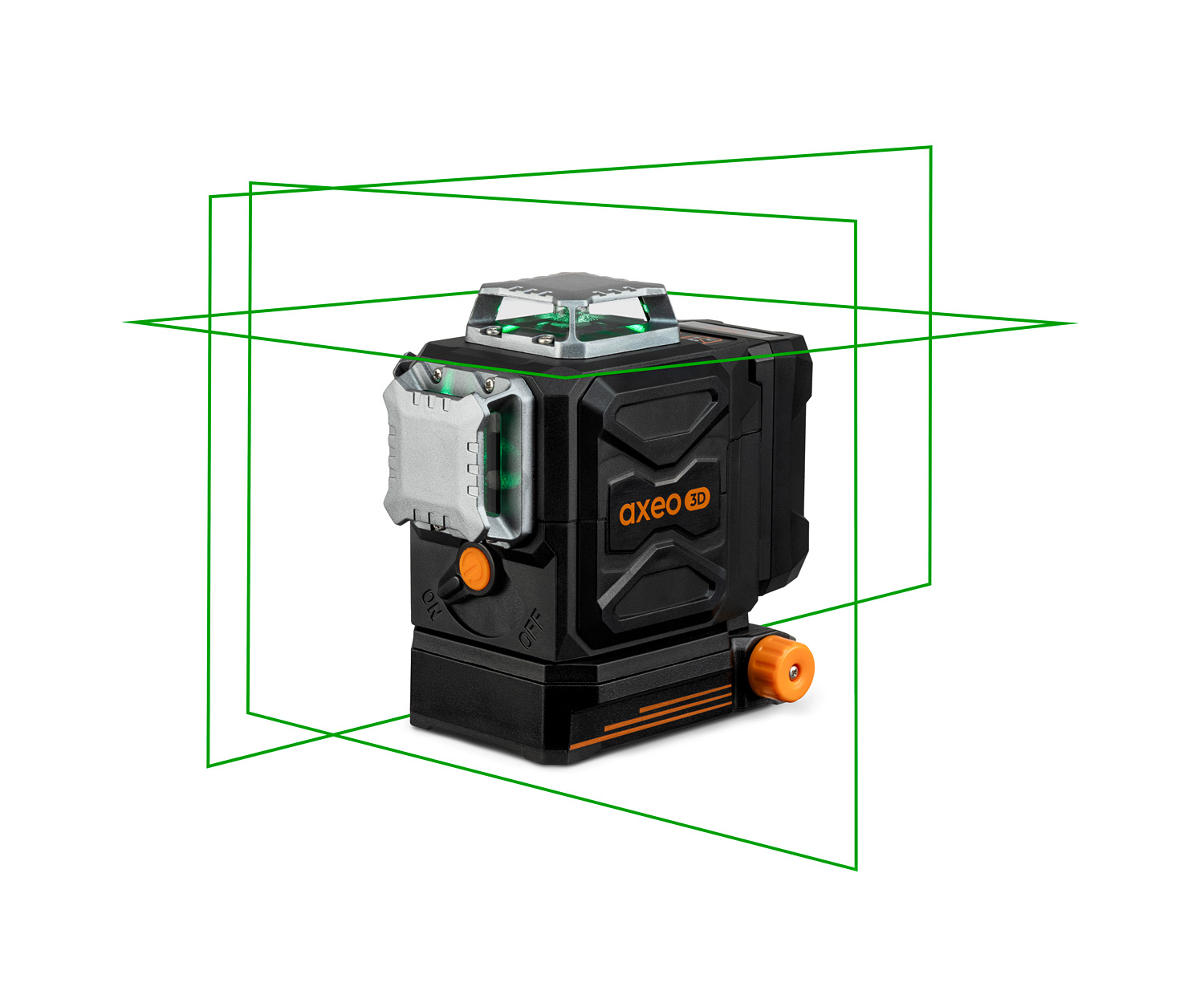

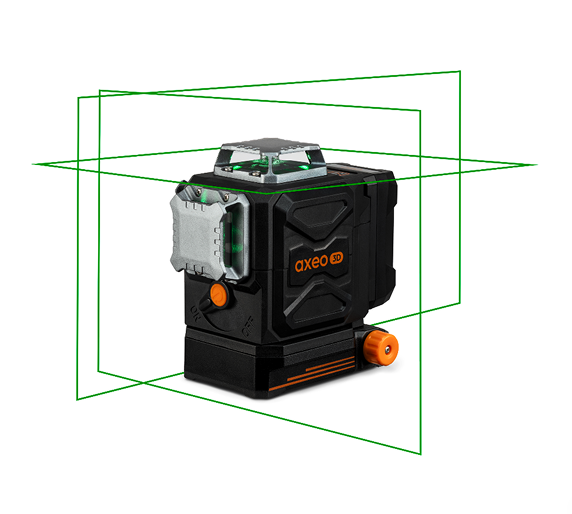

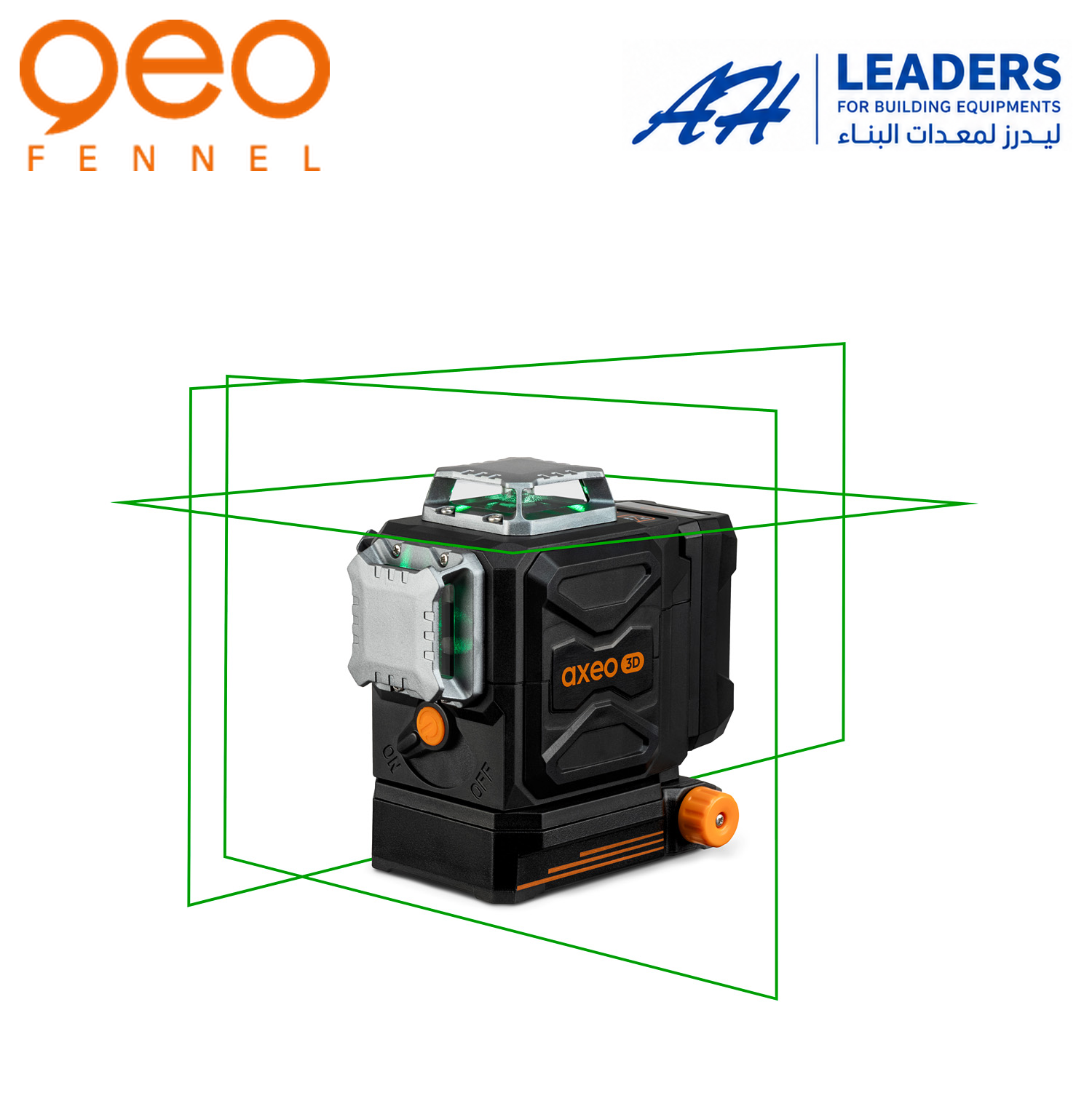

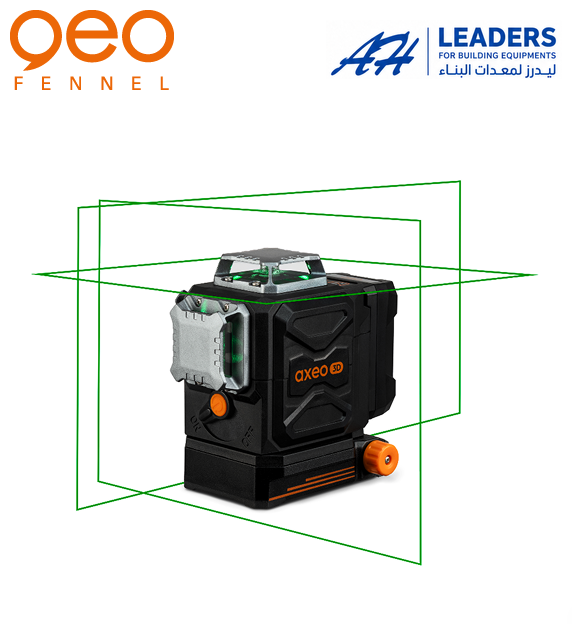

- ✓ 3 x 360°-Laser lines - form 6 laser crosses
- ✓ Fine motion screw for exact alignment of vertical laser axis (intersection point of laser cross remains on the marked measuring point)

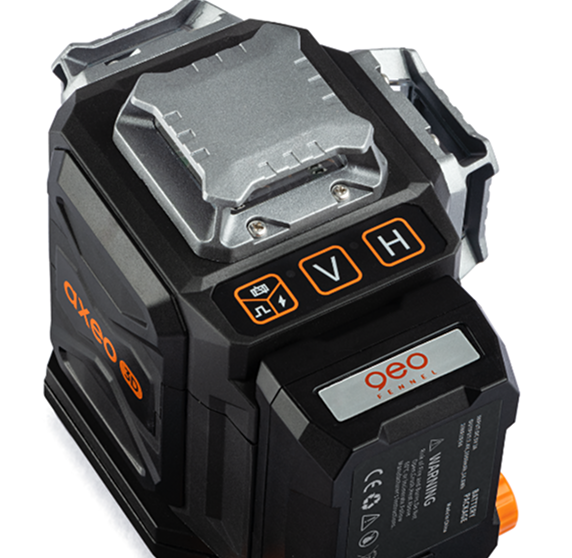

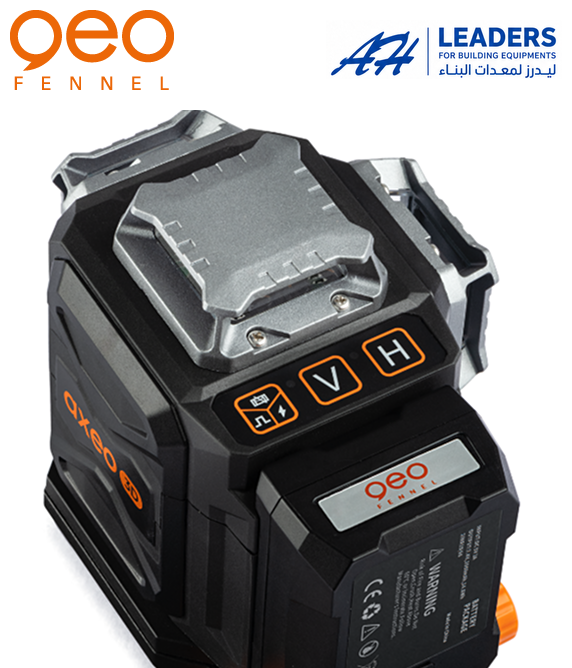

- ✓ Laser lines switchable separately
- ✓ Self-levelling function can be locked (manual use)
- ✓ Pulse mode for use with receiver (optional)

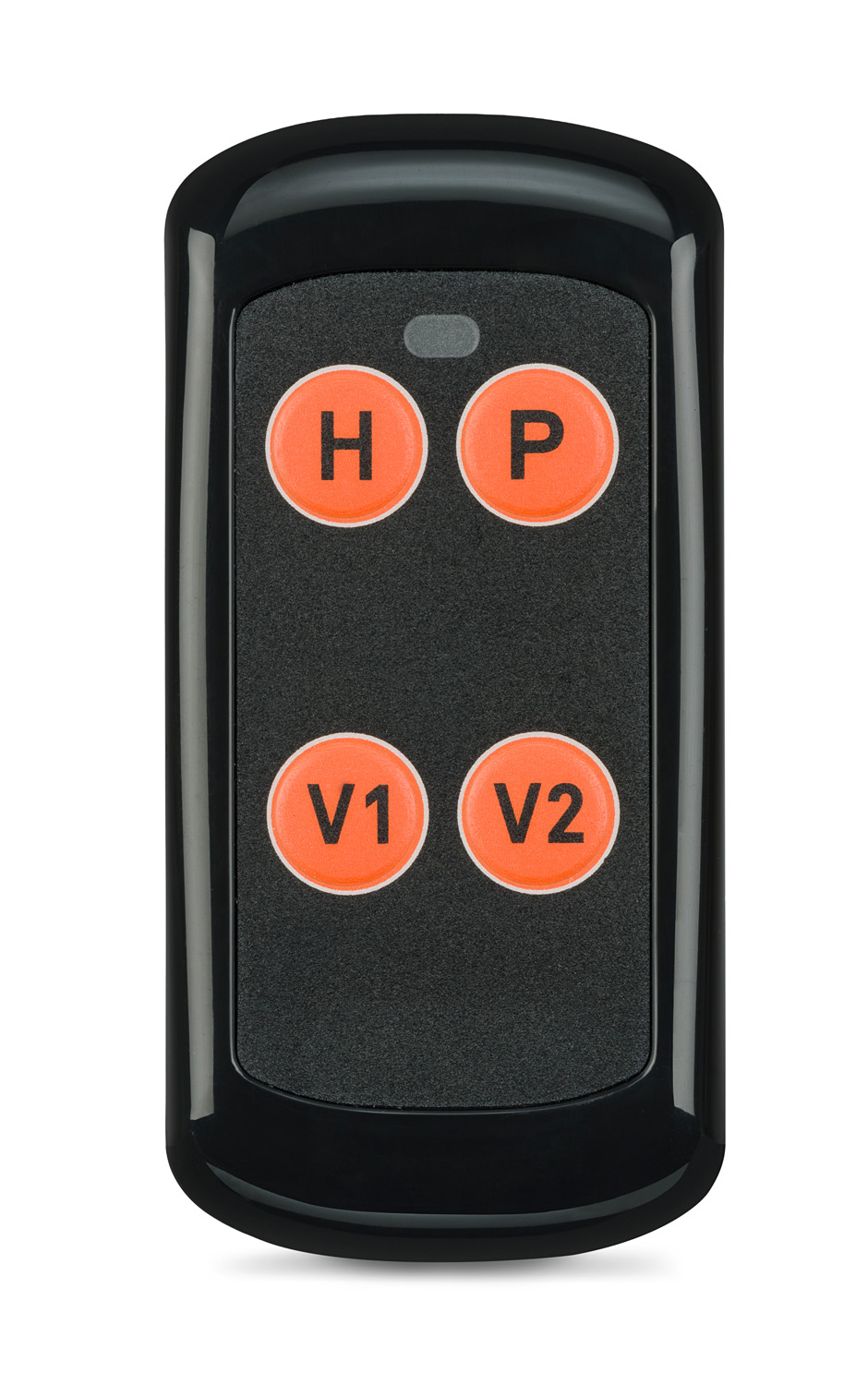

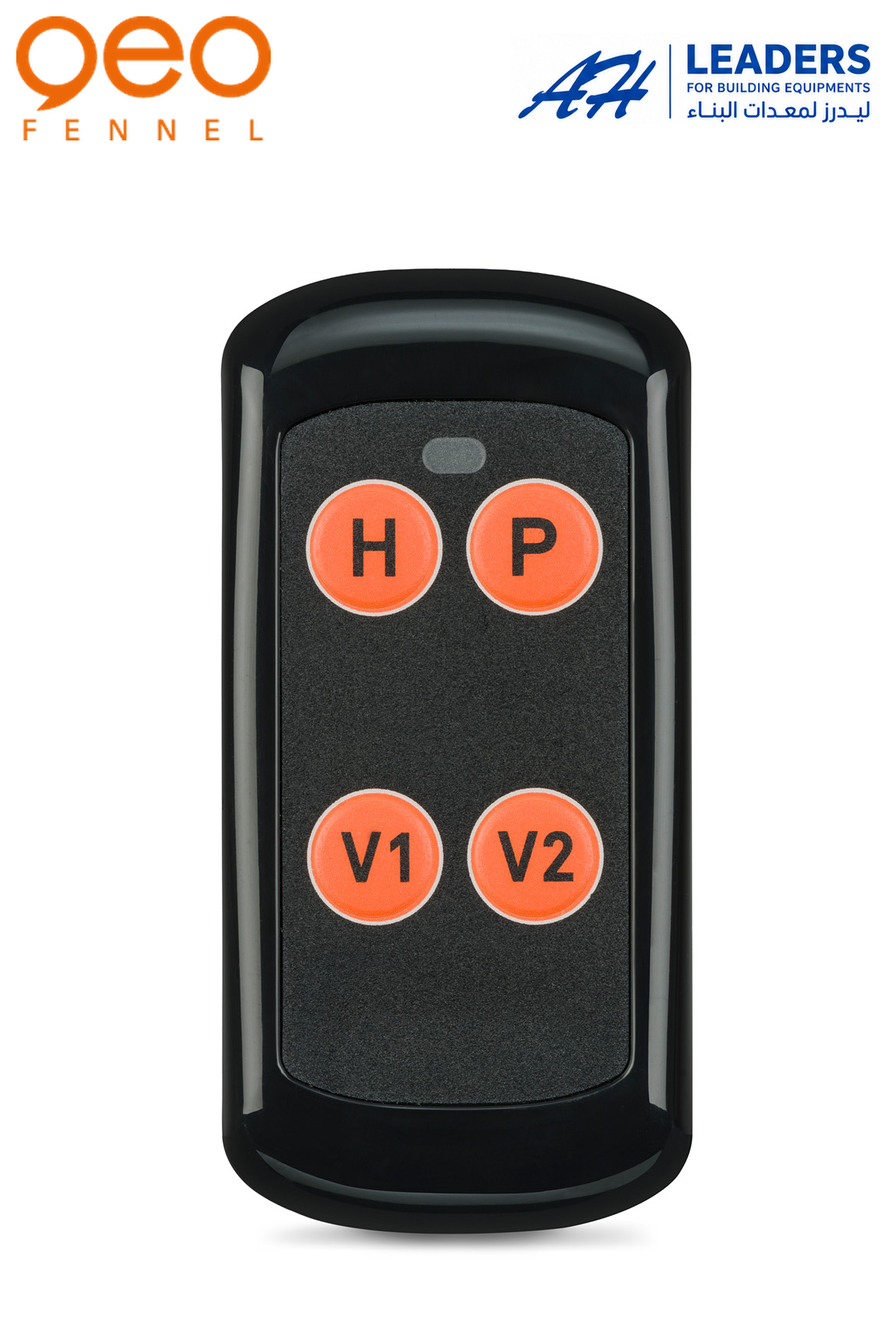

- ✓ Remote control

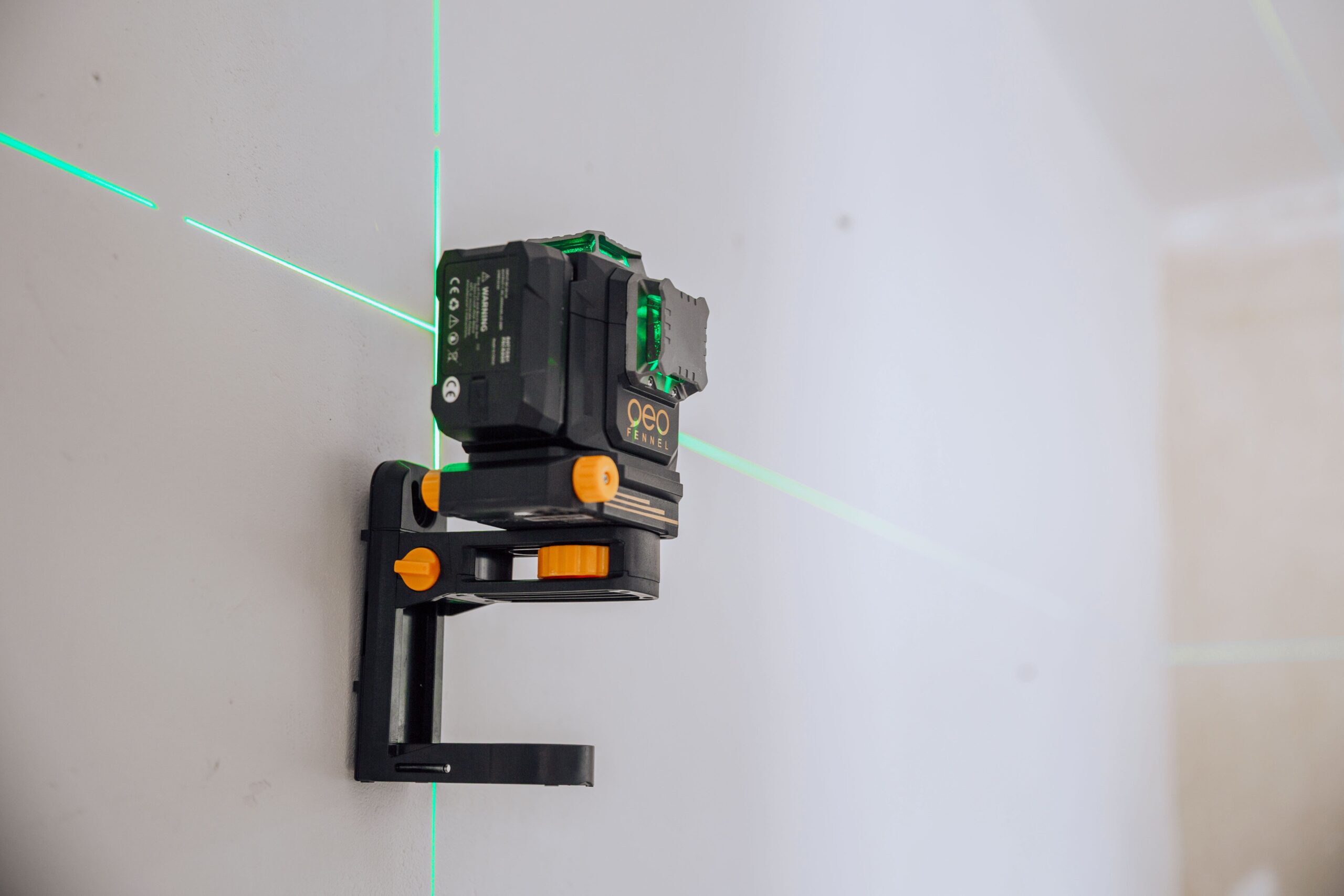

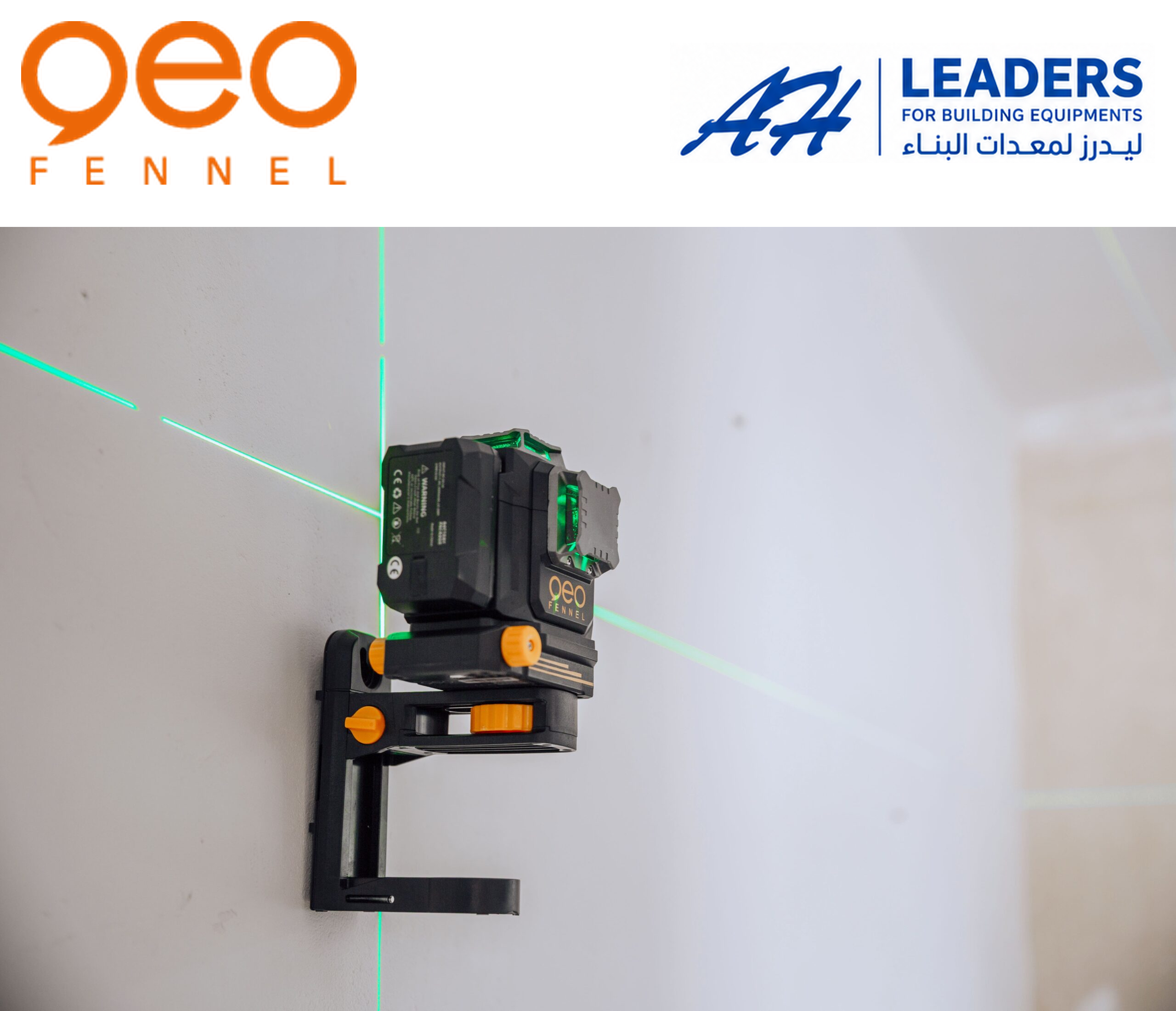

- ✓ Multi-functional mount, height adjustable with attachable adapter for connection to ceiling track
- ✓ Li-Ion battery / mains operation possible

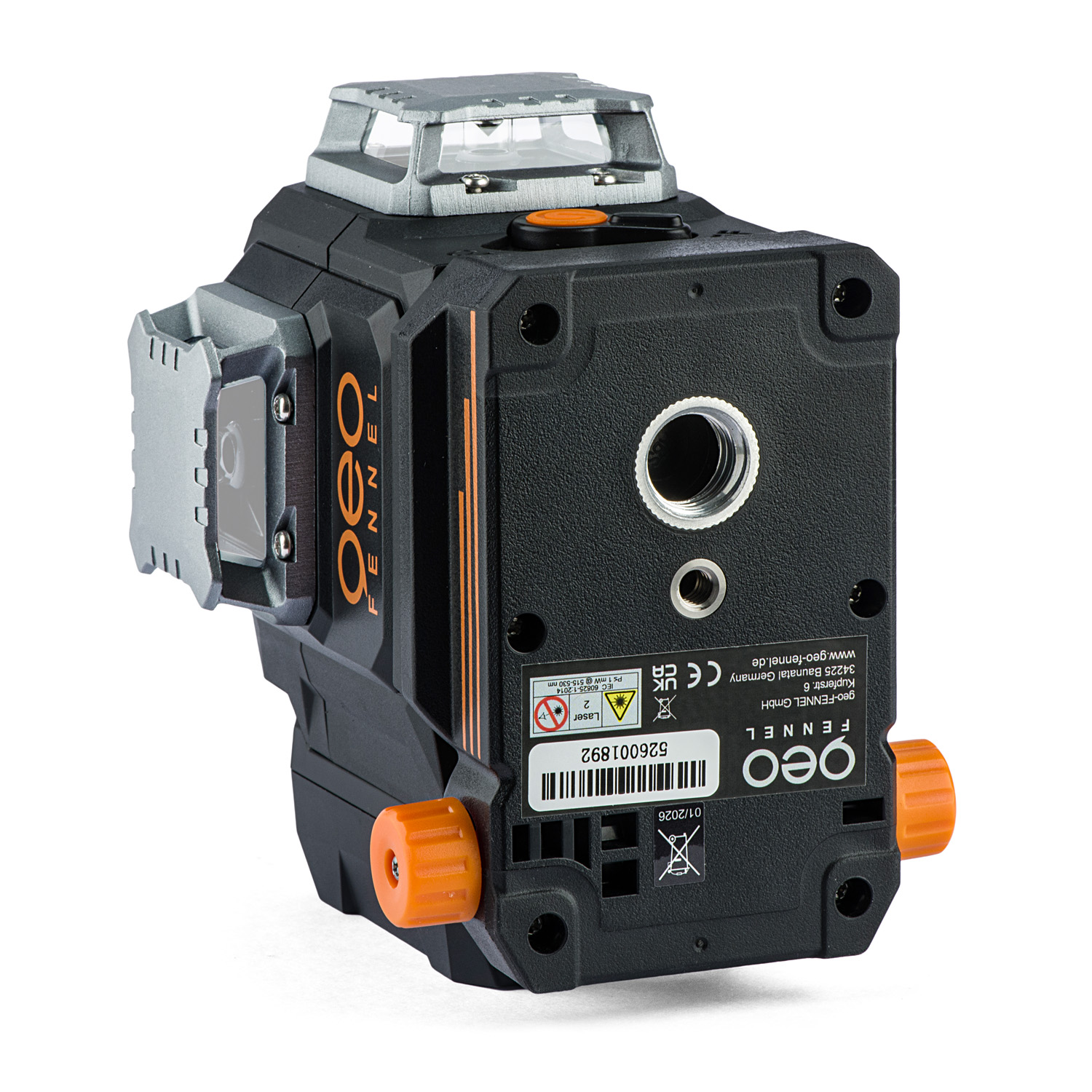

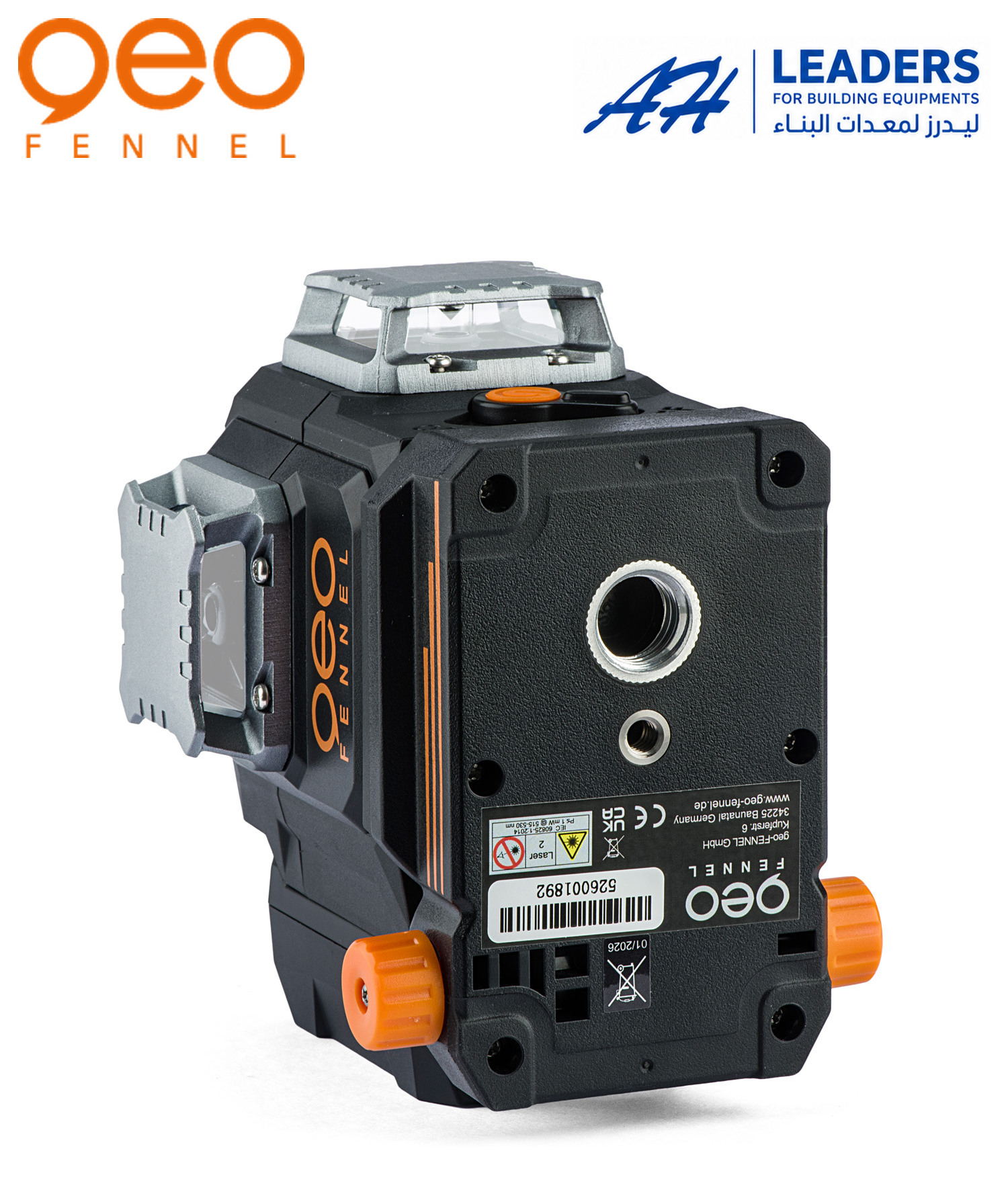

- ✓ 5/8" & 1/4" connection at instruments bottom

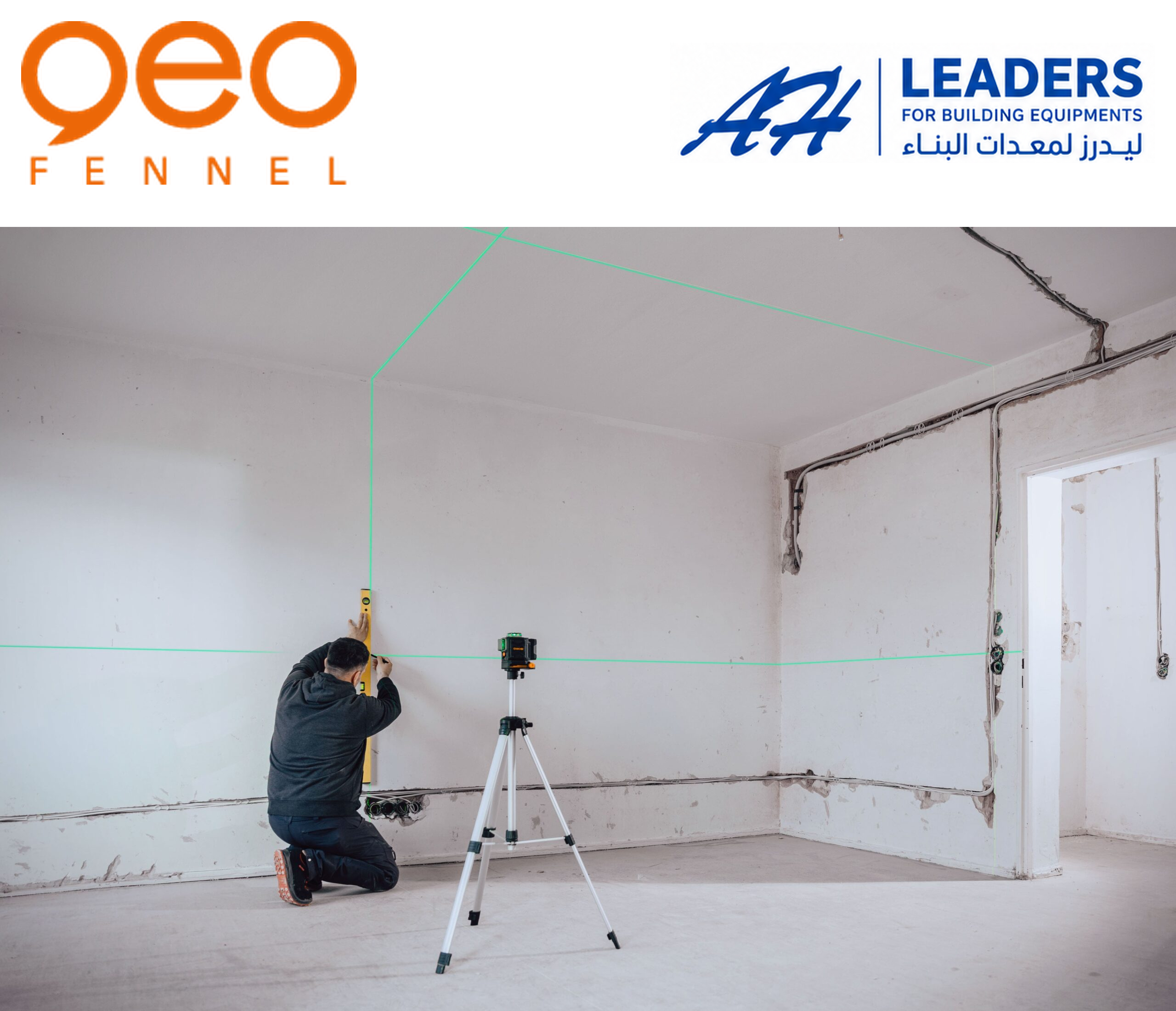

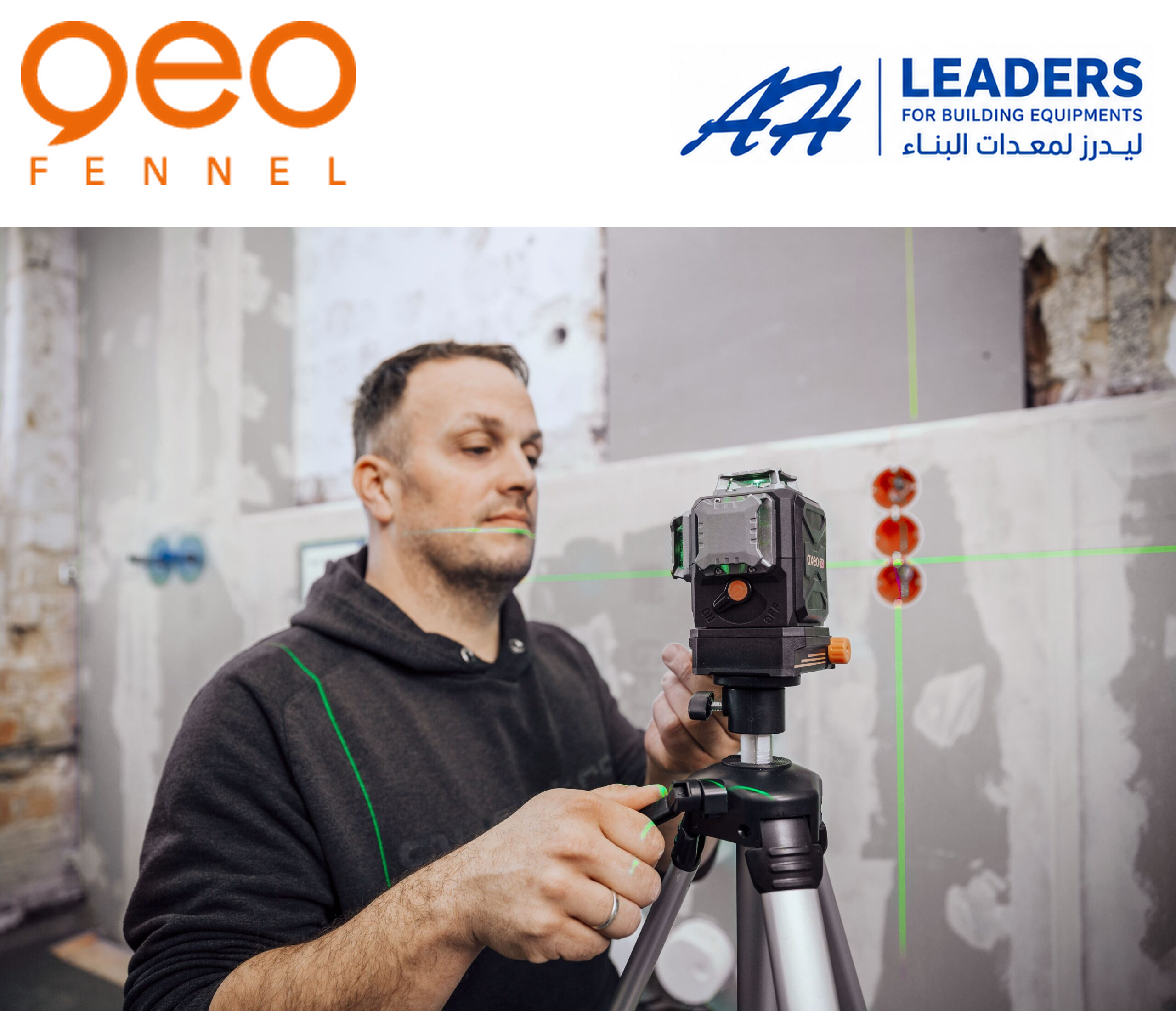

With 3 x 360° laser lines with state-of-the-art green laser beams, the axeo models deliver perfect results in a handy design. The fine motion screw enables precise alignment of the vertical laser axis – the intersection point always remains exactly on the marked measuring point. Thanks to the manual function, inclined applications can also be realised effortlessly. The pulse mode enables use with an optional receiver, and the laser can be conveniently controlled via the remote control. The multifunctional, height-adjustable holder with attachable adapter for ceiling rails opens up flexible application options. With a Li-ion battery or mains operation, the axeo is always ready for use – for maximum efficiency on any construction site.

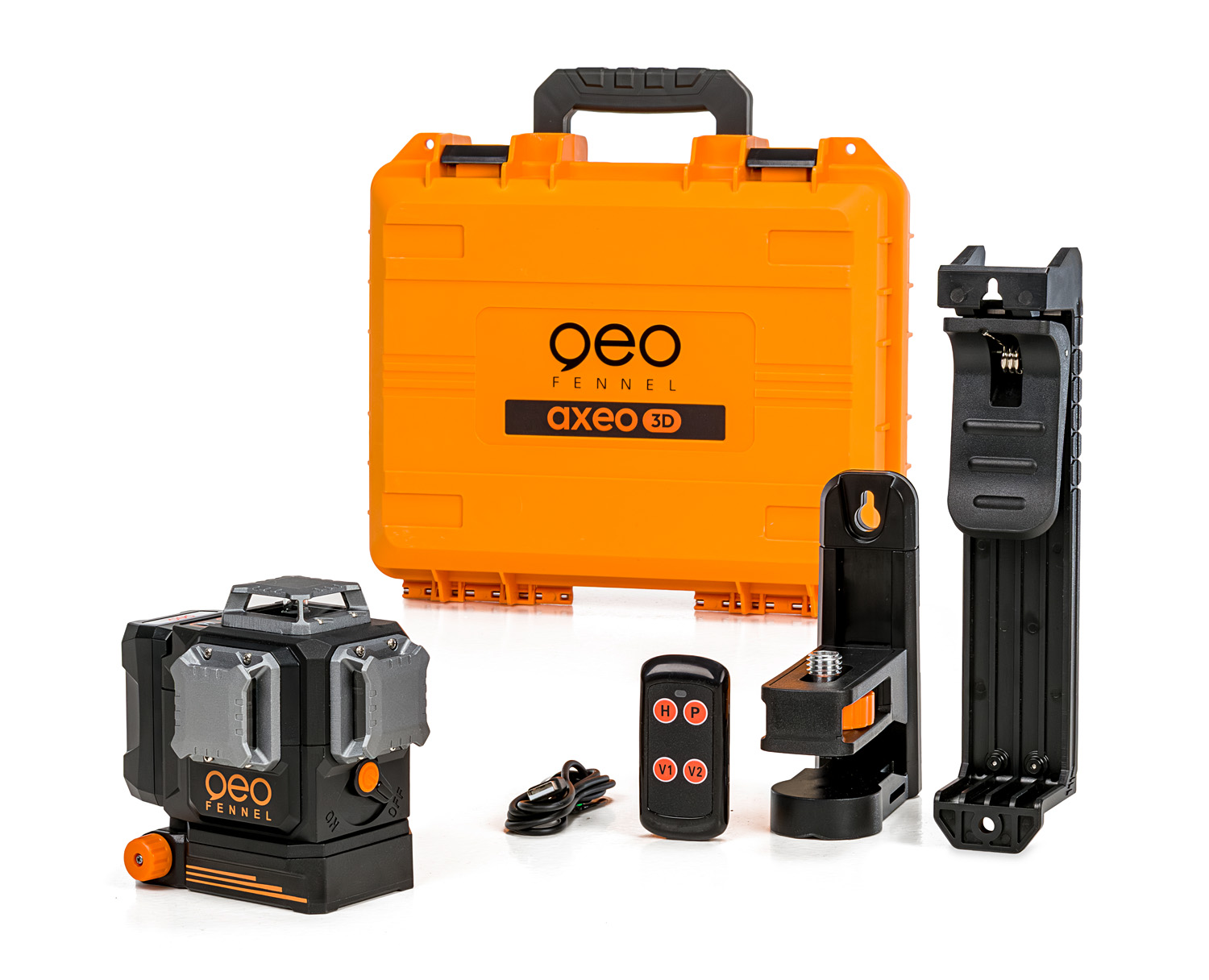

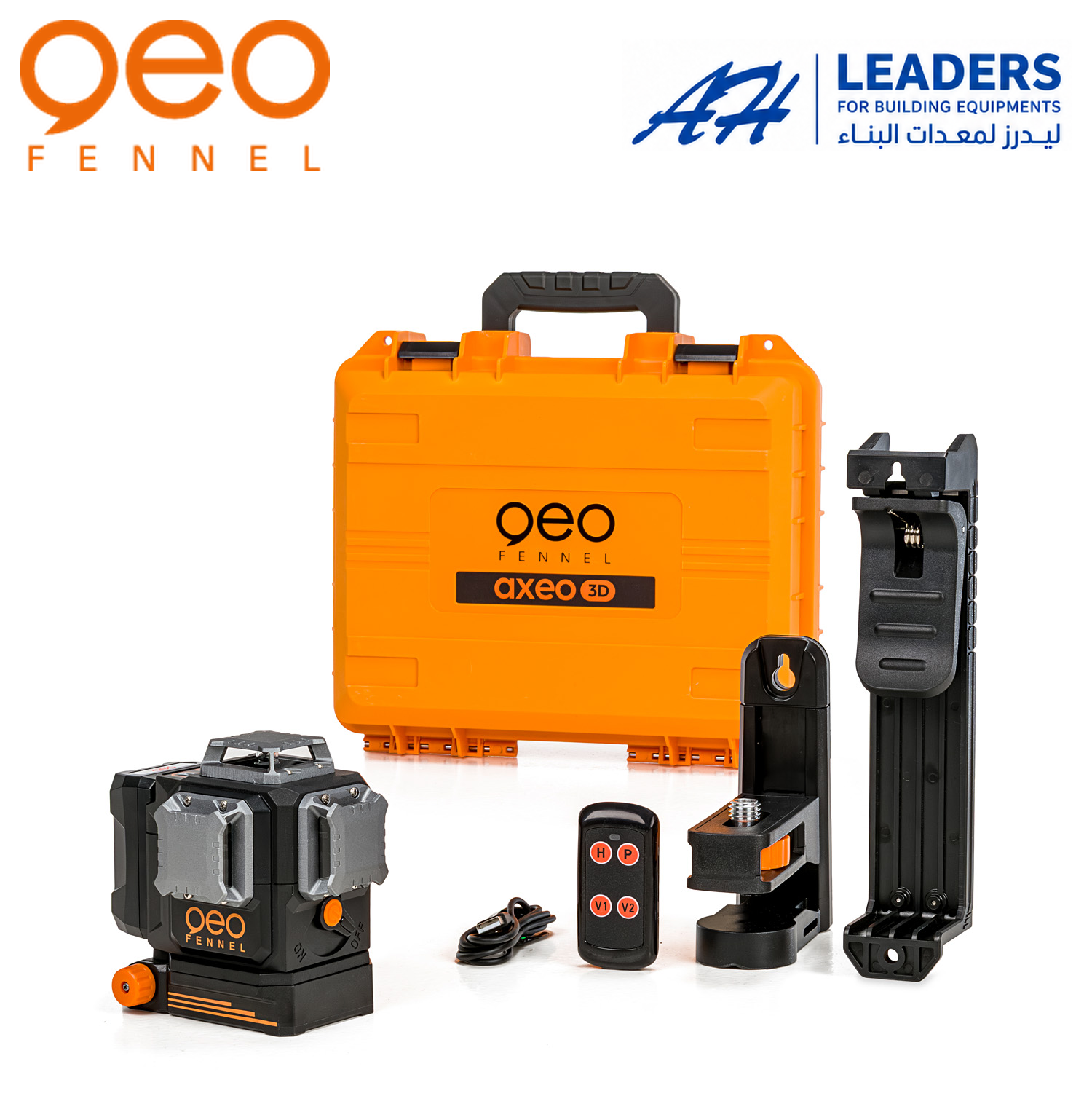

- Multi-functional mount
- Wall track adapter
- Li-Ion battery
- USB-C cable
- Remote control
- Container
Technical Specifications
Self-levelling range:, ± 3°, Accuracy:, ± 3 mm / 10 m, Laser diode:, green, Working range:, 30 m (Radius), Working range with receiver:, 60 m (radius), Dust / water protection:, IP 54, Laser class:, 2, Operating time:, 10 h (1×360°) | 8 h (2×360°) | 6 h (3×360°), Power supply:, 2000 mAh Li-Ion, Temperature range:, 0 °C to + 45 °C
