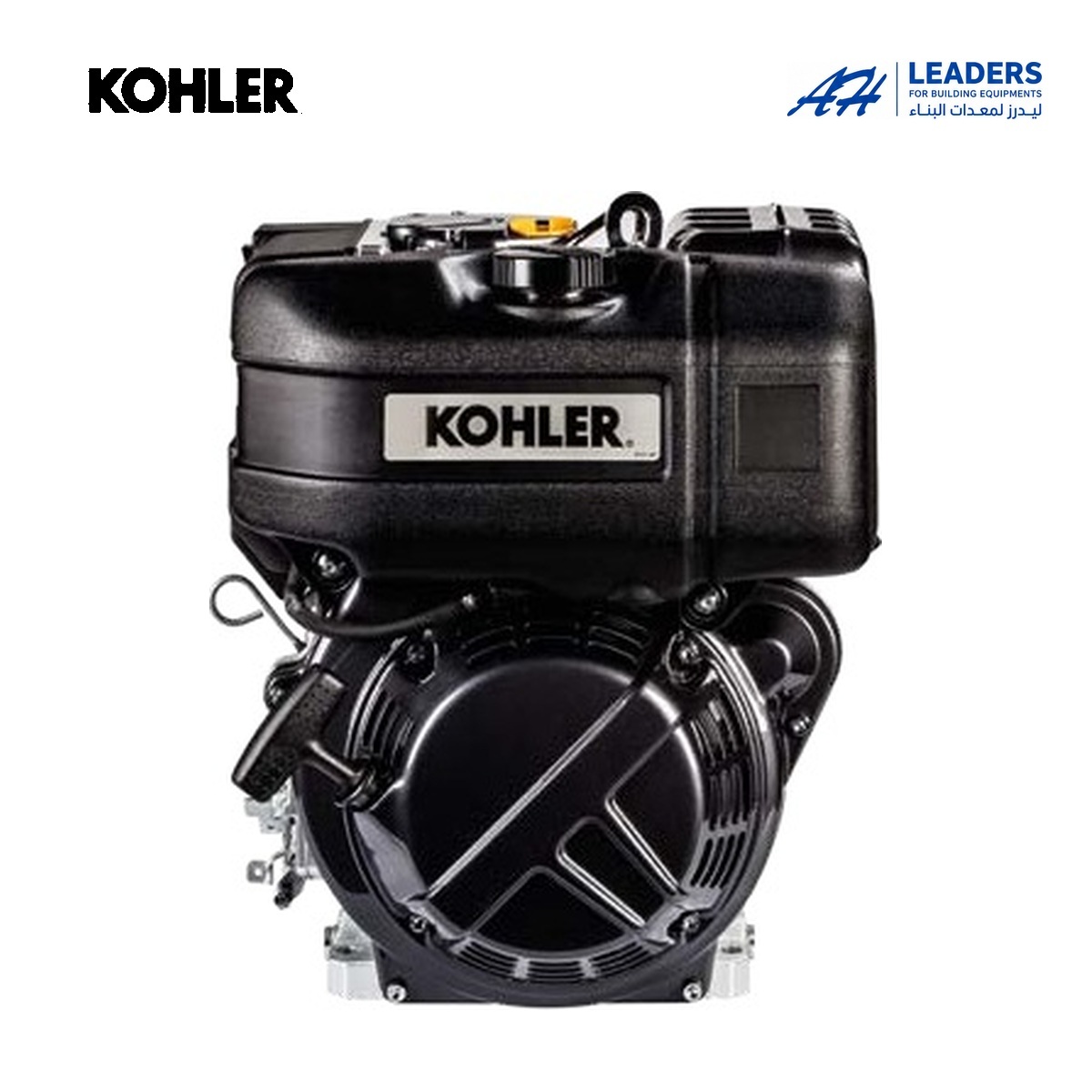

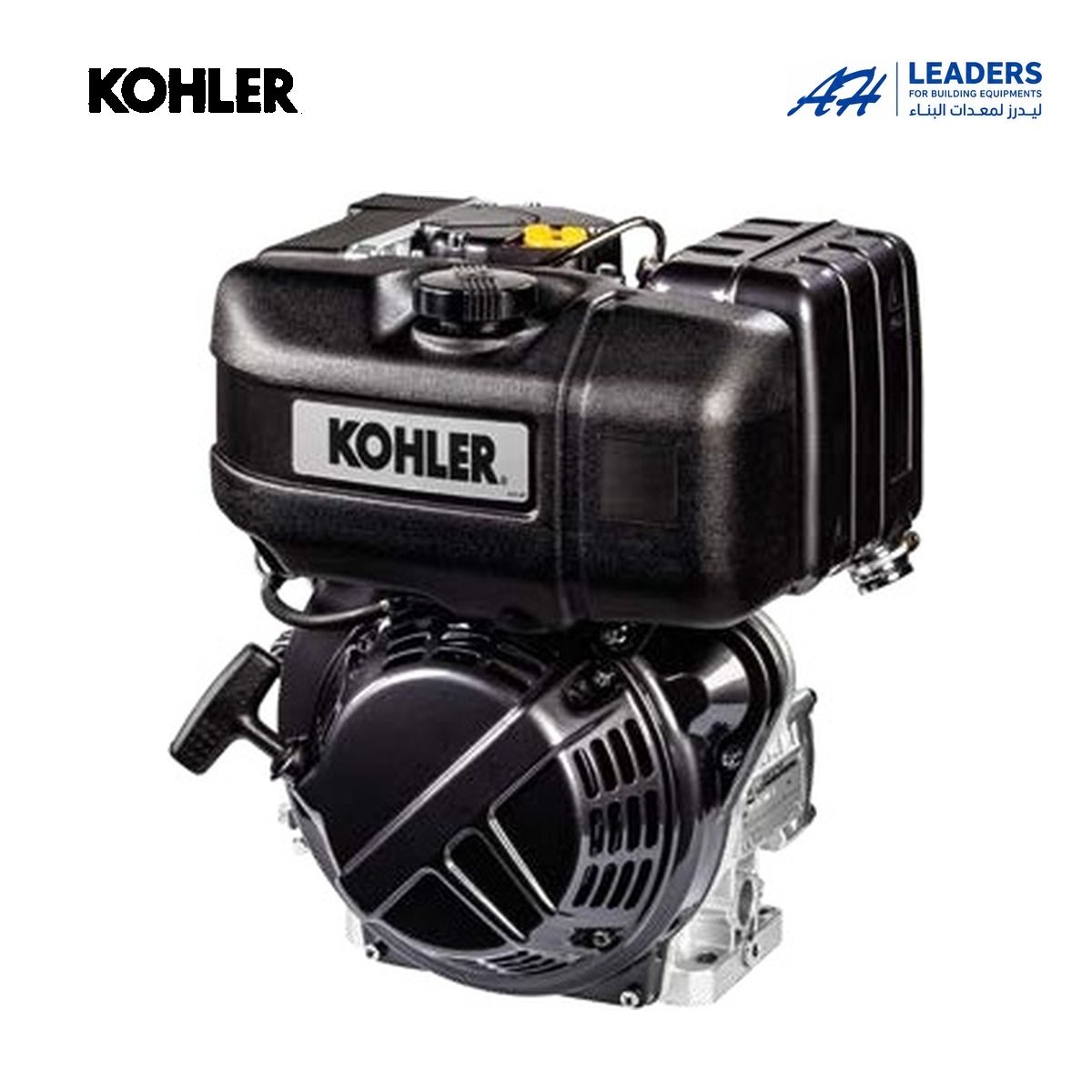

KOHLER KD225 Diesel Engine (KD15-225)
Short Description
224 cc single-cylinder air-cooled diesel engine. Paper-element and oil-bath air-filter supply options available.
The Kohler KD15-225, also referred to as KD225, is a compact direct-injection diesel engine for compatible construction equipment and general-purpose machinery. LEADERS supplies paper-element and oil-bath air-filter configurations.
Technical specifications
| Model | KD15-225 (KD225) |
|---|---|
| Fuel | Diesel |
| Engine type | 4-stroke, single-cylinder, air-cooled |
| Combustion system | Direct injection |
| Crankshaft | Horizontal |
| Displacement | 224 cm3 |
| Bore x stroke | 69 x 60 mm |
| Manufacturer power ratings | 3.5 kW (4.7 hp) at 3600 rpm (manufacturer KD air-cooled brochure) |
| Manufacturer torque ratings | 10.4 Nm at 2400 rpm |
| Fuel tank capacity | 3.0 L |
| Oil sump capacity | 0.9 L |
| Reference dimensions (L x W x H) | 358 x 265 x 417 mm |
| Reference dry weight | 28 kg |
| Air-filter supply options | Paper element / oil bath |
Selection and compatibility
Power ratings depend on the exact engine version and rating standard; the listed version codes are manufacturer references, not a claim that every emission variant is in stock. Confirm the engine code, air-filter type, starter and output shaft when requesting a quotation. Dimensions, weight and photographs are manufacturer references and vary with accessories.
Supplied as a standalone engine. Contact LEADERS with your machine model, shaft dimensions and mounting requirements to confirm a suitable configuration.
