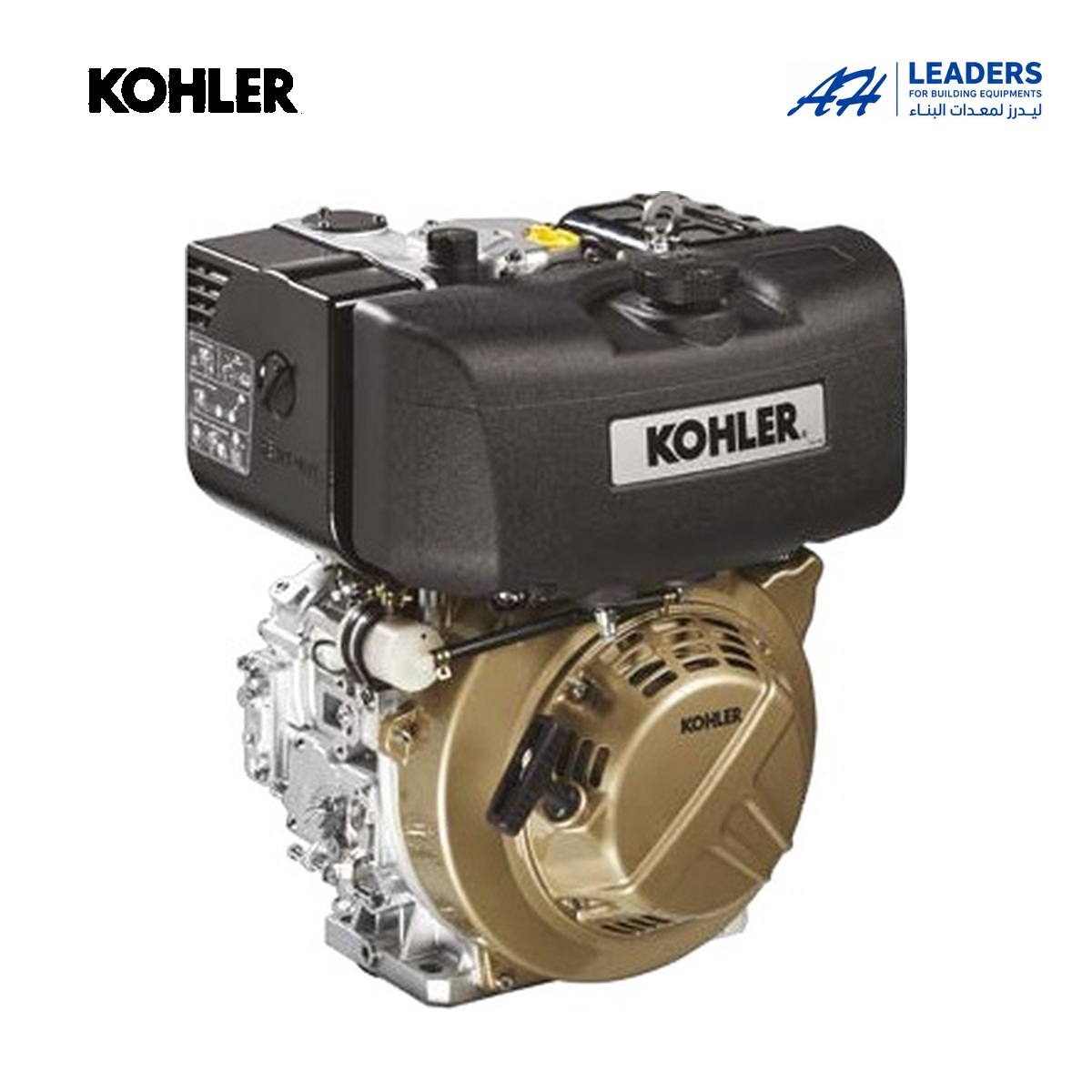

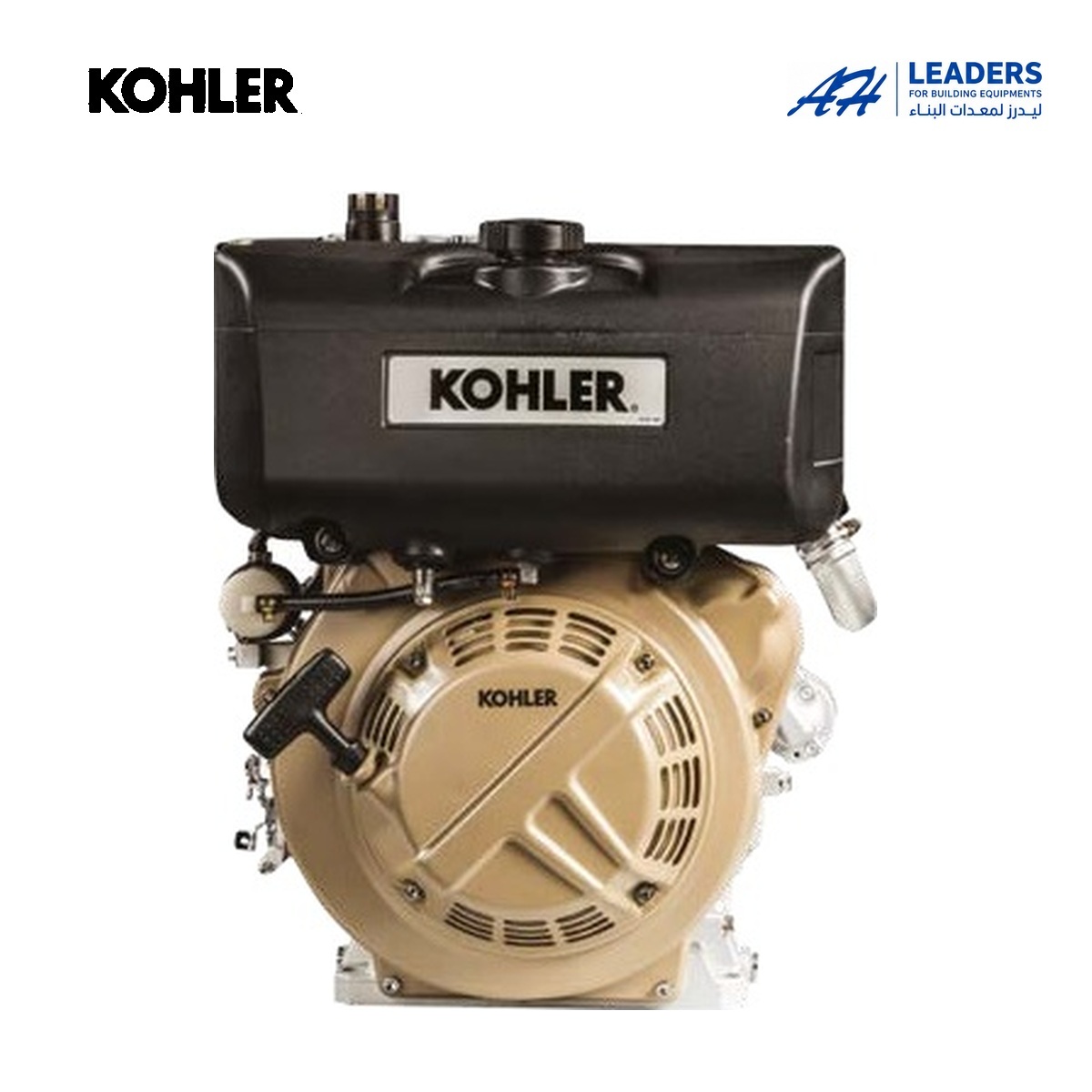

KOHLER KD440 Diesel Engine (KD15-440)
Short Description
441 cc single-cylinder air-cooled diesel engine. Paper-element and oil-bath air-filter supply options available.
The Kohler KD15-440, also referred to as KD440, is a compact direct-injection diesel engine for compatible construction equipment and general-purpose machinery. LEADERS supplies paper-element and oil-bath air-filter configurations.
Technical specifications
| Model | KD15-440 (KD440) |
|---|---|
| Fuel | Diesel |
| Engine type | 4-stroke, single-cylinder, air-cooled |
| Combustion system | Direct injection |
| Crankshaft | Horizontal |
| Displacement | 441 cm3 |
| Bore x stroke | 86 x 76 mm |
| Manufacturer power ratings | NE36 / E536: 7.5 kW (10.1 hp); U436: 7.0 kW (9.4 hp), at 3600 rpm |
| Manufacturer torque ratings | NE36 / U436: 23 Nm; E536: 24.5 Nm, at 2200 rpm |
| Fuel tank capacity | 4.3 L |
| Oil sump capacity | 1.2 L |
| Reference dimensions (L x W x H) | 412.8 x 340 x 493 mm |
| Reference dry weight | 45 kg |
| Air-filter supply options | Paper element / oil bath |
Selection and compatibility
Power ratings depend on the exact engine version and rating standard; the listed version codes are manufacturer references, not a claim that every emission variant is in stock. Confirm the engine code, air-filter type, starter and output shaft when requesting a quotation. Dimensions, weight and photographs are manufacturer references and vary with accessories.
Supplied as a standalone engine. Contact LEADERS with your machine model, shaft dimensions and mounting requirements to confirm a suitable configuration.
