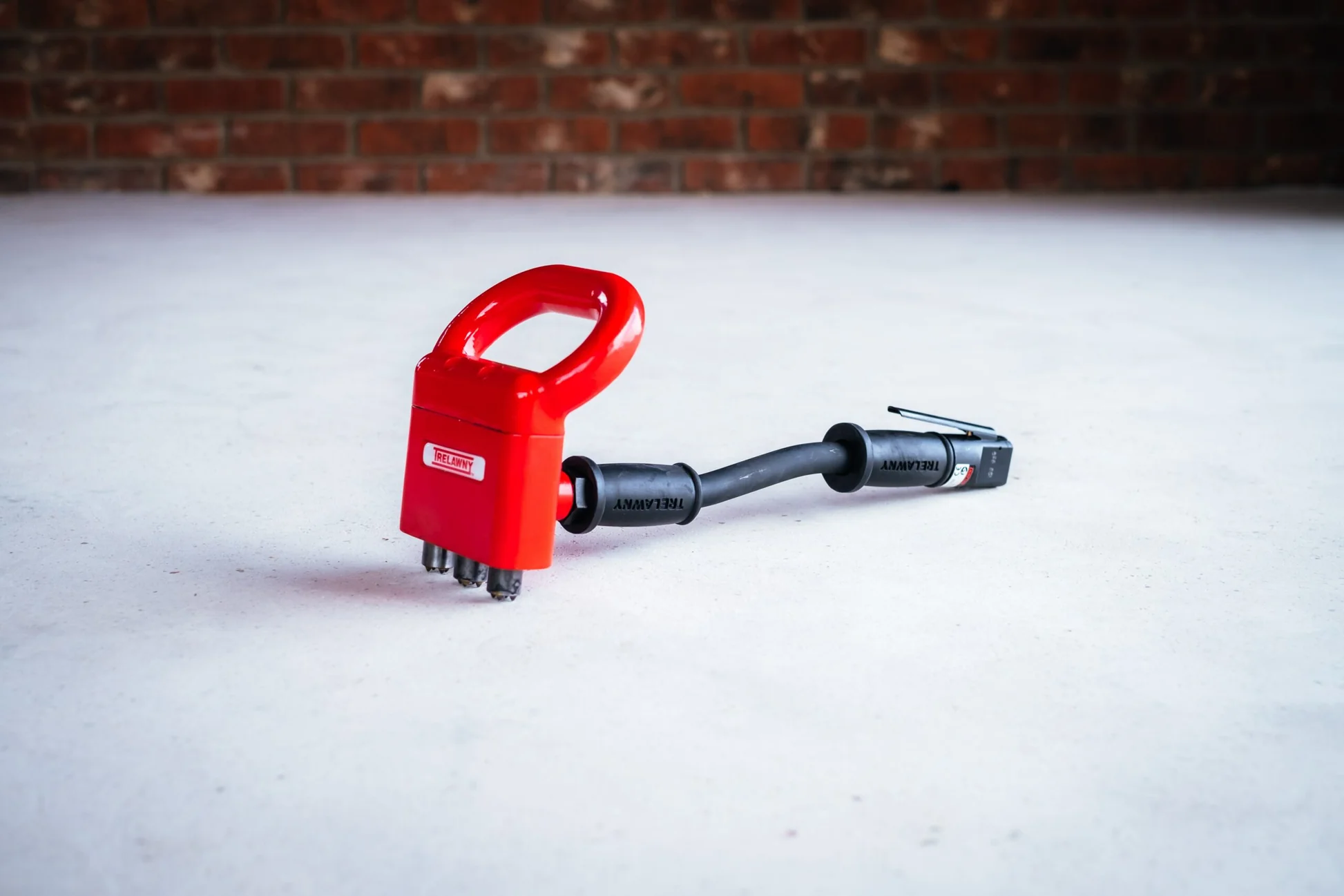

SH3 Handheld Scabblers
Short Description
Part Number: 153.5200
Weight kg: 5.2
Blows Per Min: 2400
Air Consumption Metric (Imperial): 7.0l/s (15.0cfm)
Key Benefits
- ✓ Easy to change cutter heads minimise downtime.
- ✓ Ergonomic handle for ease of use – Also available with a short handle for tight areas.
- ✓ Simple and robust design for easy maintenance.
- ✓ The VLSH1 Vibro-Lo™ – low vibration model helps reduce the risk to operators of vibration-related injuries..
- ✓ Optional TVS® vacuum shroud for the SH3 allows the connection of an industrial dust collector for collecting nuisance and hazardous dust for the protection of operators and the environment.
Trelawny’s range of single and triple head scabbling hammers (SH) features our lowest vibration technology, making them ideal for roughing and preparing concrete in small areas, such as concrete joints. These tools offer efficient performance with minimal vibration, ensuring comfort and precision during use.
Preparing joints and cracks.
Removal of laitance on concrete surfaces.
Removing existing coatings.
Reduction and levelling.
Roughening and exposing aggregate.
Technical Specifications
Part Number, 153.5200, Number of Pistons, 3, Piston Type, Cruciform, Piston Stroke mm, 26.5, Blows Per Min, 2400, Air Consumption Metric (Imperial), 7.0l/s (15.0cfm), Air Inlet Size inch NPT (BSP), 3/8 (1/2), Piston diameter (mm), 27, Weight kg, 5.2, Overall Length mm, 450, Working Height mm, 160, Working Width mm, 155, Sound Pressure Level Lpa db(A), 98, Sound Power Level Lwa db(A), 111.01, Vibration m/s², 13.5
