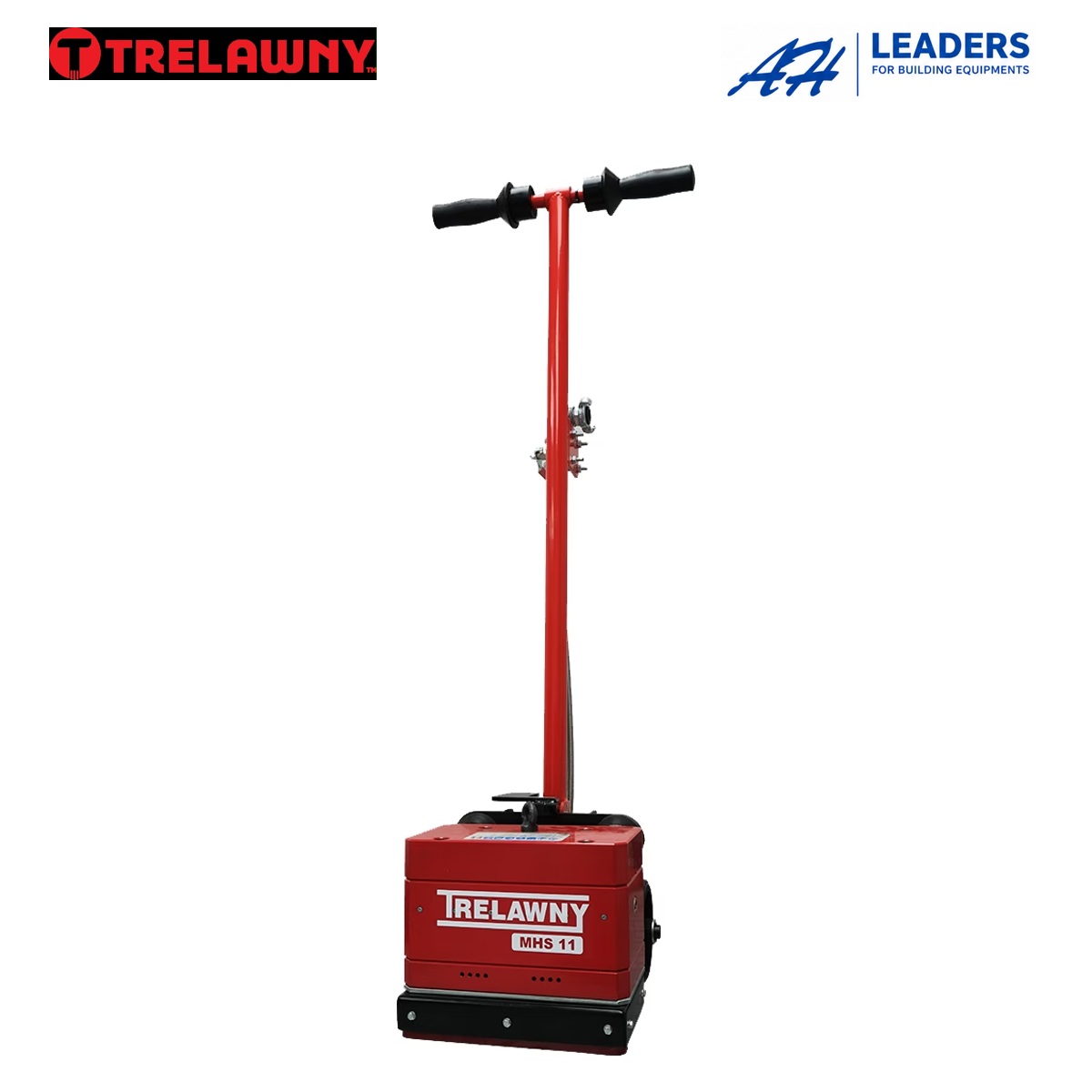

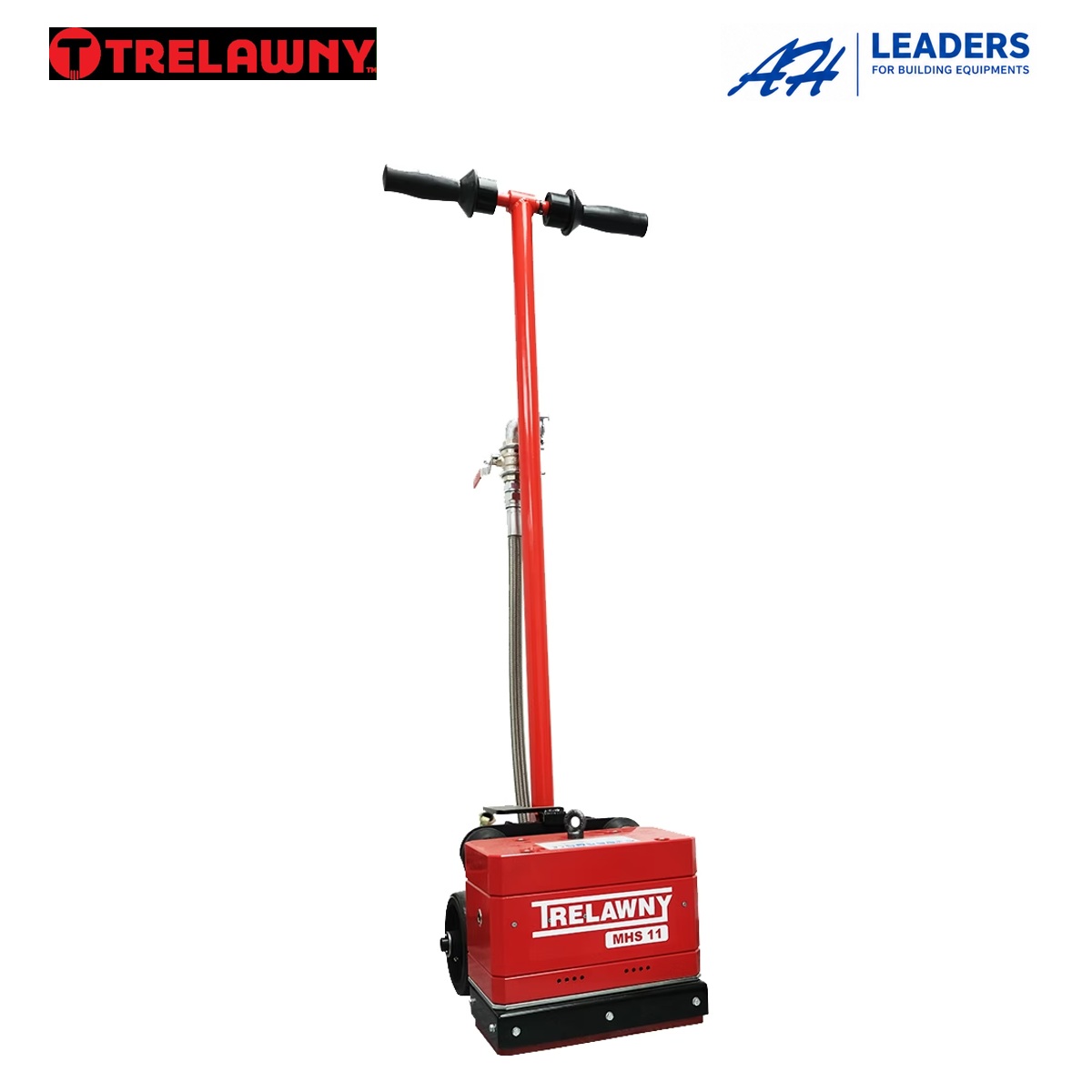

TRELAWNY MHS11 11-Head Pneumatic Floor Scabbler

Short Description

11-head pneumatic concrete floor scabbler with 250 mm working width and integrated TVS vacuum shroud.

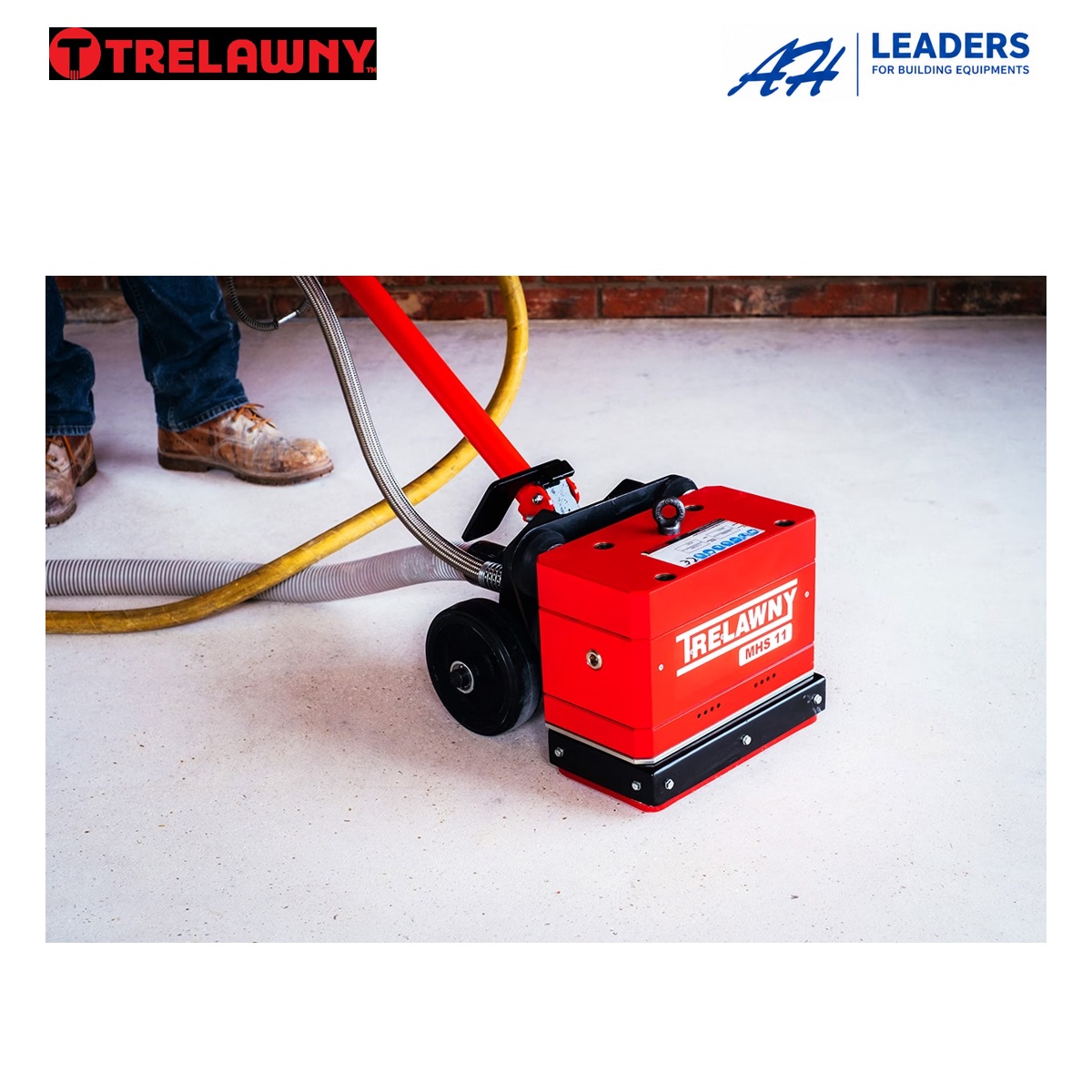

The TRELAWNY MHS11 is an 11-head pneumatic floor scabbler for concrete preparation, laitance removal, surface levelling and thick coating removal.

  • Vibration-damped handle.
  • Replaceable scabbling heads.
  • Integrated TVS vacuum shroud for connection to a suitable dust collector.

Performance depends on the surface and working conditions. Contact LEADERS to confirm the compressed-air supply, tooling and accessories required for your application.

Downloads

Datasheet (PDF) | Operation and maintenance manual (PDF)

Technical Specifications

Model
MHS11
Part number
159.6050
Power source
Compressed air
Scabbling heads
11
Cutting width
250 mm
Closest cut to wall
25 mm
Blows per minute
2200
Removal rate
Up to 30 m²/hour
Average depth per pass
3 mm
Air consumption
26 L/s (55 cfm)
Air inlet
1/2 inch BSP
Weight
114 kg
Length
1100 mm
Height
970 mm
Width: handle / working head
720 / 285 mm
Sound pressure / power
97.4 / 110.4 dB(A)
Vibration
5 m/s²

Model, MHS11, Part number, 159.6050, Power source, Compressed air, Scabbling heads, 11, Cutting width, 250 mm, Closest cut to wall, 25 mm, Blows per minute, 2200, Removal rate, Up to 30 m²/hour, Average depth per pass, 3 mm, Air consumption, 26 L/s (55 cfm), Air inlet, 1/2 inch BSP, Weight, 114 kg, Length, 1100 mm, Height, 970 mm, Width: handle / working head, 720 / 285 mm, Sound pressure / power, 97.4 / 110.4 dB(A), Vibration, 5 m/s²
