BATMATIC CR2150 Reversible Plate Compactor
Short Description
21 kN reversible compactor with 500 x 632 mm plate. Compare petrol and diesel engine configurations below.
BATMATIC CR2150
Forward and reverse compaction with hydraulic directional control, an adjustable handle and a transport locking point.
Technical Specifications
| Specification | Value |
|---|---|
| Plate dimensions | 500 x 632 mm |
| Centrifugal force | 21 kN |
| Compaction depth | 30-40 cm |
| Travel speed | 25-30 m/min |
| Frequency | 90 Hz |
| Gradeability | 20 degrees |
Engine Options
| Version | Engine | Fuel | Power | Weight |
|---|---|---|---|---|
| CR2150 | Robin EX17 | Petrol | 4.2 kW / 5.7 HP | 127 kg |
| CR2150 | Honda GX160 | Petrol | 3.6 kW / 4.8 HP | 127 kg |
| CR2150 | Kohler SH265 | Petrol | 4.8 kW / 6.5 HP | 128 kg |
| CR2150 | Hatz 1B20 | Diesel | 3.7 kW / 5.0 HP | 136 kg |
| CR2150 | Kohler 15LD225 | Diesel | 3.5 kW / 4.7 HP | 136 kg |

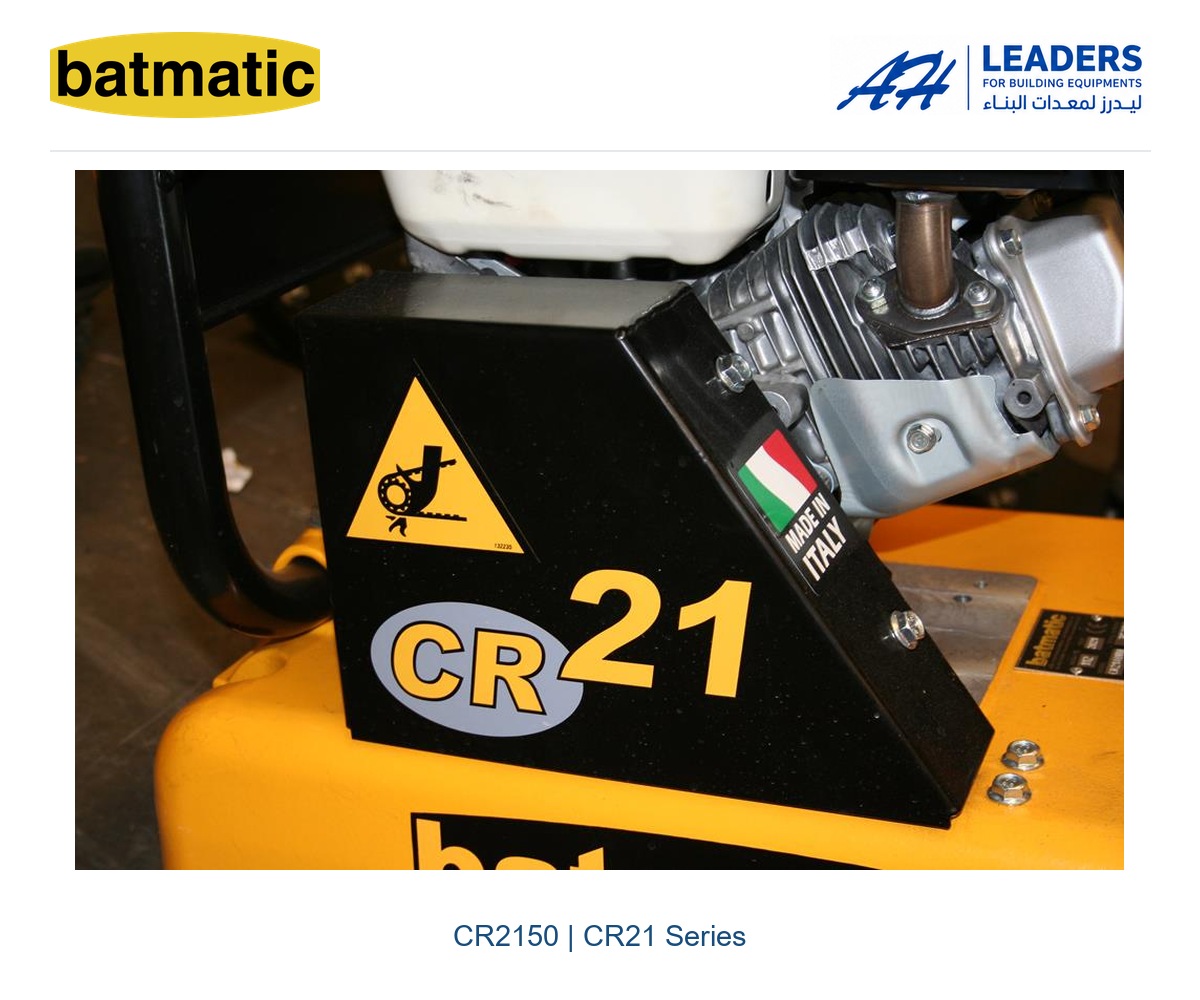

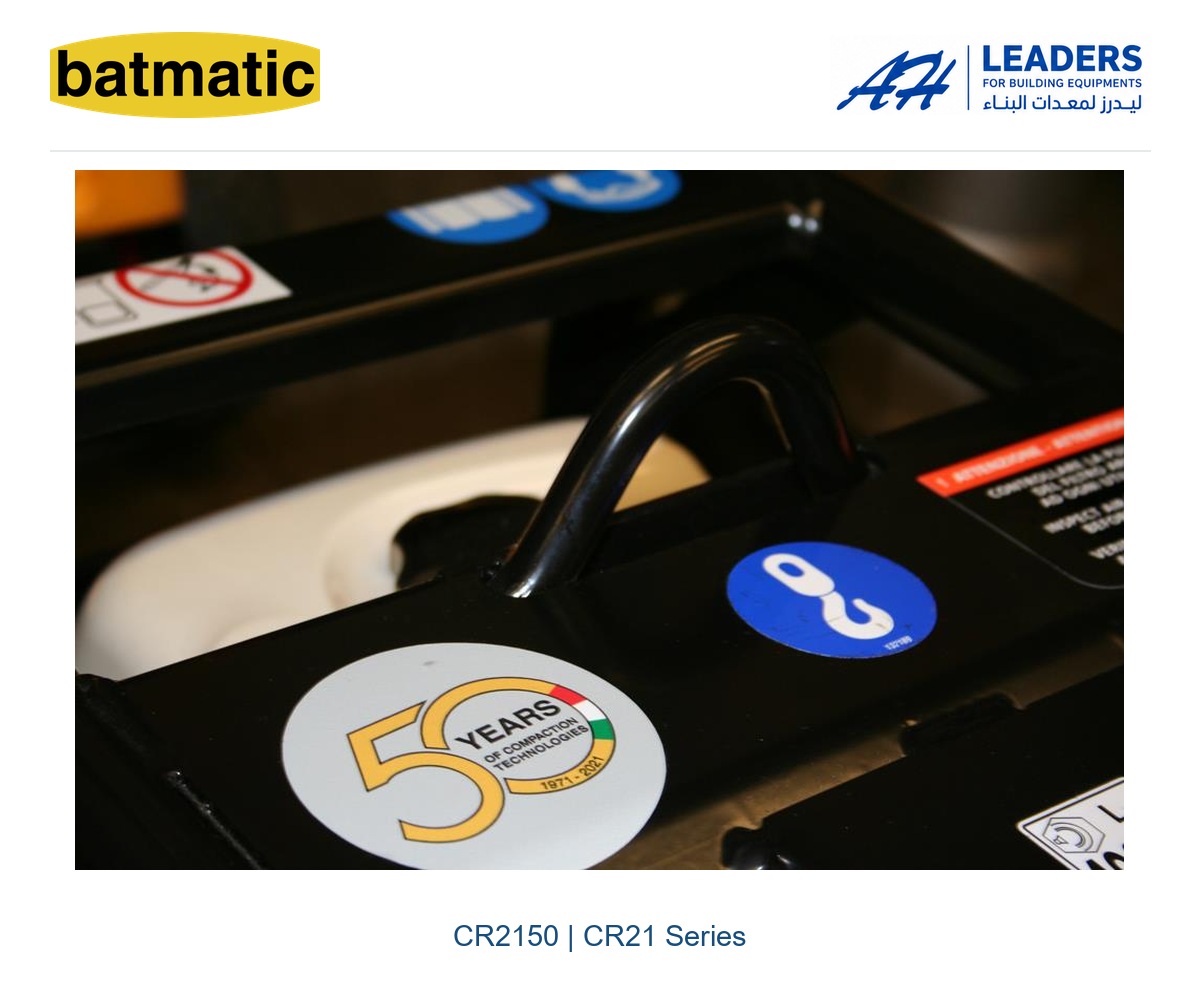

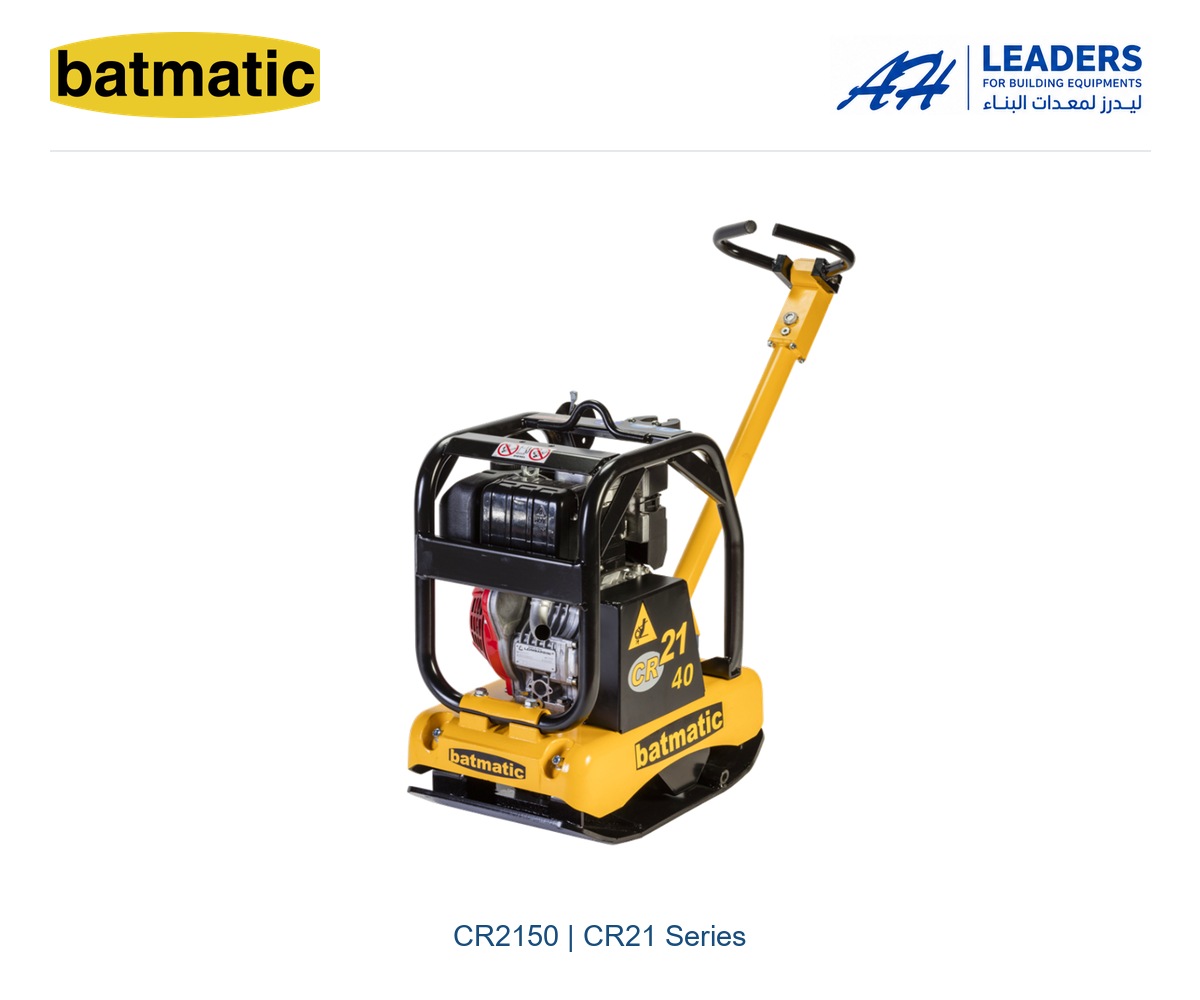

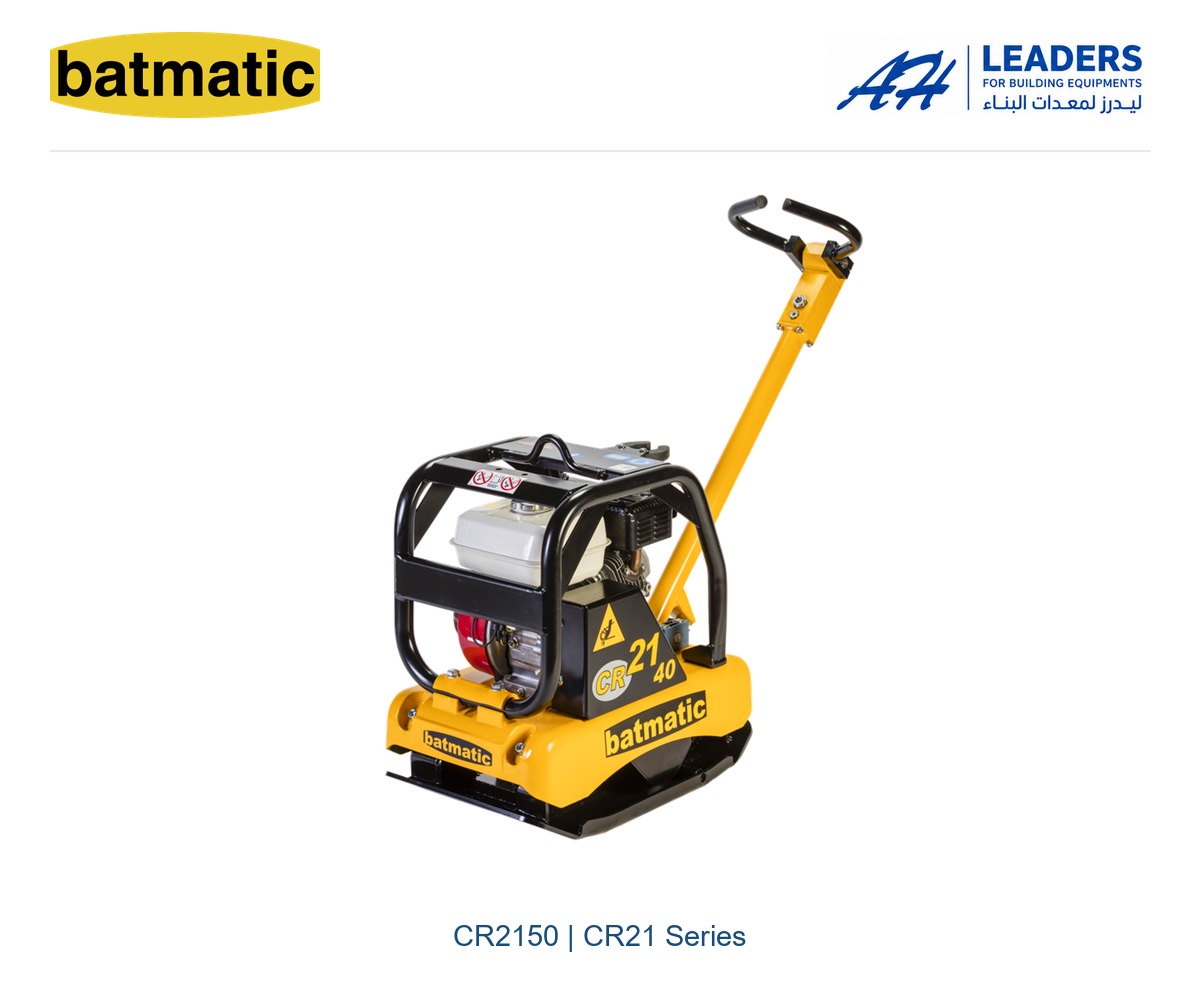

Photos show the manufacturer model family; engine and equipment appearance vary by configuration.
Equipment & Accessories

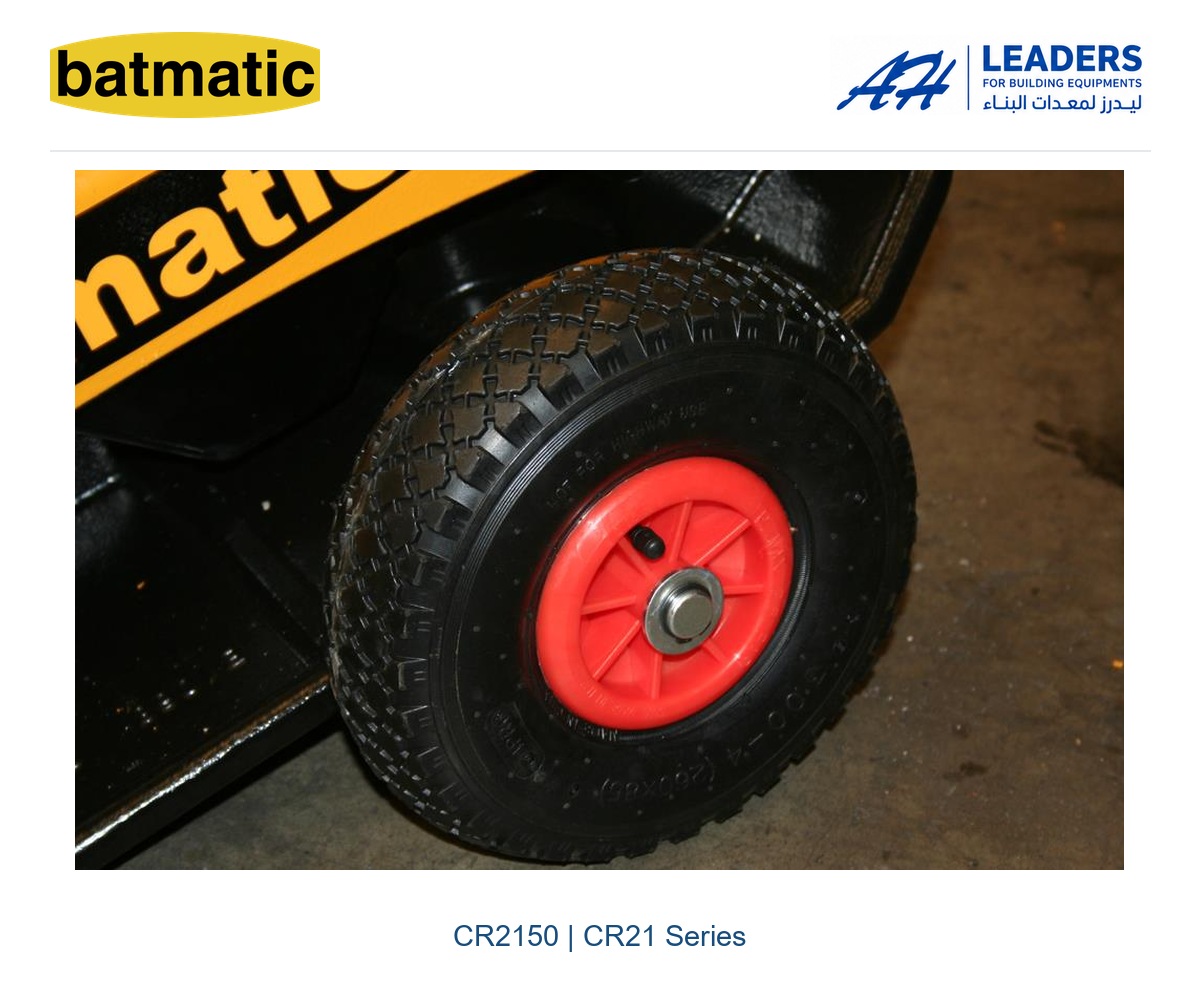

Transport wheels included. Optional 10-litre water system and Vulkollan pad with brackets.
Technical documentation and CE certificate included. Compaction depth depends on material and site conditions.
