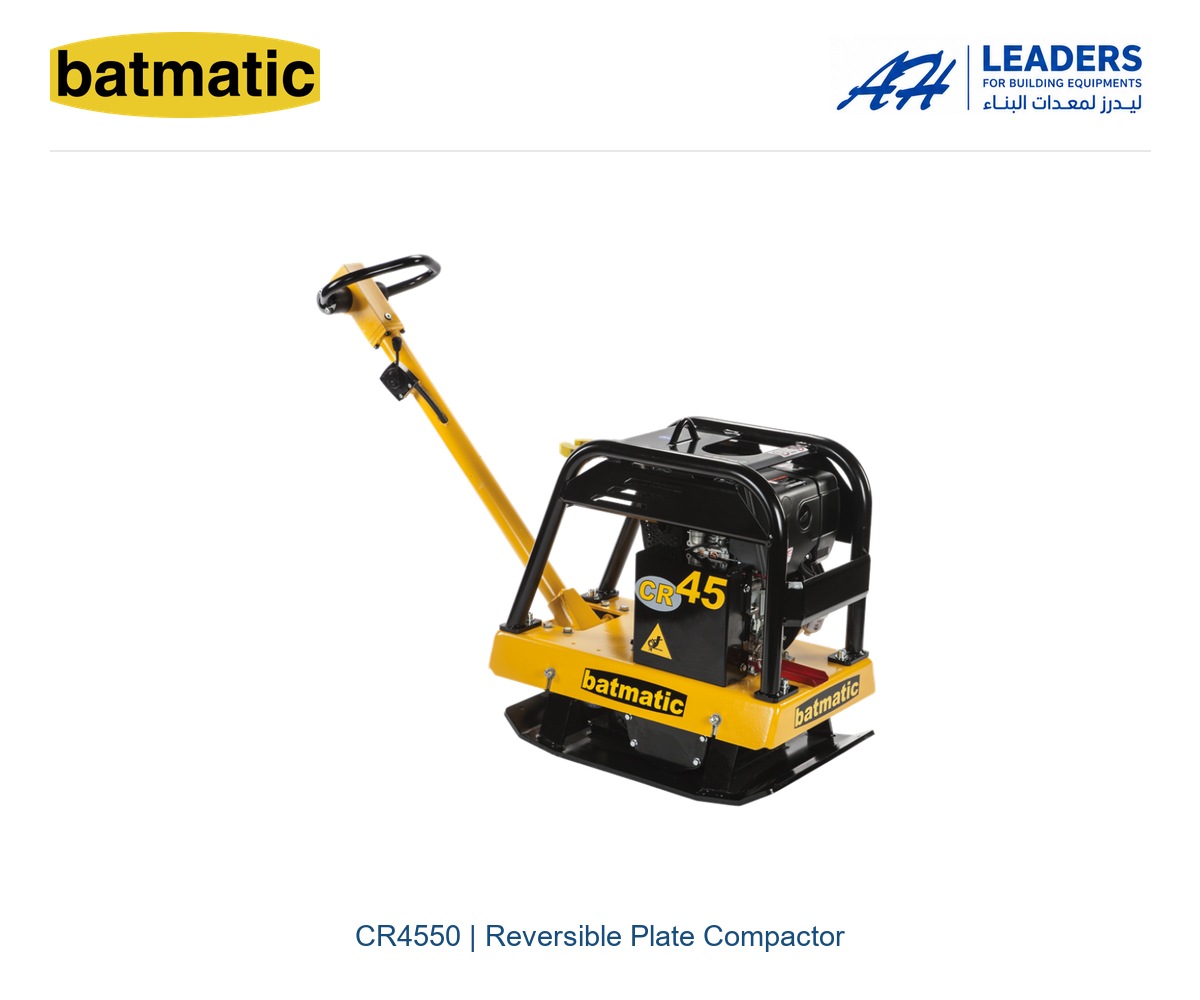

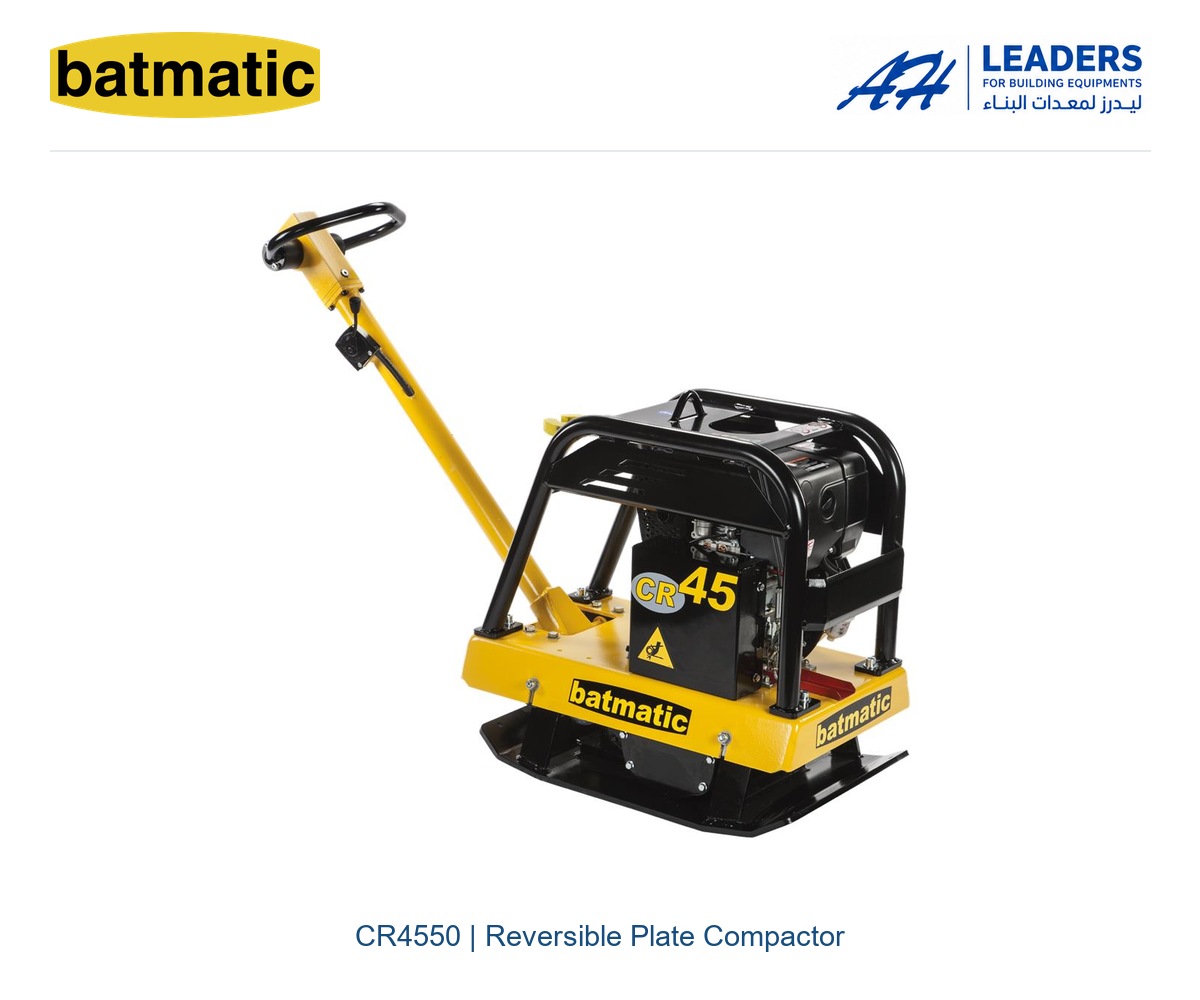

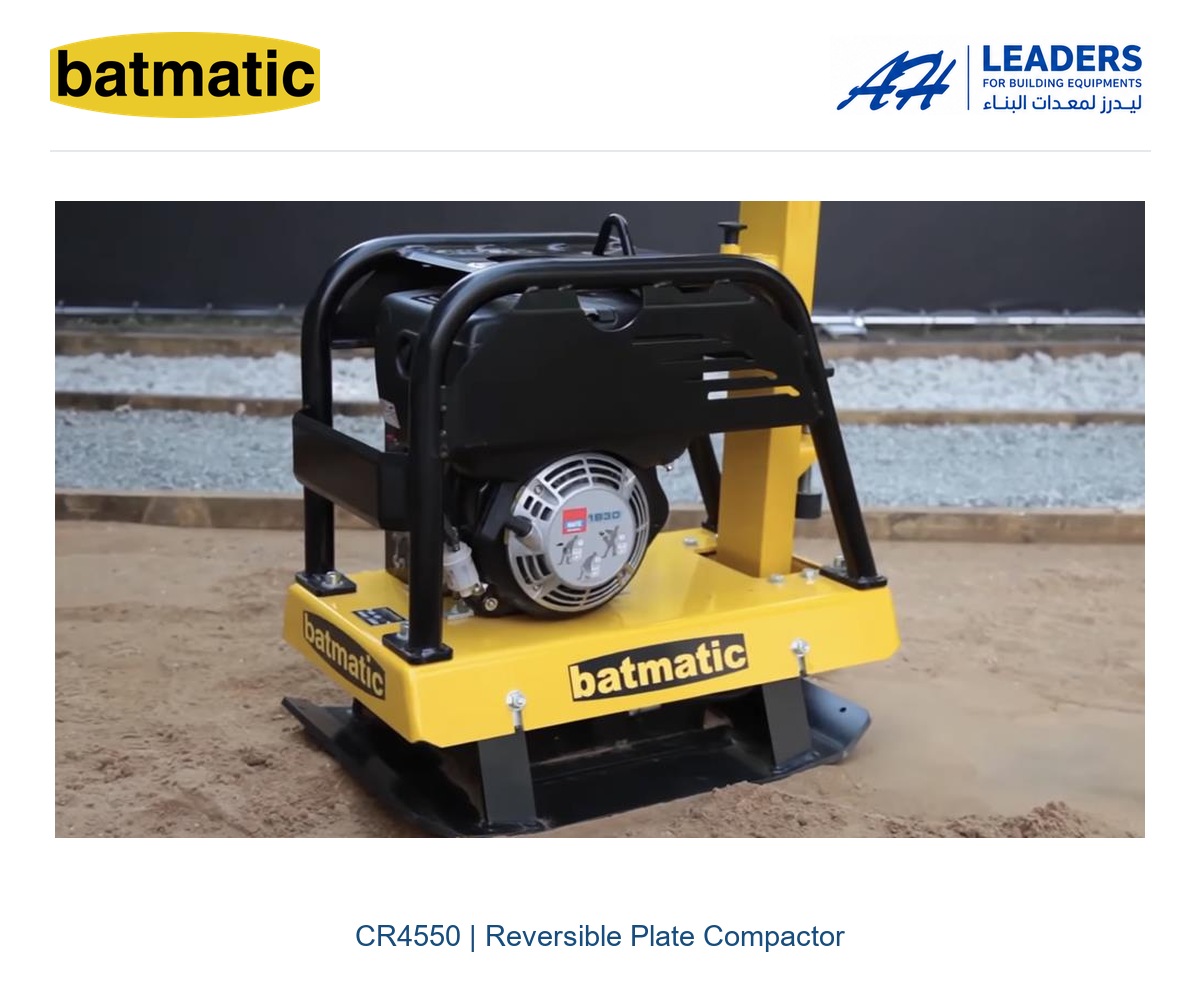

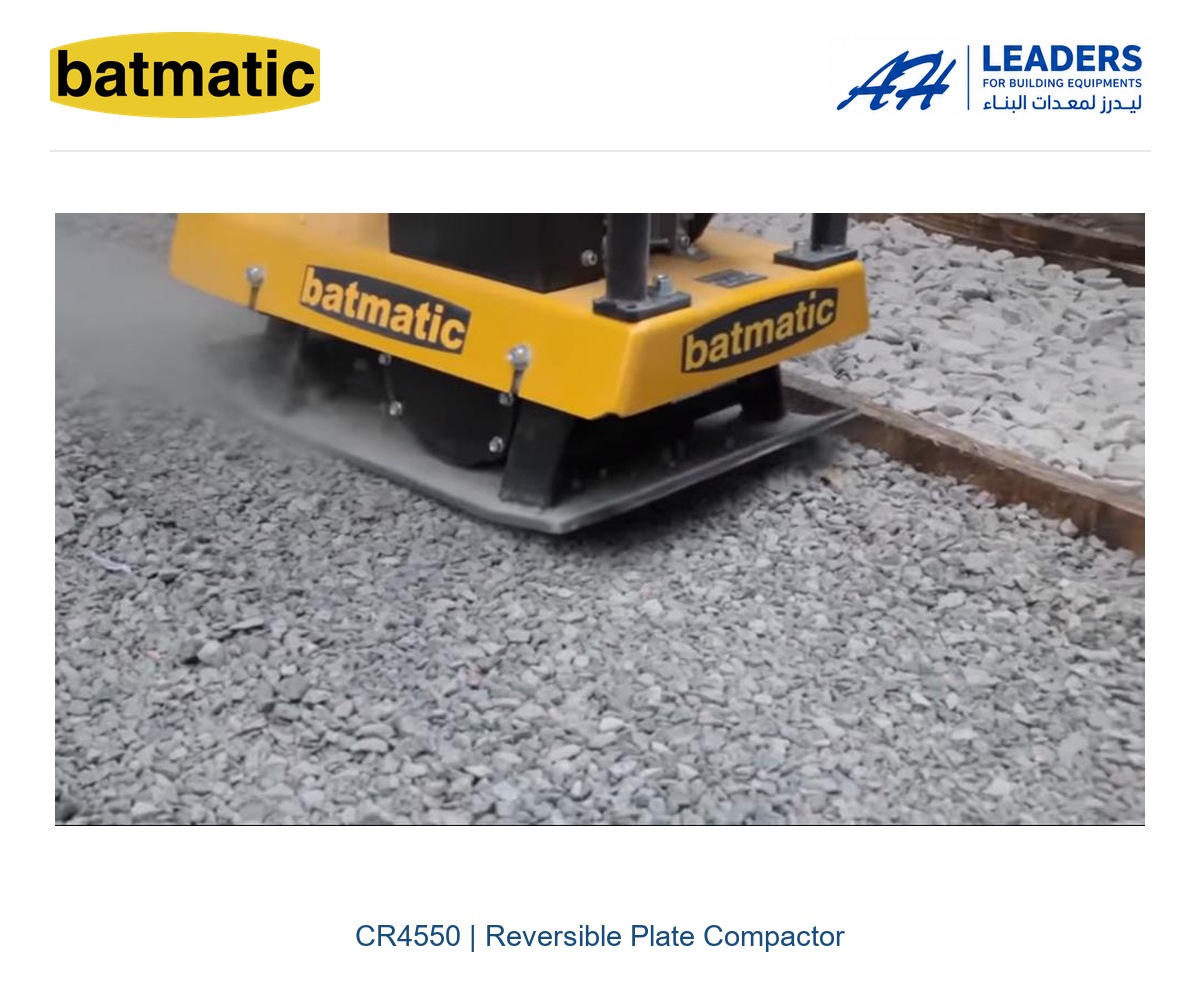

BATMATIC CR4550 Reversible Plate Compactor
Short Description
45 kN reversible compactor with 500 x 750 mm plate. Compare petrol and diesel engine configurations below.
BATMATIC CR4550

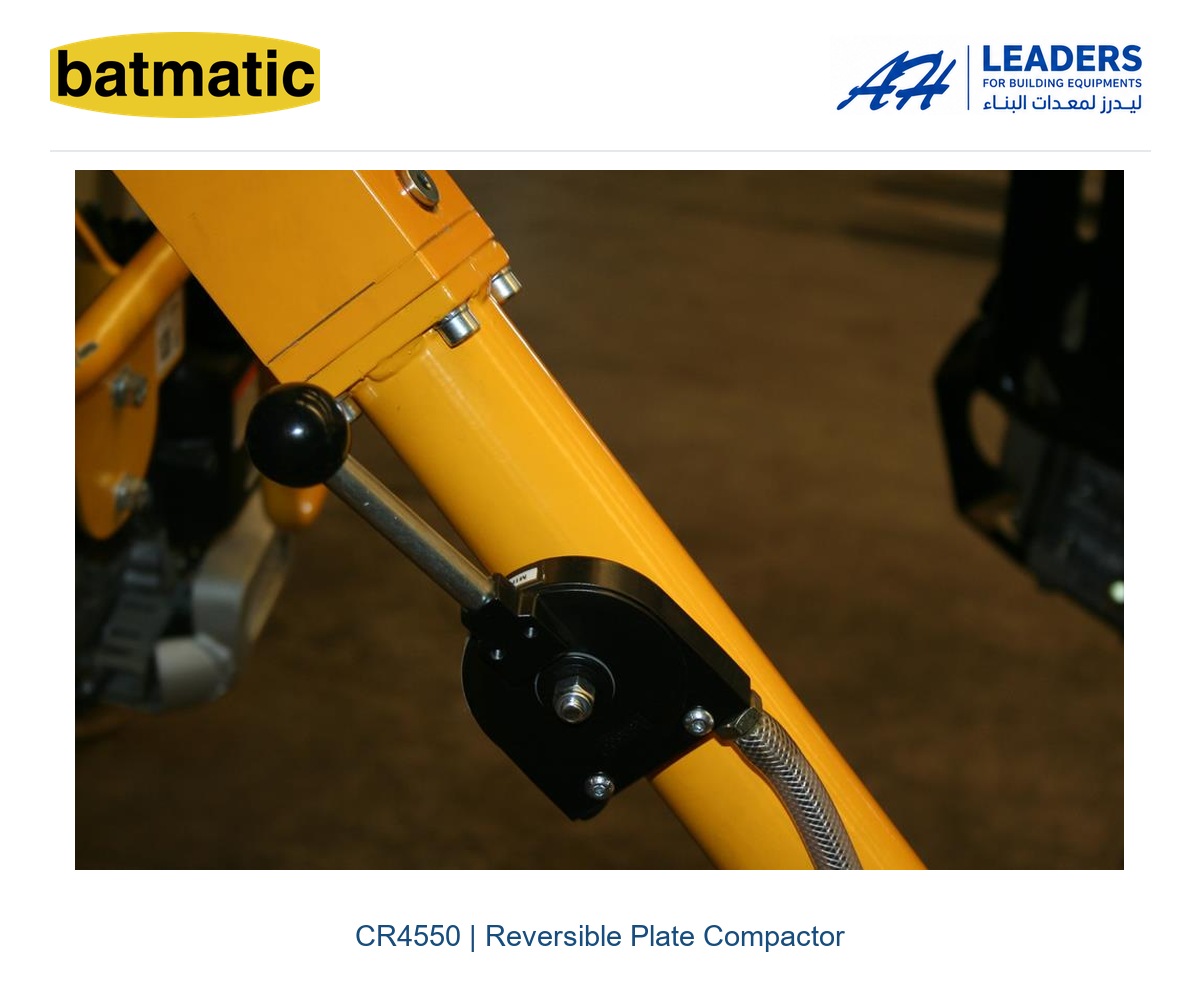

Forward and reverse compaction with hydraulic directional control, an adjustable handle and a transport locking point.
Technical Specifications
| Specification | Value |
|---|---|
| Plate dimensions | 500 x 750 mm |
| Centrifugal force | 45 kN |
| Compaction depth | 60-75 cm |
| Travel speed | 22 m/min |
| Frequency | 70 Hz |
| Gradeability | 20 degrees |
Engine Options
| Version | Engine | Fuel | Power | Weight |
|---|---|---|---|---|
| CR4550 | Honda GX270 | Petrol | 6.3 kW / 8.4 HP | 237 kg |
| CR4550 | Hatz 1B30 | Diesel | 5.0 kW / 6.8 HP | 238 kg |
| CR4550-AE | Hatz 1B30 | Diesel | 5.0 kW / 6.8 HP | 253 kg |
| CR4550-AE | Kohler 15LD350 | Diesel | 5.5 kW / 7.5 HP | 251 kg |
AE denotes electric start.
Equipment & Accessories
Optional Vulkollan pad with brackets. AE versions feature electric start and an engine monitoring dashboard.
Technical documentation and CE certificate included. Compaction depth depends on material and site conditions.
