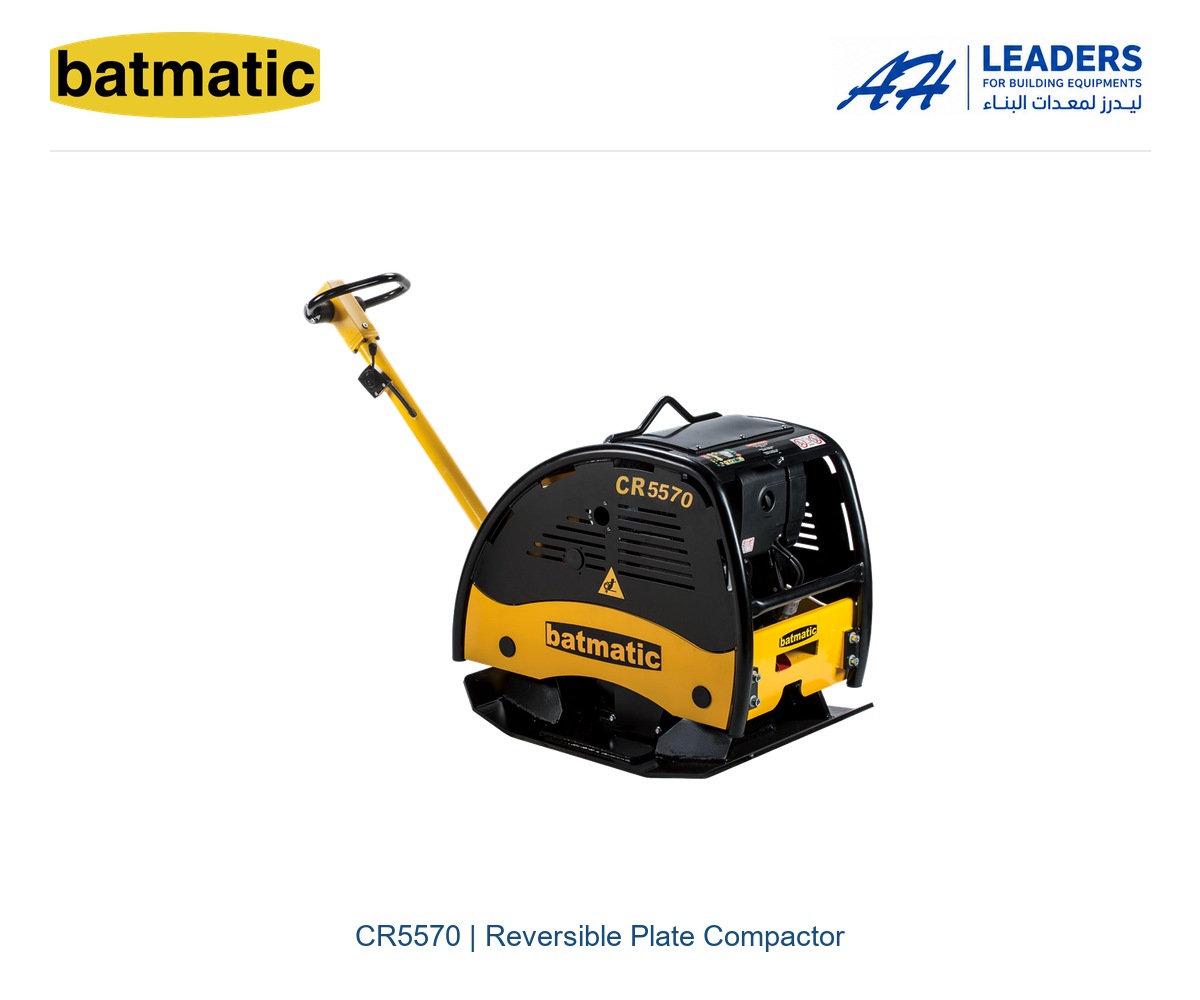

BATMATIC CR5570 Reversible Plate Compactor
Short Description
55 kN reversible compactor with 700 x 955 mm plate. Compare petrol and diesel engine configurations below.
BATMATIC CR5570

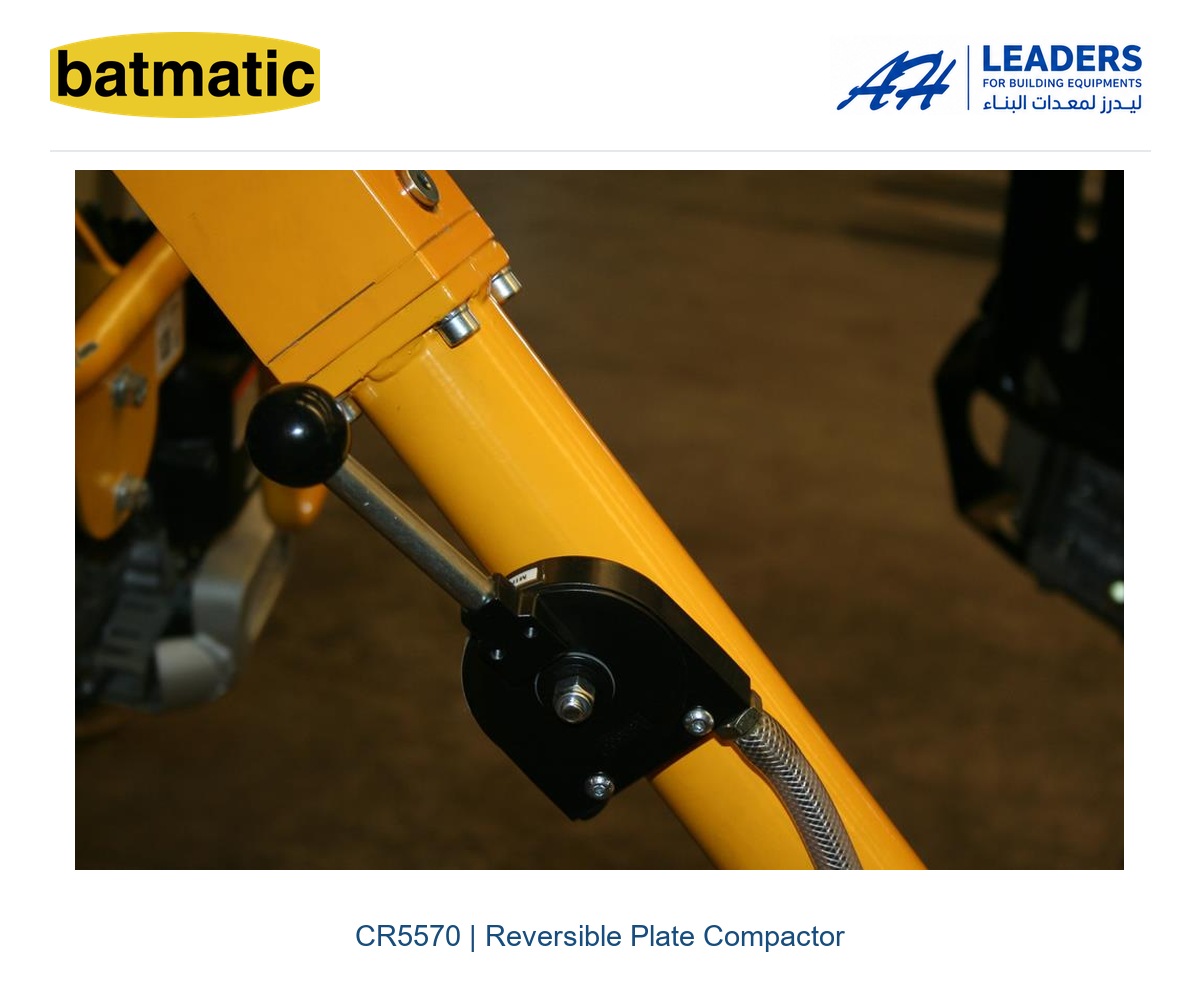

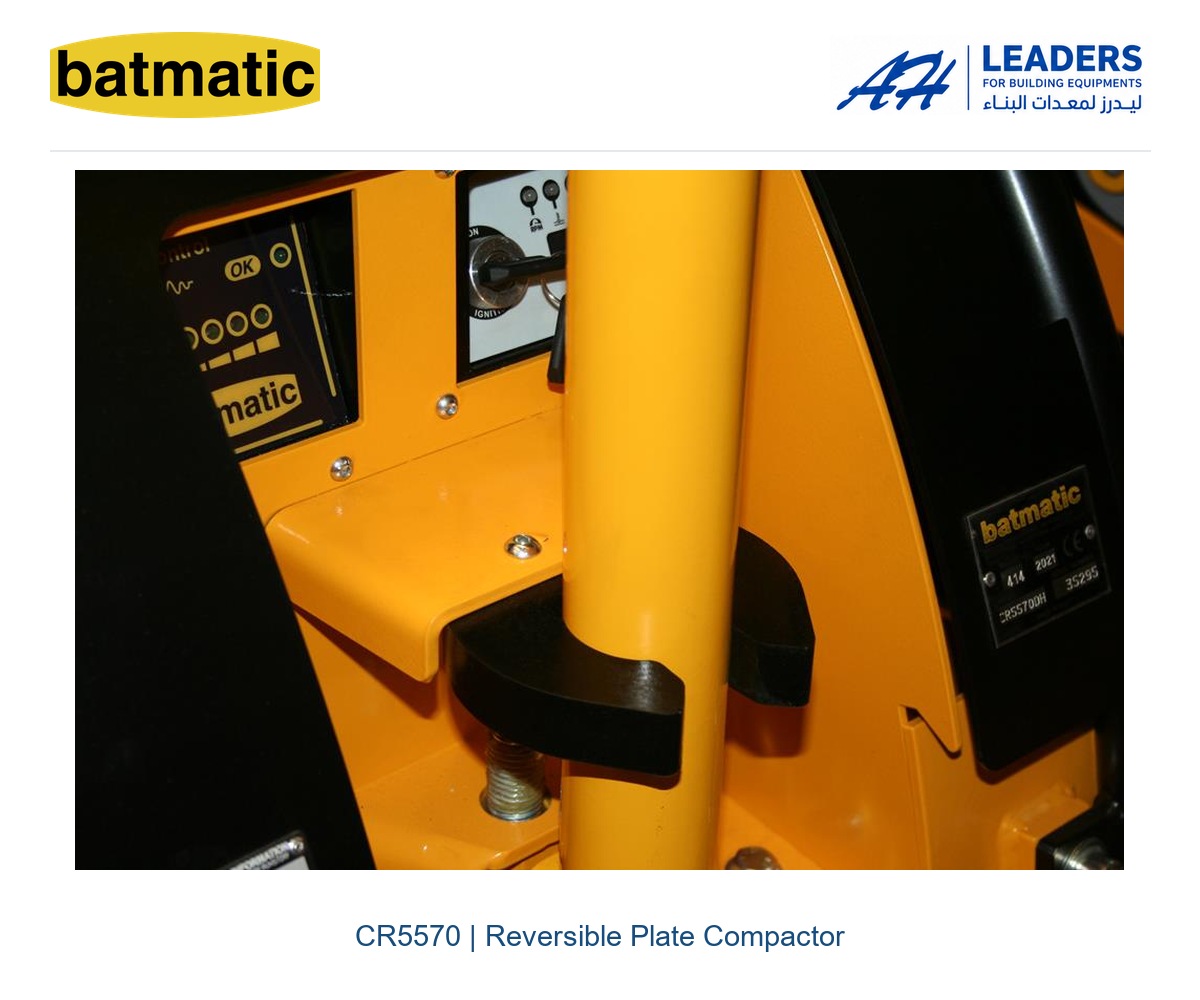

Forward and reverse compaction with hydraulic directional control, an adjustable handle and a transport locking point.
Technical Specifications
| Specification | Value |
|---|---|
| Plate dimensions | 700 x 955 mm |
| Centrifugal force | 55 kN |
| Compaction depth | 70-85 cm |
| Travel speed | 21 m/min |
| Frequency | 70 Hz |
| Gradeability | 20 degrees |
Engine Options
| Version | Engine | Fuel | Power | Weight |
|---|---|---|---|---|
| CR5570-AE | Honda GX390 | Petrol | 8.3 kW / 11.8 HP | 395 kg |
| CR5570-AE | Kohler 15LD440 | Diesel | 8.0 kW / 10.9 HP | 410 kg |
| CR5570-AE | Hatz 1B40 | Diesel | 7.4 kW / 10.0 HP | 414 kg |
| CR5570-AE | Hatz 1D50 | Diesel | 7.9 kW / 10.7 HP | 444 kg |
Honda GX390 manual-start configuration is also listed by BATMATIC; its weight is not specified on the current website. Power figures follow BATMATIC published ratings.
Equipment & Accessories
Alternative plate widths: 600 mm and 850 mm. Optional Vulkollan pad and Batcontrol compaction monitoring. AE includes electric start and SDRC engine monitoring.
Technical documentation and CE certificate included. Compaction depth depends on material and site conditions.
