FET 220
Short Description

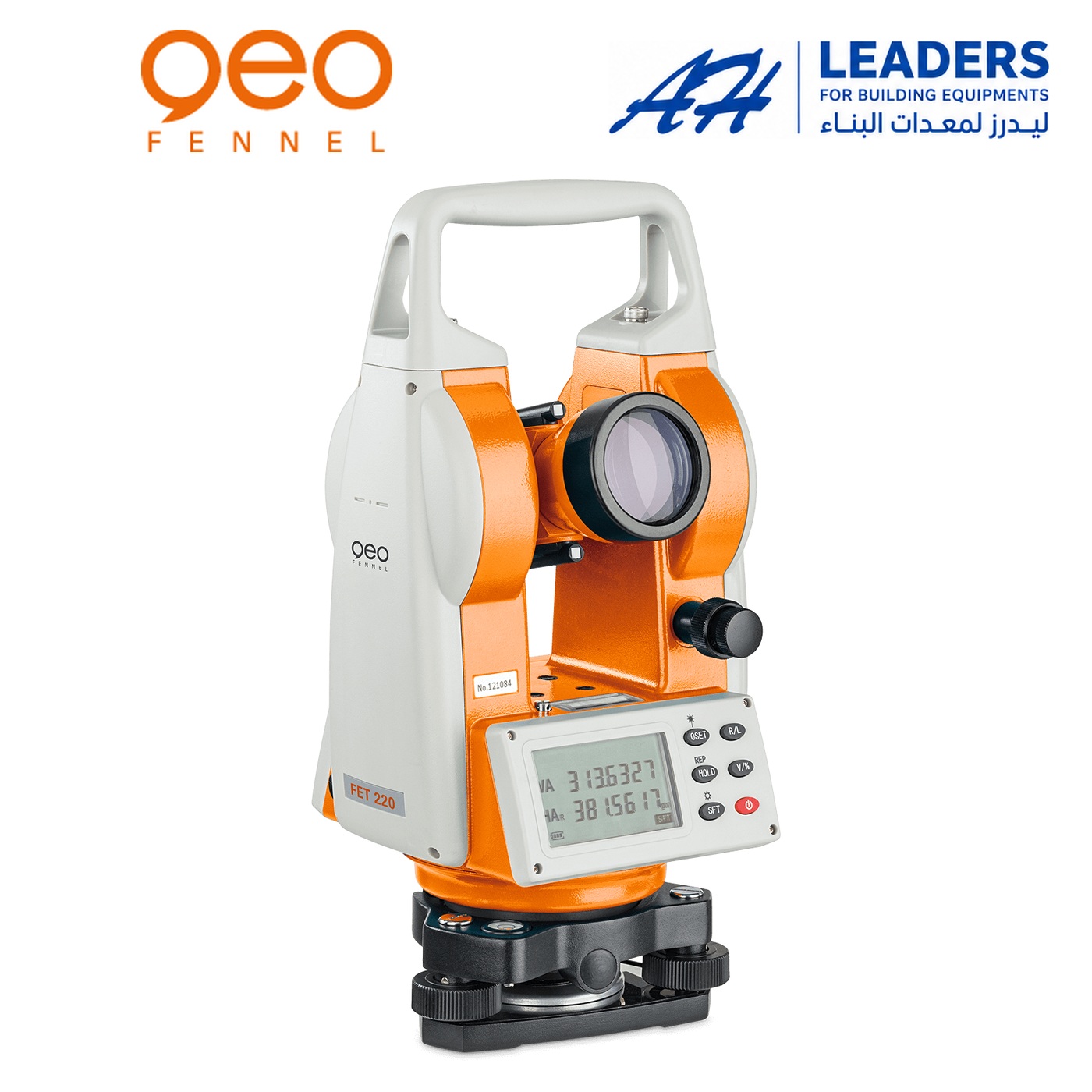

Electronic theodolite with 20″ angular accuracy, a 30× telescope, absolute angle encoder and laser plummet. Designed for construction setting-out and horizontal, vertical and zenith-angle measurement. Article no. 313000.

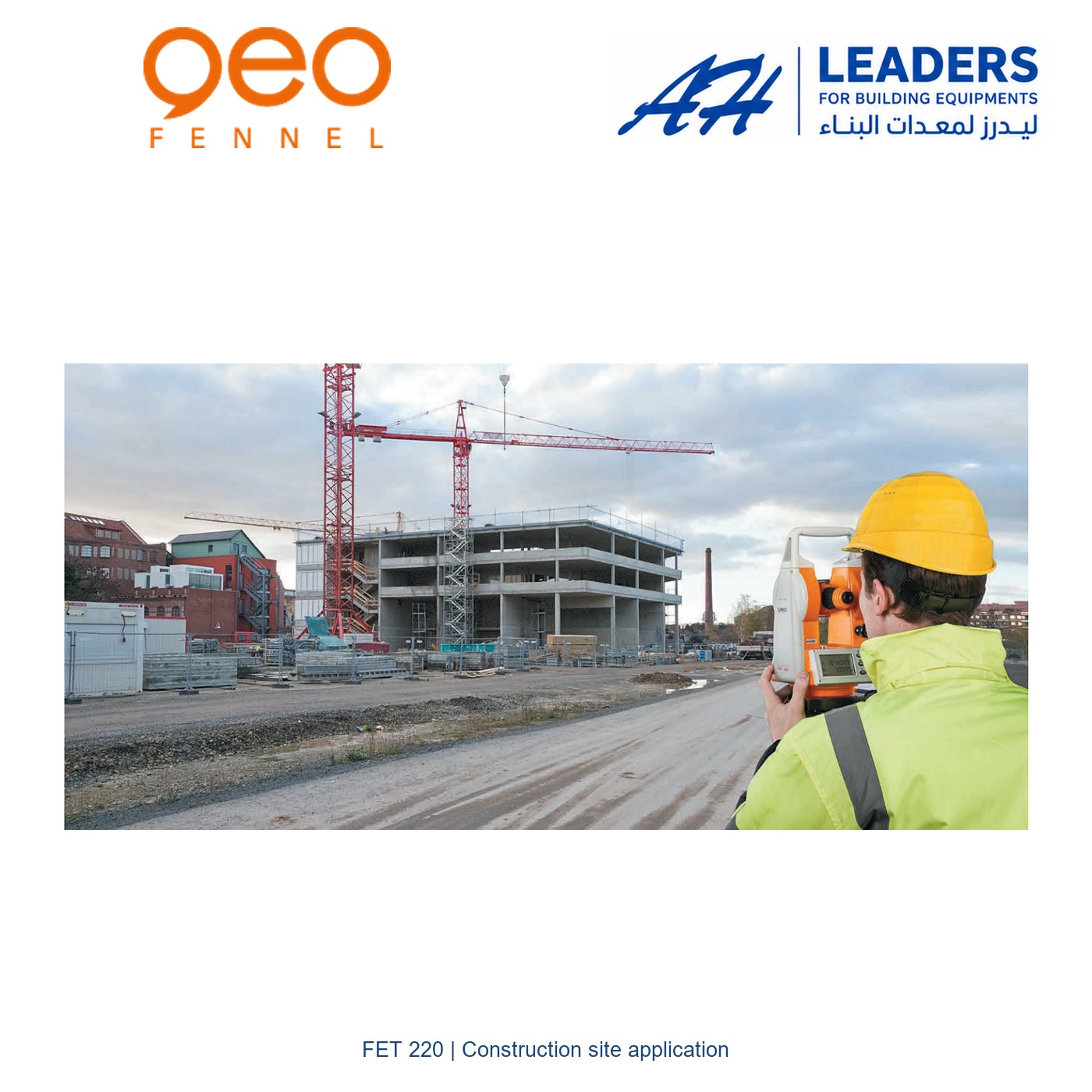

Electronic theodolite for construction surveying
The geo-FENNEL FET 220 measures horizontal, vertical and zenith angles for site layout and civil engineering. A 30× telescope and absolute encoder provide 20-second angular accuracy, while the built-in laser plummet helps centre the instrument above a ground point.
Measurement functions
Horizontal readings can be held or reset to zero at a chosen position. Clockwise and anticlockwise measurement are supported, with vertical readings in degrees, gon or percentage slope. Display and telescope illumination assist in low light.

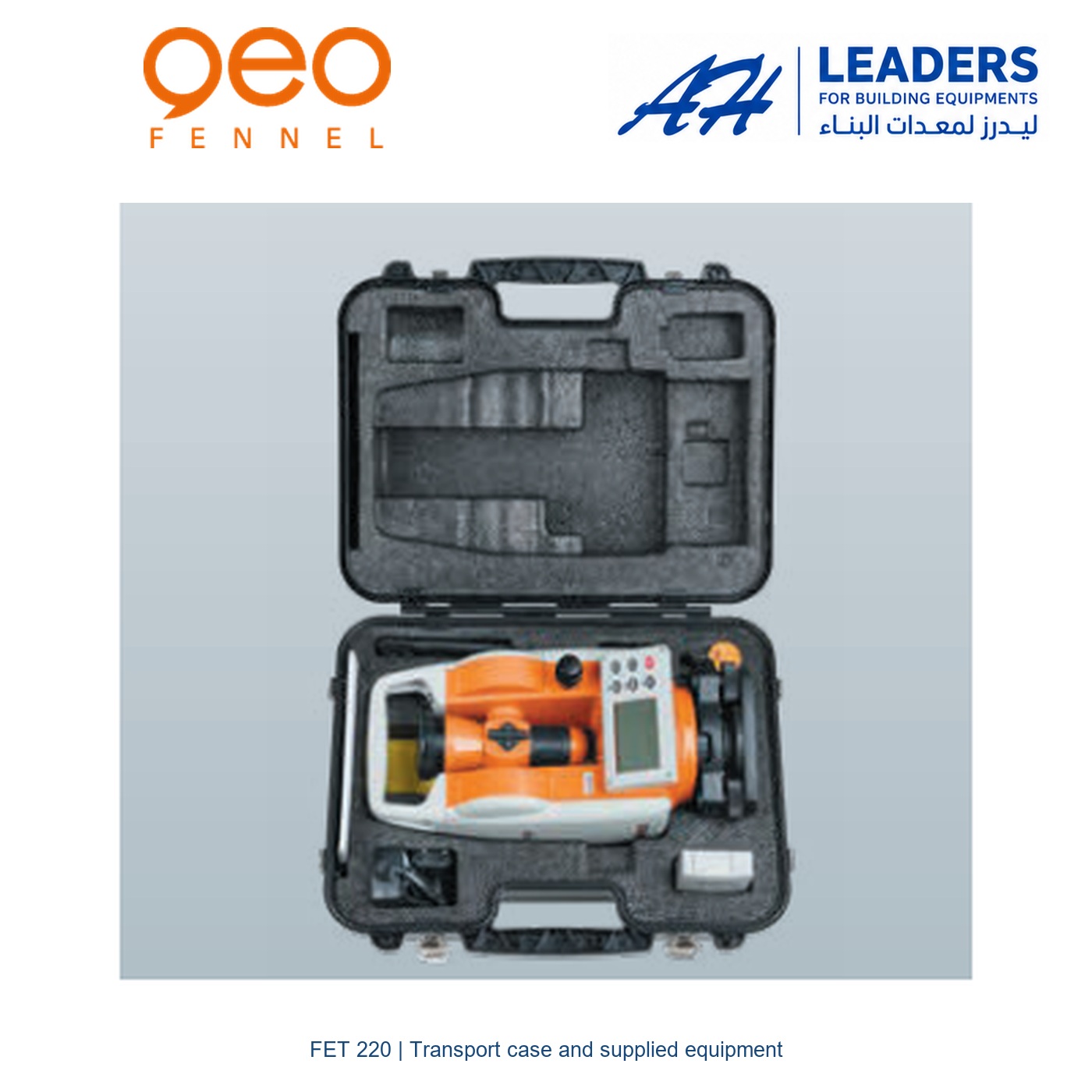

Supplied equipment
- Tribrach
- Rechargeable battery and charger
- Alkaline battery compartment
- Transport case

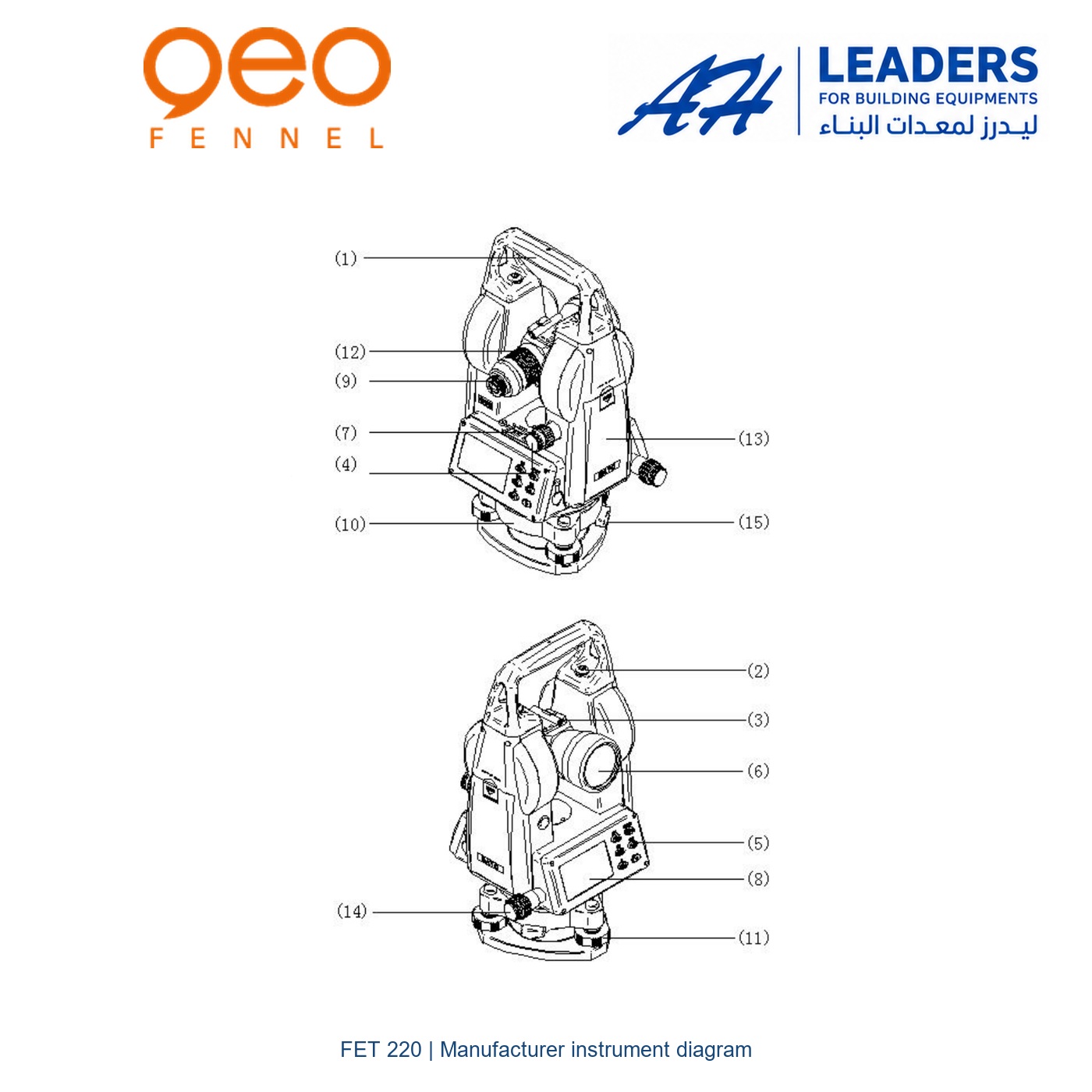

Technical values below follow the supplied FET 220 catalogue. The downloadable manual includes operating instructions and instrument-control diagrams.
Technical Specifications
Manufacturer, geo-FENNEL, Article number, 313000, Telescope magnification, 30×, Objective diameter, 45 mm, Minimum focusing distance, 1.5 m, Angle measurement, Absolute encoder, Angular accuracy, 20″ (6 mgon), Minimum reading, 10″ (3 mgon), Measuring units, 400 gon / 360°, Laser plummet spot diameter, 2 mm at 1.5 m (catalogue), Laser class, 2, Operating time, 18 hours, Power supply, NiMH rechargeable battery, Operating temperature, −20°C to +50°C, Dust / water protection, IP54, Instrument weight, 4.2 kg (catalogue)
