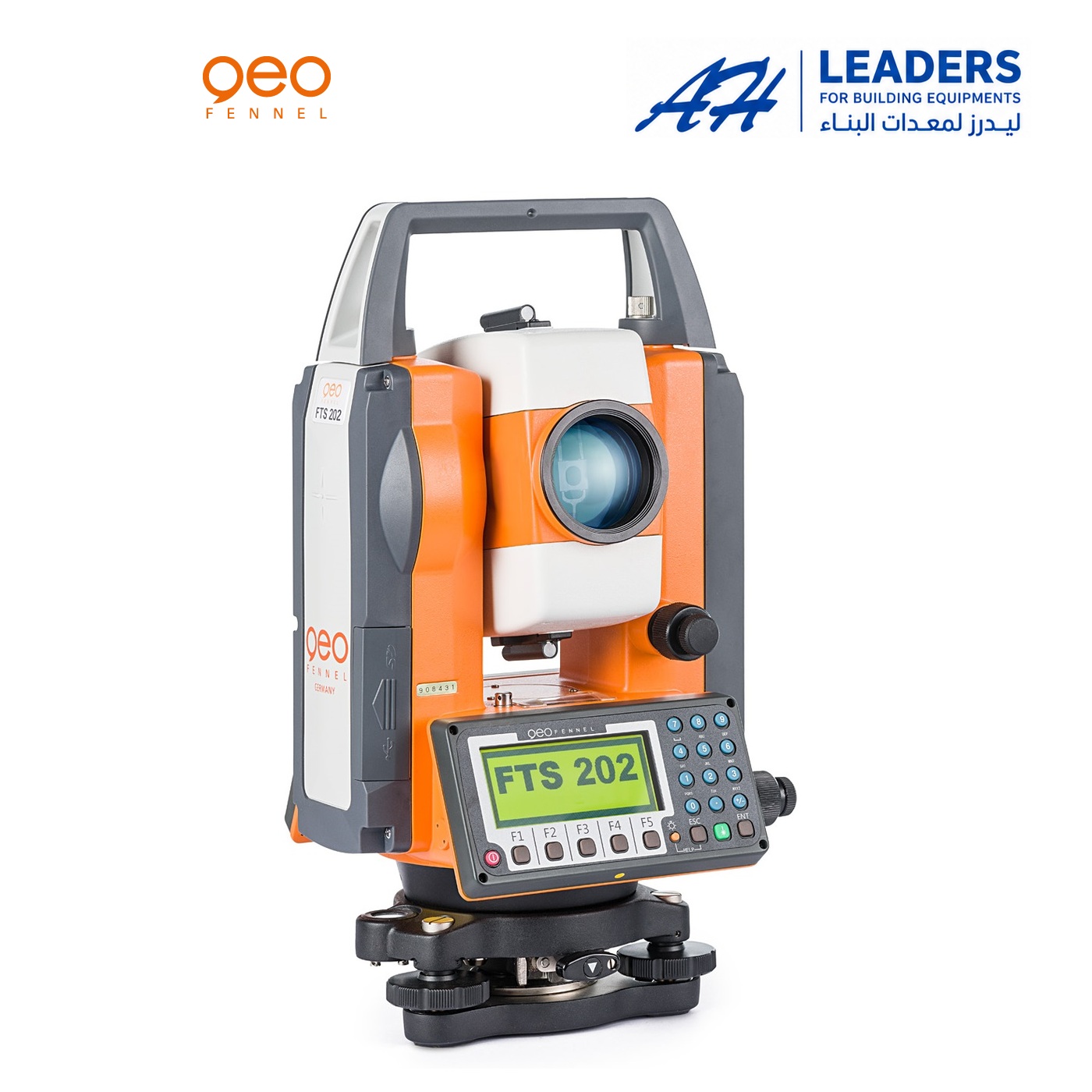

FTS 202 Total Station
Short Description
geo-FENNEL total station with 2″ angular accuracy, 30× telescope and PowerTopoLite software. Measuring range up to 300 m without a reflector or 4,000 m with a standard prism. Article no. 710200.

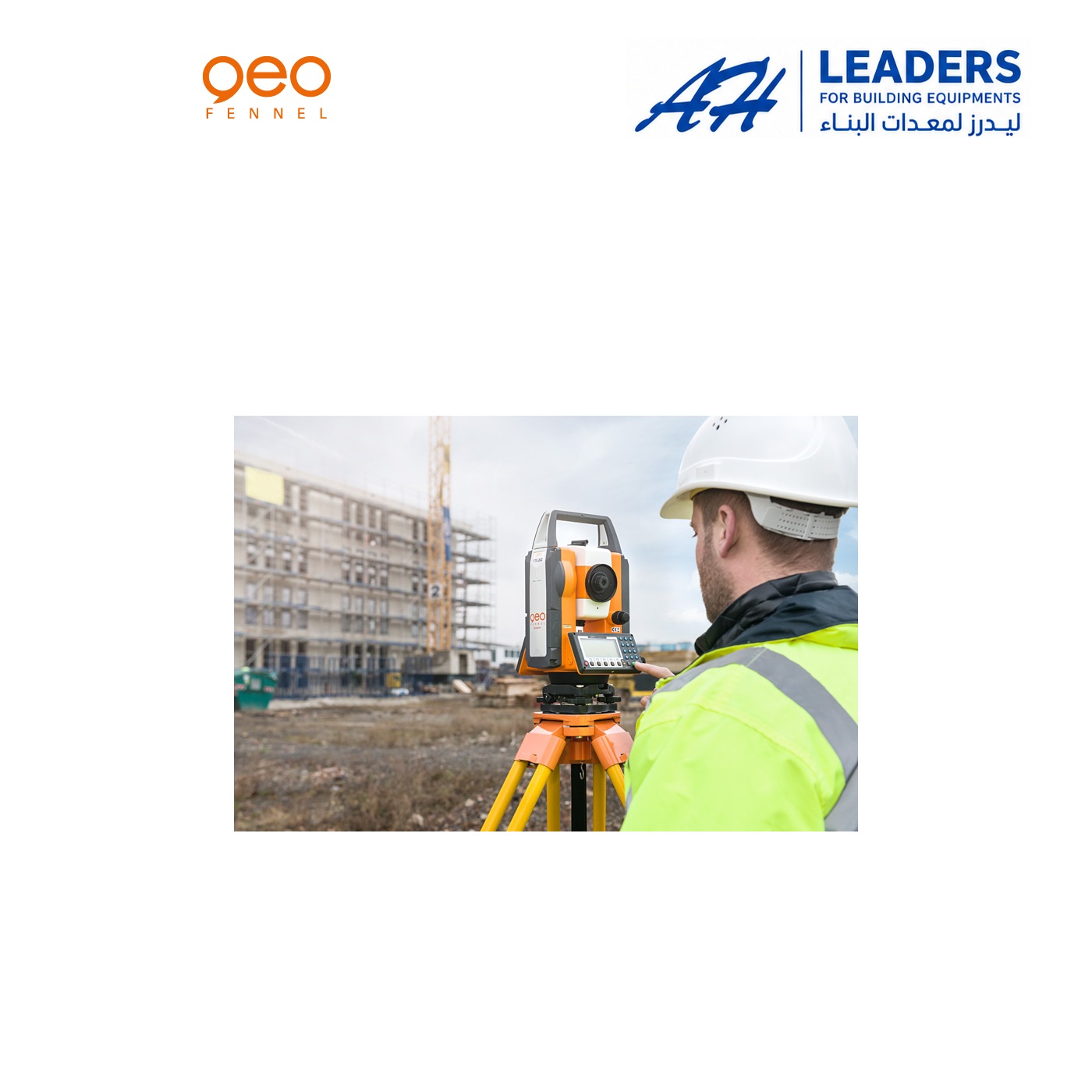

Total station for construction and surveying
The geo-FENNEL FTS 202 combines electronic angle and distance measurement with a 30× telescope, dual-axis compensator and integrated PowerTopoLite software. It supports reflectorless measurements up to 300 m and measurements with a standard prism up to 4,000 m, according to the technical table in the supplied catalogue.
Surveying applications
- Construction surveying and setting-out
- Free stationing, resection and height determination
- Point-to-line tasks, road work and indirect distance measurement
- Rectangular and polar coordinates, 2D/3D work and volume calculation
Controls and data transfer
Two illuminated graphic displays and a 22-key keypad support field operation. Internal storage holds 20,000 coordinates. Connections include RS-232C, Bluetooth, USB and SD card; the catalogue also describes geo-FENNEL DL-01 software for exchanging data with a computer.
Supplied equipment
- Desktop charger
- Two lithium-ion batteries
- Data cable
- Transport case
- RS 96 stake-out aid
A zenith eyepiece, article no. 710250, is an optional accessory. Please contact us to confirm availability and the required configuration.
Technical Specifications
Manufacturer, geo-FENNEL, Article number, 710200, Telescope image, Erect, Objective aperture, 45 mm, Magnification, 30×, Field of view, 1°30′, Resolving power, 3″, Minimum focusing distance, 1.0 m, Range – reflectorless, 1–300 m, Range – reflective tape, 1.5–600 m, Range – mini prism, 1.5–1,500 m, Range – standard prism, 1.5–4,000 m, Distance accuracy, ±(2 mm + 2 ppm), Angular reading resolution, 1″ / 5″, Angular accuracy, 2″, Angle units, 100% / 360° / 400 gon, Compensator, Dual-axis, Compensator range (catalogue), ±3°, Plate level, 30″ / 2 mm, Circular level, 8′ / 2 mm, Laser plummet accuracy, ±0.5 mm / 1.5 m, Laser plummet class, 2, Battery, Li-ion, 4,400 mAh, Operating time, 20 hours, Display, Dual 240 × 96 pixels; 20 characters × 8 lines, Display backlight, Yes, Keyboard, 22 keys, Data recording / processor, 2 GB / 528 MHz, Coordinate memory, 20,000 coordinates, On-board software, PowerTopoLite, Interfaces, RS-232C, Bluetooth, USB, SD card, Protection rating, IP56, Operating temperature, −20°C to +50°C, Dimensions, 190 × 343 × 177 mm, Weight, 5.7 kg
