GEO-LASER LL-91L
Short Description
Automatic upward green plumb laser with two-axis electronic self-levelling, 520 nm beam and a working range of up to 500 m. Standard accuracy ±5 mm/100 m. Manufacturer: GEO-LASER. Product code: 999.

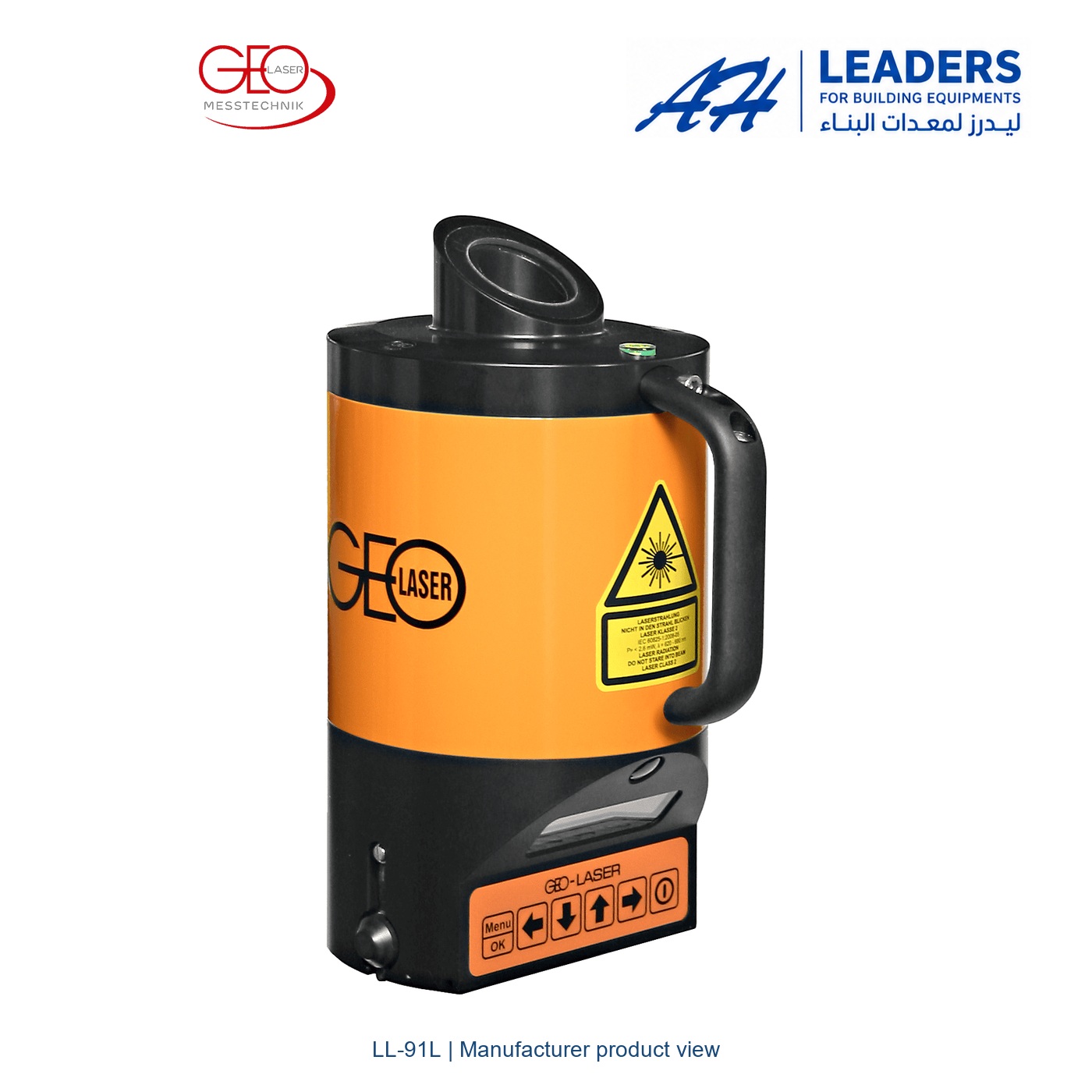

Automatic green plumb laser
The GEO-LASER LL-91L establishes an upward vertical reference for construction alignment. Its electronic two-axis levelling system and visible green beam support plumbing tasks in towers and shafts.
Operation and control
Five output settings allow the beam intensity to be adjusted. The illuminated screen shows operating and battery status. Automatic cut-out responds to low battery or sudden movement, and the levelling function can be disabled for alignment against reference points.
Construction and power
A coated metal housing protects the instrument. The rechargeable battery runs for up to 34 hours, with charging completed in up to five hours. Field adjustment is possible without opening the housing.
The specification table describes the standard ±5 mm/100 m version. A higher-precision ±2.5 mm/100 m configuration is a separate manufacturer option; confirm the required configuration when enquiring.
Technical Specifications
Manufacturer, GEO-LASER / GEO Feinmechanik, Manufacturer item number, 0001.417.1, Product code, 999, Laser colour / wavelength, Green / 520 nm, Laser class / output, 3R / < 5 mW, Working range, Up to 500 m, Beam diameter at instrument, 13 mm, Self-levelling range, ±5%, Permissible deviation (standard), ±5 mm / 100 m, Operating time, Up to 34 hours, Battery, Rechargeable lithium-ion, Charging time, Up to 5 hours, External power supply, 11–14 V DC with cable 0117.02, Undervoltage cut-out, Yes, Waterproof depth, 3.5 m, Operating temperature, −10°C to +50°C, Weight, 3.4 kg
