FLP 150 GREEN
Short Description
Laser zenith plummet with a green upward beam, red downward beam and 25× coaxial telescope. Upward accuracy ±2.5 mm/100 m, rechargeable Li-ion power and illuminated plate level. Article no. 310100.

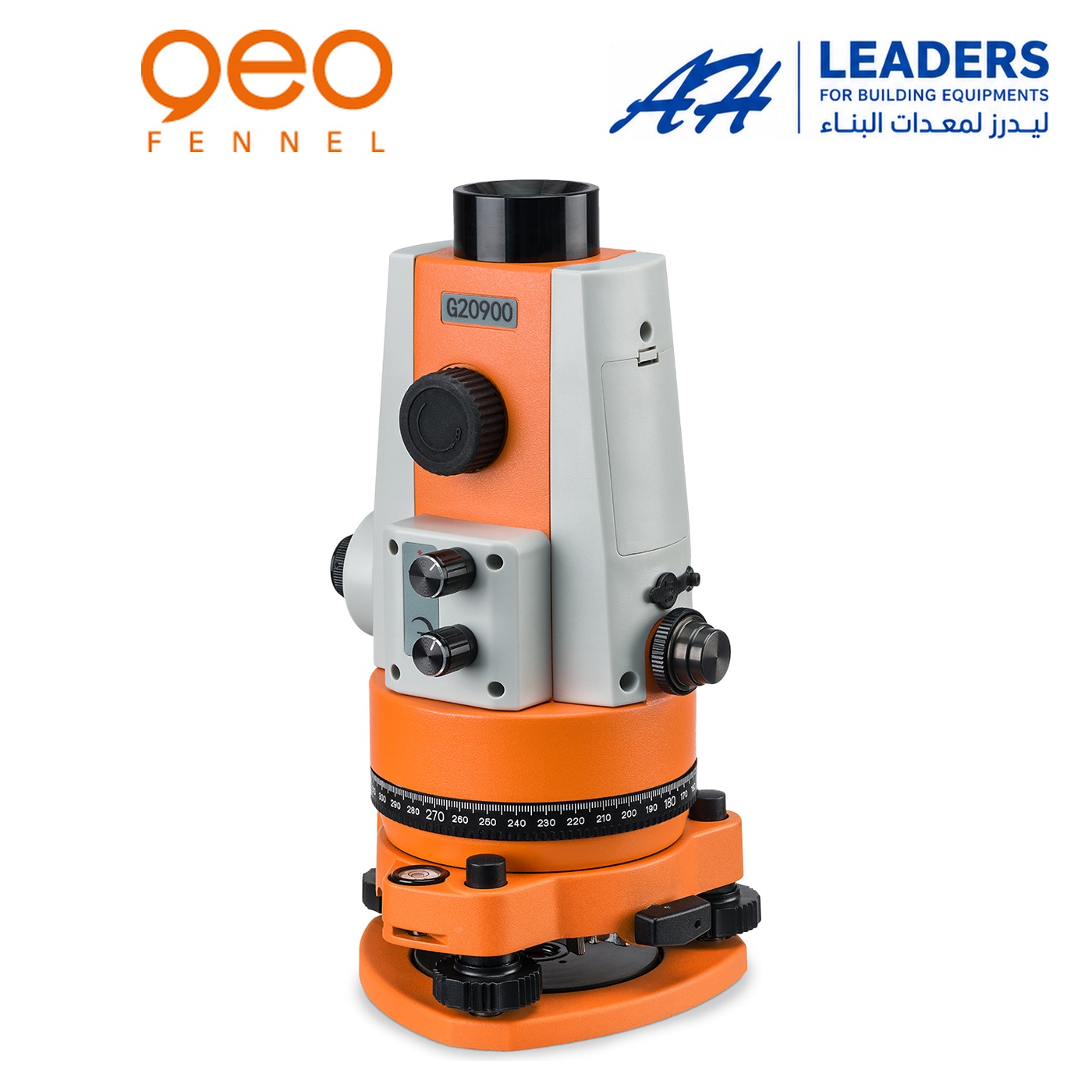

Green laser zenith plummet
The geo-FENNEL FLP 150 GREEN provides an upward green reference point and a downward red point for vertical alignment. A coaxial telescope enables optical observation and focusing of the laser point.
Optics and alignment

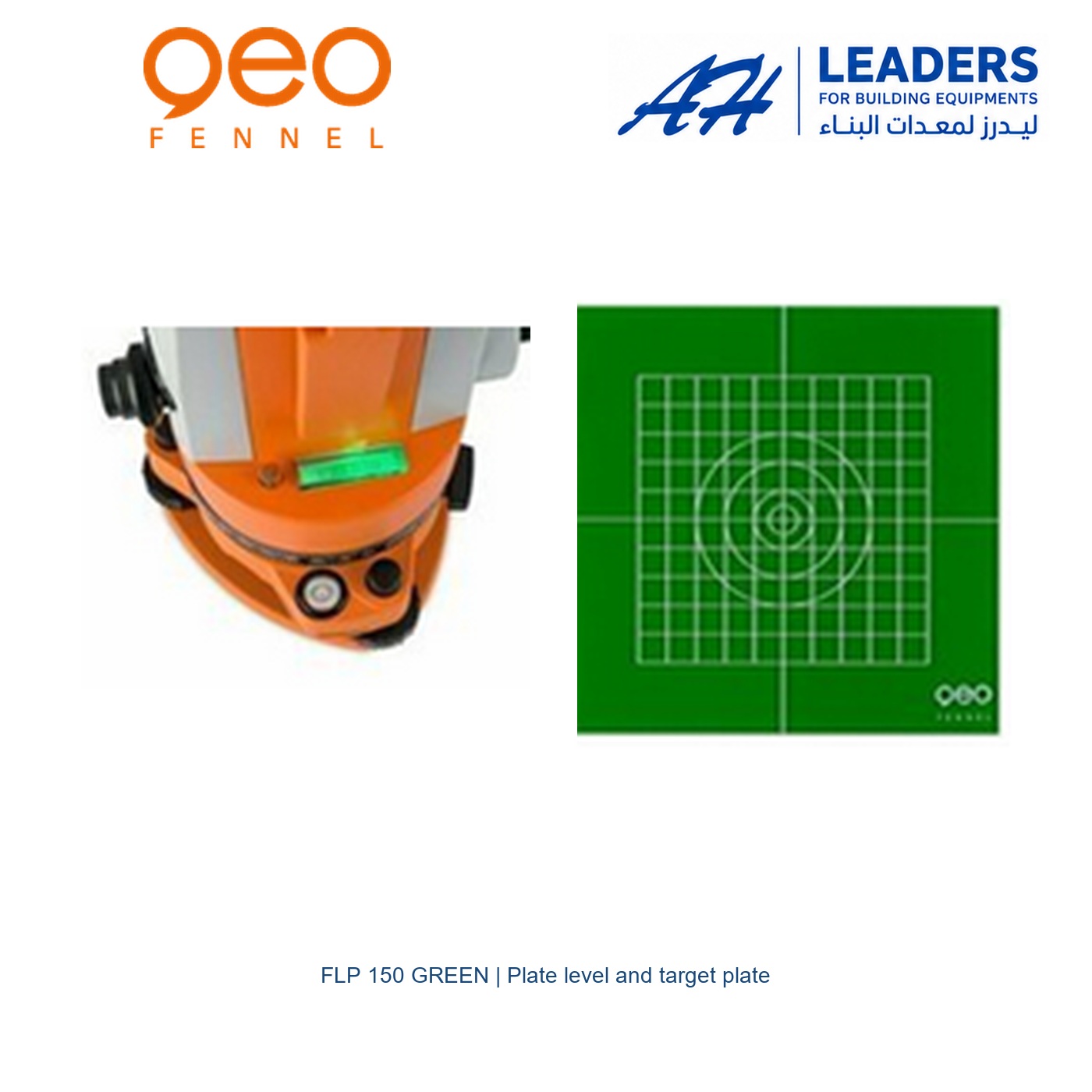

The telescope offers 25× magnification through a 36 mm objective. The green upper point is specified as visible at 120 m or more in daylight and 250 m or more at night. An illuminated plate level supports instrument setup in dim conditions.
Separate upward and downward accuracy
The upper reference has an accuracy of ±2.5 mm at 100 m. The lower point is specified at ±1 mm at 1.5 m. Both lasers are class 2; the two values are listed separately in the specification table.
Supplied equipment

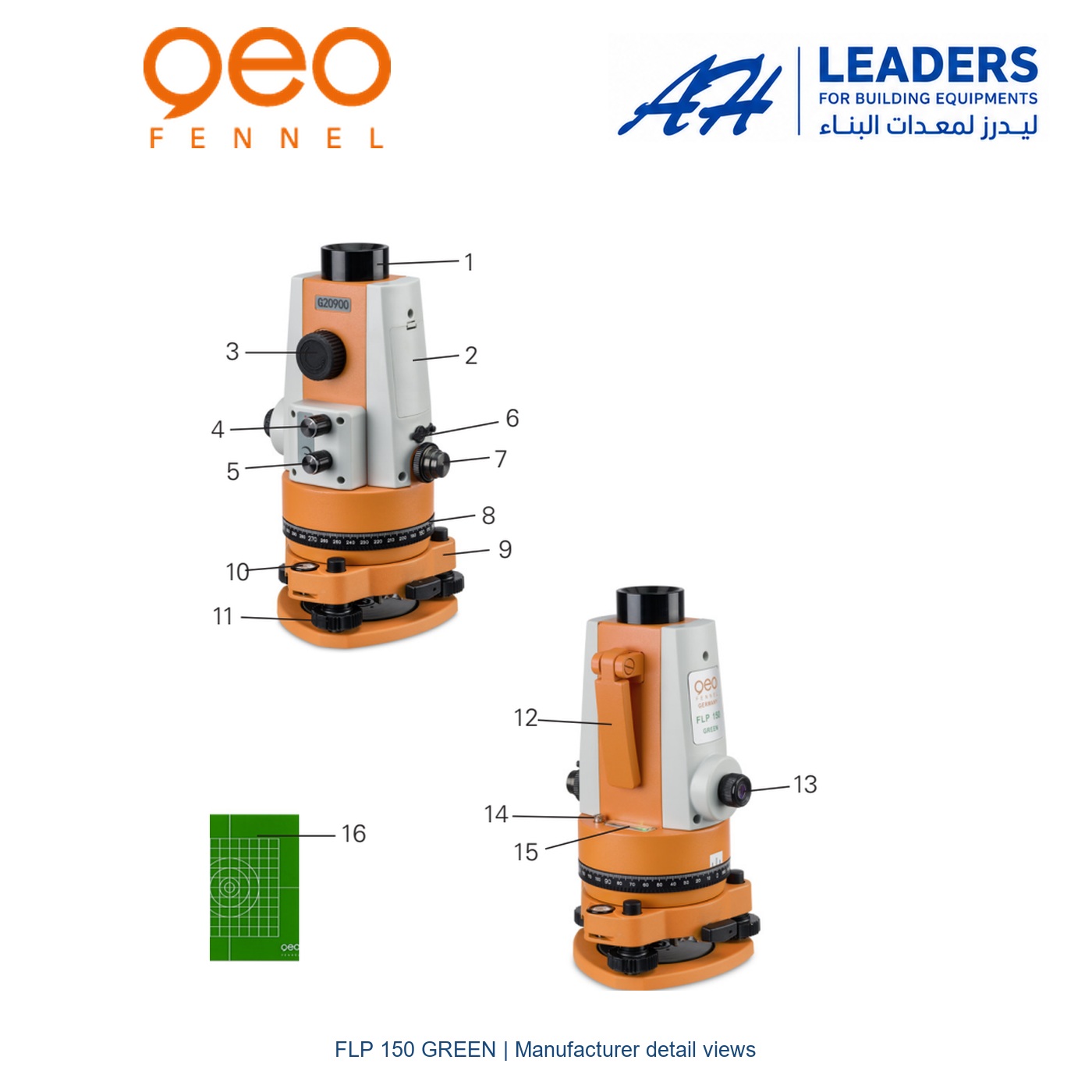

Rechargeable battery, charger and transport case. The manufacturer manual also lists a target plate and explains the controls and setup procedure.
The specification table follows the supplied catalogue edition. Consult the downloadable manual for operation and setup.
Technical Specifications
Manufacturer, geo-FENNEL, Article number, 310100, Telescope magnification, 25×, Objective diameter, 36 mm, Minimum focusing distance, 0.5 m, Plate level, 20″ / 2 mm, Upward laser colour / class, Green / Class 2, Upward spot diameter, 3 mm at 50 m, Daylight visibility, ≥120 m, Night visibility, ≥250 m, Deviation from optical axis, ≤5″ (catalogue), Upward accuracy, ±2.5 mm / 100 m, Downward laser colour / class, Red / Class 2, Downward accuracy, ±1 mm / 1.5 m, Power supply, Li-ion rechargeable battery, Operating time, 10 hours (catalogue), Operating temperature, −10°C to +50°C (catalogue), Dust / water protection, IP54, Weight, 2.8 kg
